Drum Brake System: Service and Repair

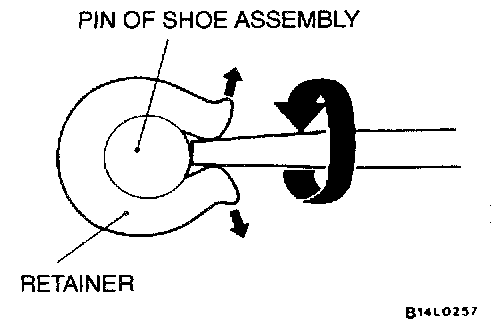

REMOVAL AND INSTALLATION REMOVAL SERVICE POINT <> RETAINER REMOVAL Use a flat-tipped screwdriver or a similar tool to open up the retainer joint. Then remove the retainer.

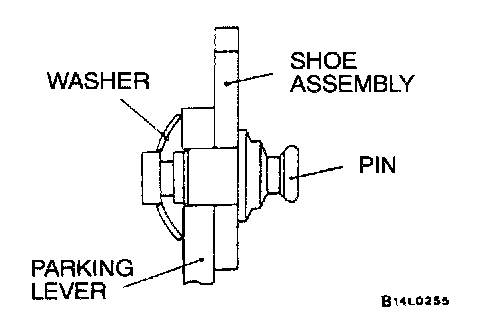

INSTALLATION SERVICE POINTS >>A<< WAVE WASHER INSTALLATION Install the washer in the direction shown in the illustration.

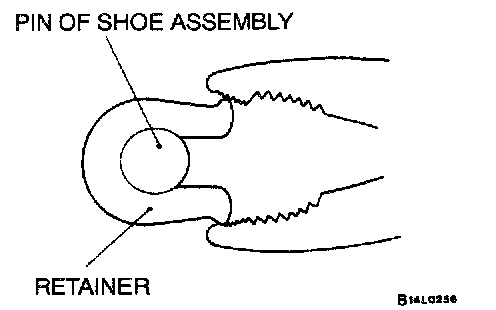

>>B<< RETAINER INSTALLATION Use pliers or a similar tool to close the retainer end onto the pin.
