Exhaust System: Service and Repair

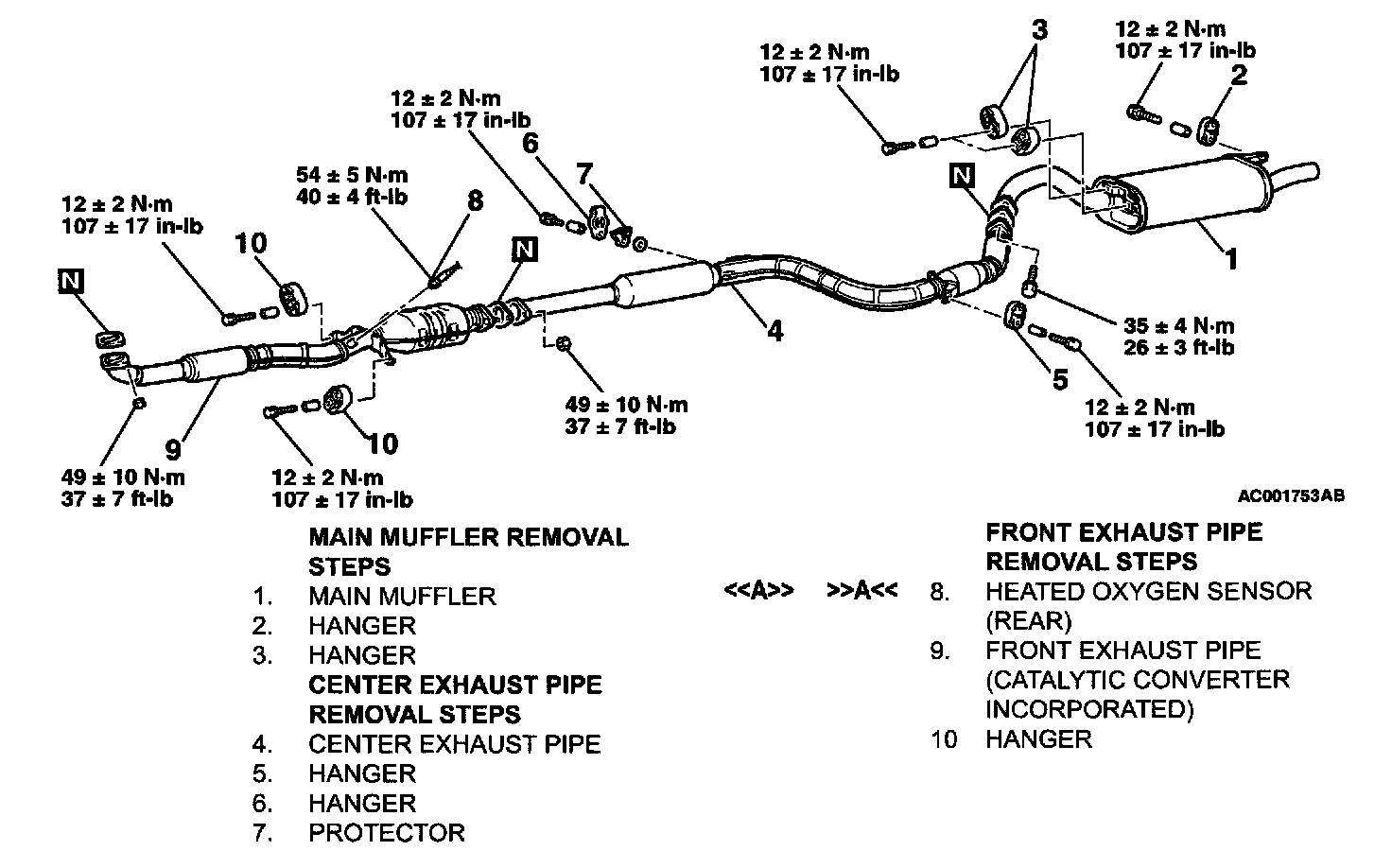

REMOVAL AND INSTALLATIONExhaust Pipe, Main Muffler And Catalytic Converter:
REMOVAL SERVICE POINT[[A]] HEATED OXYGEN SENSOR (REAR) REMOVALUse special tool MD998770 to remove the oxygen sensor.
INSTALLATION SERVICE POINT]]A[[ HEATED OXYGEN SENSOR (REAR) INSTALLATIONUse special tool MD998770 to install the oxygen sensor.
