Automatic Transmission/Transaxle: Adjustments
LINE PRESSURE ADJUSTMENT1. Drain the A/T fluid.
NOTE: Be sure to perform the hydraulic pressure test before attempting any adjustments.
2. Remove the valve body cover.

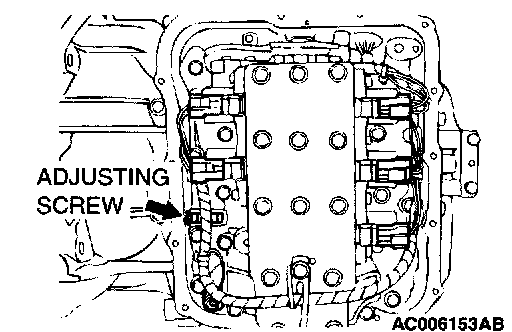

3. Turn the adjusting screw shown in the illustration to adjust the line pressure to the standard value. The pressure increases when the screw is turned to the left.
NOTE: When adjusting the line pressure, adjust to the middle of the standard value range.
Standard value: 1.01 - 1.05 MPa (147 - 152 psi)
4. Install the valve body cover. Pour in one quart A/T fluid.
5. Repeat the hydraulic pressure test. Readjust the line pressure if necessary.
