Front Door Window Regulator: Service and Repair

DOOR GLASS AND REGULATOR

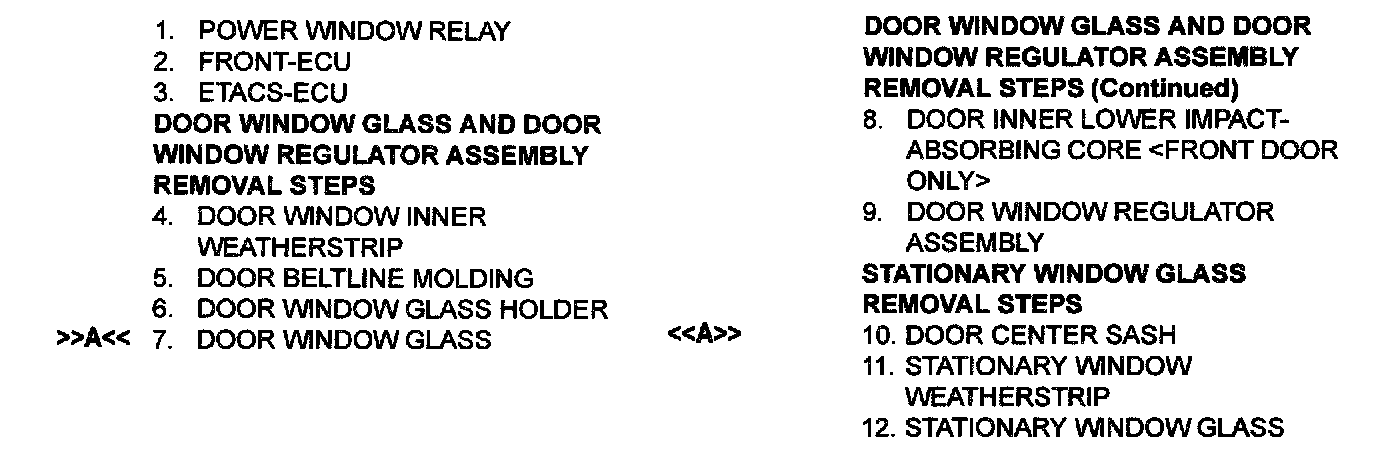

Door Glass and Regulator / Part 1:




Door Glass and Regulator / Part 2:






REMOVAL SERVICE POINT




[[A]] DOOR CENTER SASH REMOVAL
1. Remove the door outer opening weatherstrip from the door center sash only.
2. Remove the door center sash mounting screws, and then remove the door center sash from the door panel.

INSTALLATION SERVICE POINT

]]A[[ DOOR WINDOW GLASS INSTALLATION
1. Temporarily secure the door window glass to the door window regulator.
2. After raising the door window glass as far as it will go, fully secure the door window glass to the door window regulator assembly.

NOTE: When the door window glass is closed fully, the door limit switch will be reset.
