Compressor Clutch: Service and Repair
Magnetic Clutch:
DISASSEMBLY SERVICE POINT
<> SELF-LOCKING NUT REMOVAL
ASSEMBLY SERVICE POINTS

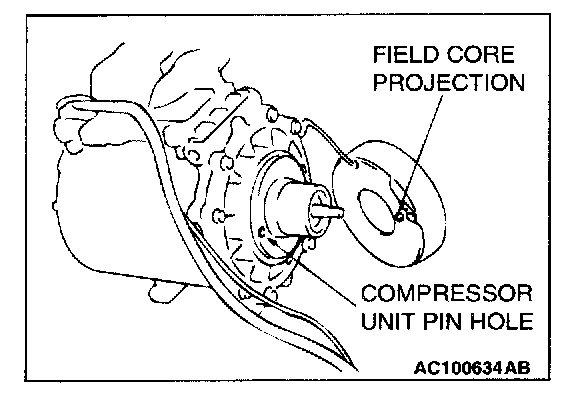

>>A<< FIELD CORE ATTACHMENT
Line up the pin hole on the compressor unit with the field core projection and attach.

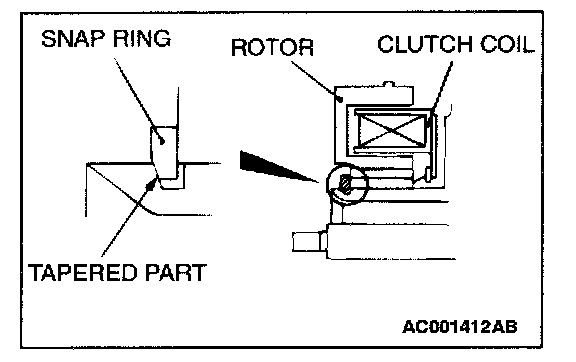

>>B<< SNAP RING INSTALLATION
Using snap ring pliers, fit the snap ring so that the snap ring's tapered part is on the outside.

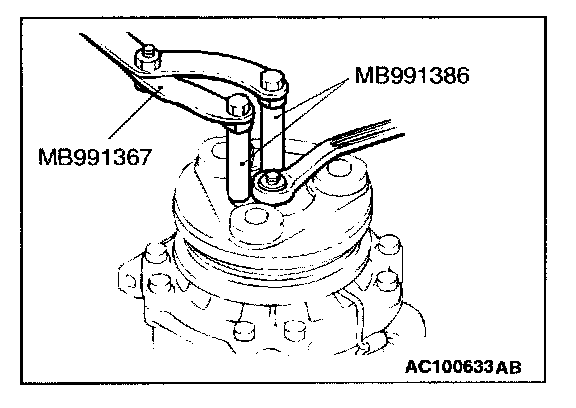

>>C<< SELF-LOCKING NUT INSTALLATION
Using a special tool, as when removing the nut, secure the armature and tighten the self-locking nut.

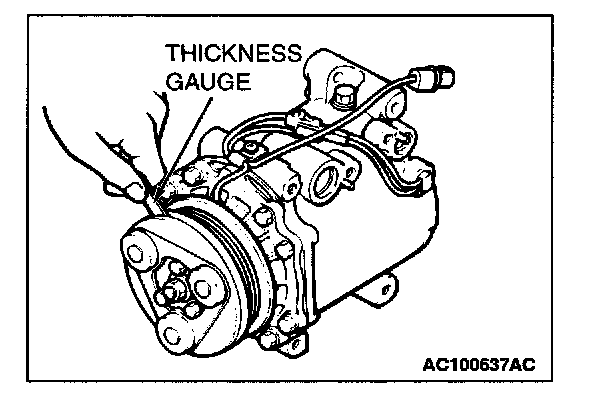

>>D<< AIR GAP ADJUSTMENT
Apply voltage from the battery to the magnetic clutch and check that the clutch air gap is inside the standard value. If outside the standard value, use a shim to adjust the gap.
Standard value: .............................0.3 - 0.5 mm (0.012 - 0.020 inch)
