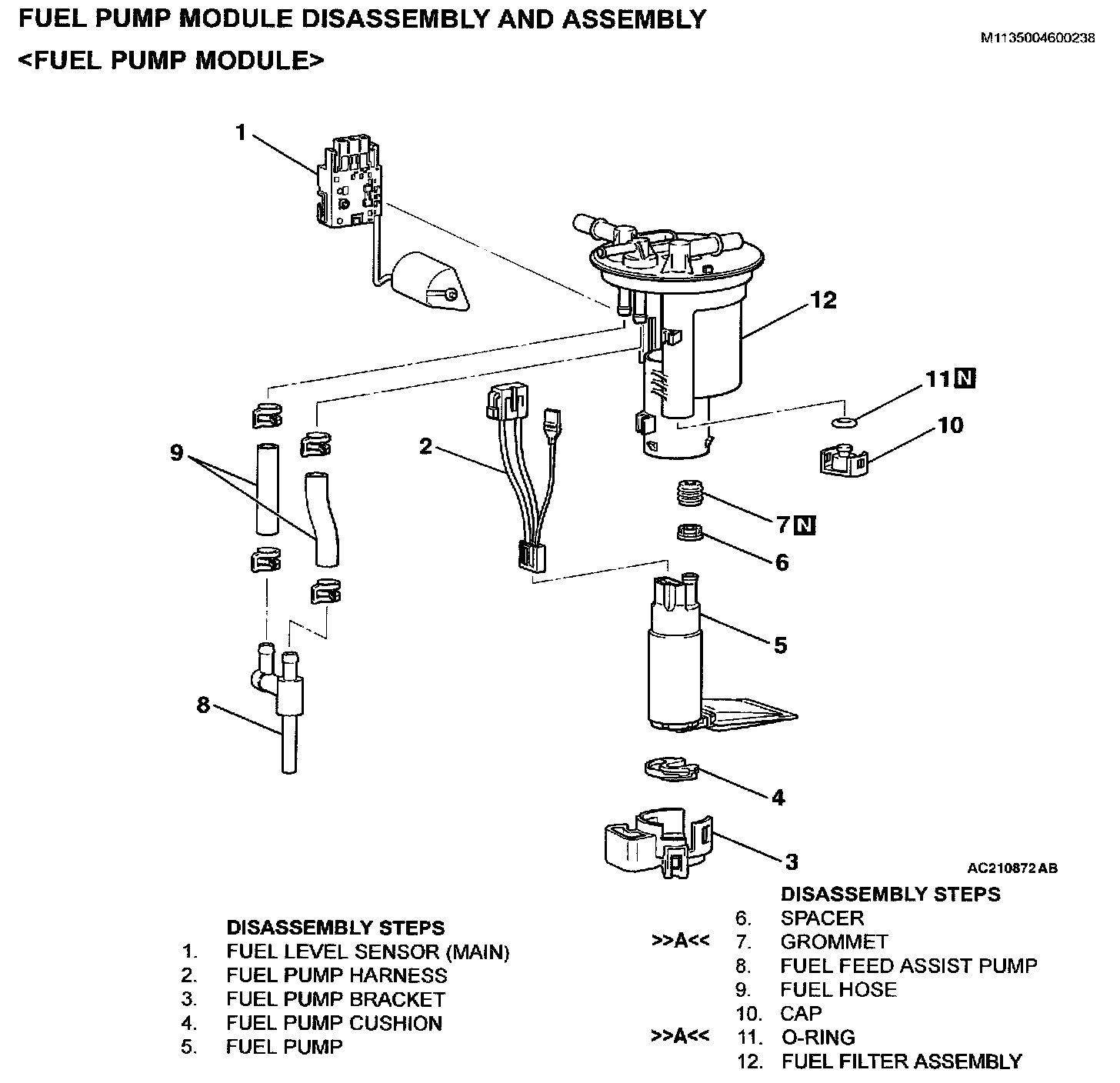

Fuel Pump Module Disassembly and Assembly
FUEL PUMP MODULEFuel Pump Module:
ASSEMBLY SERVICE POINT>>A<< O-RING GROMMET/INSTALLATIONApply gasoline on the O-ring and the grommet before mounting them to prevent damage or twisting.
