Air Bag

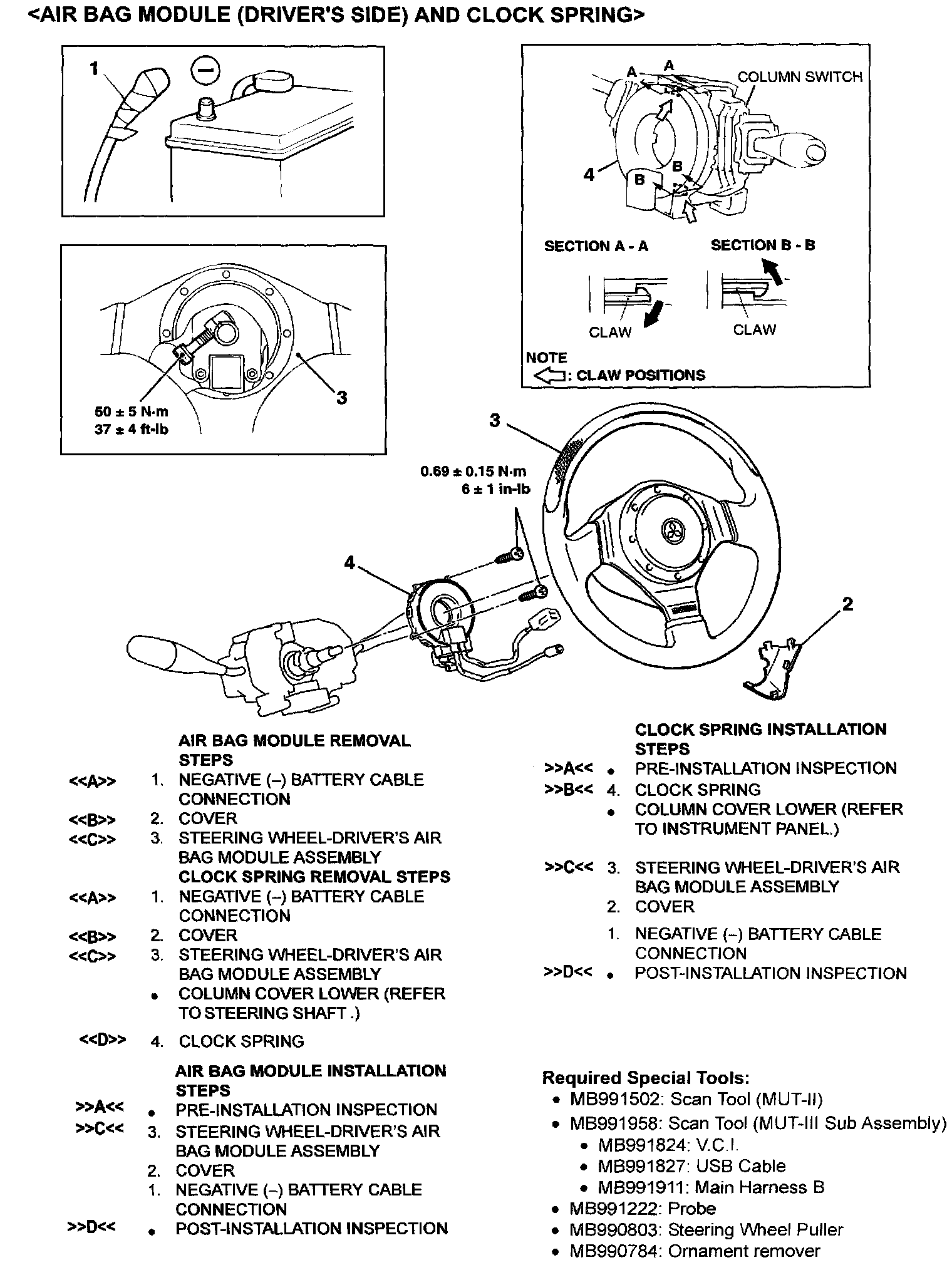

Air Bag Module (Driver's Side) And Clock Spring:

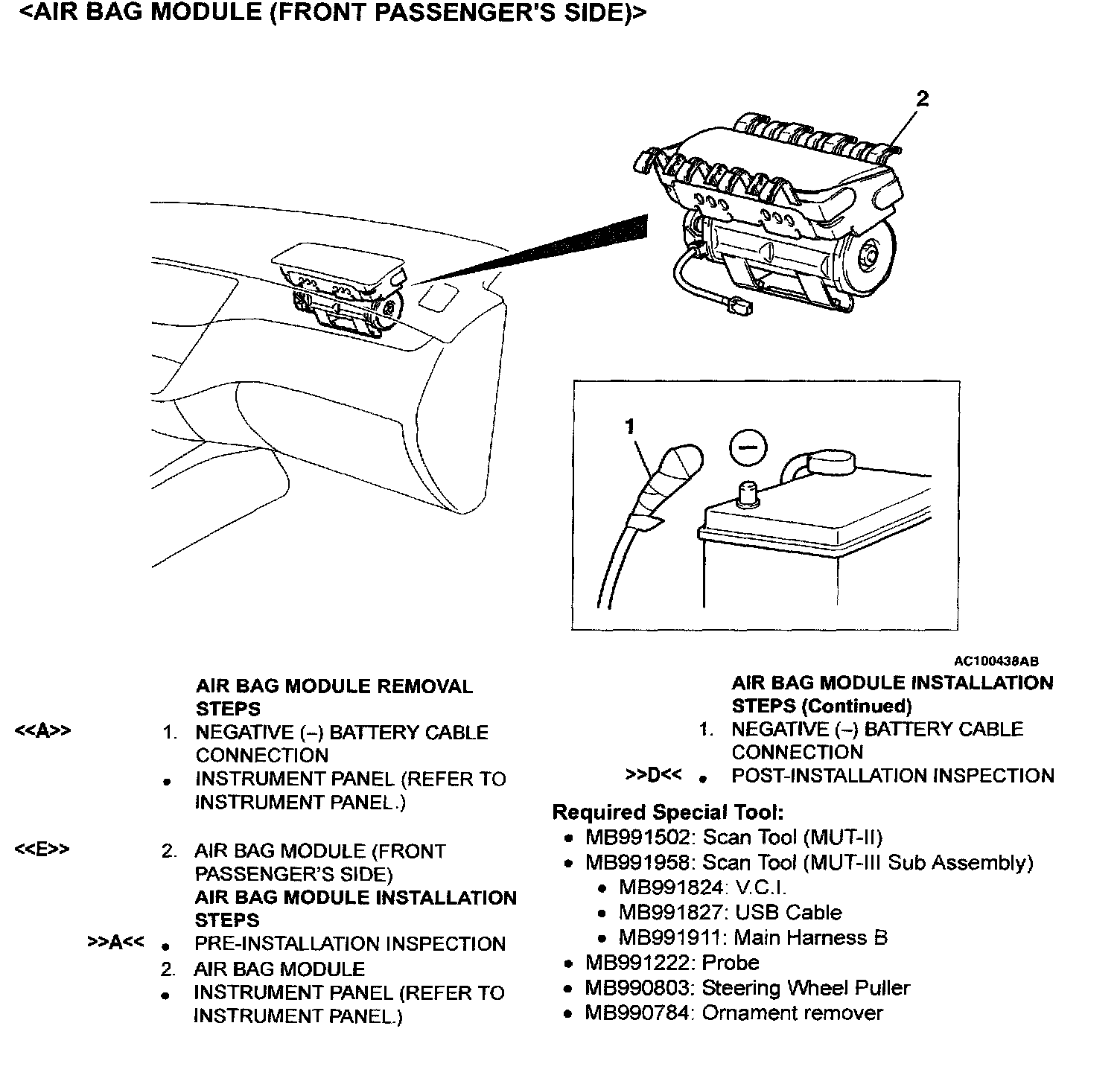

Air Bag Module (Front Passenger's Side):

ITEM SPECIFICATION
Clock spring screw 0.69 ± 0.15 N.m (6 ± 1 in-lb)
Hexagon socket head bolt 50 ± 5 N.m (37 ± 4 ft-lb)
Front impact sensor 5.0 ± 1.0 N.m (44 ± 9 in-lb)
