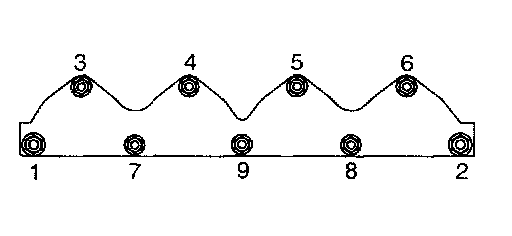

Exhaust Manifold







Exhaust manifold heat protector bolt 14 ± 1 (124 ± 8 inch lbs.)
Exhaust manifold nut M8 29 ± 3 (21 ± 2 ft. lbs.)
Exhaust manifold nut M10 49 ± 5 (36 ± 3 ft. lbs.)
