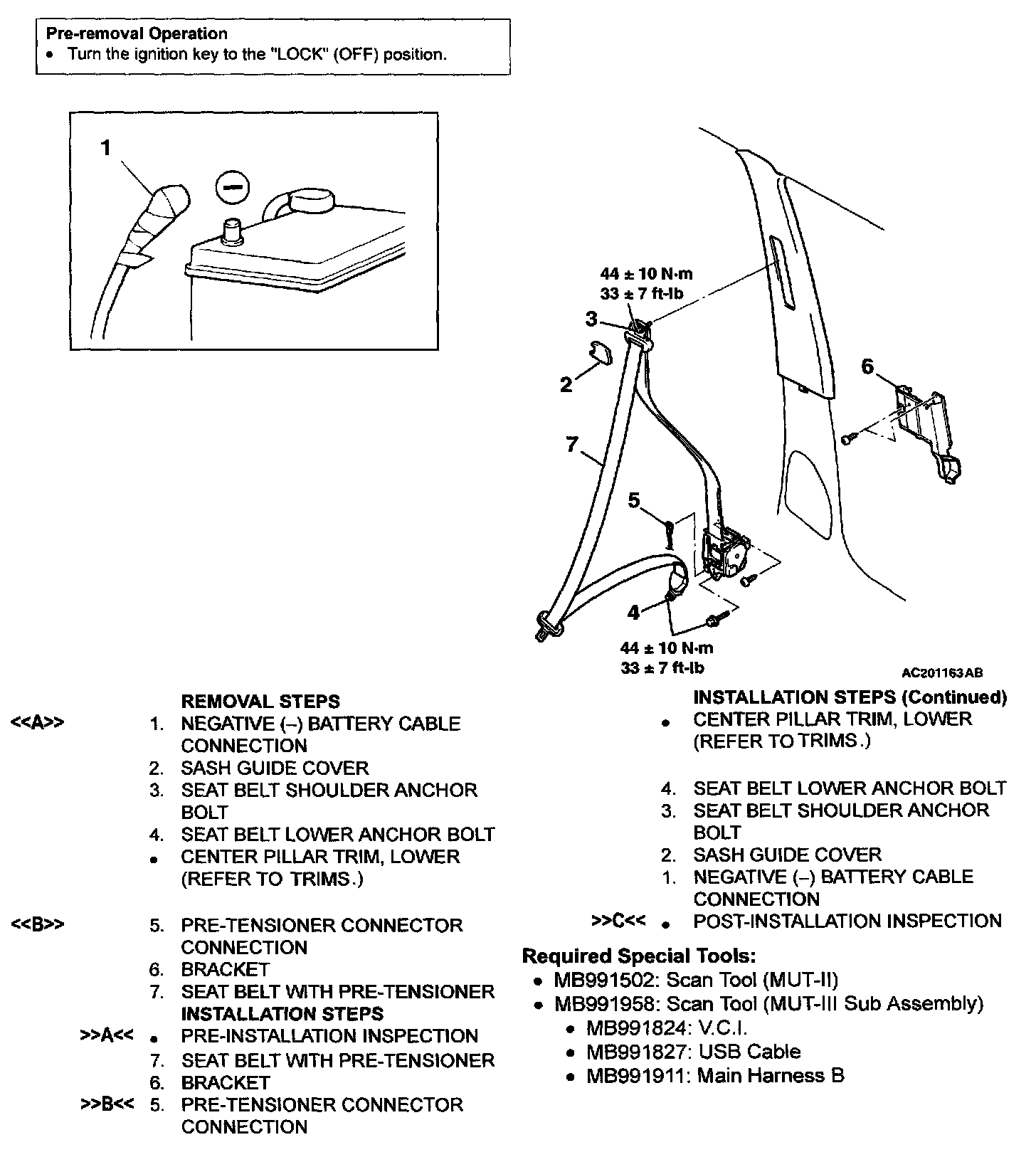

Seat Belt Tensioner
SEAT BELTS WITH PRE-TENSIONER:
ITEM SPECIFICATIONSeat belts with pre-tensionerSeat belt lower anchor bolt
44 ± 10 N.m (33 ± 7 ft-lb)Seat belt shoulder anchor bolt
44 ± 10 N.m (33 ± 7 ft-lb)Seat belt with pre-tensioner mounting bolt
44 ± 10 N.m (33 ± 7 ft-lb)
