Disassembly and Assembly

Starter Motor:






DISASSEMBLY SERVICE POINTS

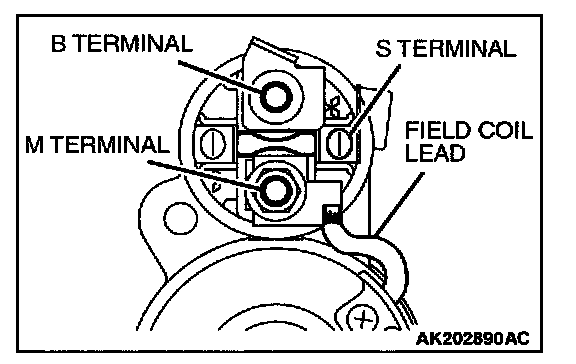

<> MAGNETIC SWITCH REMOVAL






CAUTION: Do not clamp the yoke assembly with a vise.

Disconnect the lead from the M terminal of the magnetic switch.

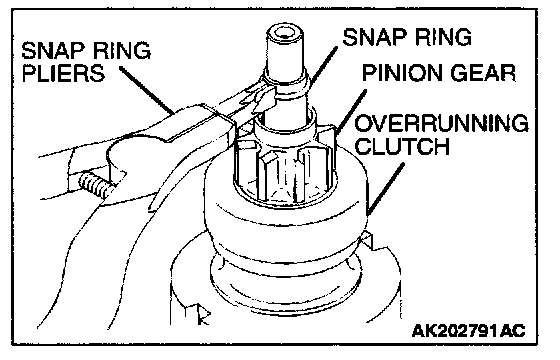

<> SNAP RING/STOP RING REMOVAL

Snap Ring/Stop Ring Removal:




1. Apply a long socket wrench of an appropriate size to the stop ring and strike the wrench to drive out the stop ring toward the pinion gear side.




2. Remove the snap ring with snap ring pliers, then remove the stop ring and overrunning clutch.
