Engine - Timing Belt Service Procedure Revision

No.: TSB-04-11-005

DATE: December, 2004

MODEL:
See Below

SUBJECT:
ENGINE TIMING BELT TENSIONING PROCEDURE - SERVICE MANUAL REVISION

PURPOSE

The engine timing belt tensioning procedure is incorrectly described in the affected service manual pages. This bulletin contains the corrected procedure.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
2003-2005 Lancer Evolution

AFFECTED SERVICE MANUAL PAGES
2003 Lancer Evolution, Volume 1, page 11B-18
2004 Lancer Evolution, Volume 1, page 11B-18
2005 Lancer Evolution, Volume 1, page 11B-18

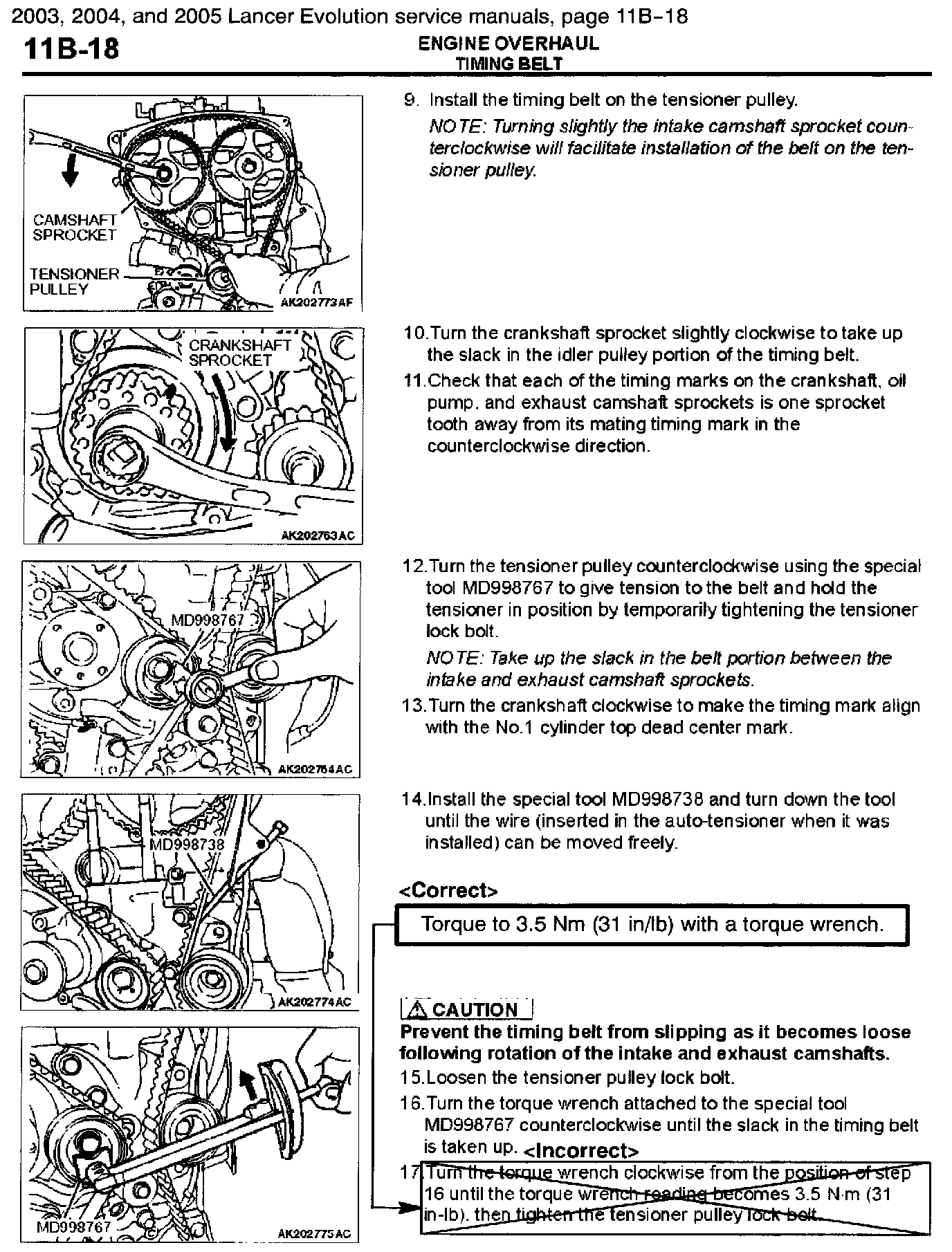

2003, 2004, and 2005 Lancer Evolution service manuals, page 11B-18
