Washer System Inspection

INSPECTION

FRONT WASHER MOTOR CHECK

1. Remove the washer tank assembly with the washer hose attached. Then fill the washer tank with water.
2. Check to see that the water is vigorously sprayed. When connecting the positive battery terminal to terminal number 2 and terminal number 1 to the negative battery terminal.

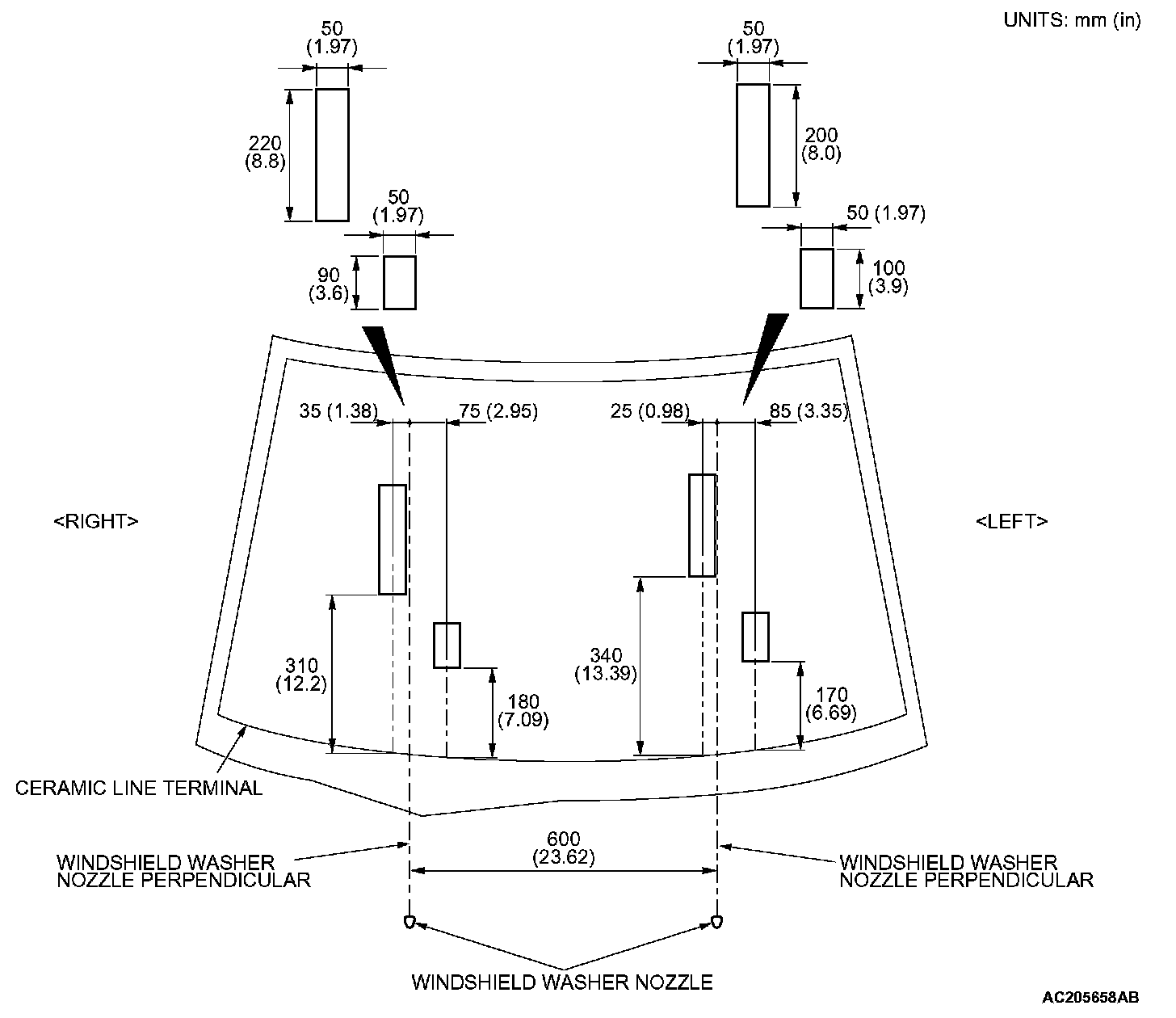

WINDSHIELD WASHER FLUID EJECTION CHECK

Move the nozzle to adjust the position so that the spray is in the area shown in the illustration.
