Control Assembly: Service and Repair
HEATER CONTROL ASSEMBLY AND A/C SWITCHREMOVAL AND INSTALLATION
HEATER CONTROL ASSEMBLY AND A/C SWITCH:
INSTALLATION SERVICE POINTS

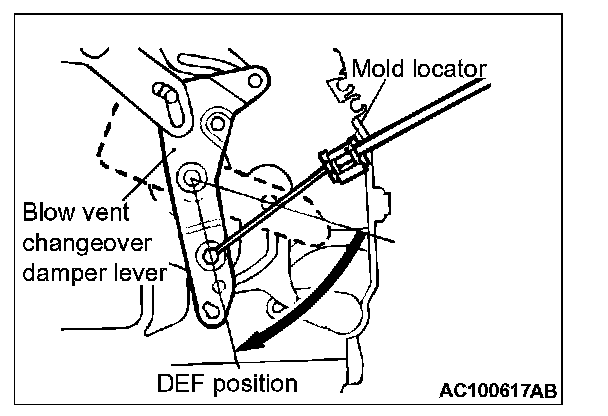

>>A<< BLOW VENT CHANGEOVER DAMPER CABLE
1. Set the heater control assembly's blow vent changeover knob to the DEF position.
2. Set the heater unit's blow vent changeover damper lever to the DEF position (turn the damper relay to the left until it stops) and install the cable.
3. Set the mold locator to the heater unit case and secure with a clip.

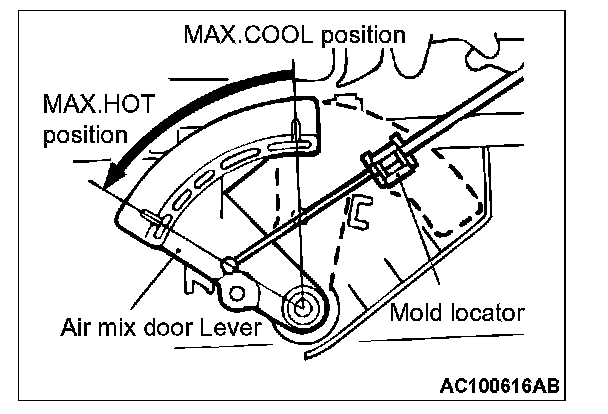

>>B<< AIR MIX DOOR CABLE CONNECTION
1. Turn the heater control assembly's temperature adjustment knob all the way to the HOT side.
2. Set the heater unit's air mix door lever to the MAX HOT position (turn the damper lever as the left illustration) and attach the cable.
3. Set the mold locator to the heater unit case and secure with a clip.
HEATER CONTROL ASSEMBLY DISASSEMBLY AND ASSEMBLY:
HEATER CONTROL ASSEMBLY DISASSEMBLY AND ASSEMBLY
DISASSEMBLY SERVICE POINT

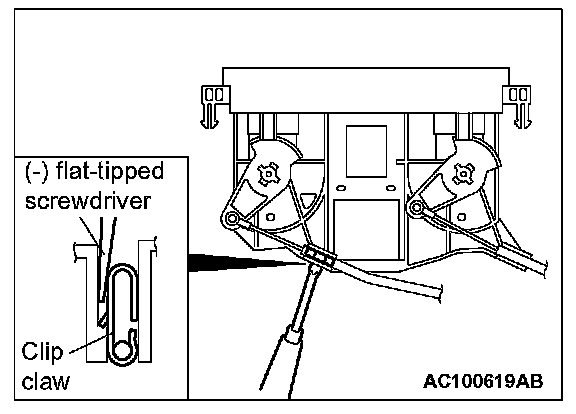

<> BLOW VENT CHANGEOVER DAMPER CABLE AND AIR MIX DAMPER CABLE REMOVAL
Insert a flat-tipped screwdriver into the clip through the inside of the control base and prize out the clip claw to disconnect the cables.
