Crankshaft Main Bearing Selection

INSTALLATION SERVICE POINTS

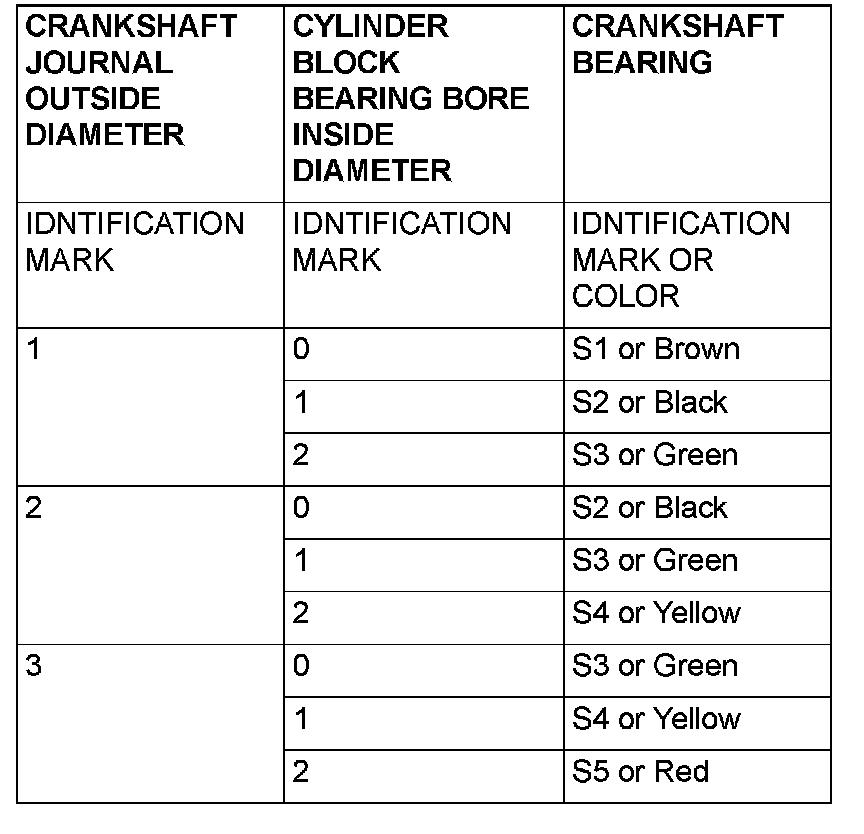

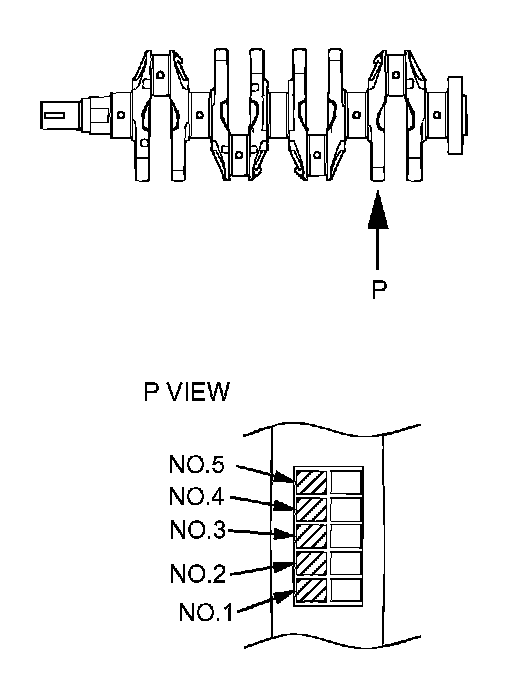

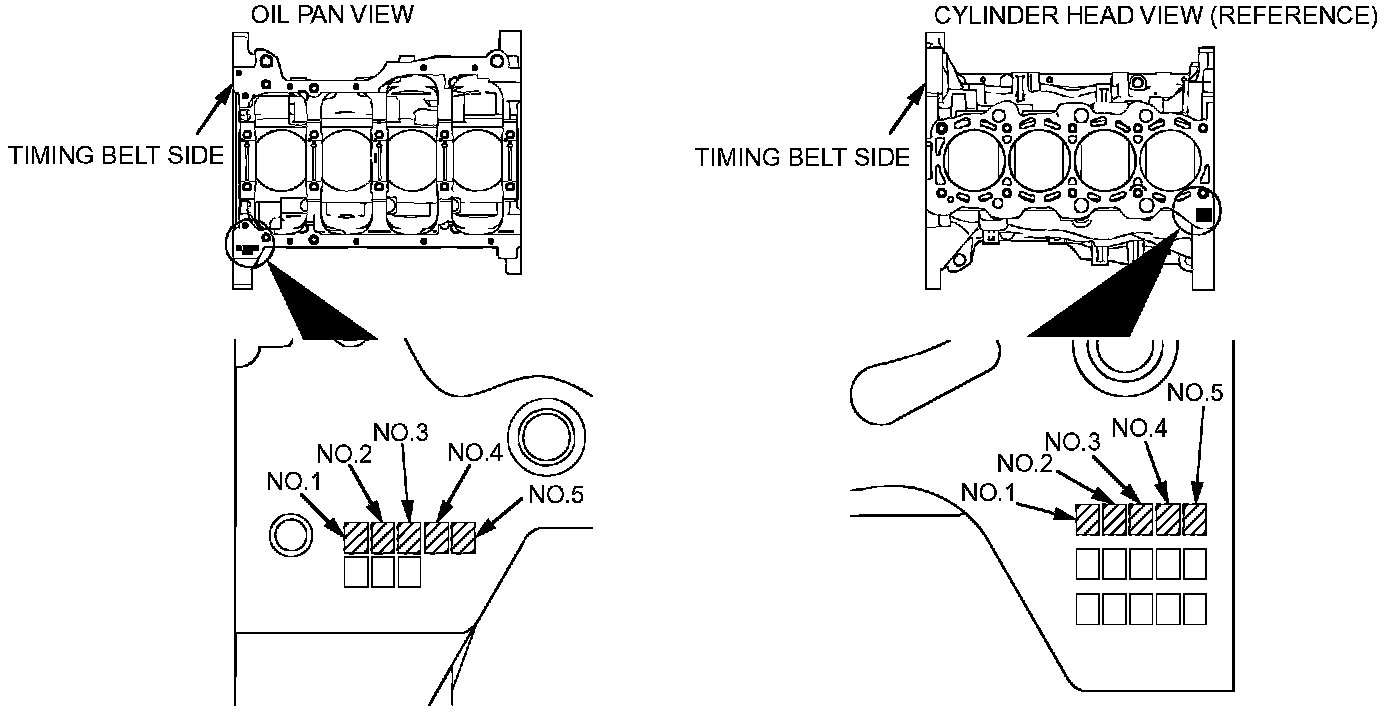

When replacing the bearings, crankshaft and/or cylinder block, read off the identification mark on the crankshaft and cylinder block (as illustrated), and select a bearing according to the table.
