Ignition Switch Lock Cylinder: Service and Repair

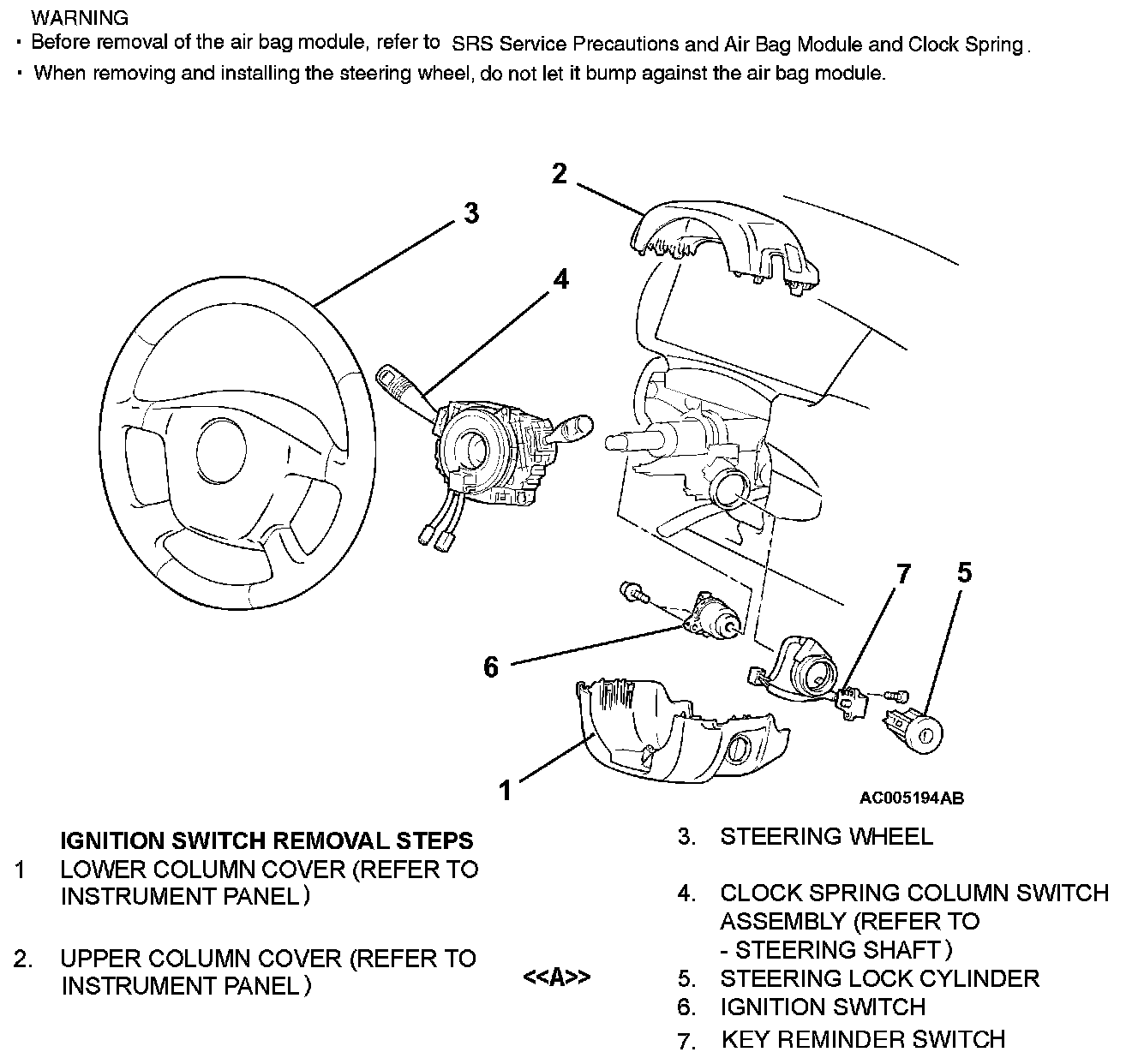

REMOVAL AND INSTALLATIONIgnition Switch:
REMOVAL SERVICE POINT<> STEERING LOCK CYLINDER REMOVAL 1.
Insert the key into steering lock cylinder to turn the ignition key to the "ACC" position.
2.
Insert the locking pin with a small crosstipped screwdriver, etc., and remove the steering lock cylinder.
