Front Door Window Regulator: Service and Repair


DOOR GLASS AND REGULATOR

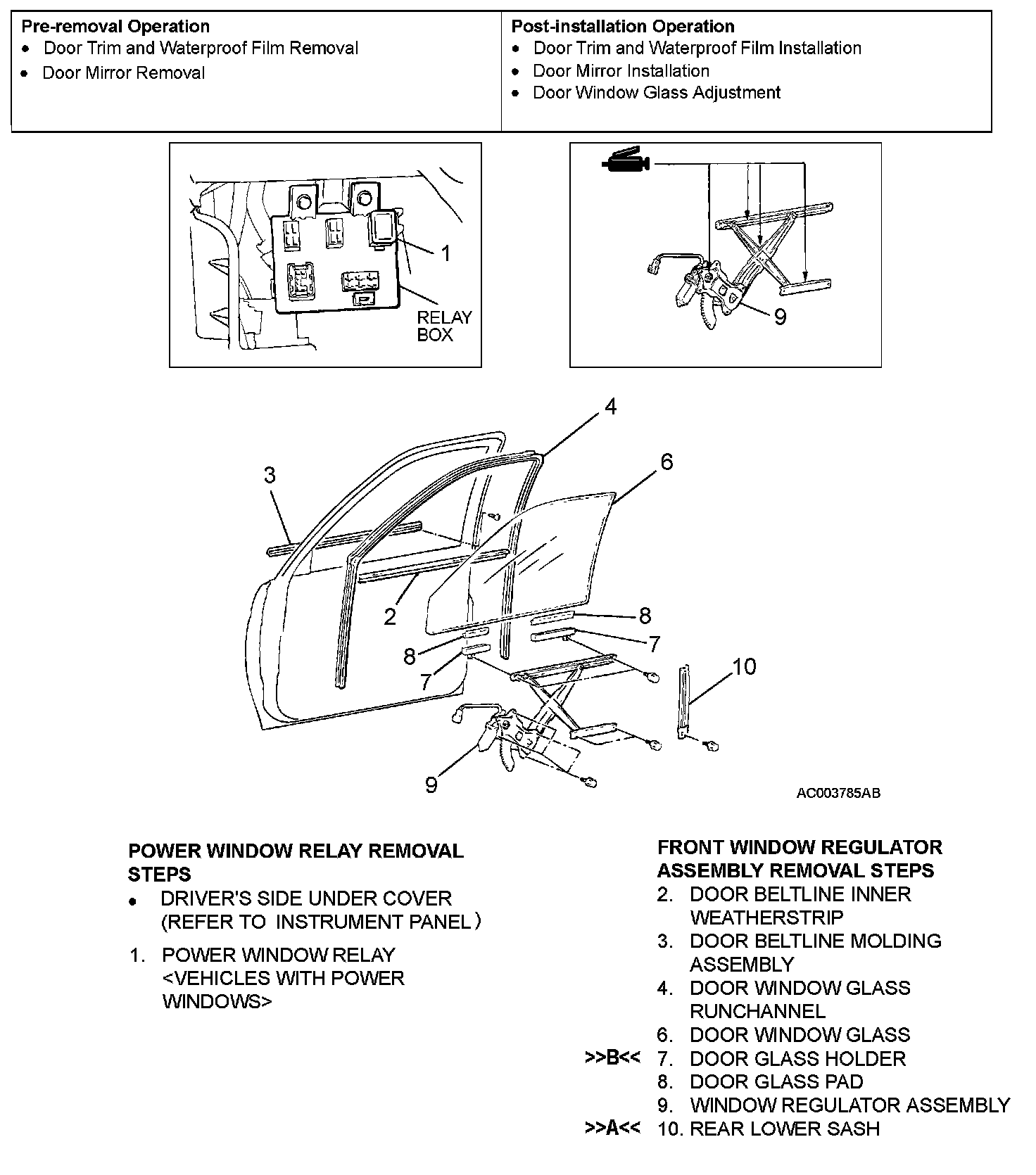

Front Door Glass & Regulator:

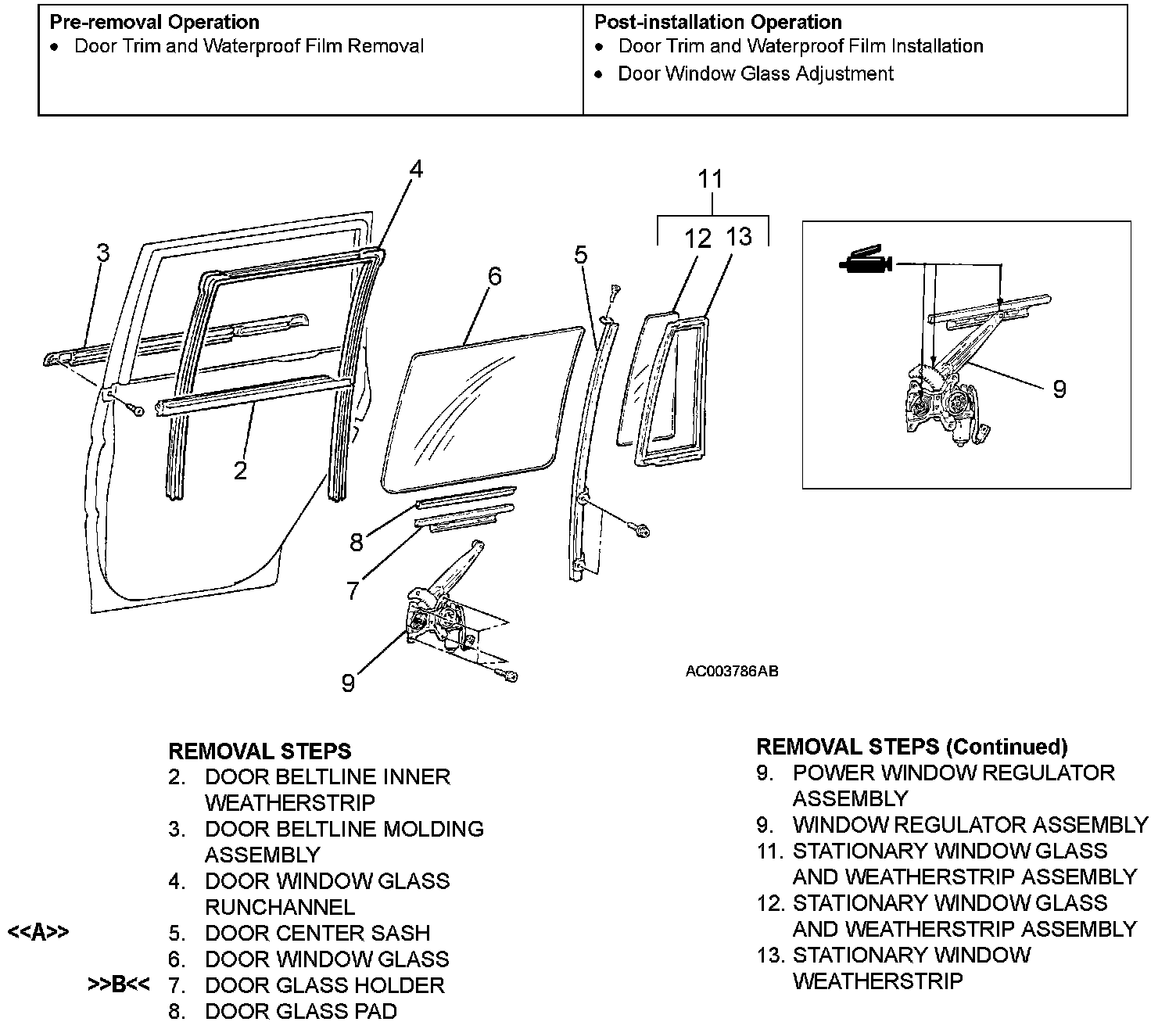

Rear Door Glass & Regulator:







REMOVAL SERVICE POINT

[[A]] DOOR CENTER SASH REMOVAL (REAR DOOR)







1. Remove the door outer opening weatherstrip from the door center sash section only.
2. Remove the mounting screw for the door center sash, and remove the door center sash from the door panel.


INSTALLATION SERVICE POINT

]]A[[ REAR LOWER SASH INSTALLATION
Securely insert the rear lower sash into the window rear sash.







]]B[[ DOOR GLASS HOLDER INSTALLATION
Install the glass pad and the glass holders to the window glass as shown in the illustration.

Standard value:
(A) ...............106.7 - 108.2 mm (4.20 - 4.26 inches)
(B) ...............417.5 - 420.5 mm (16.44 - 16.56 inches)
(C) ...............127 - 131 mm (5.0 - 5.2 inches)
