Cruise Control Switch: Testing and Inspection

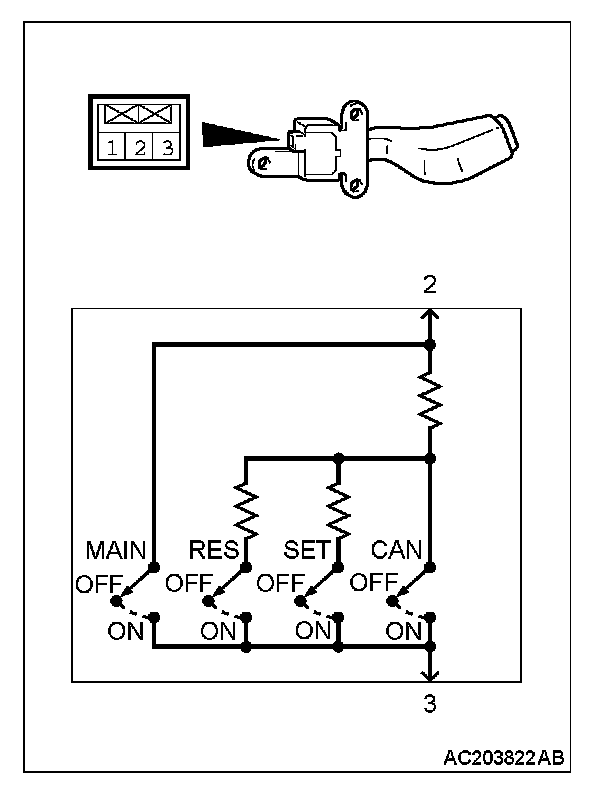

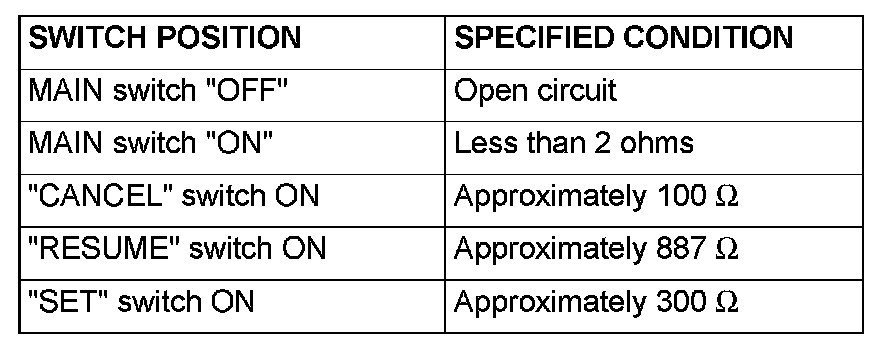

AUTO-CRUISE CONTROL SWITCH CHECKMeasure the resistance between terminal 2 and terminal 3 when each of the "SET," "RESUME," "CANCEL" and MAIN switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.
