Disassembly and Assembly

COMPRESSOR

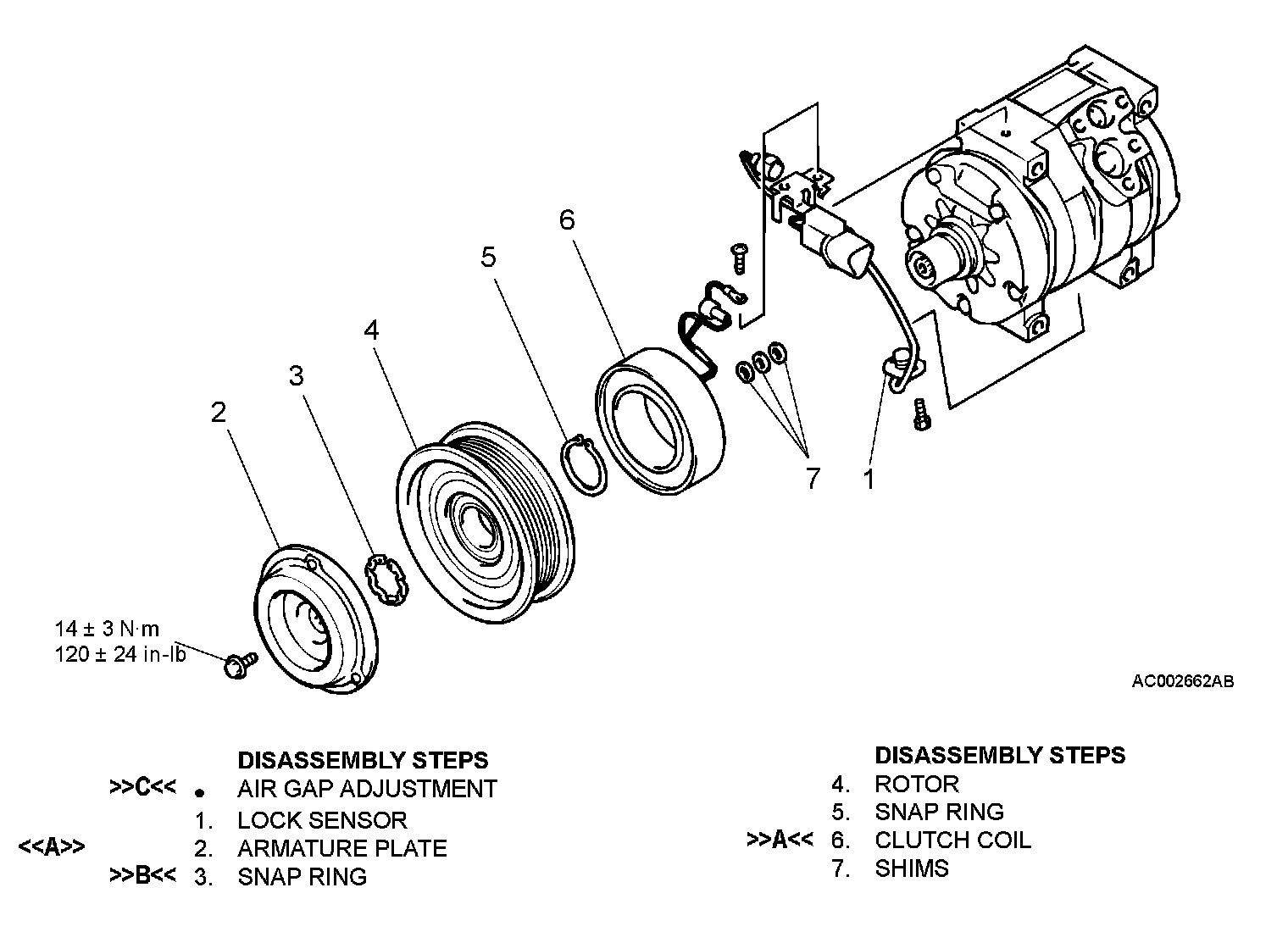

Compressor:

DISASSEMBLY SERVICE POINT

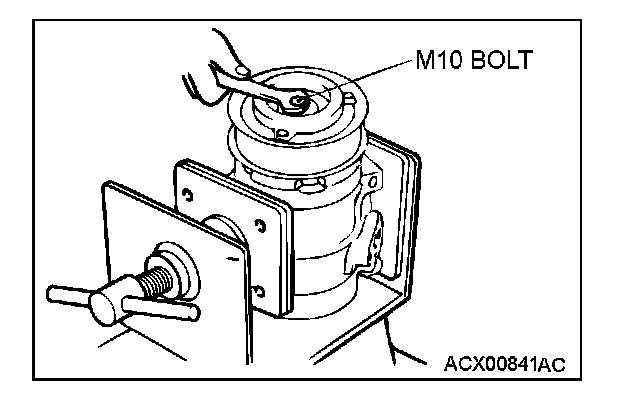

<> ARMATURE PLATE REMOVAL
1. Remove the armature plate mounting nut.

2. Tighten the M 10 bolt into the armature plate bolt hole and disconnect the serration of the shaft and the armature plate.

ASSEMBLY SERVICE POINTS

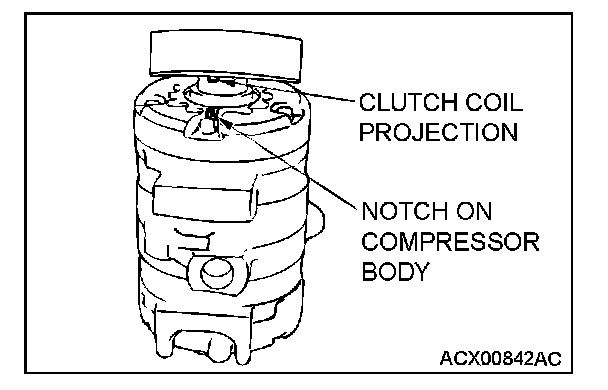

>>A<< CLUTCH COIL INSTALLATION
Install the clutch coil to the compressor, mating the compressor body slot to the clutch coil projection.

>>B<< SNAP RING INSTALLATION
Install the snap ring taking care not to enlarge the inner diameter too much. When the inner diameter is over 30.5 mm (1.2 inch) resulting from being enlarged too much, replace the snap ring with a new one.

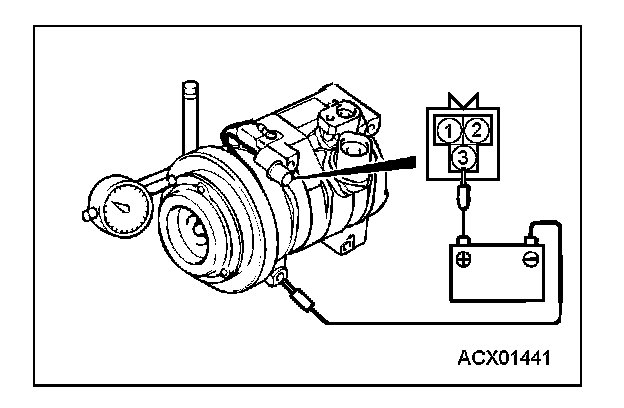

>>C<< AIR GAP ADJUSTMENT
Check whether or not the air gap of the clutch is within the standard value.

Standard Value: 0.35 - 0.65 mm (0.014 - 0.026 inch)

NOTE: If there is a deviation of the air gap from the standard value, make the necessary adjustment by adjusting the number of shims.
