Condenser HVAC: Service and Repair

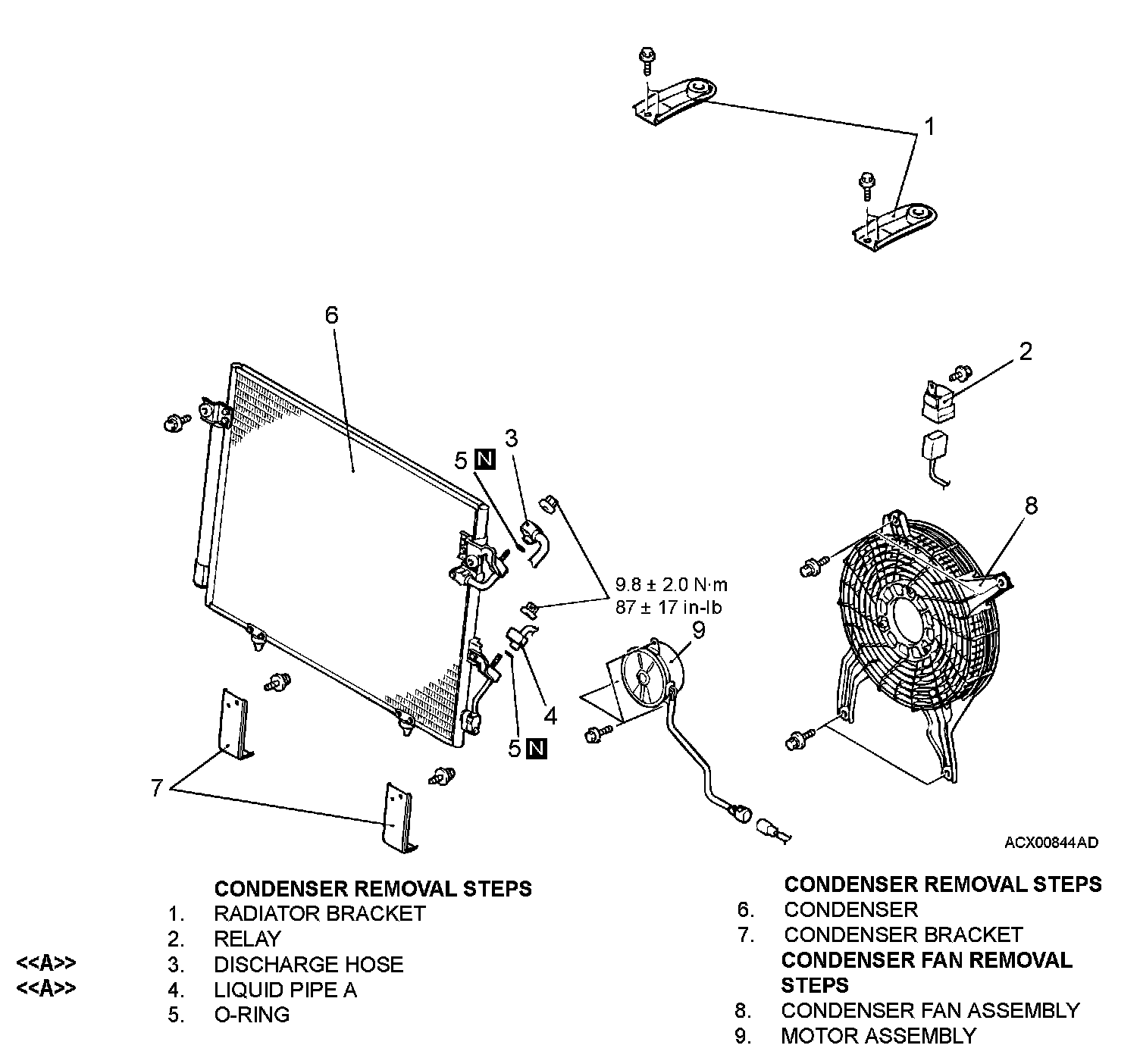

CONDENSER AND CONDENSER FAN MOTOR

Condenser And Condenser Fan Motor:

REMOVAL SERVICE POINT

<> DISCHARGE HOSE/LIQUID PIPE A REMOVAL

CAUTION: Seal the hoses completely, otherwise the compressor oil and receiver will absorb water vapor easily, possibly damaging the compressor and deteriorating performance.

Plug the disconnected hose, pipe and condenser nipple to prevent foreign matter from getting into them.
