Alignment: Testing and Inspection
STEERING ANGLE CHECK 1.

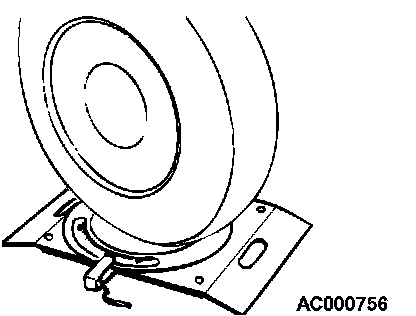

Place the front wheel on a turning radius gauge and measure the steering angle.

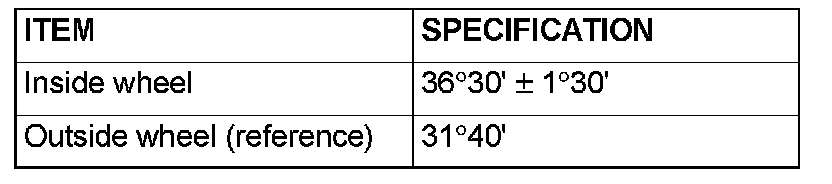

Standard value 2.

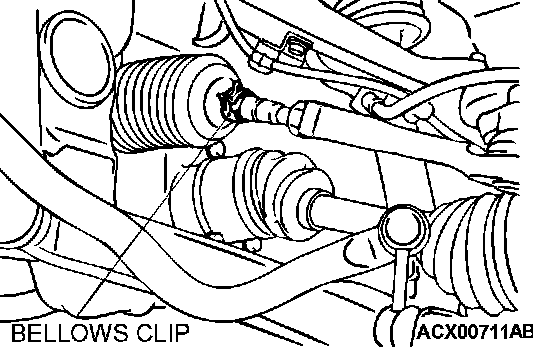

If the steering angle is not within the standard value, adjust the toe-in by undoing the clip and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
Standard value:
2.5 ± 2.5 mm (0.1 ± 0.1 inch)
