Pinout Values and Diagnostic Parameters

CHECK AT ECU TERMINAL

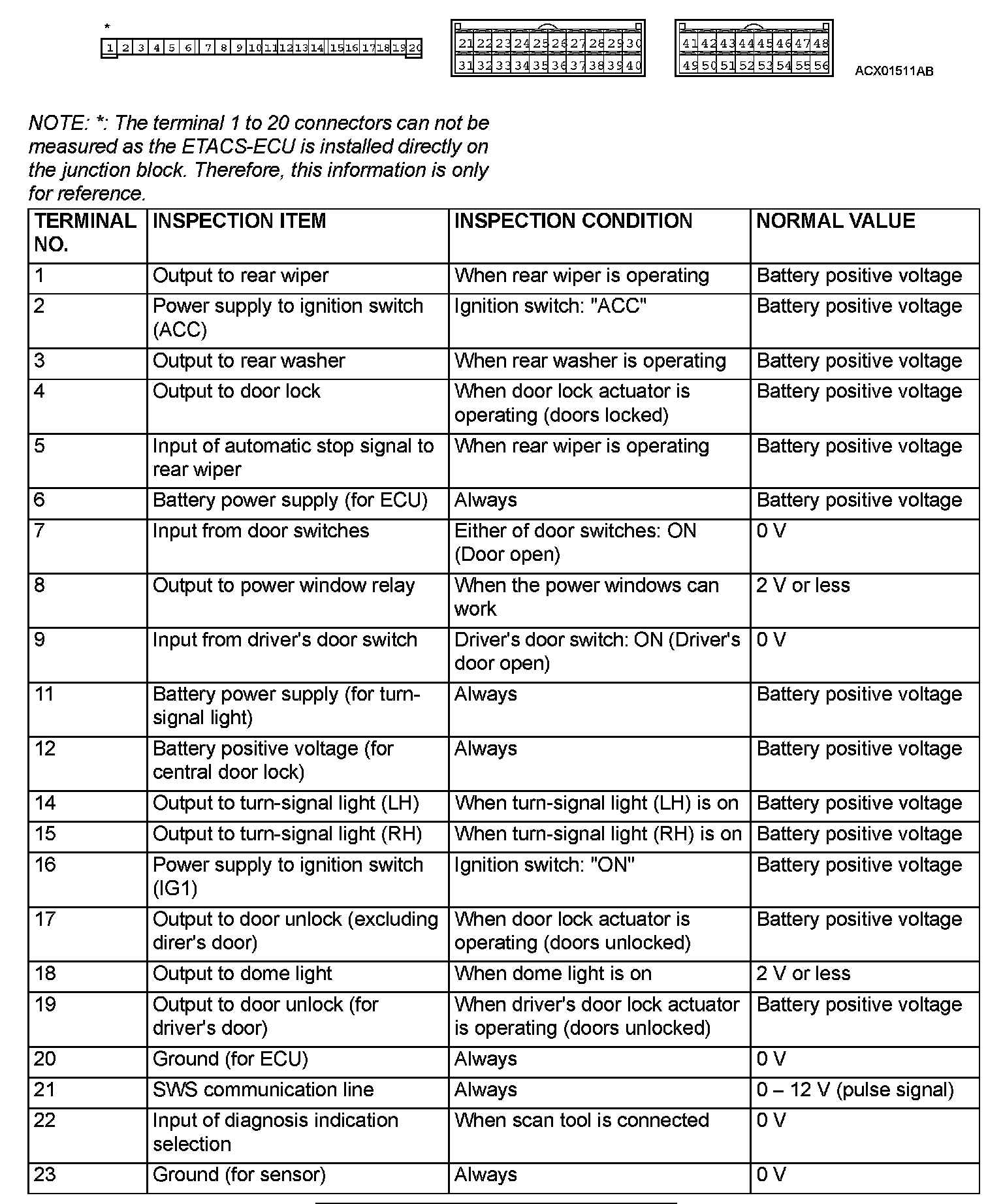

ETACS-ECU Connector View And Terminals Part 1:

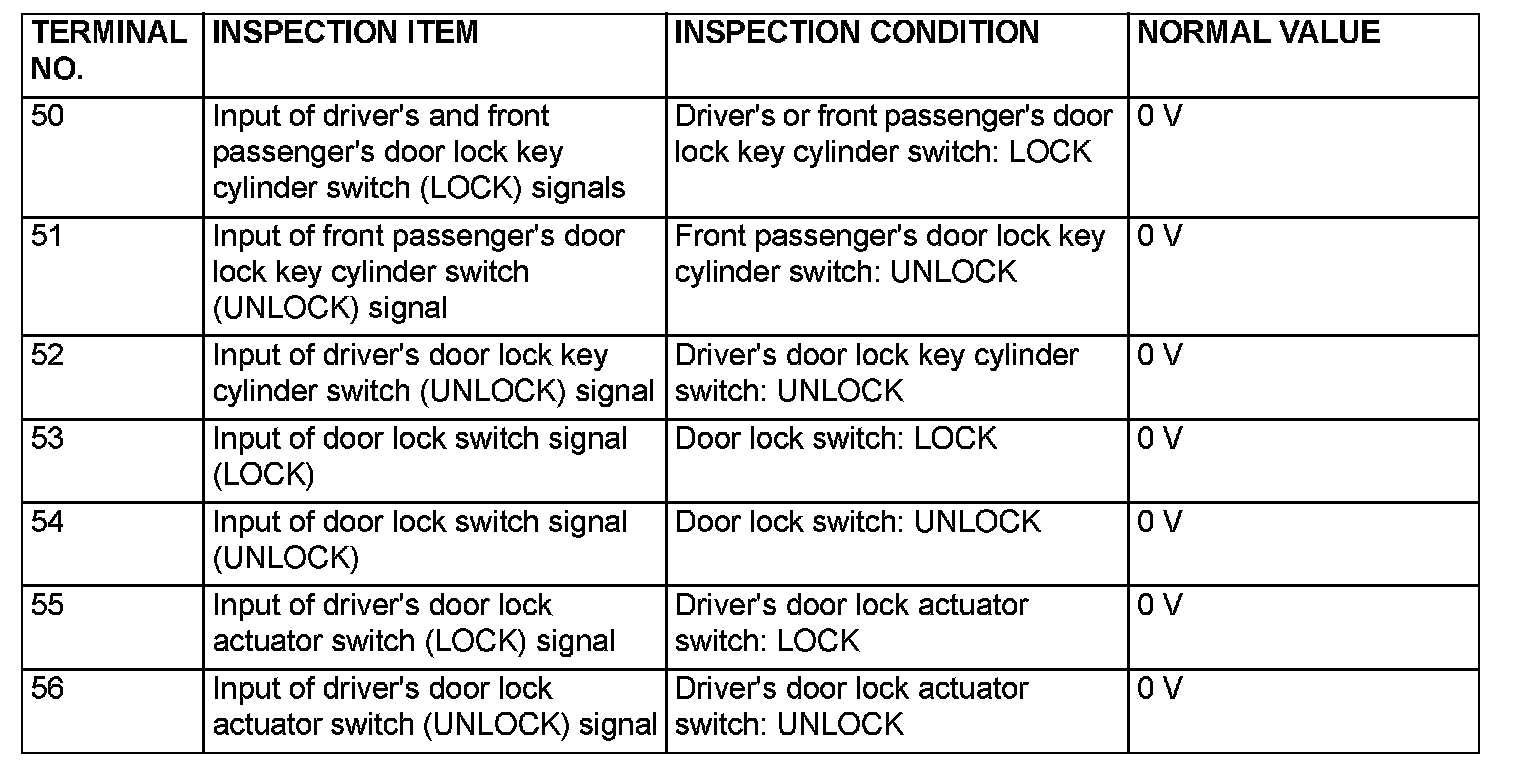

ETACS-ECU Connector View And Terminals Part 2:




ETACS-ECU Connector View And Terminals Part 3:




1. ETACS-ECU

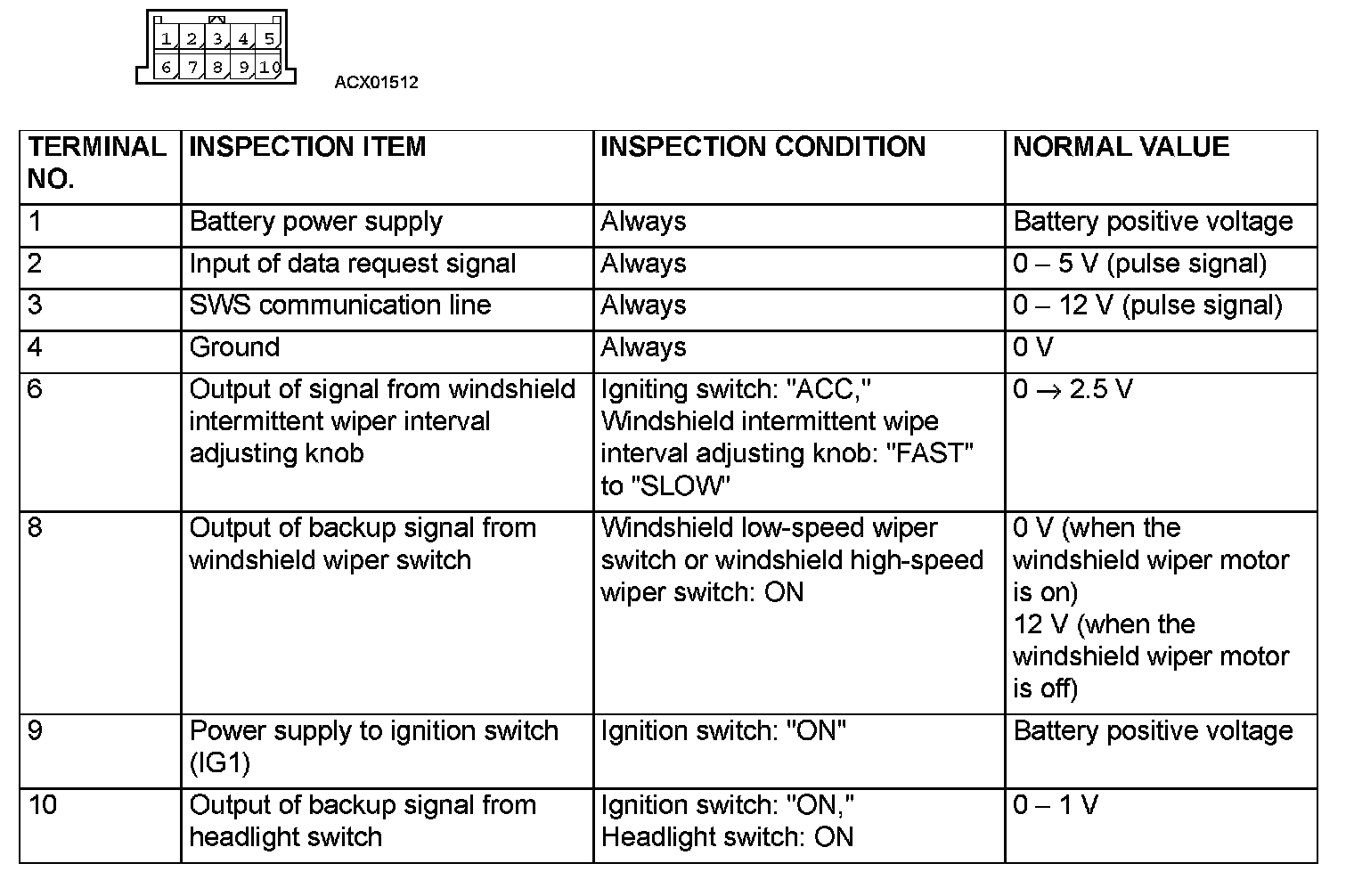

Column Switch Connector View And Terminals:




2. COLUMN SWITCH

Front-ECU Connector View And Terminals:




3. FRONT-ECU

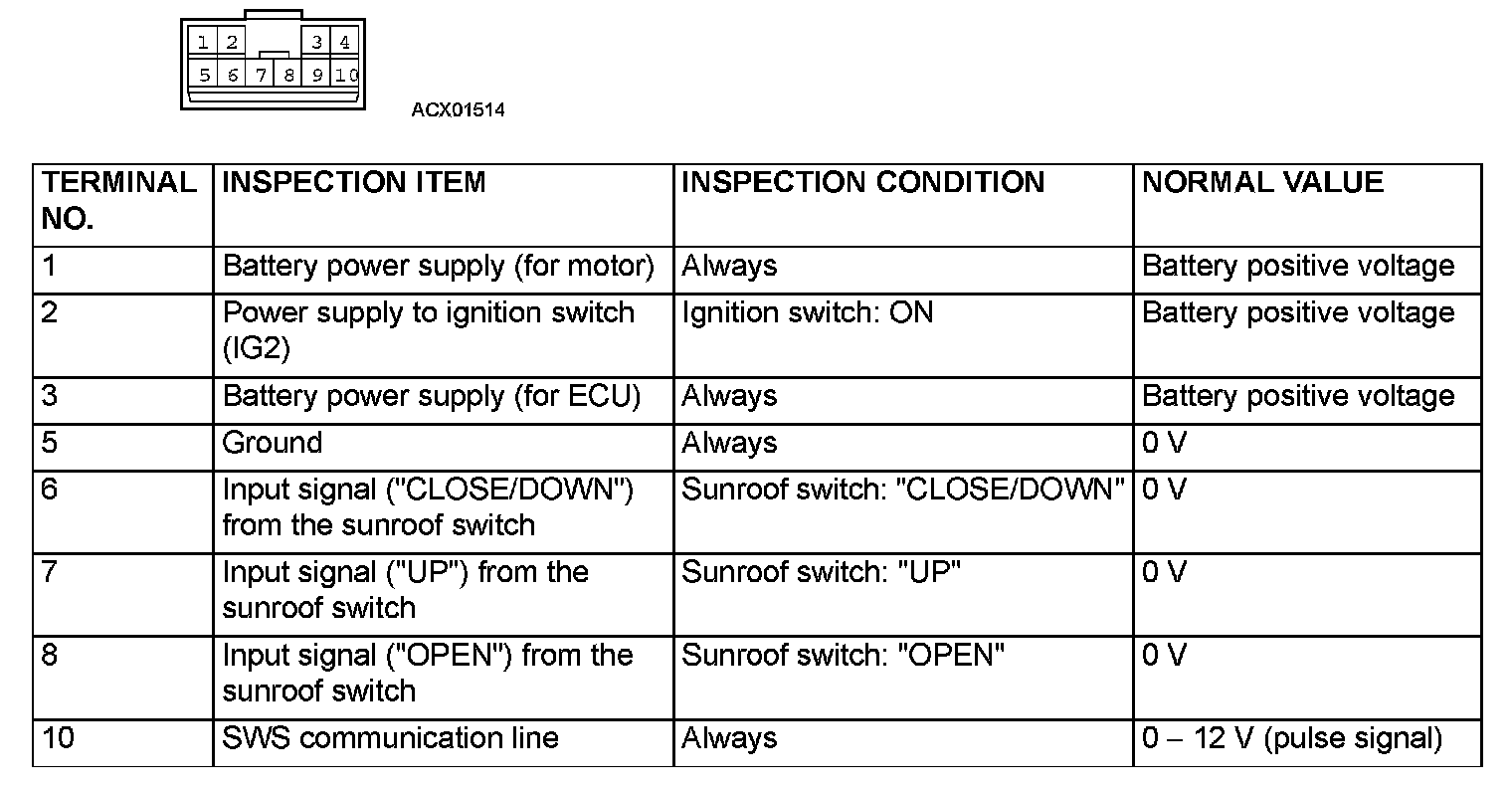

Sunroof Motor Assembly Connector View And Terminals:




4. SUNROOF MOTOR ASSEMBLY
