Function Diagnosis

The table shows the service data and their normal condition which are displayed during the "FUNCTION DIAG." The row "Normal condition" shows values which are shown when each operation is made.

Part 1:

Part 2:

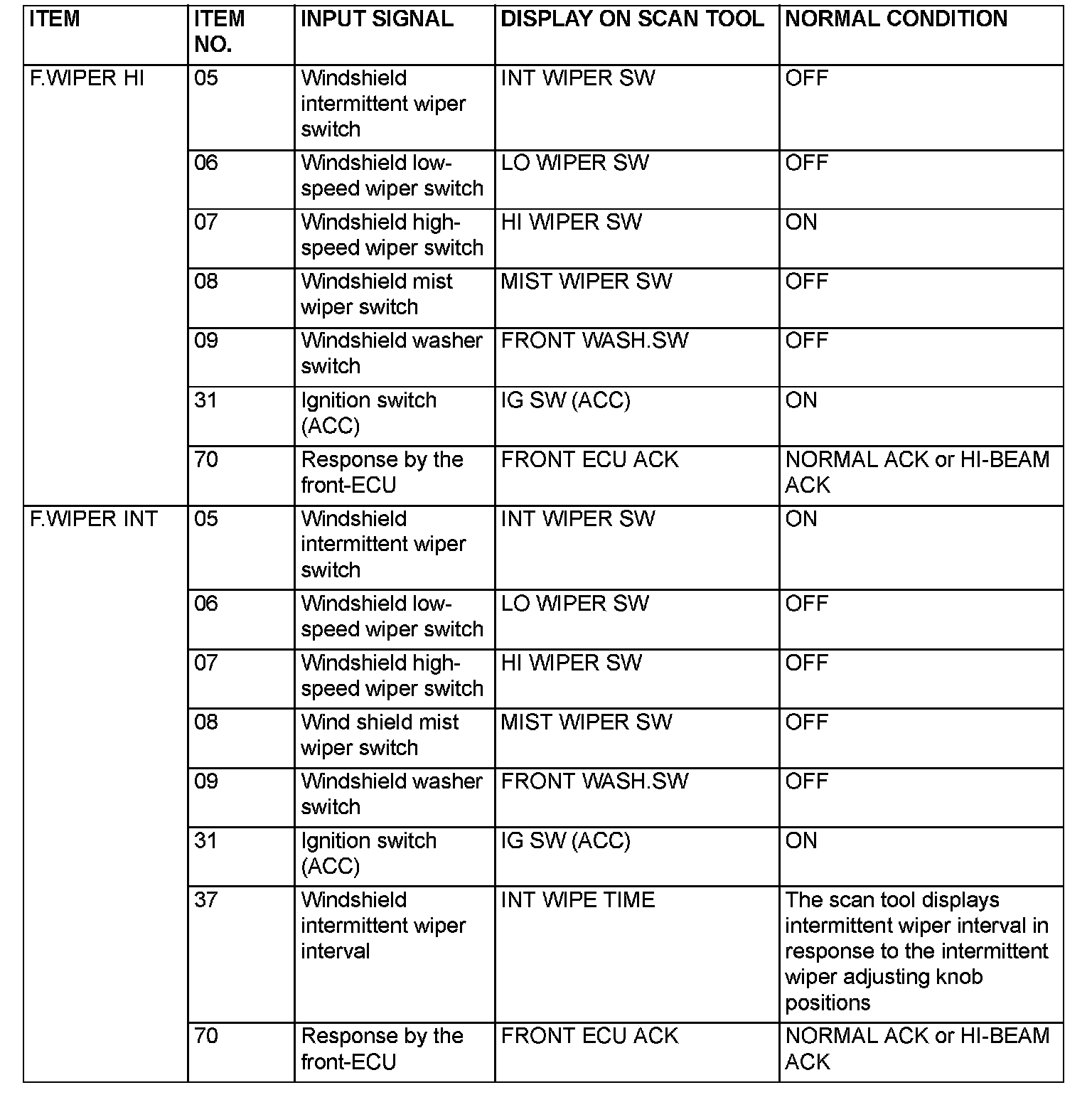

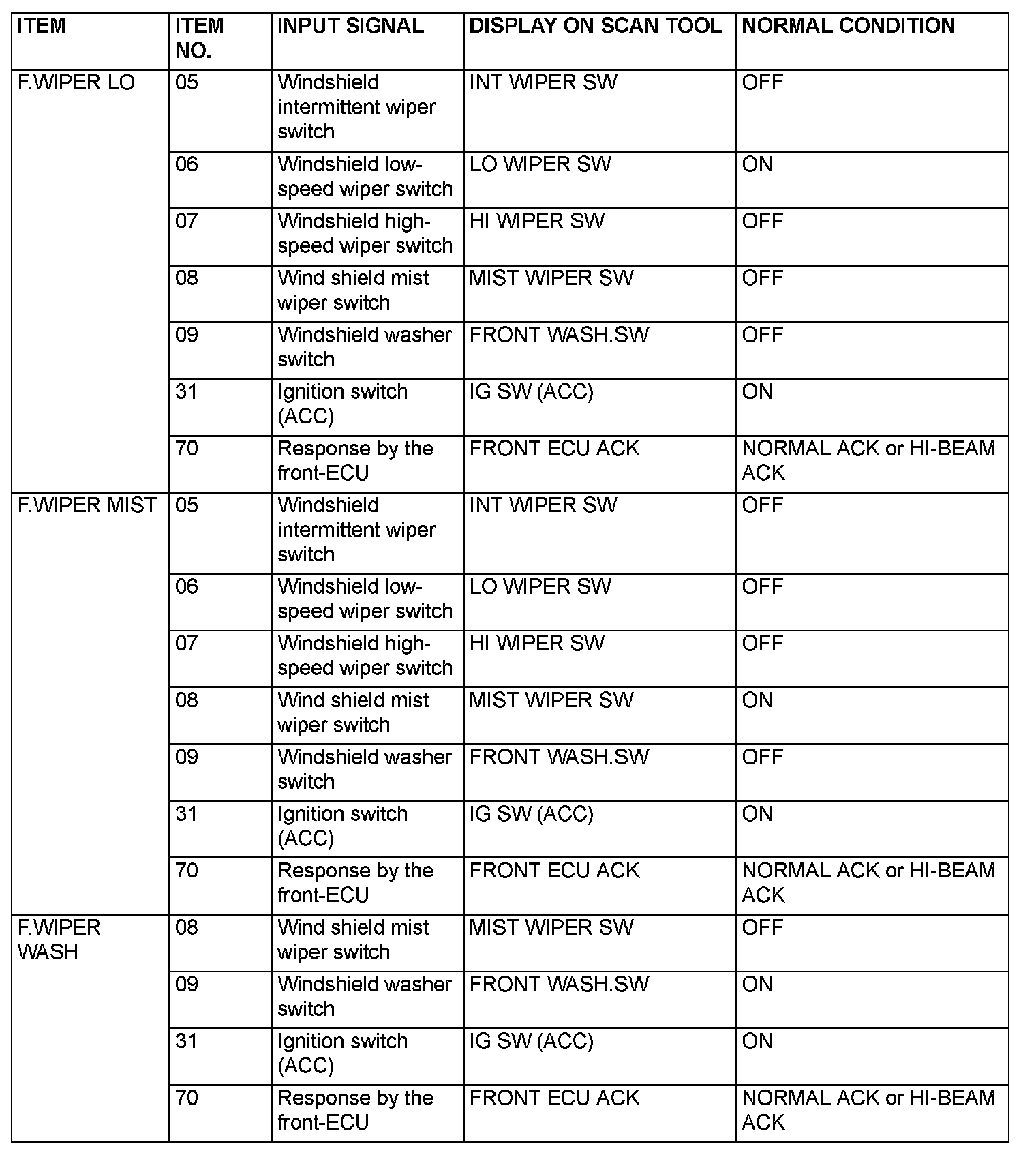

- WIPER

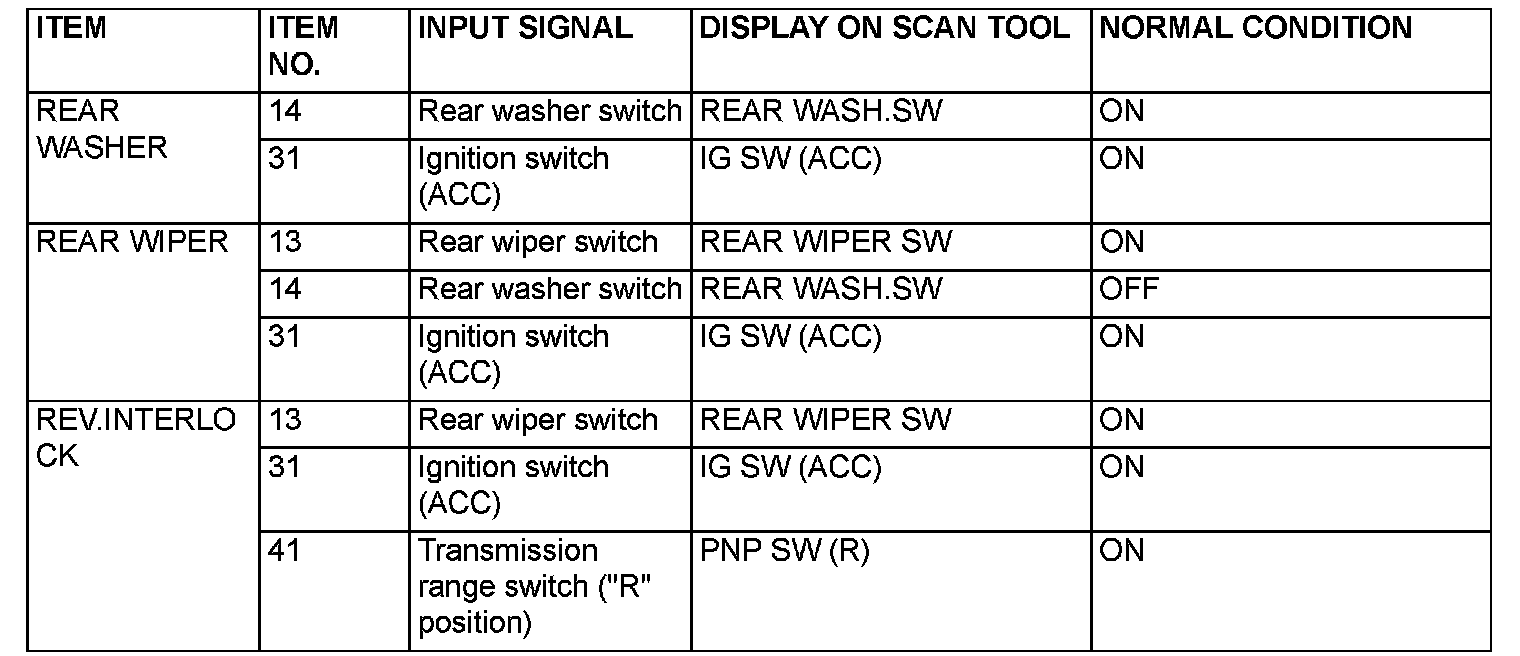

- REAR WIPER

Part 1:

Part 2:

- LIGHTING

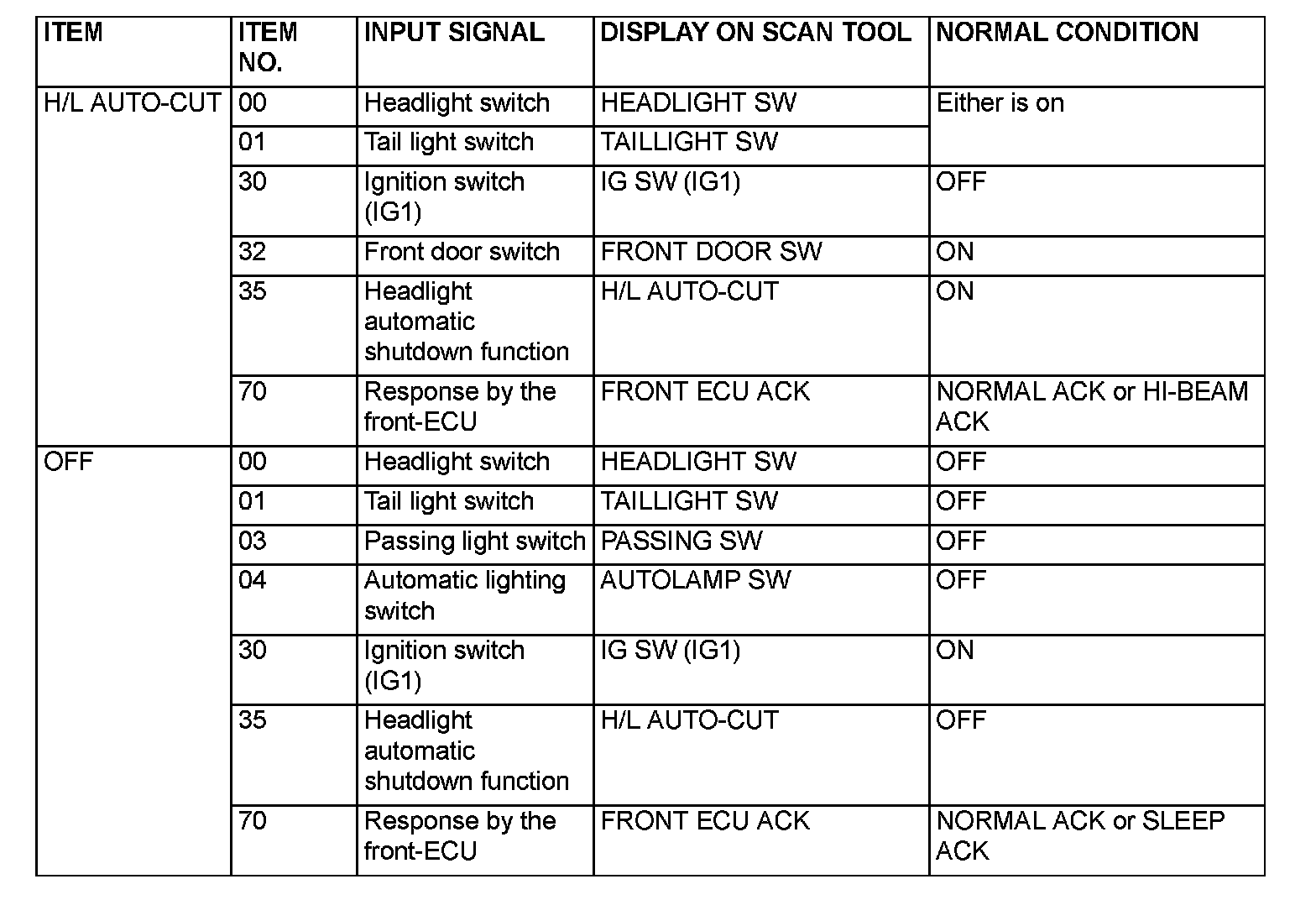

NOTE: When checking the in put signals (off tail, low-beam or high-beam), turn the ignition switch to the "ON" position in order to disable the headlight automatic shutdown function. However; the headlight operation does not depend on the ignition switch positions, the scan tool does not display the title "IGNITION SWITCH."

For checking item "HI (High-beam)," the scan tool displays "OFF" on the item No.2 "Dimmer SW" when the headlights are at high-beam. Therefore, the scan tool should display "ON" momentarily when the dimmer switch is operated.

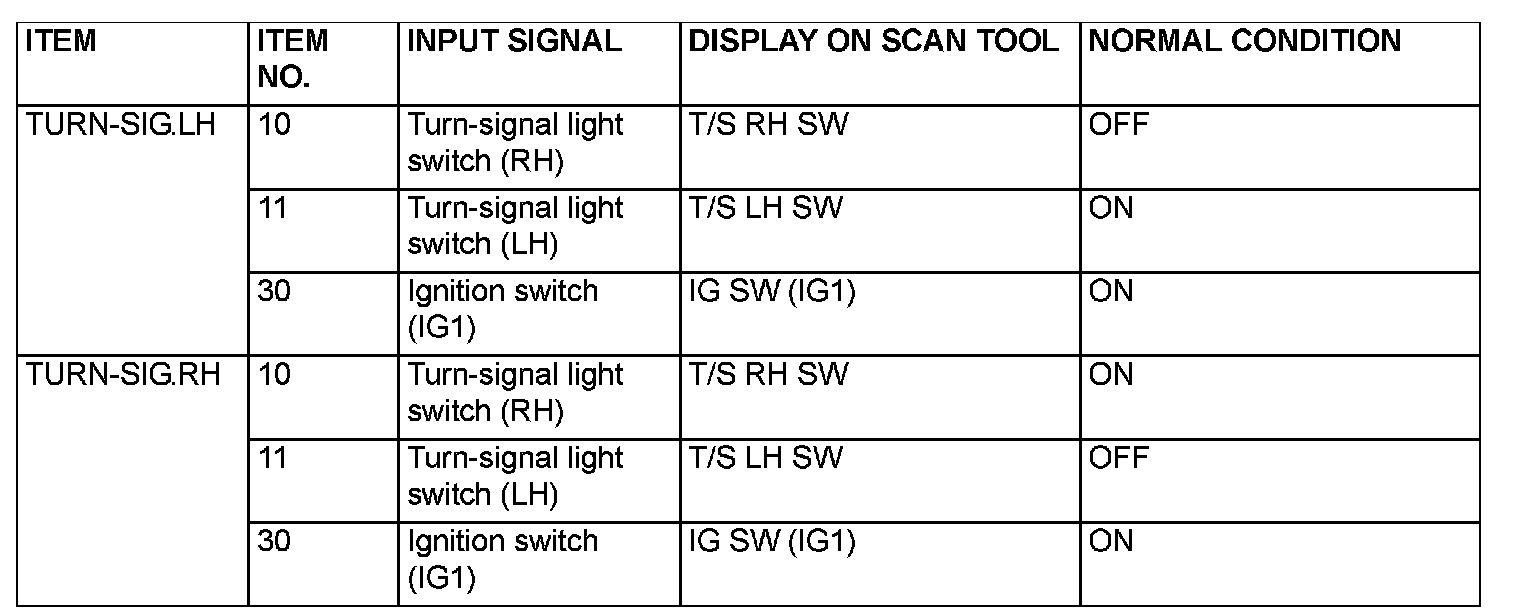

- TURN SIGNAL

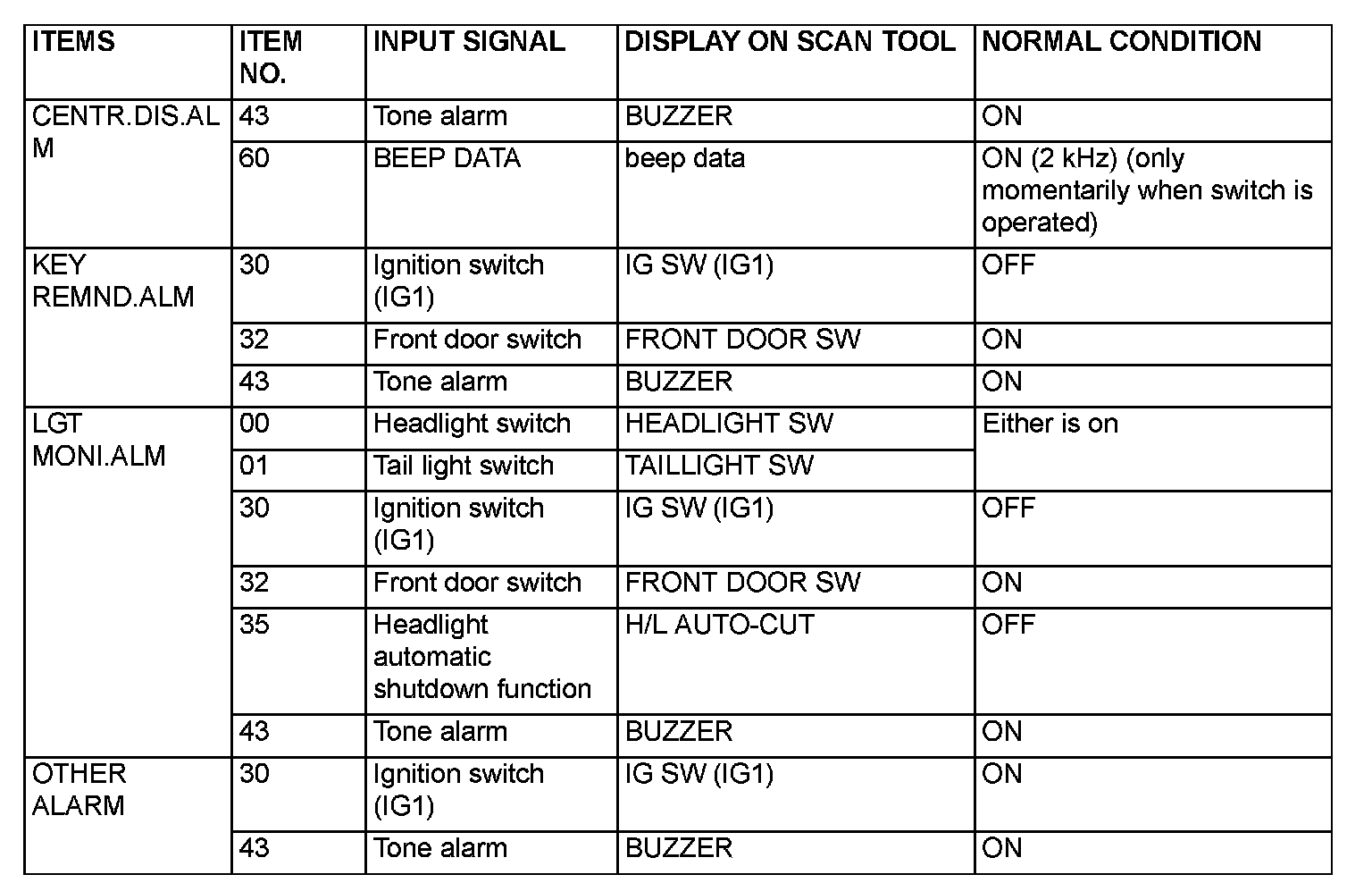

- BUZZER

NOTE: The headlight automatic shutdown function works in approximately one second after the lighting monitor tone alarm starts sounding, and then the tone alarm ceases sounding.




- SUNROOF

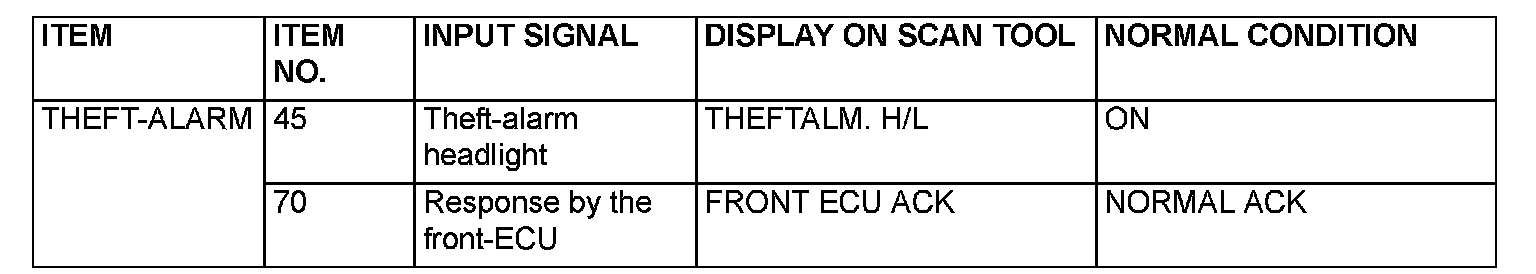

- THEFT-ALARM
