Data List Reference Table & Normal Scan Data Values

DATA LIST REFERENCE TABLE

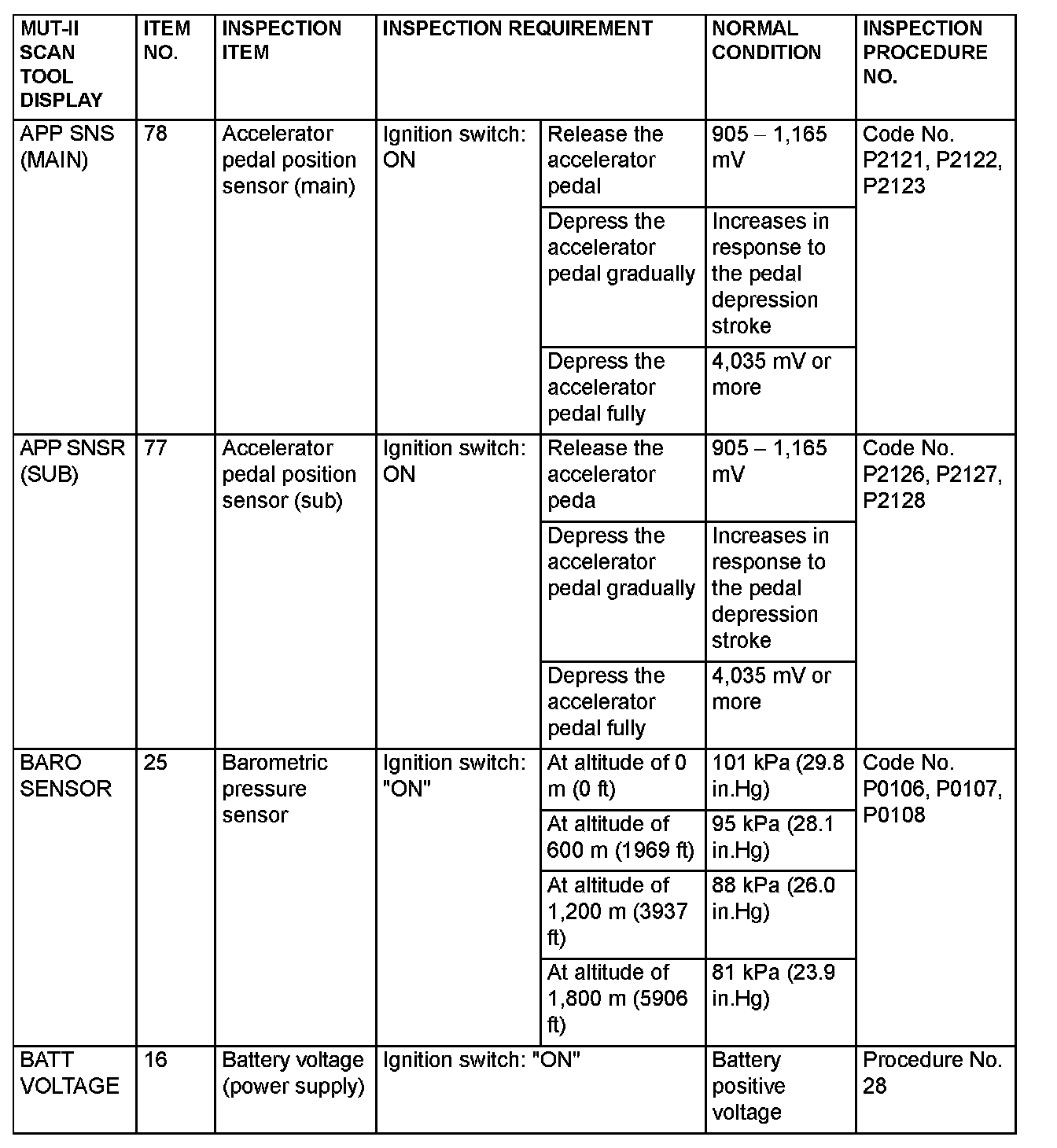

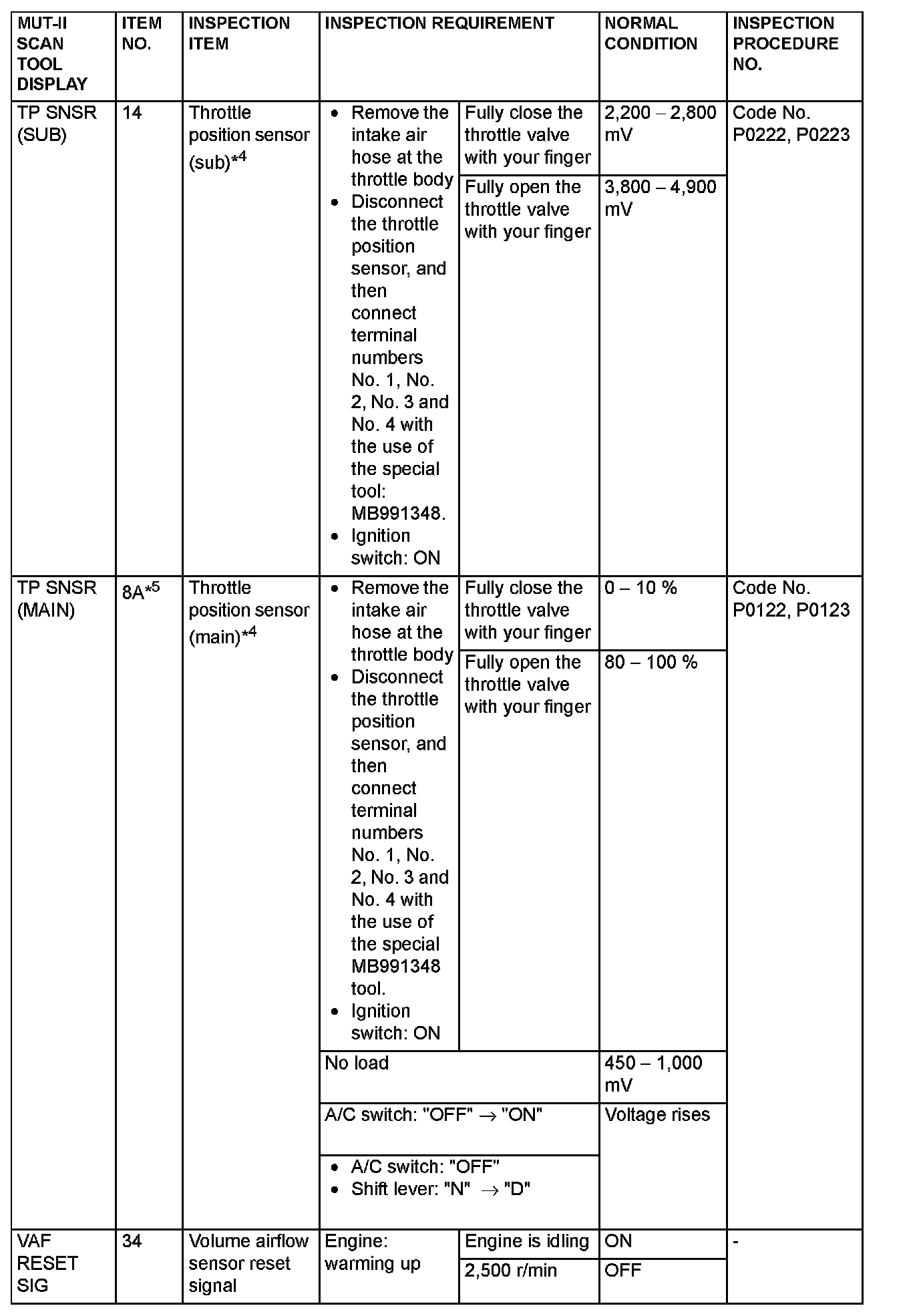

Data List Reference Table Part 1:

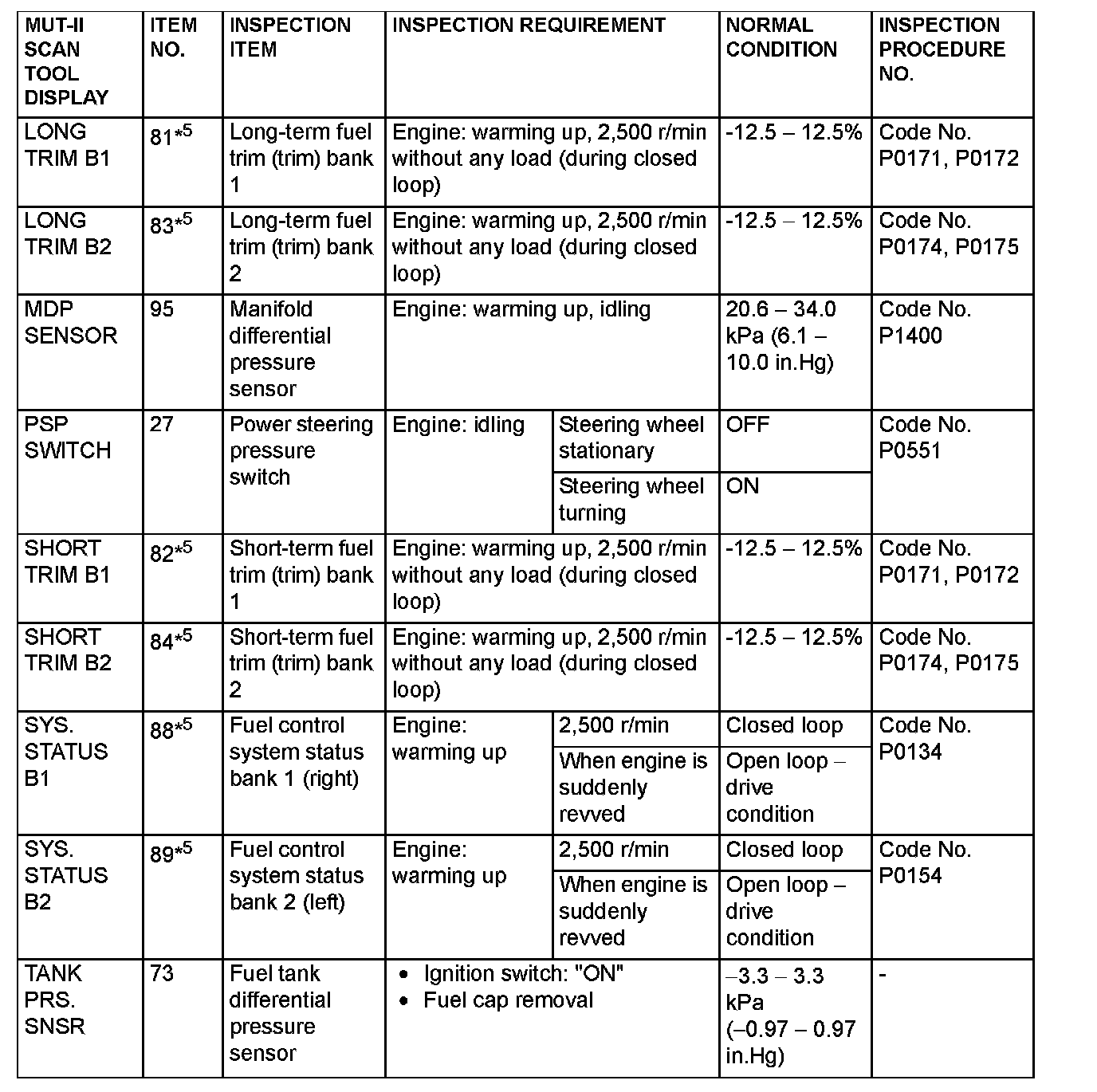

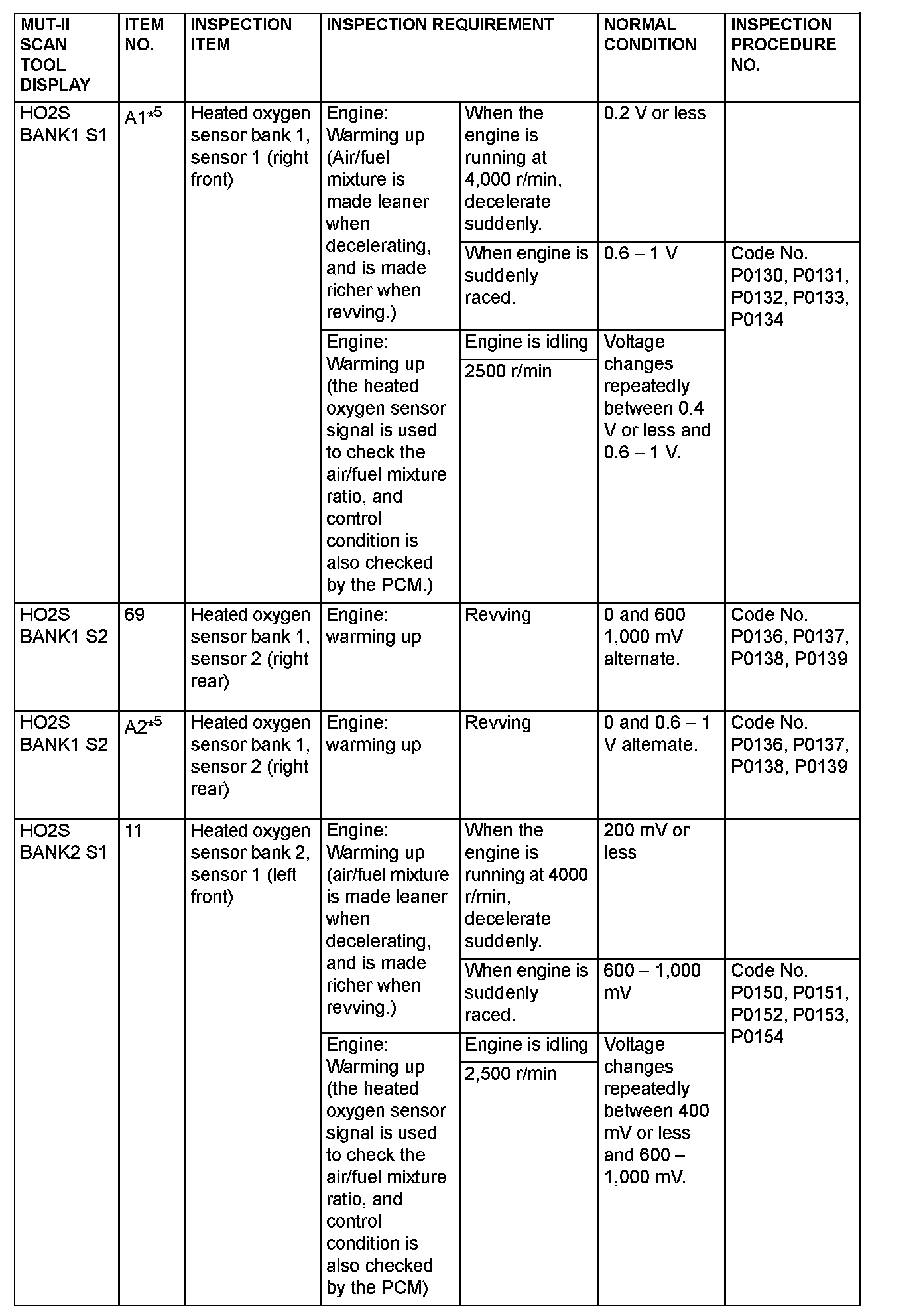

Data List Reference Table Part 2:

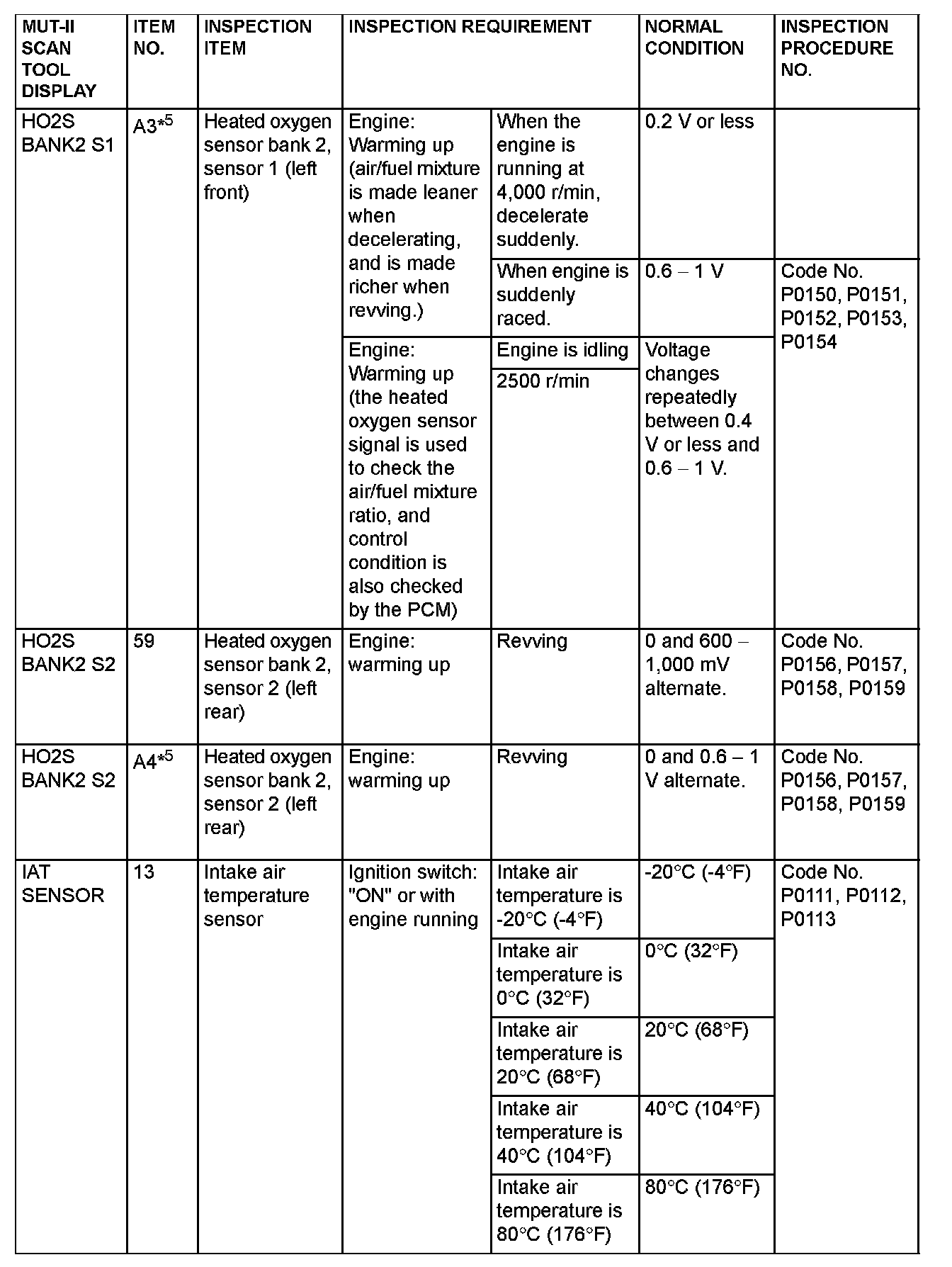

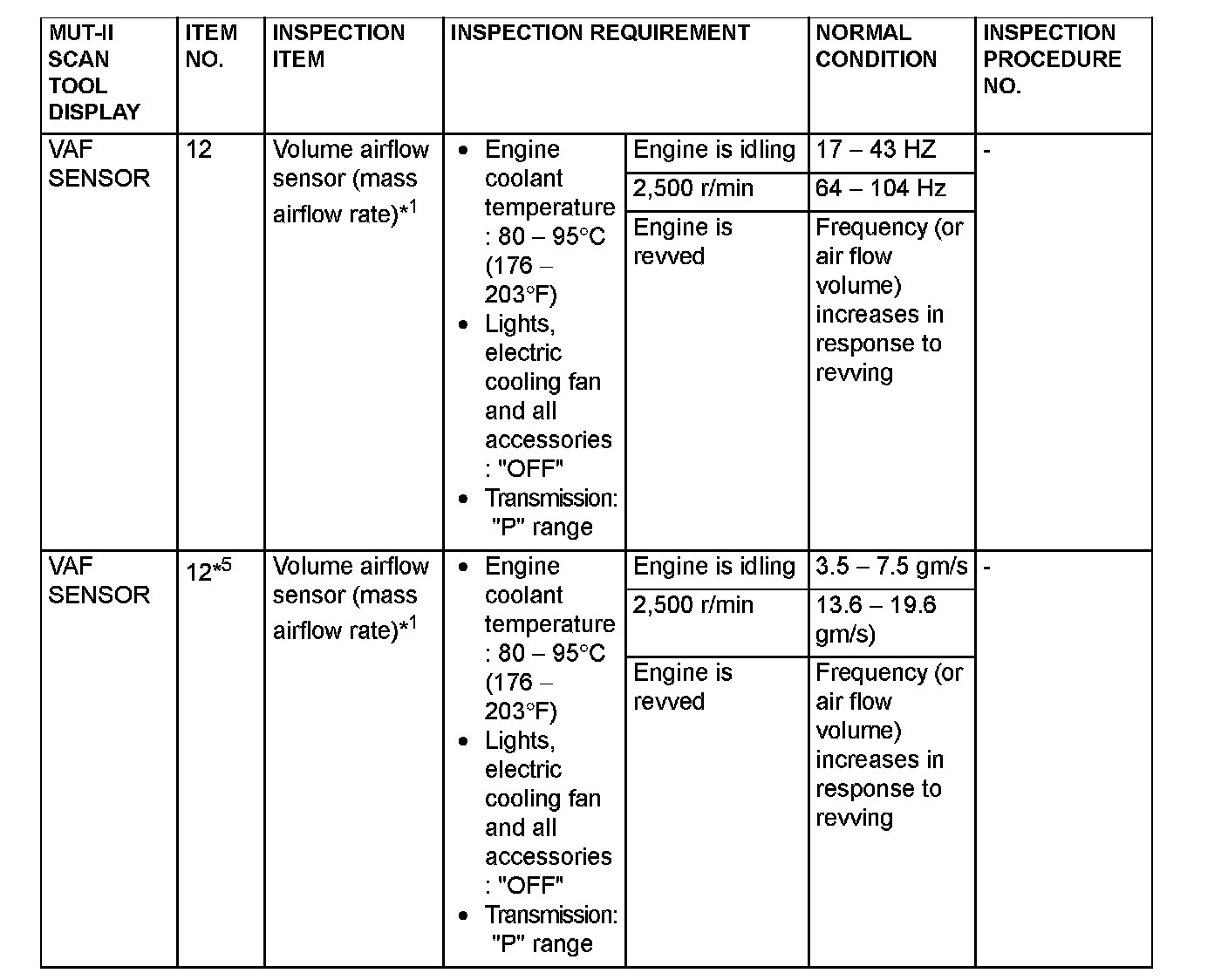

Data List Reference Table Part 3:

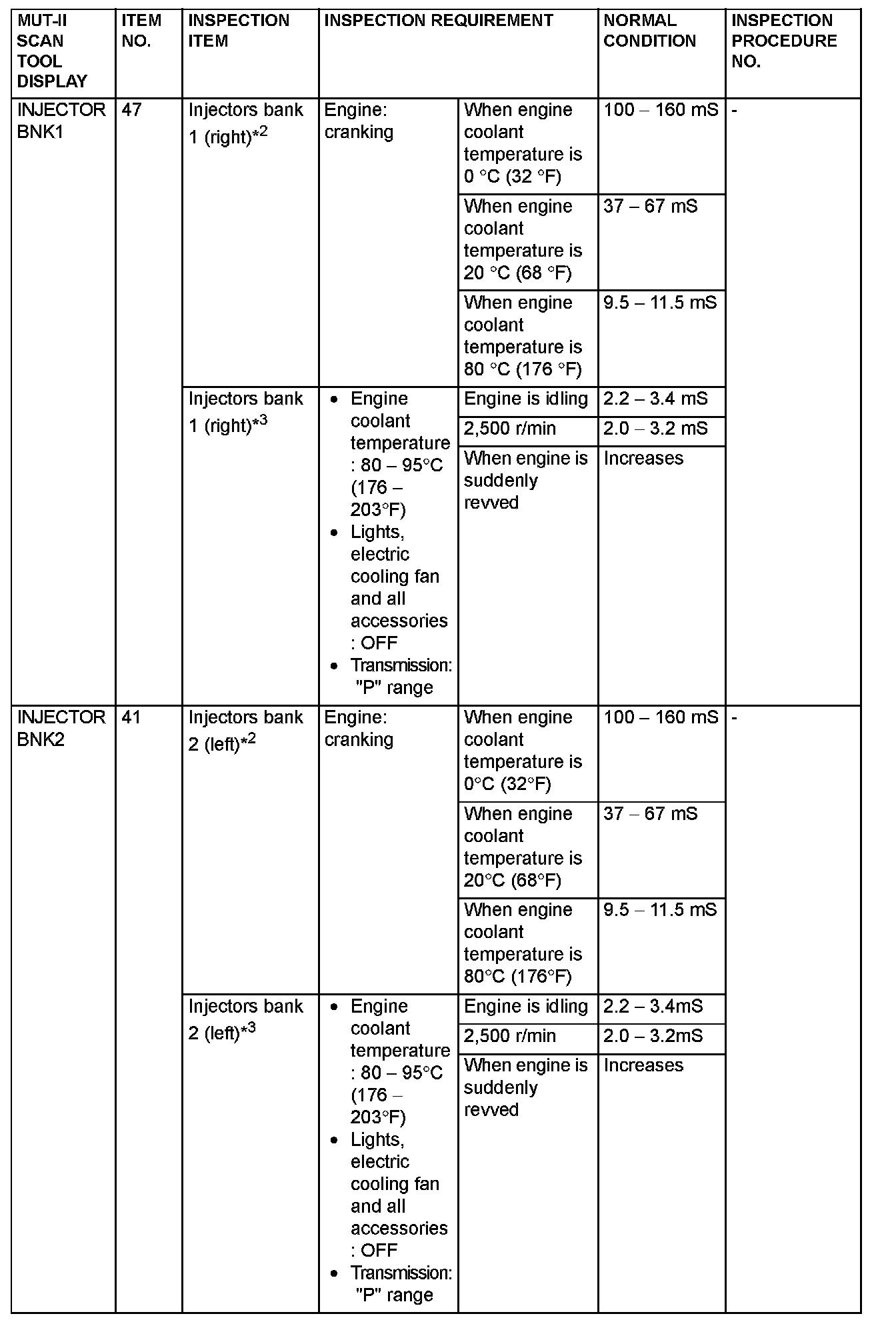

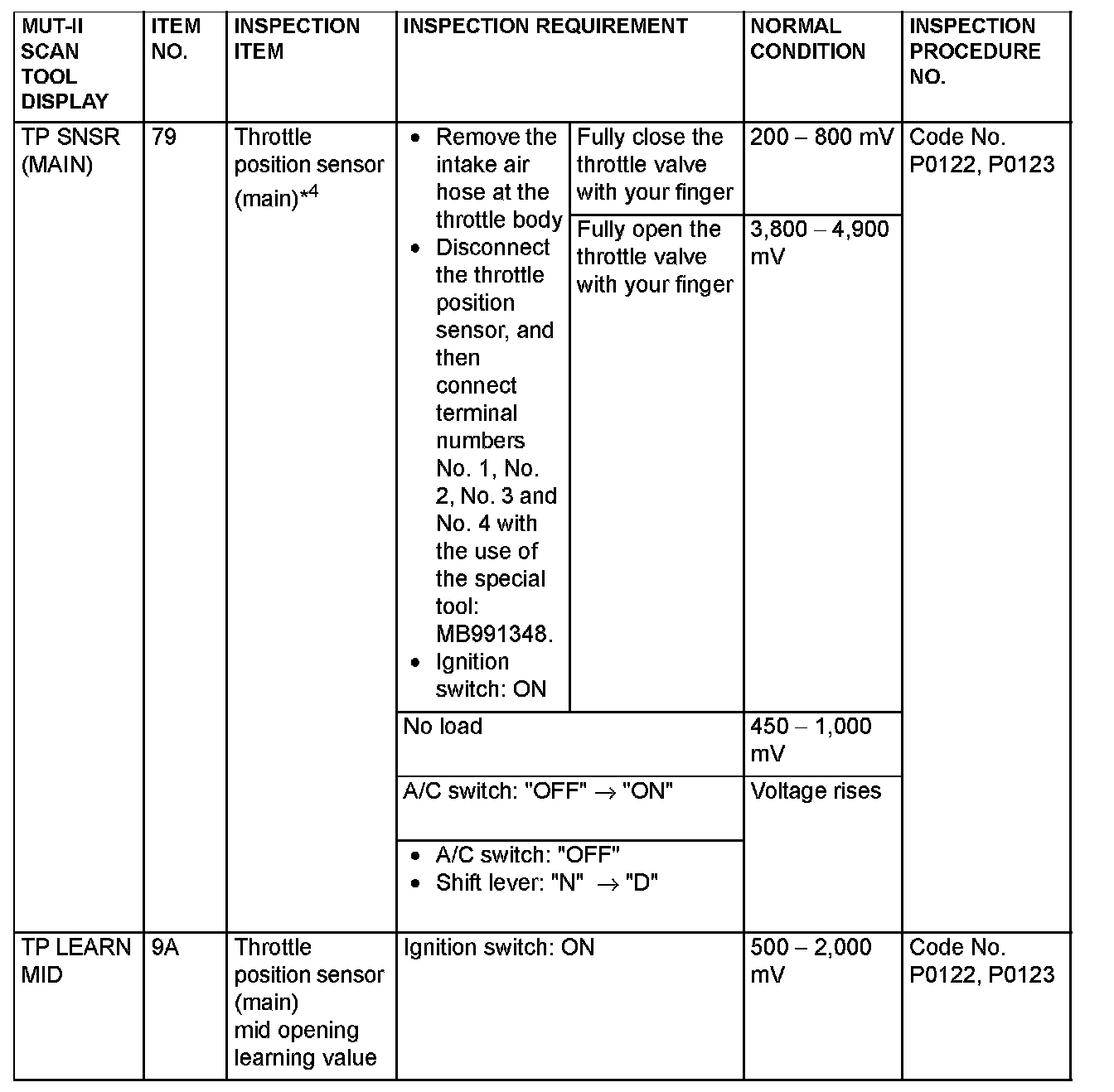

Data List Reference Table Part 4:

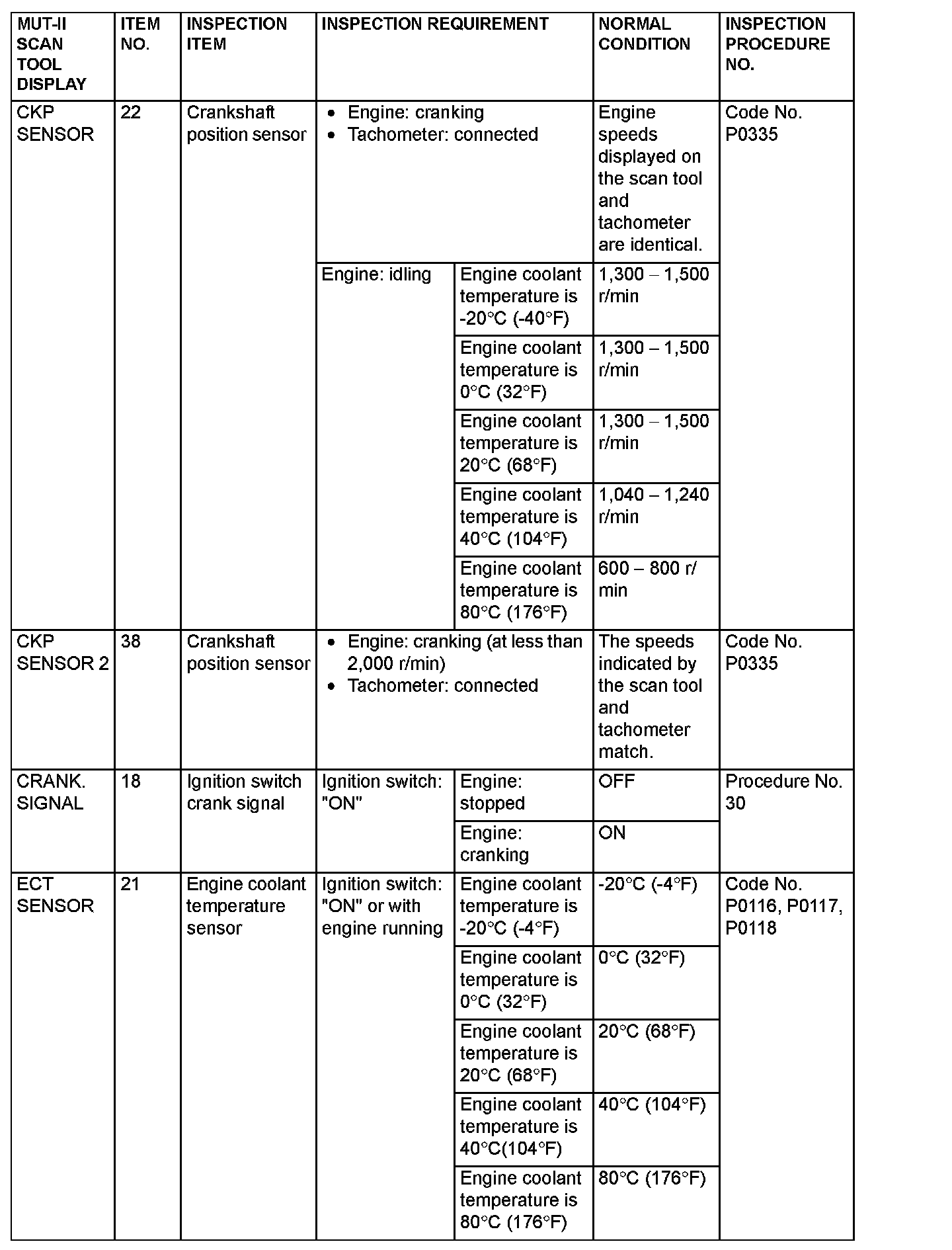

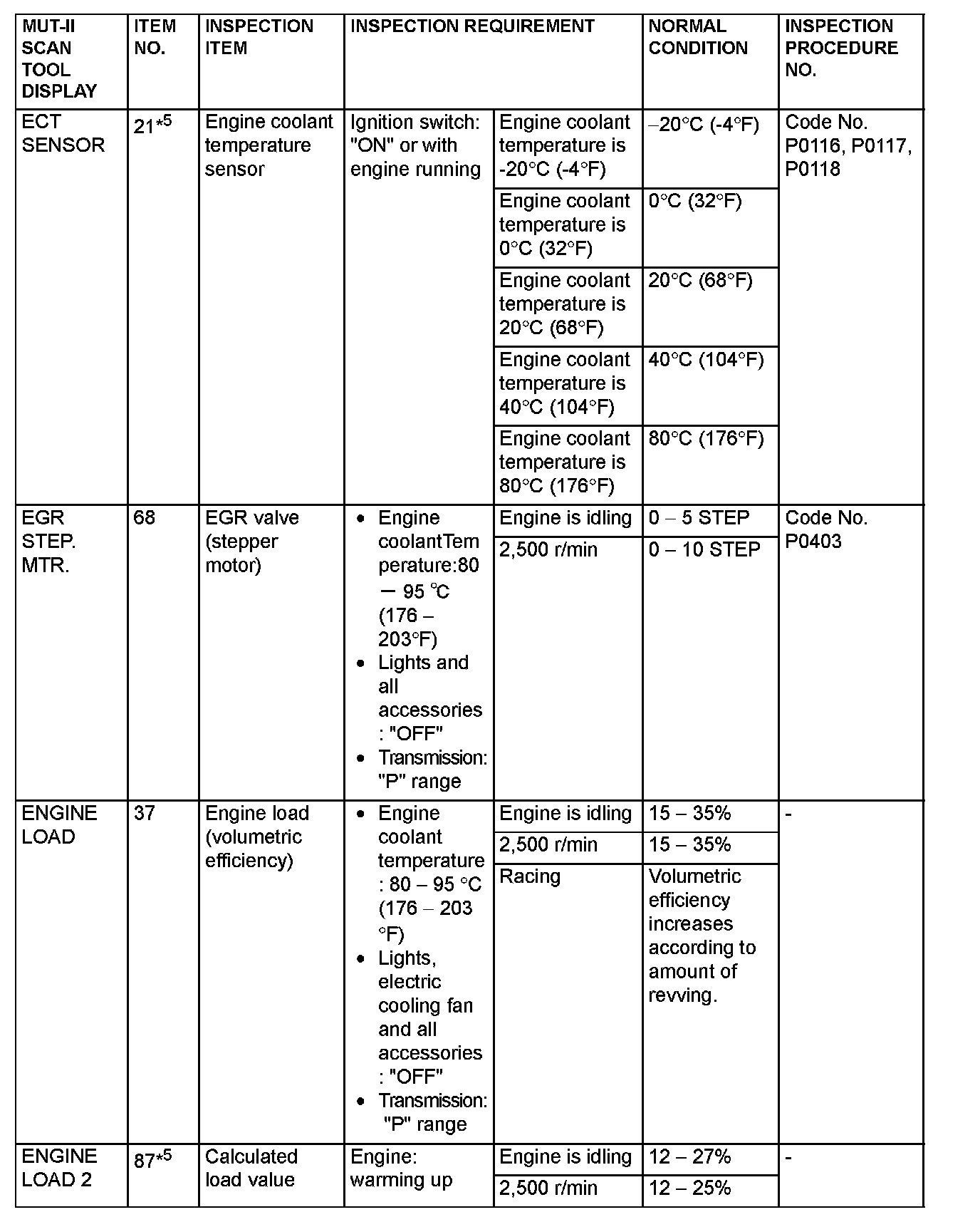

Data List Reference Table Part 5:

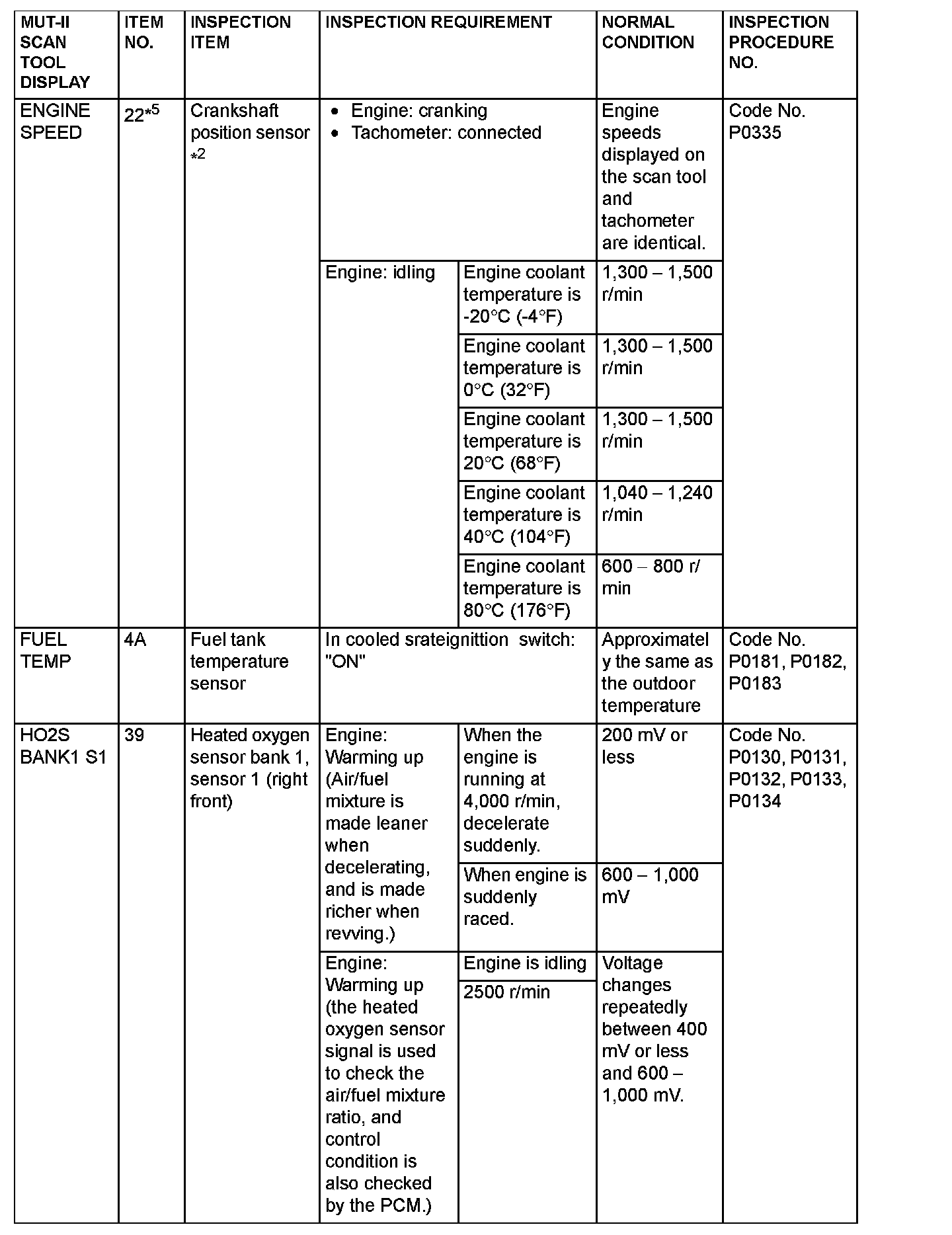

Data List Reference Table Part 6:

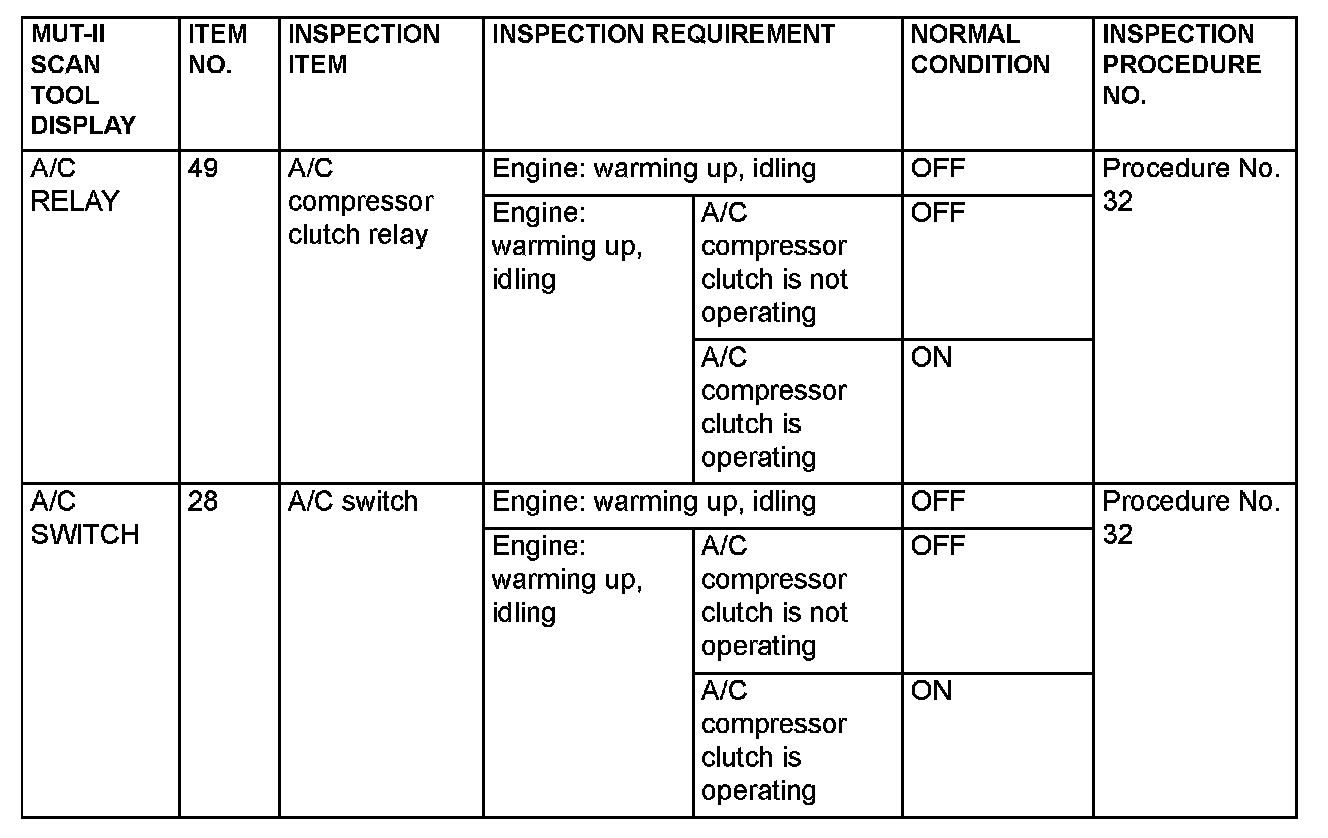

Data List Reference Table Part 7:

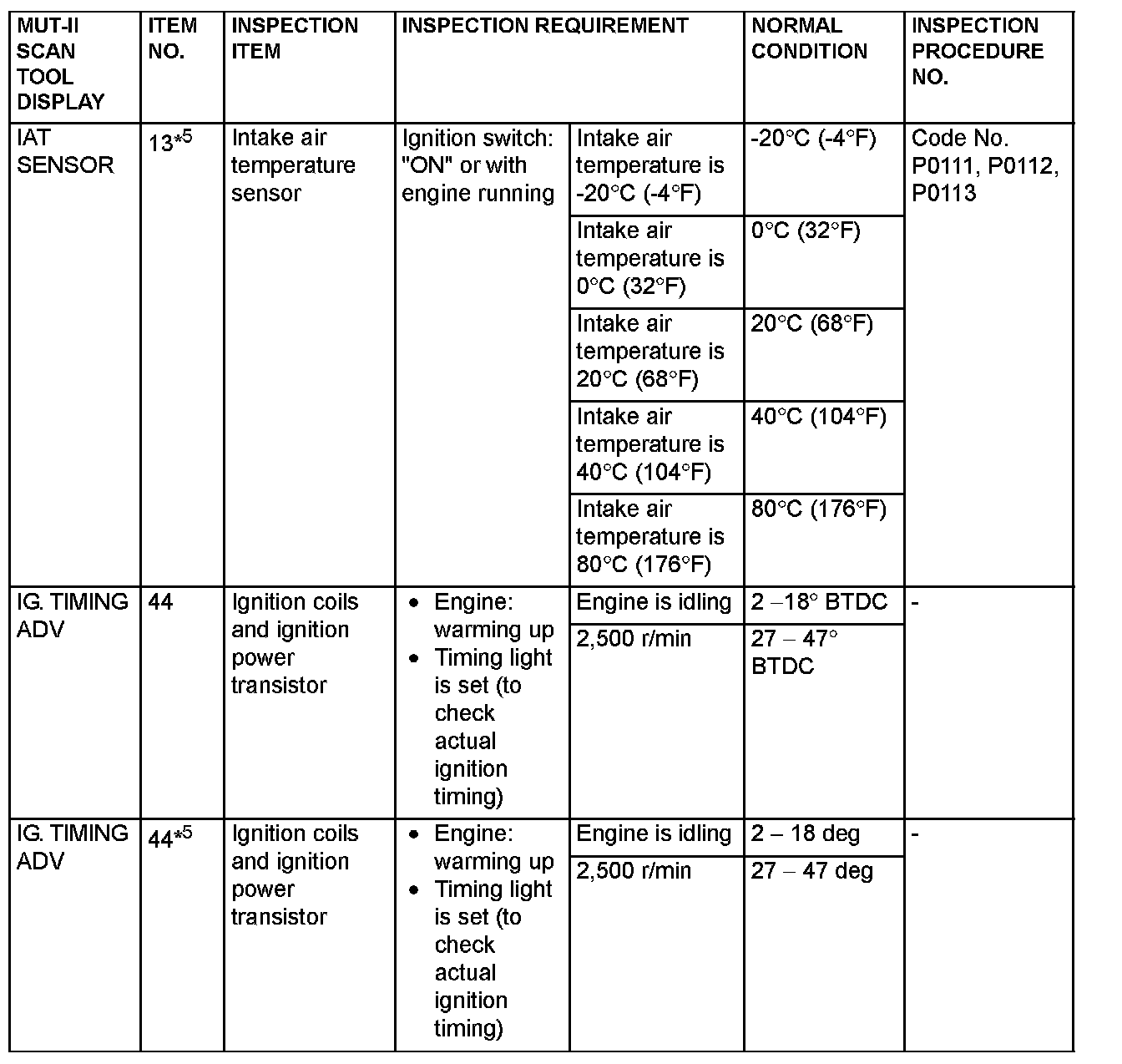

Data List Reference Table Part 8:

Data List Reference Table Part 9:

Data List Reference Table Part 10:

Data List Reference Table Part 11:

Data List Reference Table Part 12:

Data List Reference Table Part 13:

CAUTION:
- When shifting the selector lever to D range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.

NOTE: Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sensor mounted at the position second close to the engine.

NOTE: Bank 1 indicates the right bank cylinder, and bank 2 indicates the left bank cylinder

NOTE: *1: In a new vehicle [driven approximately 500 km (311 mile) or less], the volume airflow sensor output frequency is sometimes 10% higher than the standard frequency.

NOTE: *2: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.

NOTE: *3: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10% longer than the standard time.

NOTE: *4: Disconnect the throttle actuator control motor connector, and then delete the diagnosis code that was recorded during the inspection with the use of the MB991502 scan tool after the inspection has been completed.

NOTE: *5: Applicable to GST
