Refueling Vapor Recovery System: Service and Repair









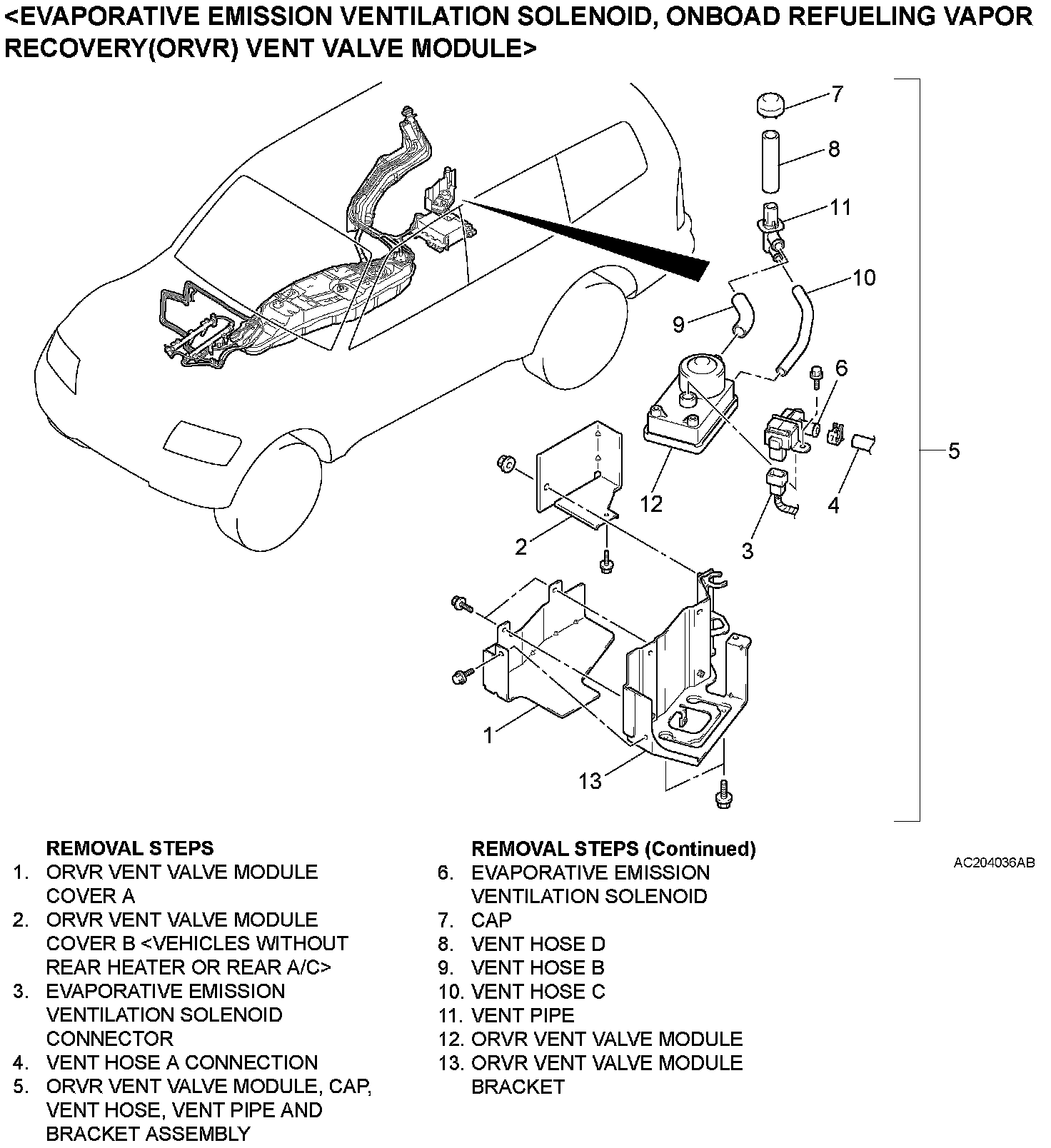

INSTALLATION SERVICE POINT

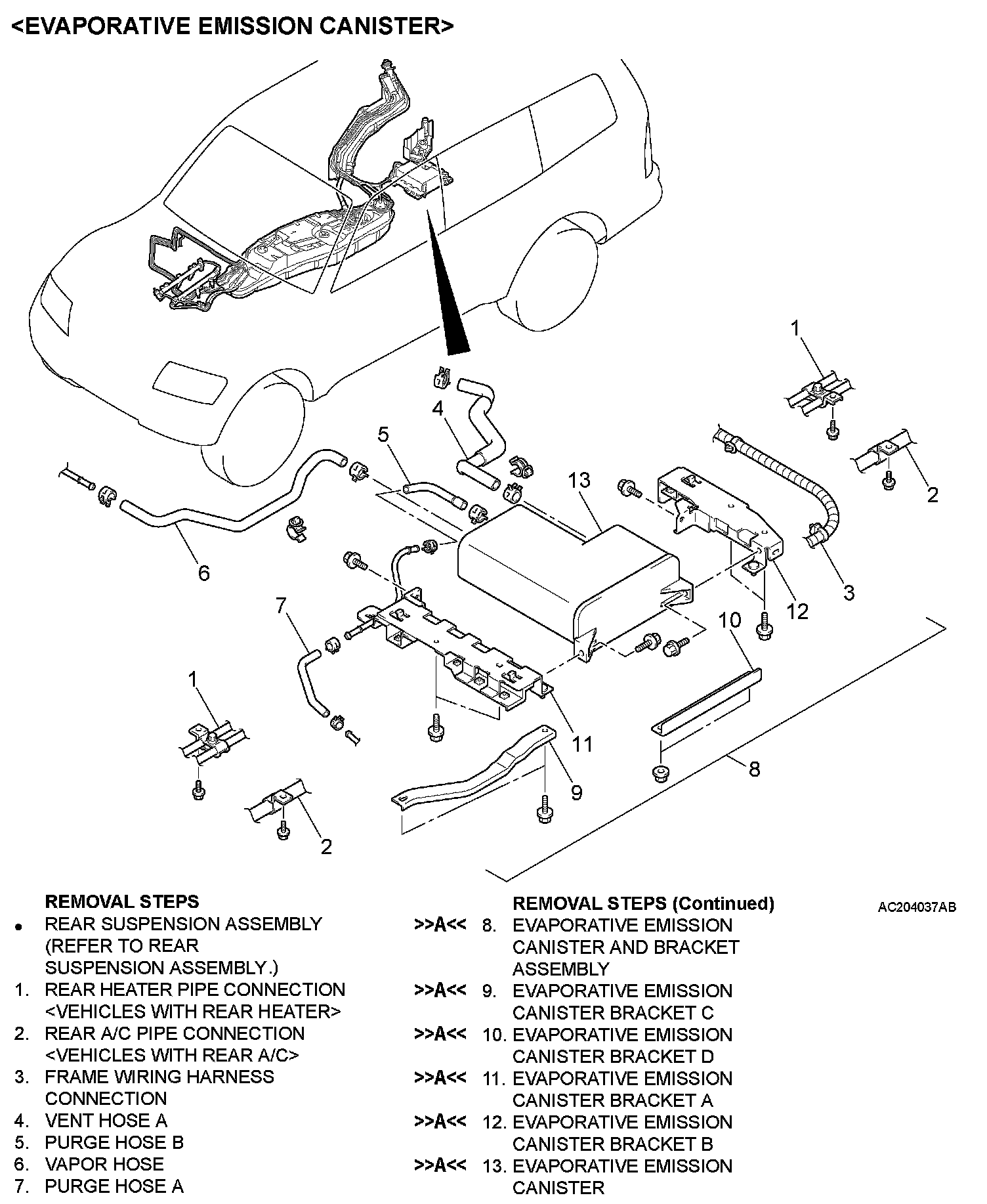

>>A<< EVAPORATIVE EMISSION CANISTER/EVAPORATIVE EMISSION CANISTER BRACKET B/EVAPORATIVE EMISSION CANISTER BRACKET A/EVAPORATIVE EMISSION CANISTER BRACKET D/EVAPORATIVE EMISSION CANISTER BRACKET C/EVAPORATIVE EMISSION CANISTER AND BRACKET ASSEMBLY INSTALLATION

Follow the procedure below, taking care not to apply excessive force to the evaporative emission canister.




1. Temporarily install the evaporative emission canister brackets A and B to the evaporative emission canister with mounting bolts 1 and 2.
2. Tighten mounting bolt 2 securely.
3. Install the evaporative emission canister brackets C and D to the evaporative emission canister brackets A and B with mounting bolt 3 and nut 4.




4. Tighten mounting bolt 1 securely, and install the evaporative emission canister and bracket assembly to the vehicle.

NOTE: D: Nominal diameter, L: Nominal length




5. Tighten mounting bolt 5 by hand.
6. Tighten mounting bolt 6 by hand.
7. Tighten mounting bolts 7 to the specified torque.




8. Tighten mounting bolts 5 and 6 to the specified torque.

NOTE: D: Nominal diameter, L: Nominal length
