Overhaul

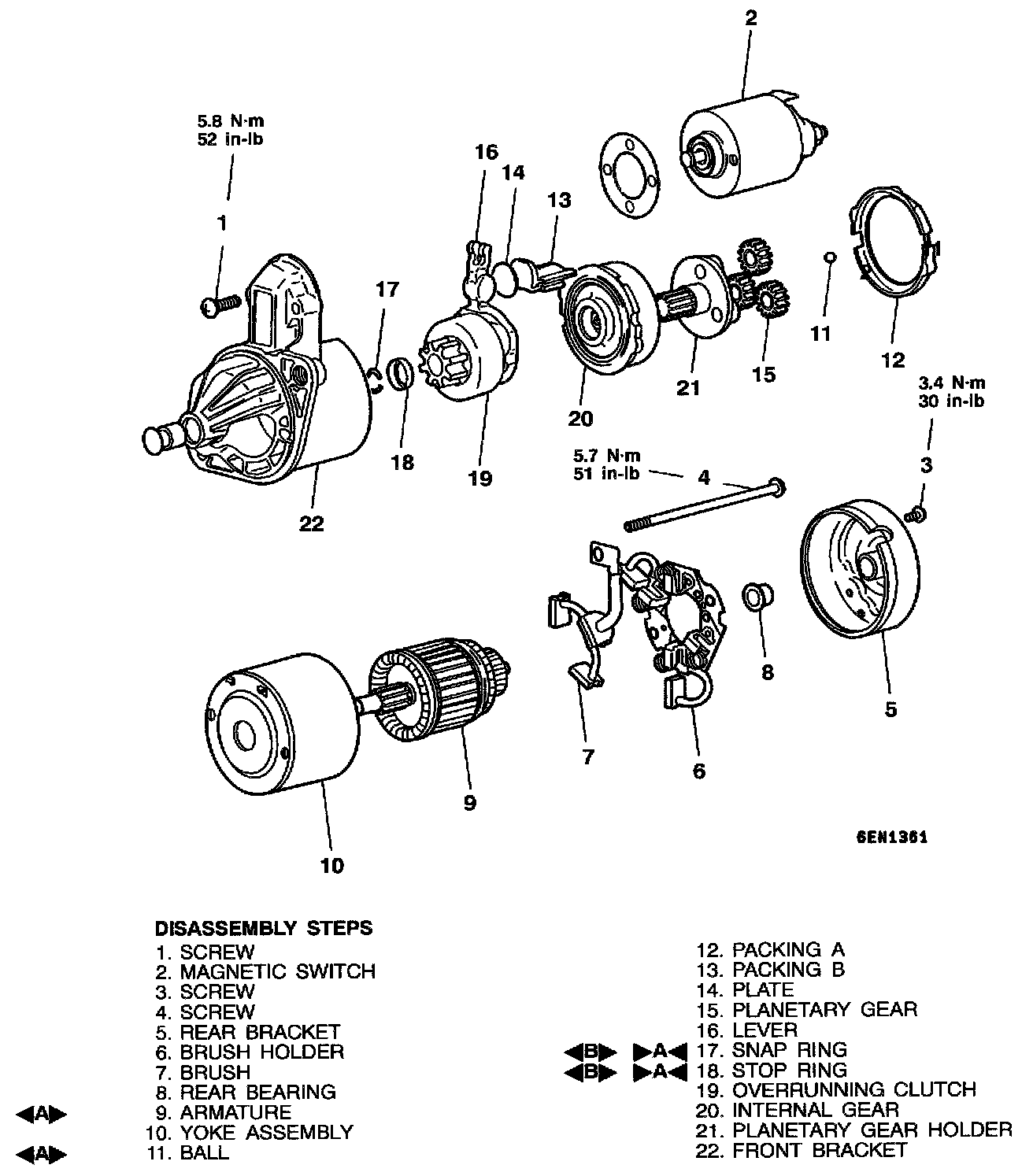

DISASSEMBLY AND ASSEMBLY
DISASSEMBLY SERVICE POINTS
ARMATURE AND BALL REMOVAL
CAUTION: When removing the armature, take care not to lose the ball (which is used as a bearing) in the armature end.
SNAP RING AND STOP RING REMOVAL
Snap Ring/Stop Ring Removal:
1. Press a long socket wrench of appropriate size to the stop ring. Then tap the socket wrench to remove the stop ring to the pinion gear side.
Snap Ring/Stop Ring Removal:
2. After removing the snap ring (by using snap-ring pliers), remove the stop ring and the overrunning clutch.
Stop Ring/Snap Ring Installation:
ASSEMBLY SERVICE POINT
>A< STOP RING AND SNAP RING INSTALLATION
Using a suitable pulling tool, pull the overrunning clutch stop ring over the snap ring.
