Front Door Window Regulator: Service and Repair

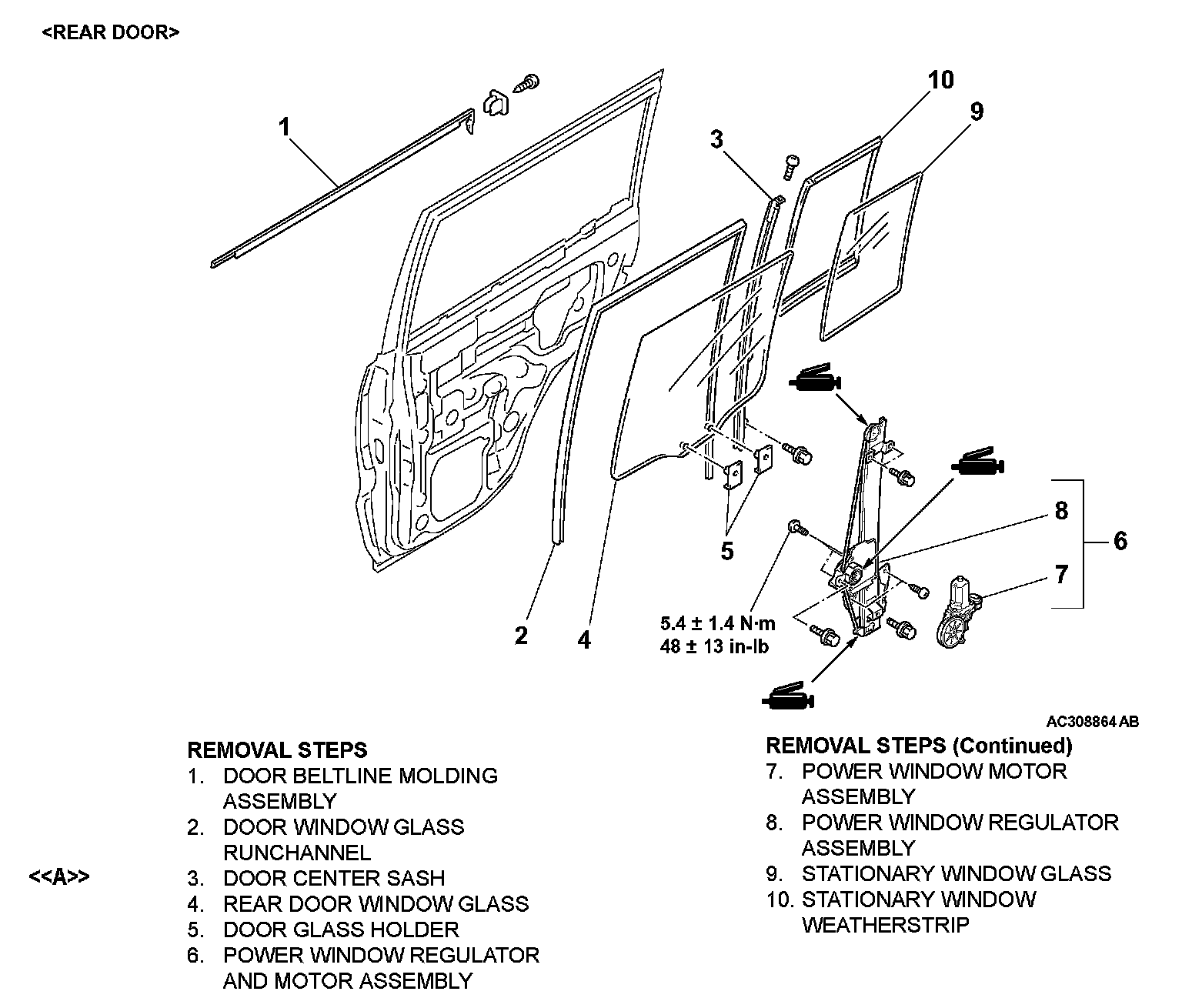

DOOR GLASS AND REGULATOR







REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

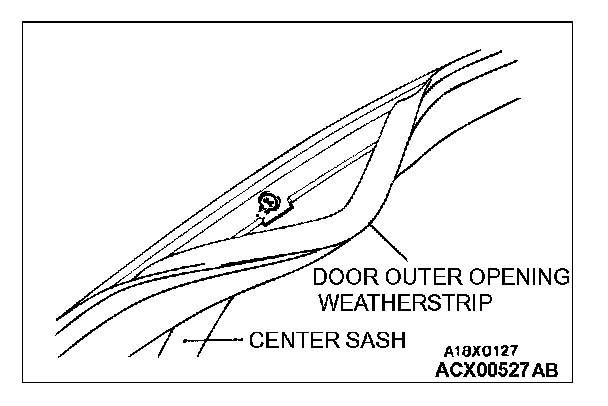

[[A]] DOOR CENTER SASH REMOVAL




1. Remove the door outer opening weatherstrip from the door center sash section only.
2. Remove the mounting screw for the door center sash, and remove the door center sash from the door panel.
