Front Seat
DISASSEMBLY AND ASSEMBLY[LH SIDE]
WARNING: Never attempt to disassemble or repair the seat slide sensor. If faulty, replace it.

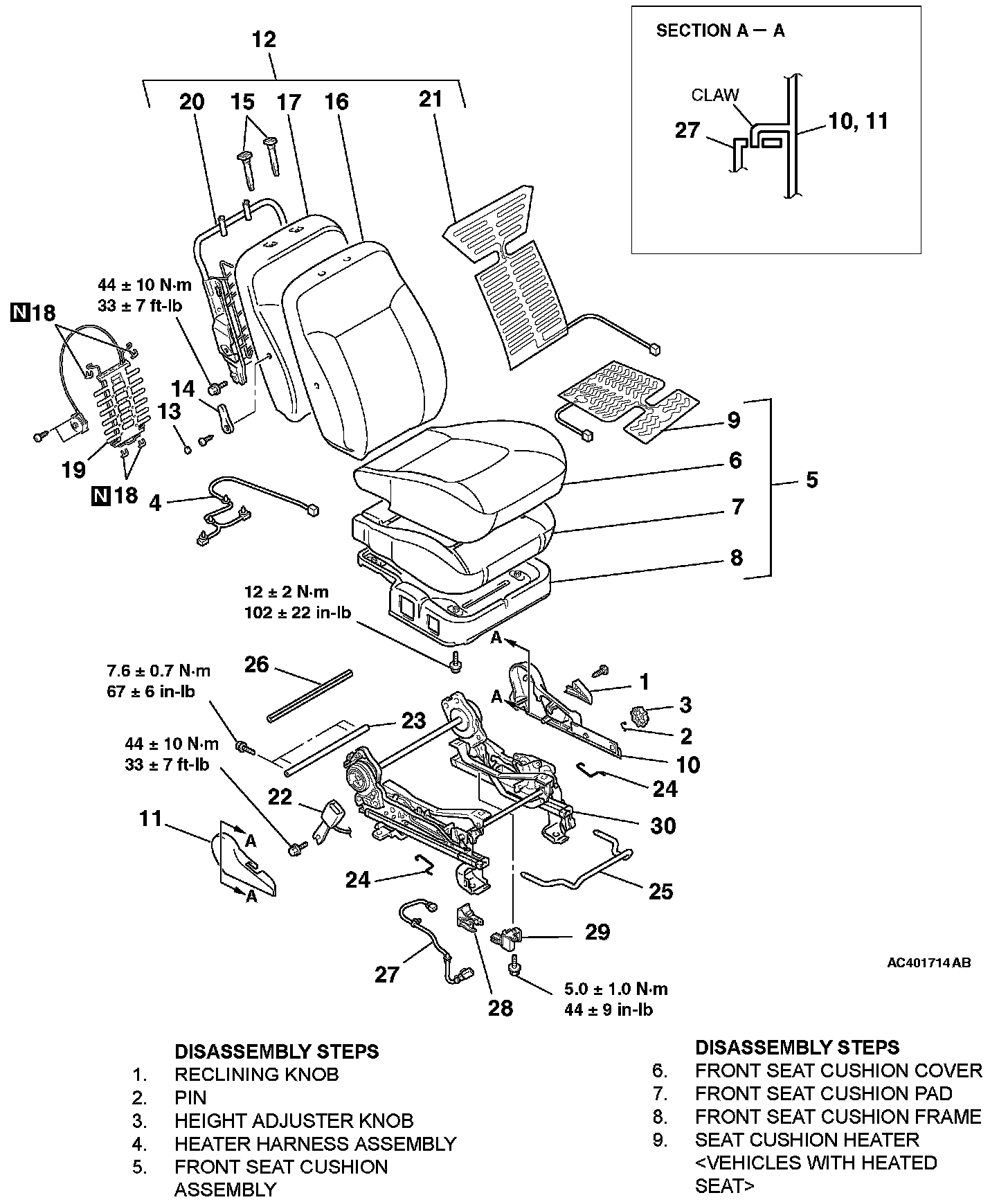

Disassembly Steps 1-30 (Part 1):

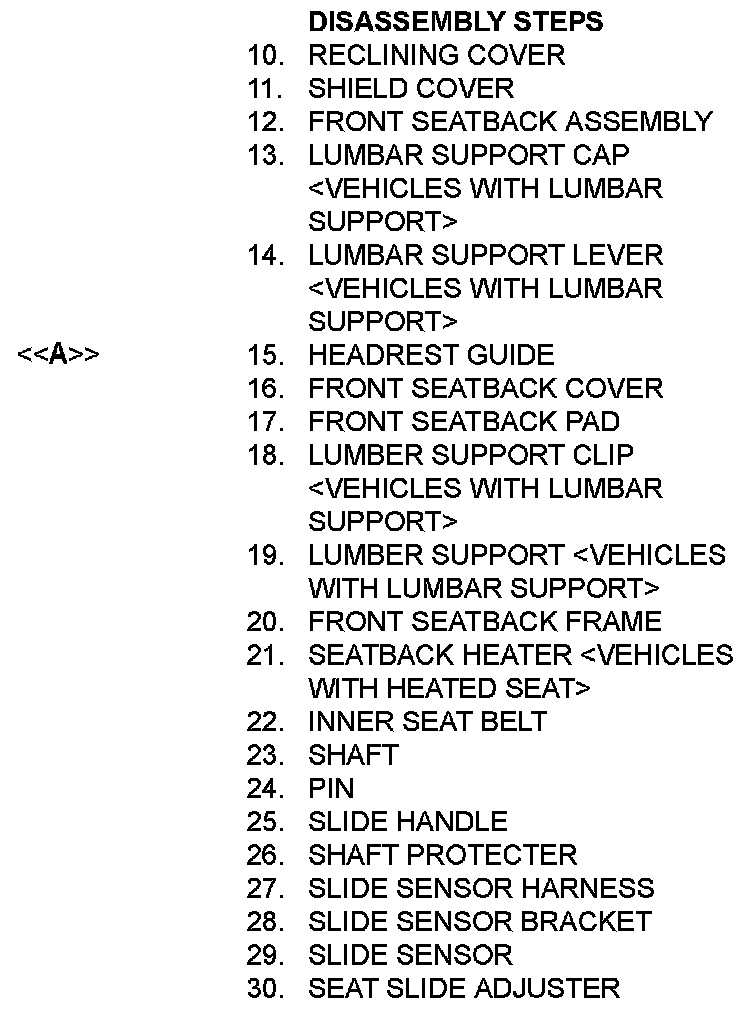

Disassembly Steps 1-30 (Part 2):
[RH SIDE]
WARNING:
- Never attempt to disassemble or repair the occupant classification-ECU or the occupant classification sensor. If faulty, replace it.
- Do not drop or subject the occupant classification-ECU and occupant classification sensor to impact or vibration. If denting, cracking, deformation, or rust are discovered in the occupant classification-ECU or the occupant classification sensor, replace it with a new occupant classification-ECU or the occupant classification sensor.

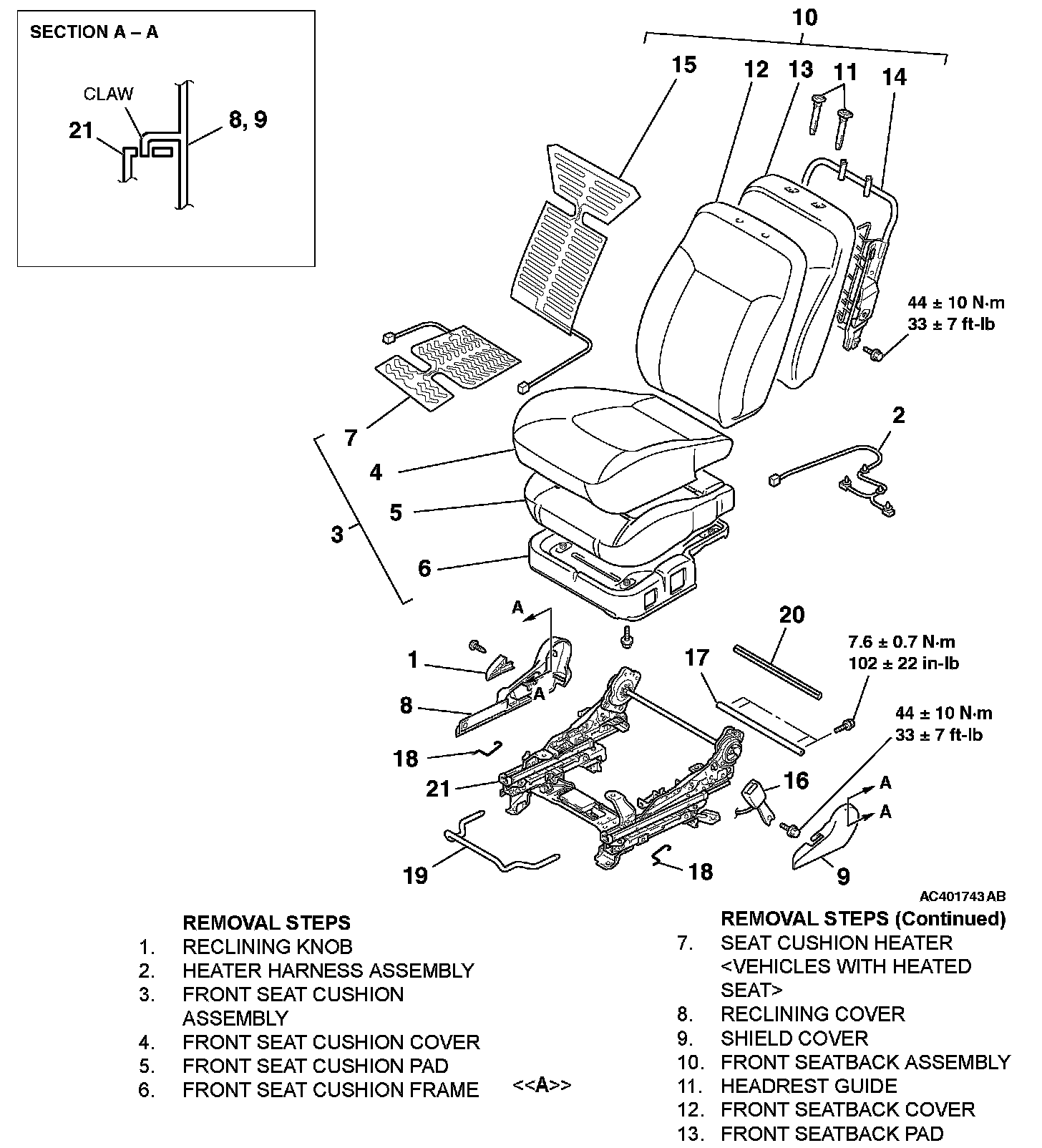

Removal Steps 1-21 (Part 1):
Removal Steps 1-21 (Part 2):
REMOVAL SERVICE POINT
[[A]]HEADREST GUIDE REMOVAL
[[B]] SLIDE ADJUSTER REMOVAL
WARNING: Do not remove the occupant classification-ECU and the occupant classification sensor from the slide adjuster.
