Oil Pan, Engine
ENGINE MECHANICAL
Lower

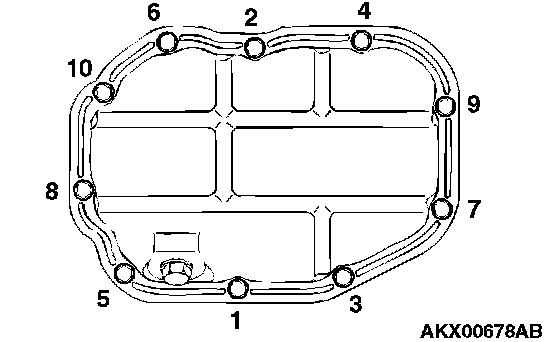

oil pan attaching bolt
11 ± 1 Nm (96 ± 8 inch lbs.)
Oil pan bolt hole cover attaching bolt
11 ± 1 Nm (96 ± 8 inch lbs.)
Oil pan drain plug
39 ± 5 Nm (29 ± 4 ft. lbs.)

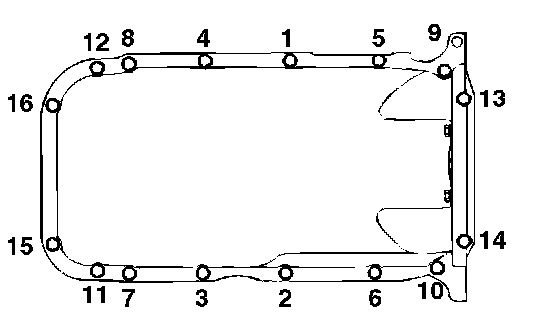

Upper
oil pan attaching bolt
M6
5.9 ± 1.0 Nm (52 ± 9 inch lbs.)
M10
35 ± 6 Nm (26 ± 4 ft. lbs.)
ENGINE OVERHAUL
Oil pan, lower bolt
11 ± 1 Nm (95 ± 9 inch lbs.)
Oil pan, upper bolt
5.9 ± 1 Nm (52 ± 9 inch lbs.)
