Data List Reference Table

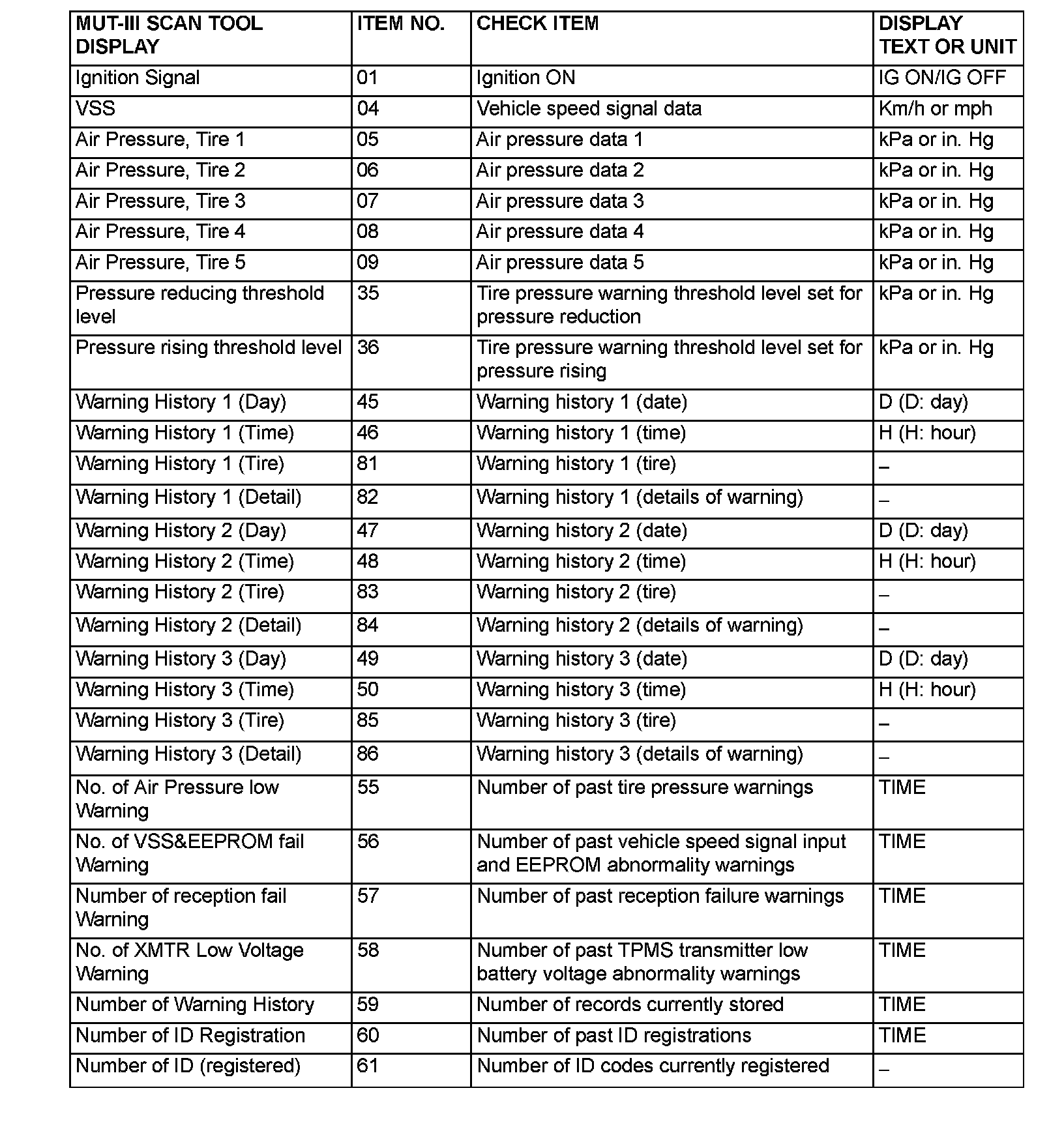

TPMS SERVICE DATA LIST The items can be read by the scan tool from the TPMS receiver input data.

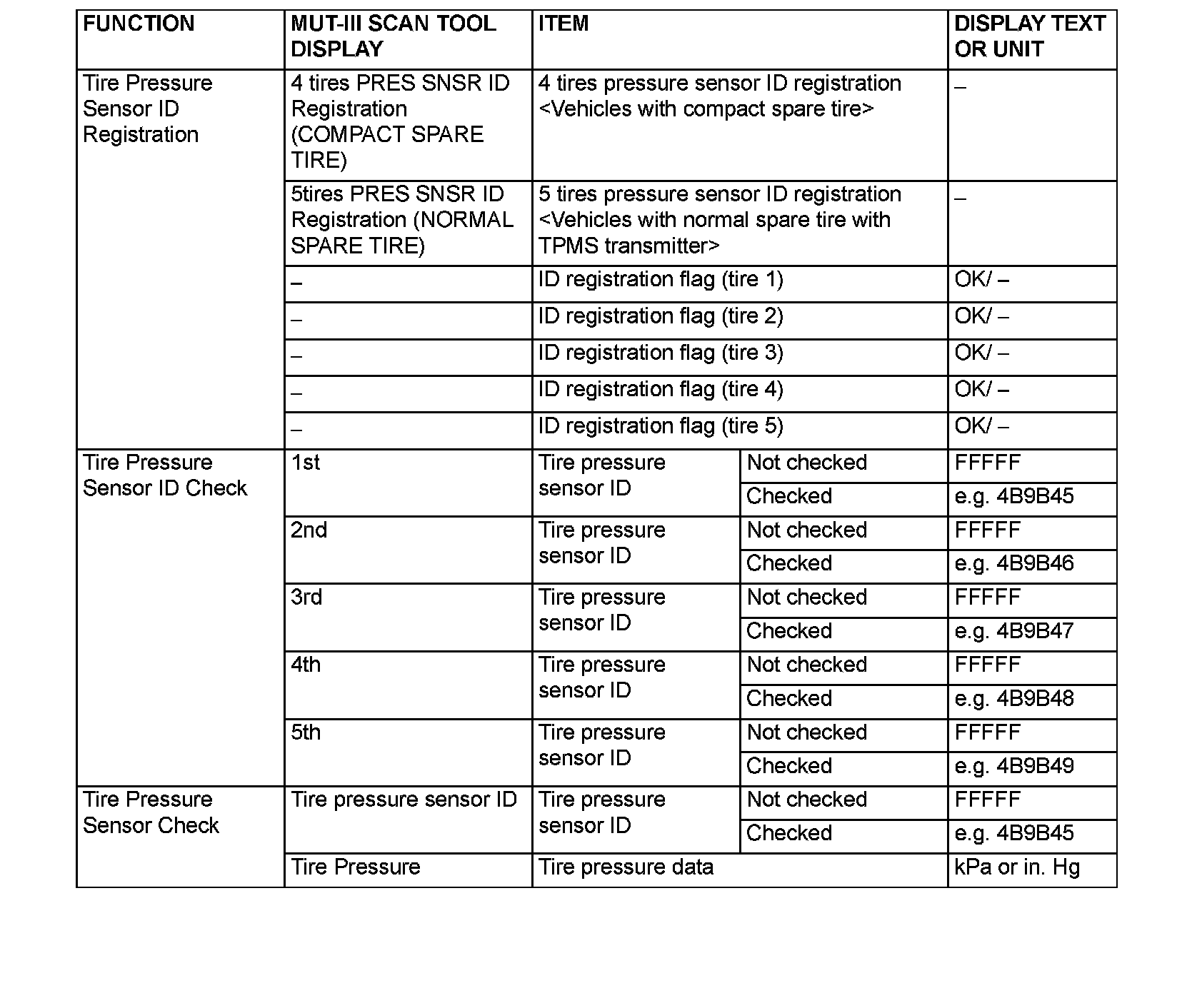

TPMS SPECIAL FUNCTION DATA LIST When the TPMS "Special Function" is executed, the TPMS receiver uses the data.
TPMS SPECIAL FUNCTION DATA LIST
