Pinout Values and Diagnostic Parameters

CHECK AT ECU TERMINAL

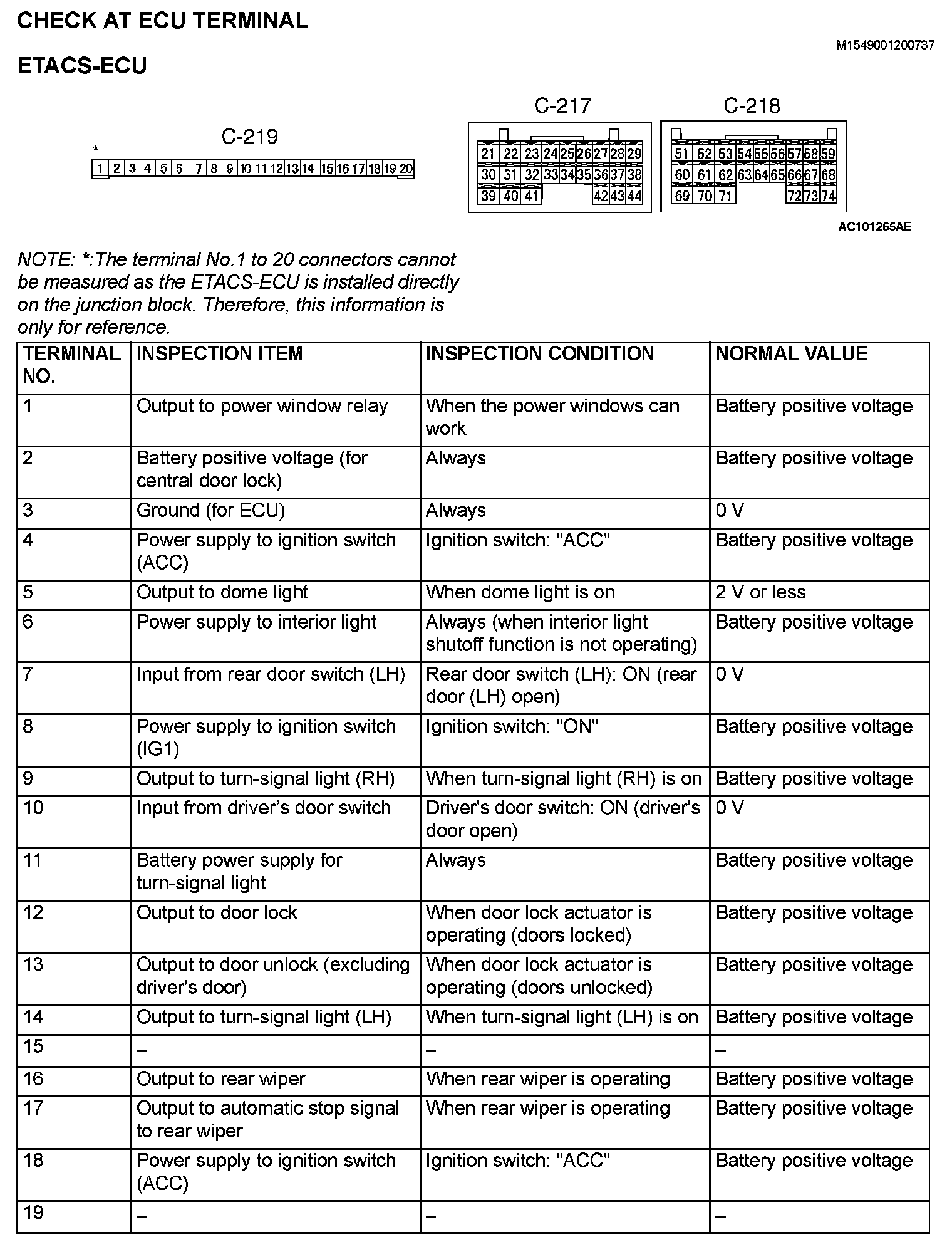

Check At ECU Terminal - ETACS-ECU (Part 1):

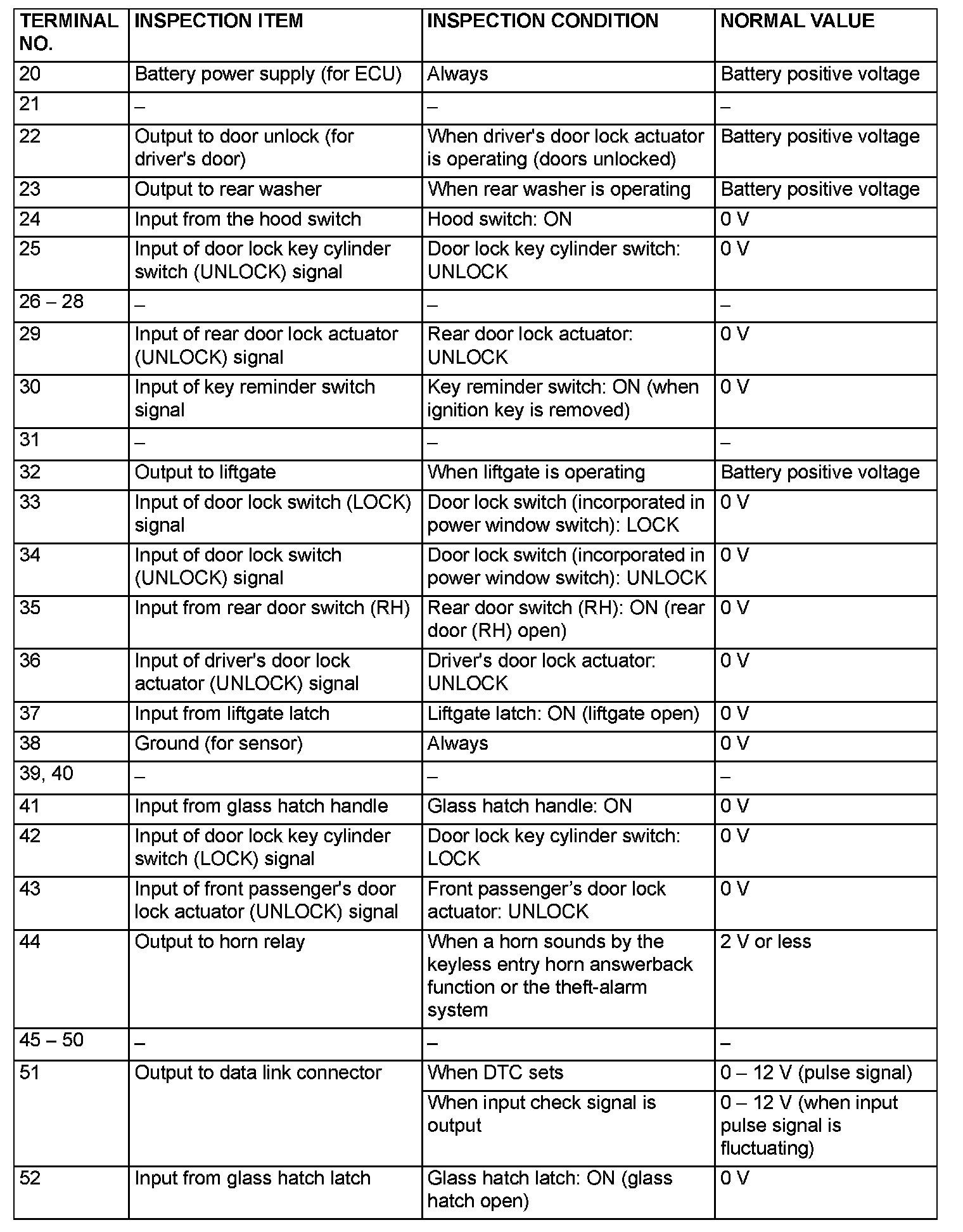

Check At ECU Terminal - ETACS-ECU (Part 2):

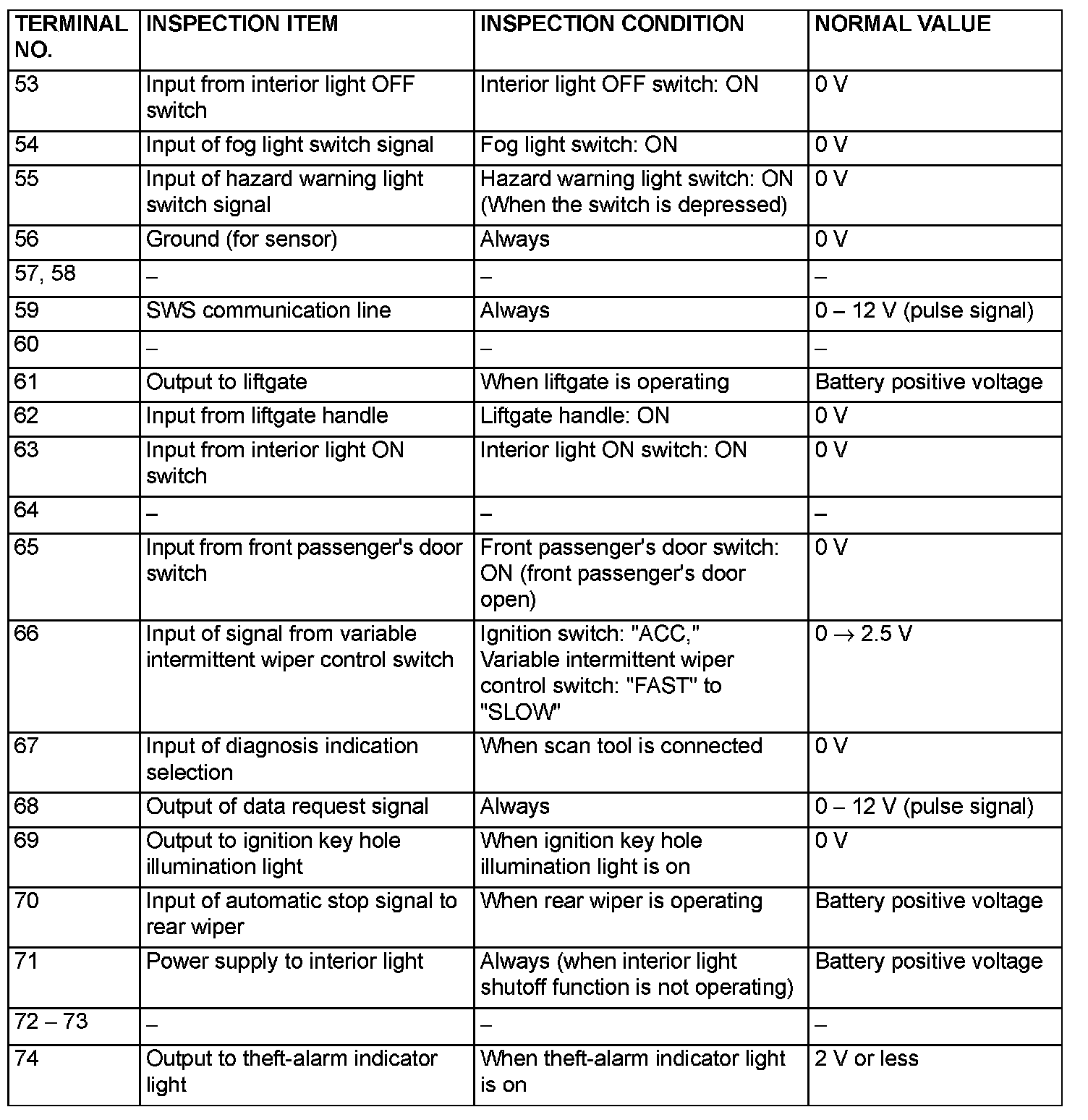

Check At ECU Terminal - ETACS-ECU (Part 3):




ETACS-ECU

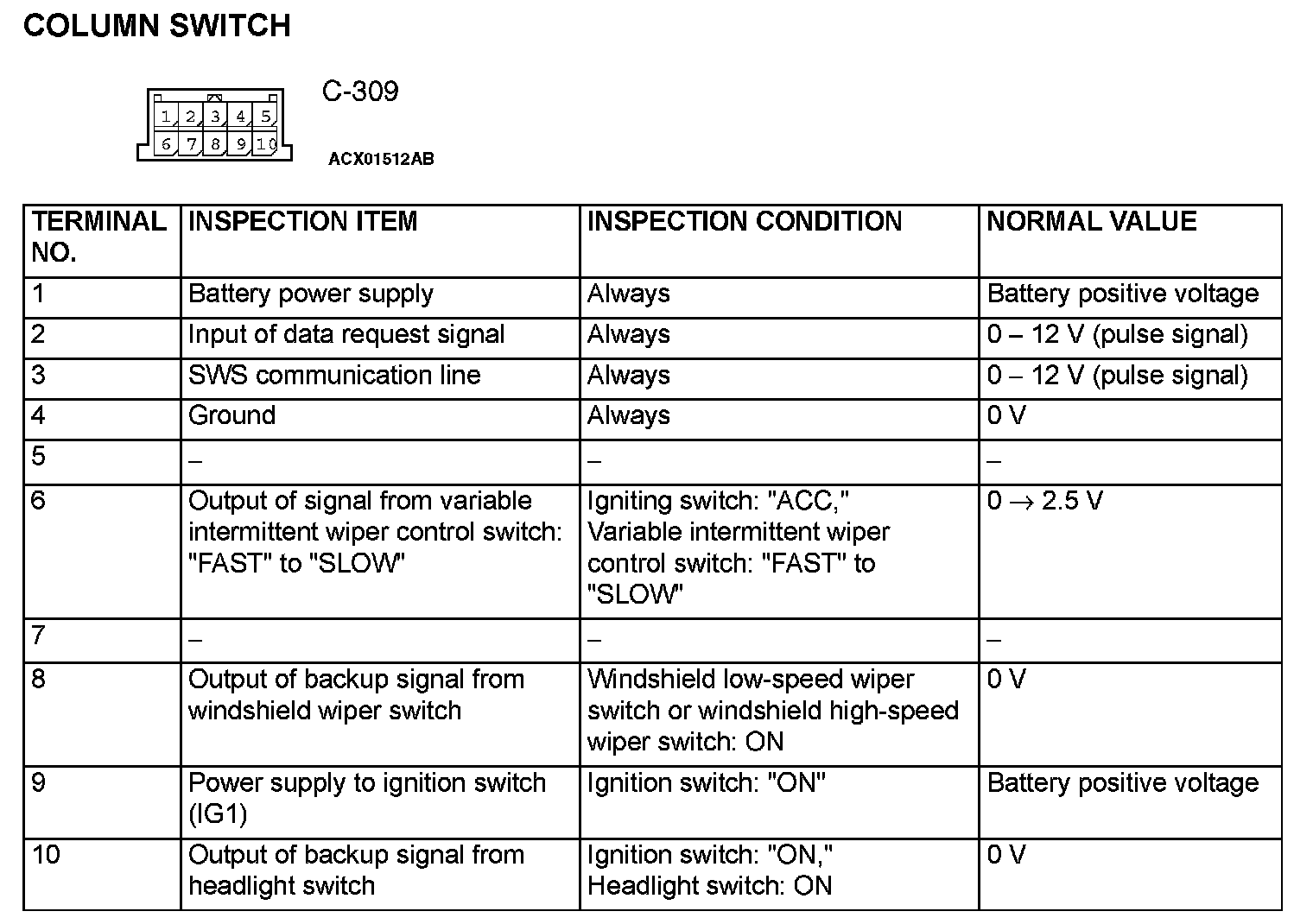

Check At ECU Terminal - Column Switch:




COLUMN SWITCH

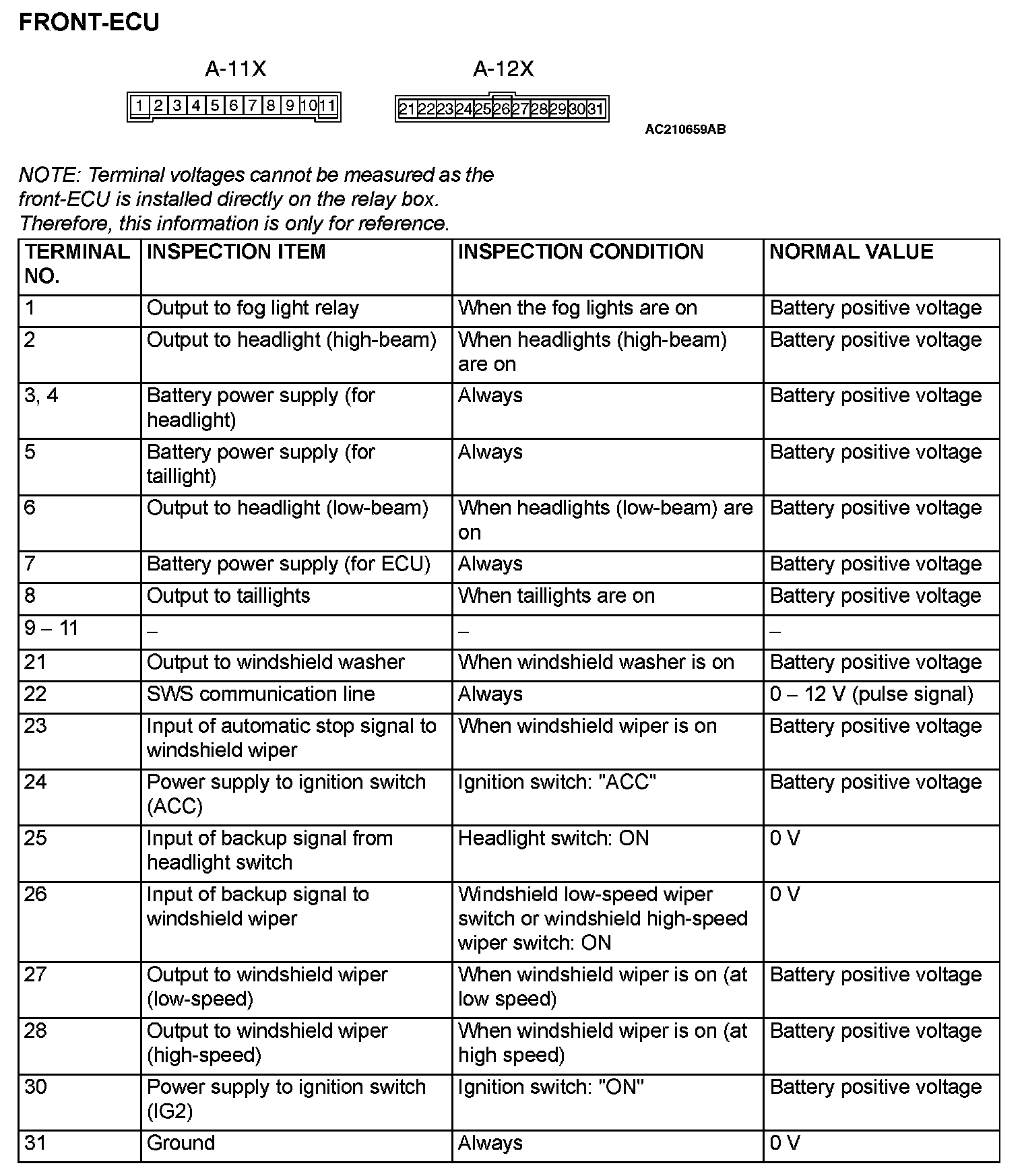

Check At ECU Terminal - Front-ECU:




FRONT-ECU

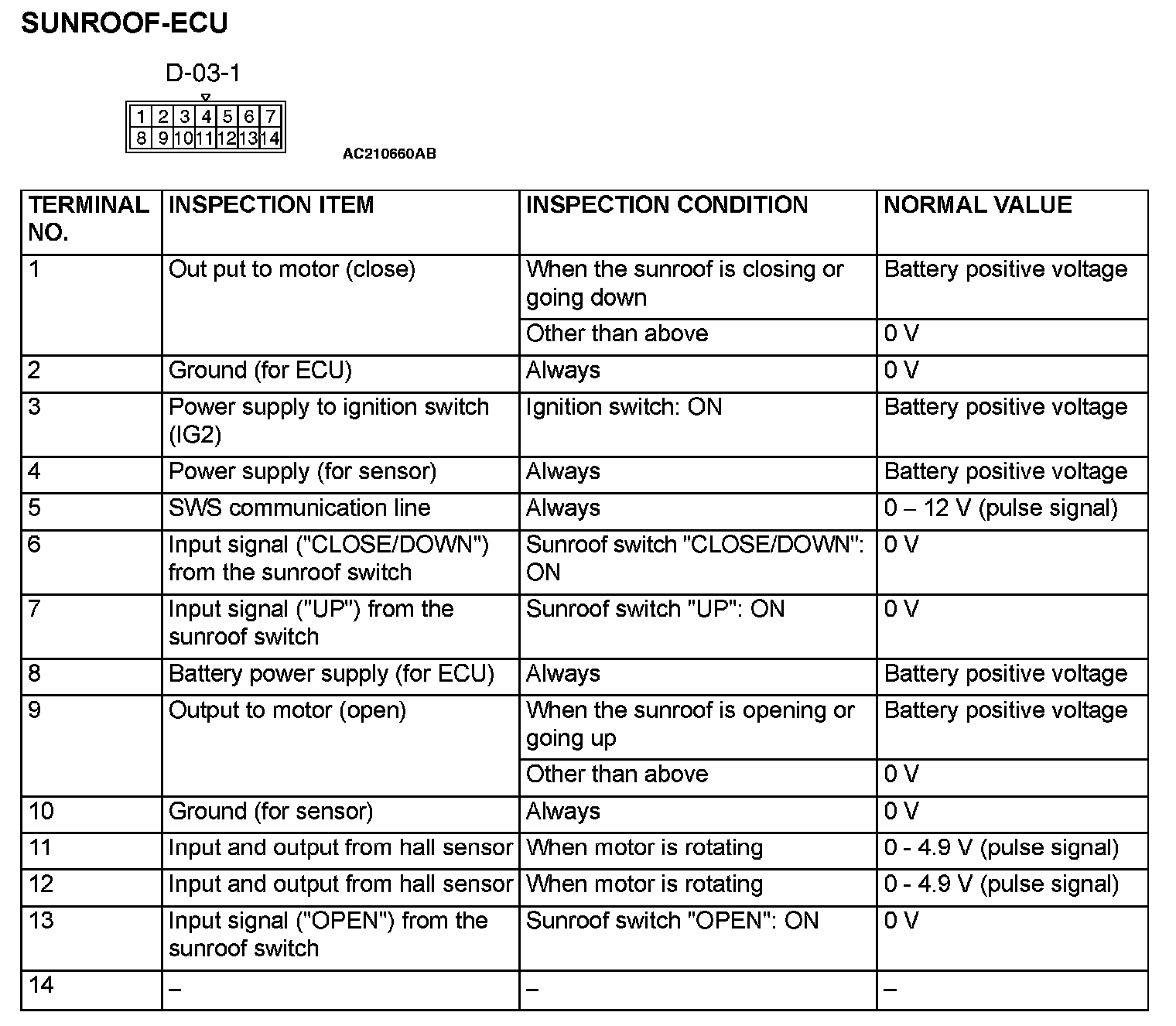

Check At ECU Terminal - Sunroof-ECU:




SUNROOF-ECU
