Oxygen Sensor: Service and Repair
EXHAUST MANIFOLD

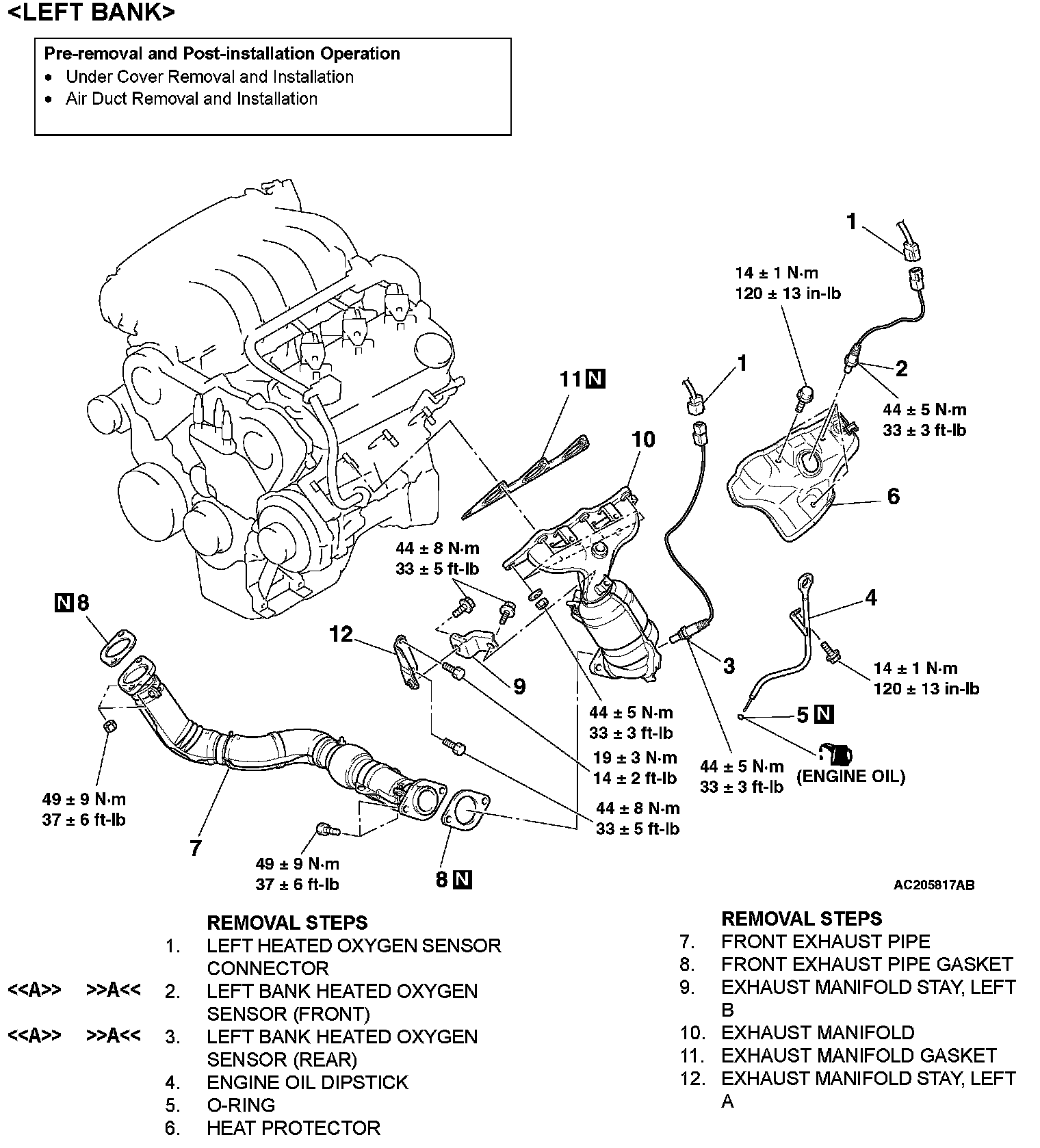

Part 1:

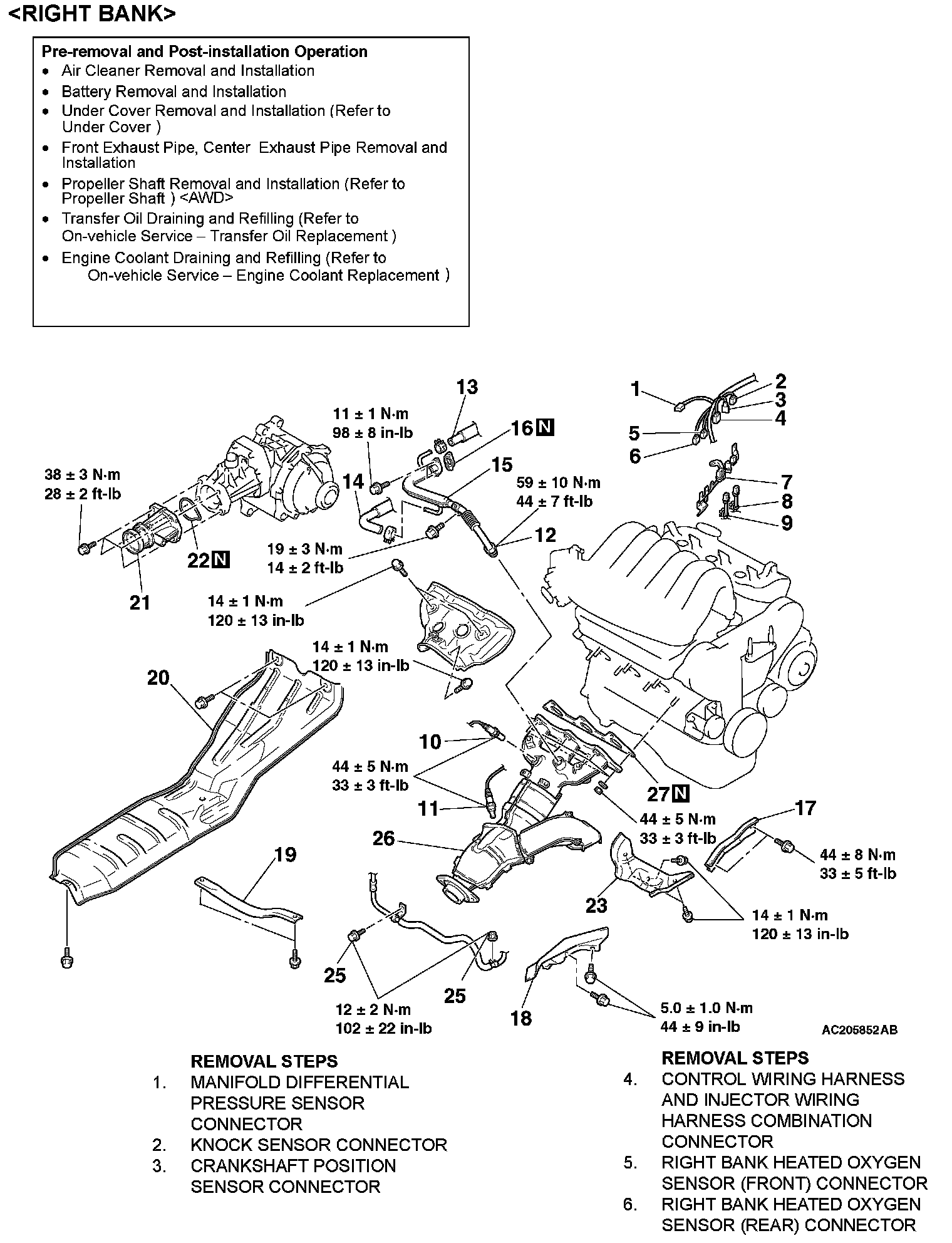

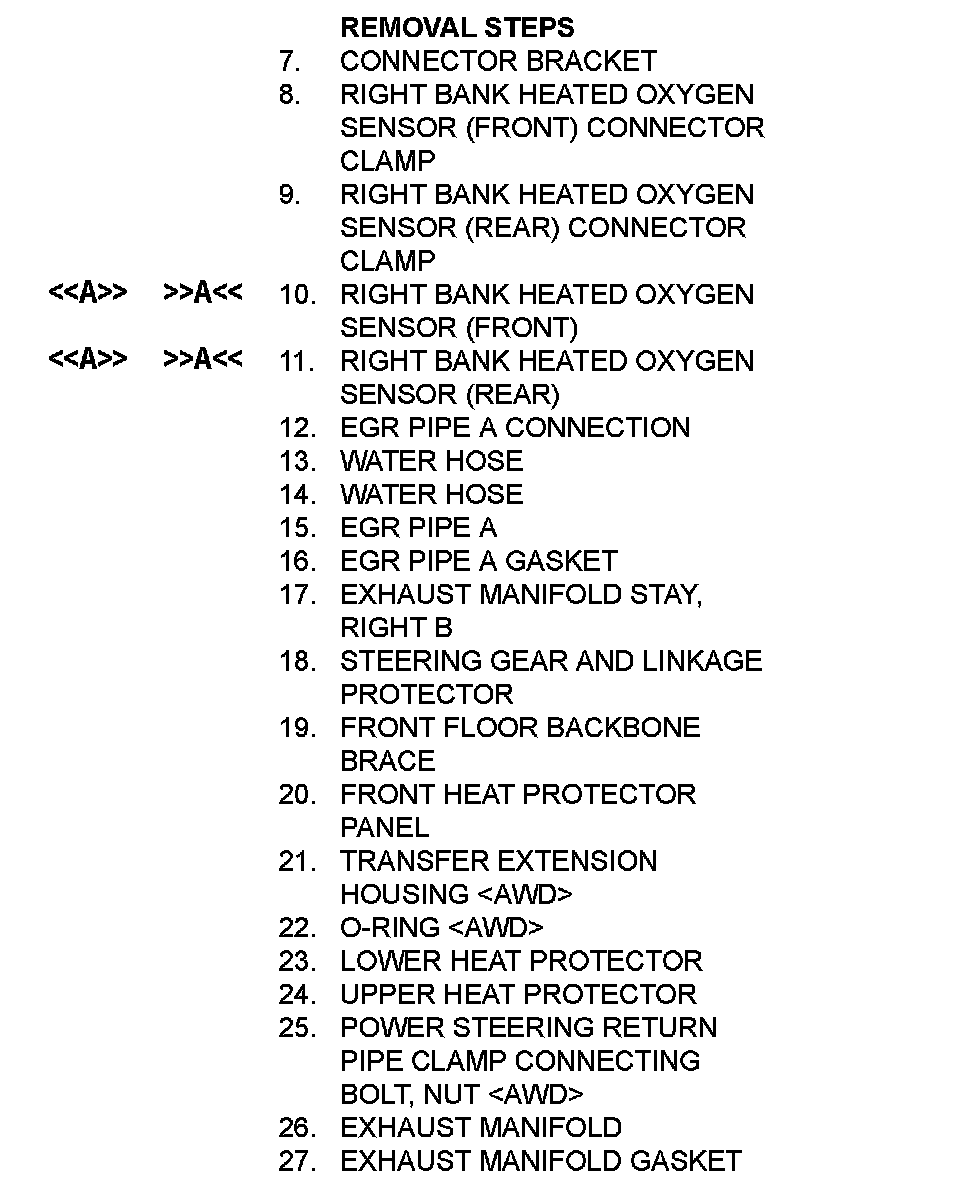

Part 2:
REMOVAL AND INSTALLATION
Required Special Tool:
- MD998770: Oxygen sensor wrench
REMOVAL SERVICE POINT
<>HEATED OXYGEN SENSOR REMOVAL

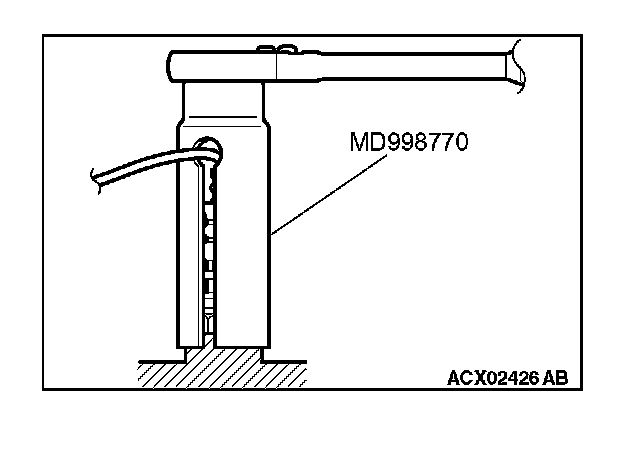

Use special tool MD998770 to remove the oxygen sensor.
INSTALLATION SERVICE POINT
>>A<< HEATED OXYGEN SENSOR INSTALLATION

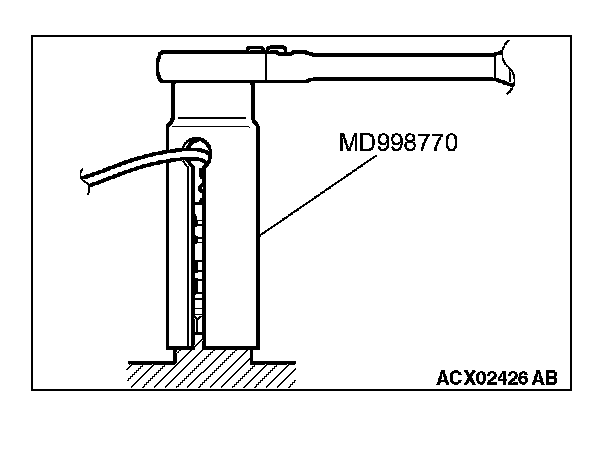

Use special tool MD998770 to install the oxygen sensor.
INSPECTION
Check the following points; replace the part if a problem is found.
Exhaust Manifold Check
1. Check for damage or cracking of any part.
2. Using a straight edge and a feeler gauge, check for distortion of the cylinder head installation surface.
Standard value: 0.15 mm (0.006 inch) or less
Limit: 0.20 mm (0.008 inch)
