Brakes/Traction Control - DTC Service Manual Revisions
No.: TSB-04-35-002DATE: January, 2004
MODEL: 2004 Endeavor
SUBJECT:
ABS AND TCL DIAGNOSTIC TROUBLE CODES
- SERVICE MANUAL REVISION
PURPOSE
The following ABS and TCL diagnostic trouble codes are missing in the affected service manual and technical information manual pages: C1381, 01382, C1383, 01620, 01395, C1396, C1397, U1100, U1101, U1120, U1400.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
2004 Endeavor
AFFECTED MANUALS
2004 Endeavor Technical Information Manual, pages 13C-6, 35B-8, and 35B-9
2004 Endeavor Service Manual, pages 13C-8, 35B-9, 35B-10, and 35B-75

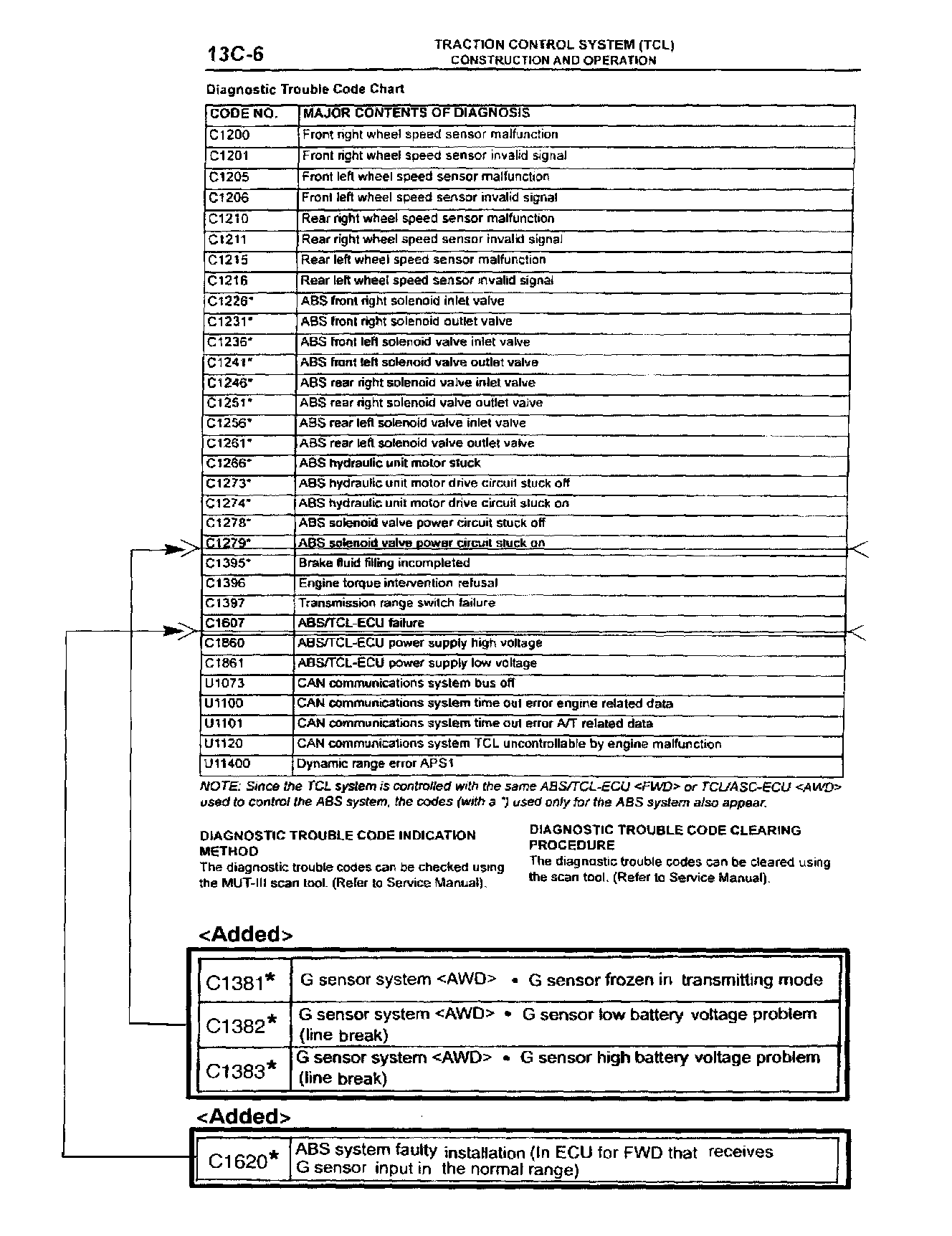

2004 Endeavor Technical Information Manual, page 13C-6

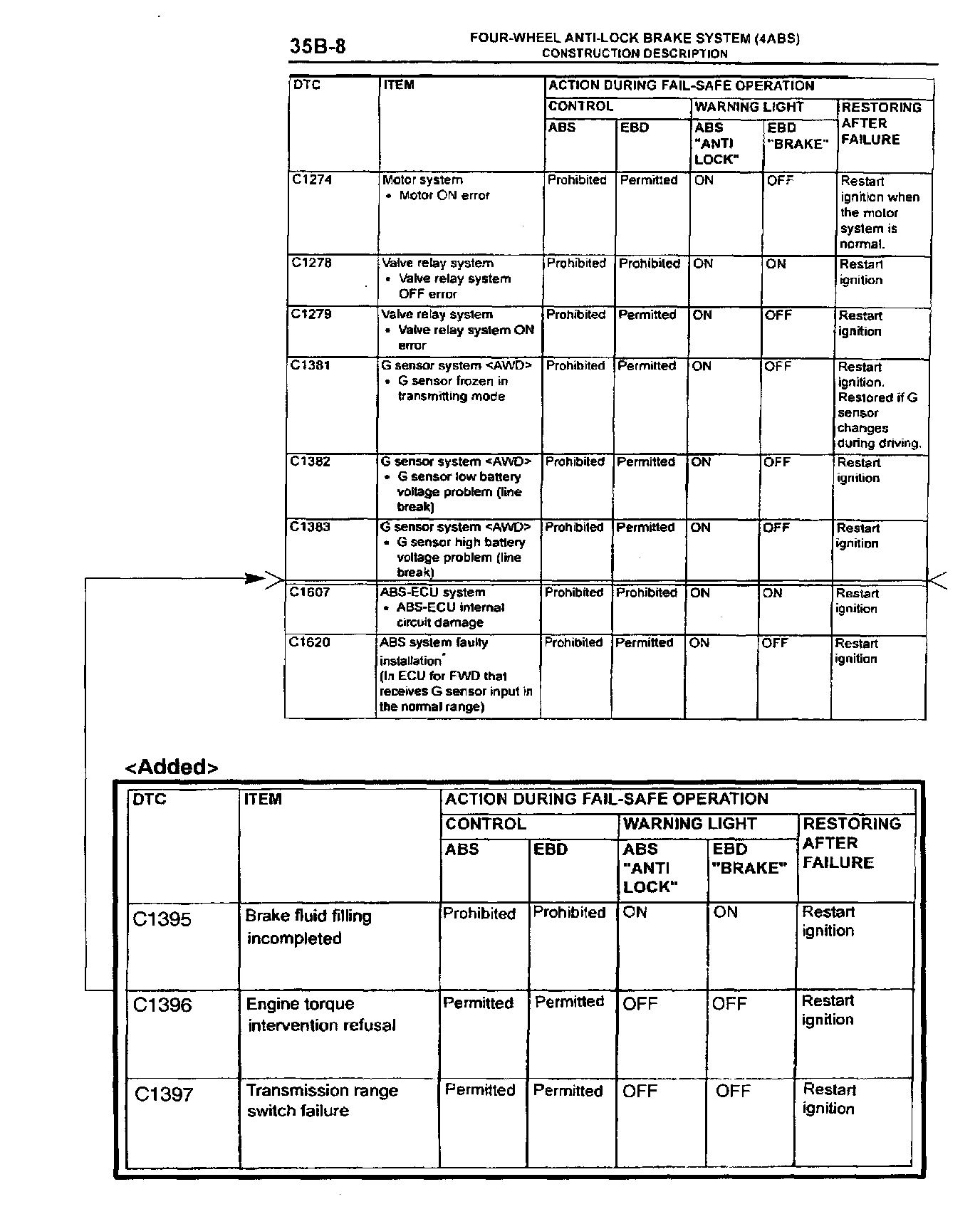

2004 Endeavor Technical Information Manual, page 35B-8

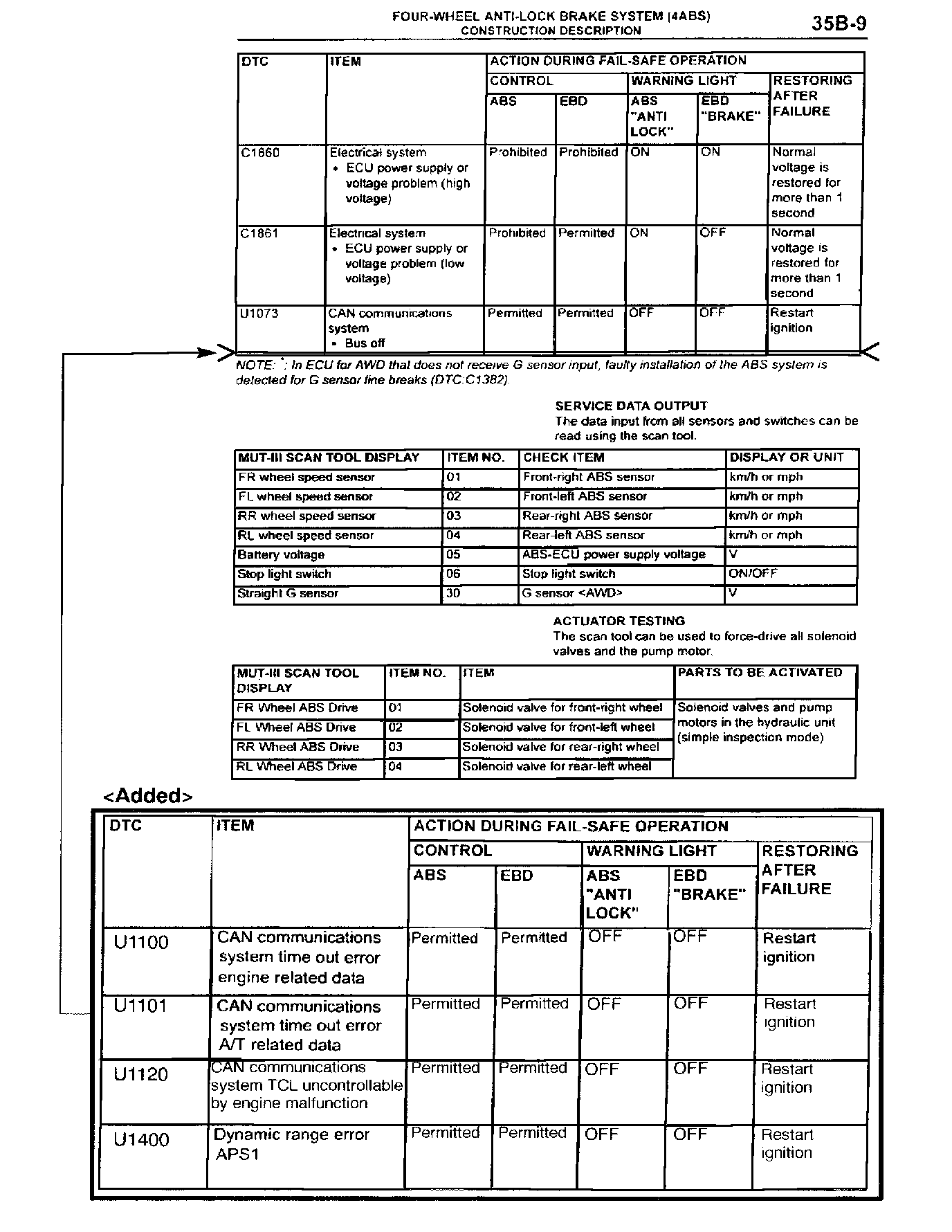

2004 Endeavor Technical Information Manual, page 35B-9

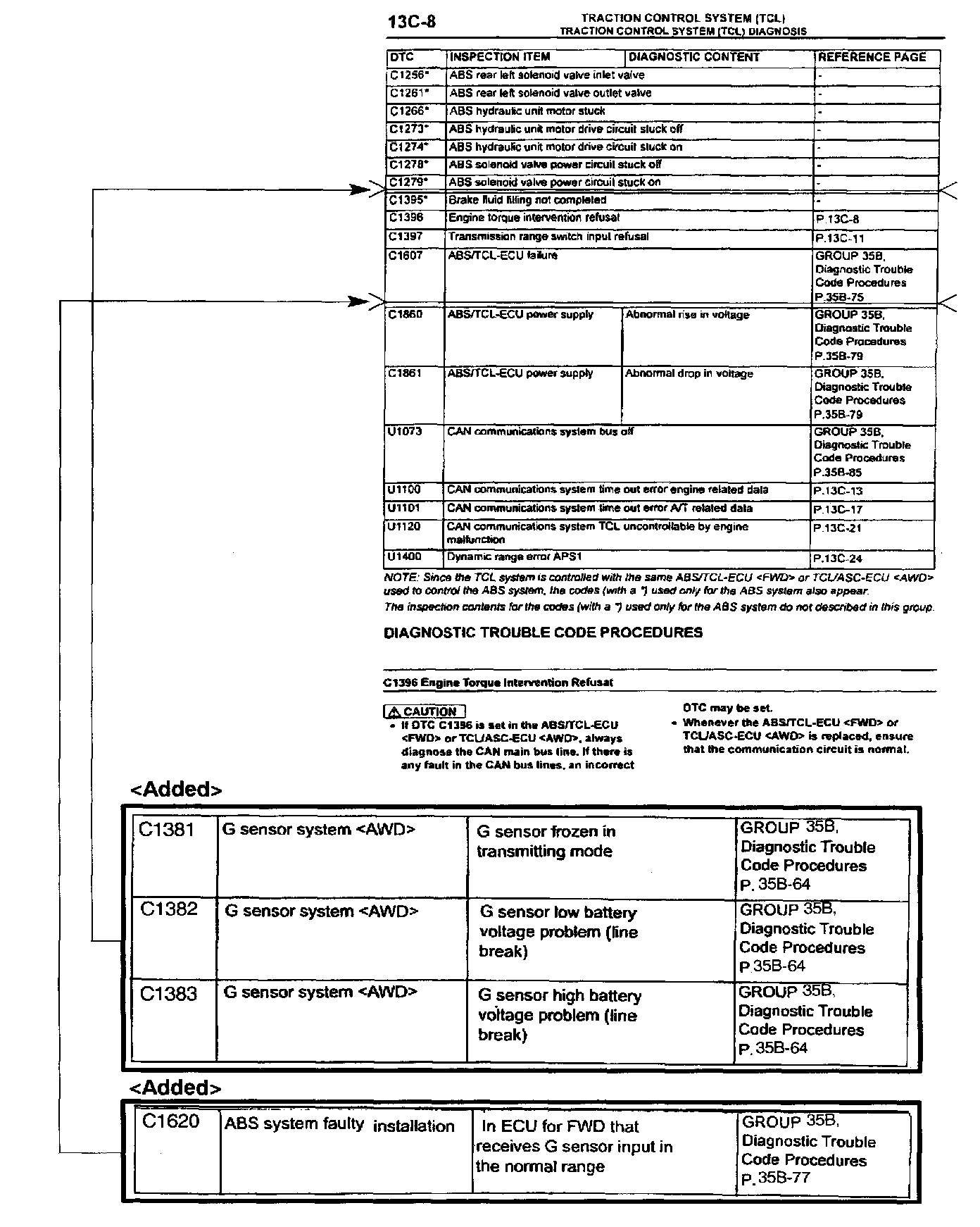

2004 Endeavor Service Manual, page 13C-8

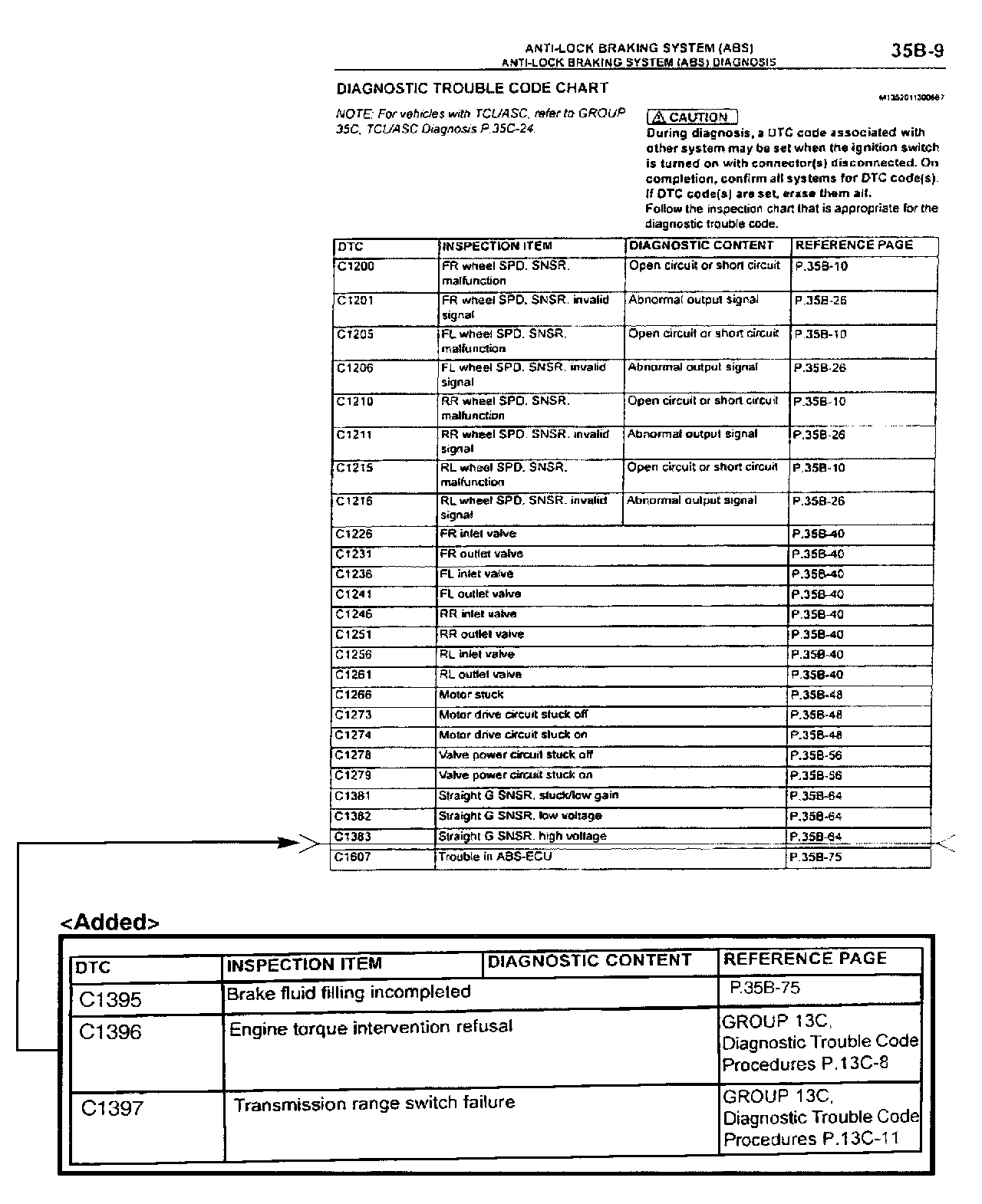

2004 Endeavor Service Manual page 35B-9

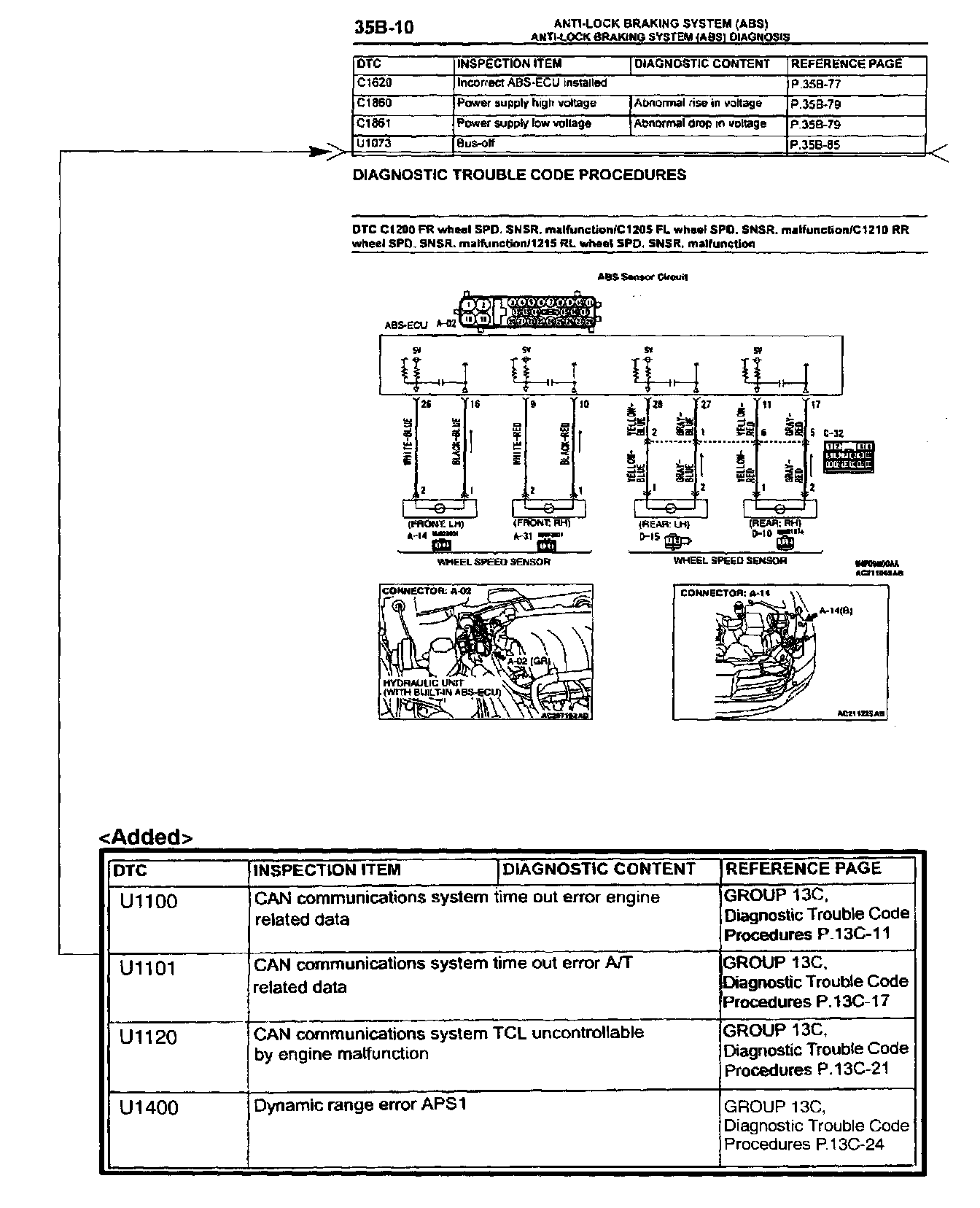

2004 Endeavor Service Manual, page 35B-10

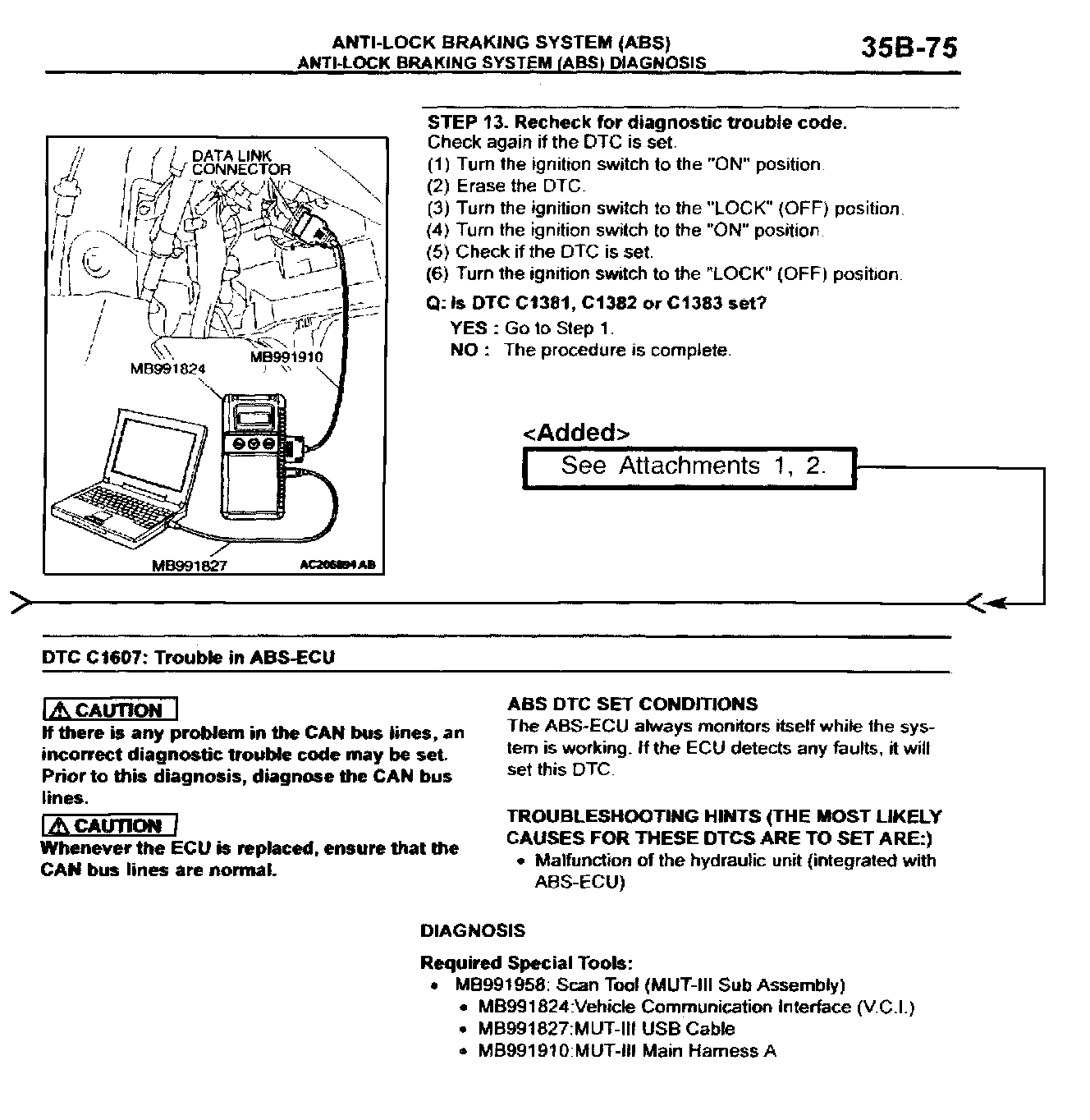

2004 Endeavor Service Manual, page 35B-75
