A/T - Learned Value Reset Manual Revision

No: TSB-04-23-002
DATE: August, 2004
MODEL: 2004 Galant, Endeavor

SUBJECT:
A/T LEARNED VALUE
RESET PROCEDURE - SERVICE MANUAL REVISION

TSB Revision: TSB-04-23-002

PURPOSE

The procedure for resetting the A/T learned value is missing in the affected service manuals.

On these vehicles, A/T learned value cannot be reset by disconnecting the battery. Use the MUT-III/STV to reset the A/T learned value. All learned value must be reset whenever the automatic transmission is replaced or rebuilt.

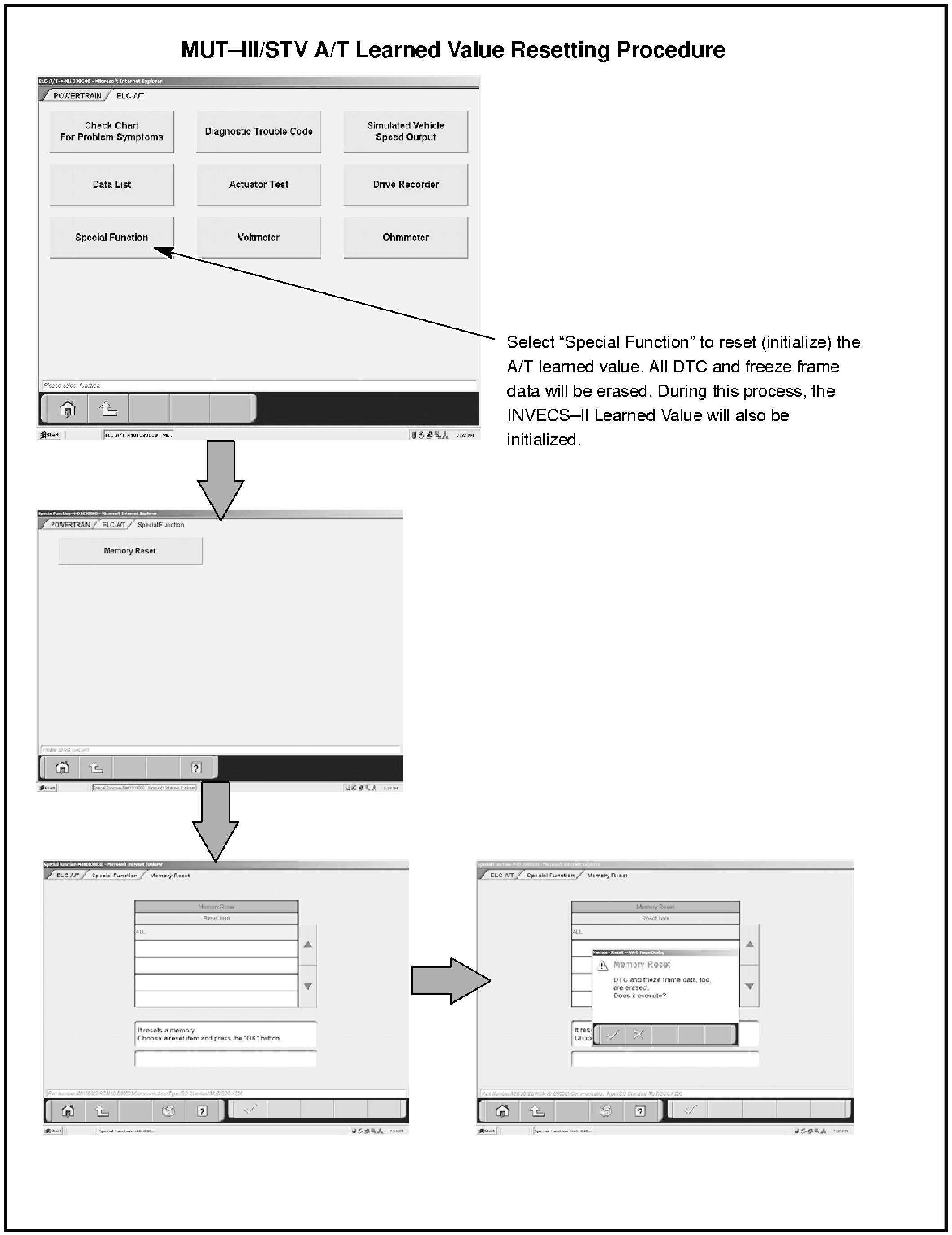

This bulletin contains the A/T learned value reset procedure for affected vehicles, and the MUT-III/STV screens that are used.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES

2004 Galant and 2004 Endeavor

AFFECTED SERVICE MANUALS

2004 Galant, Volume 2, page 23A-19
2004 Endeavor, Volume 2, page 23A-17

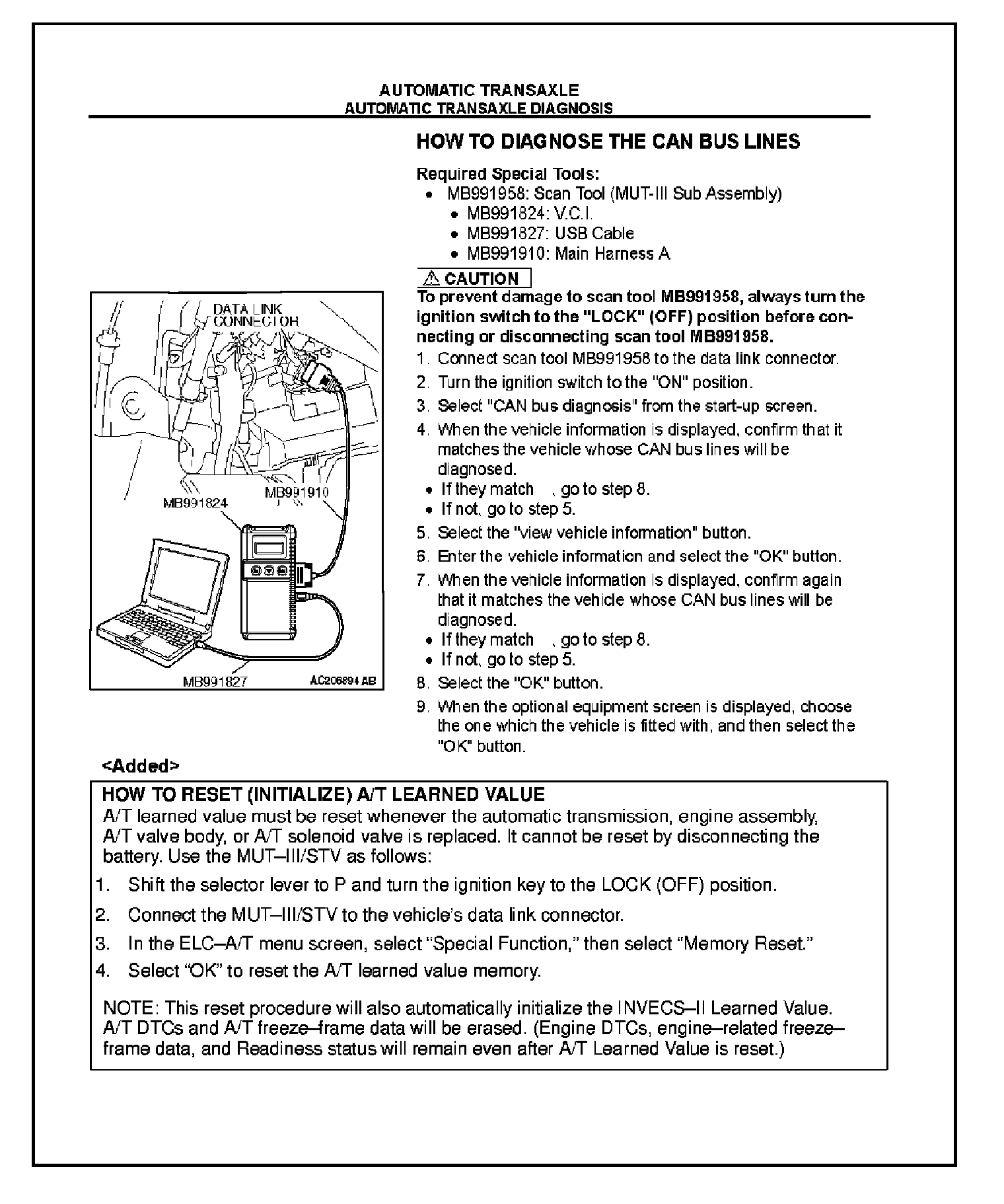

2004 Galant, Vol. 2, page 23A-19, and 2004 Endeavor, Vol. 2, page 23A-17
