Fluid Line/Hose: Service and Repair

Part 1:

Part 2:

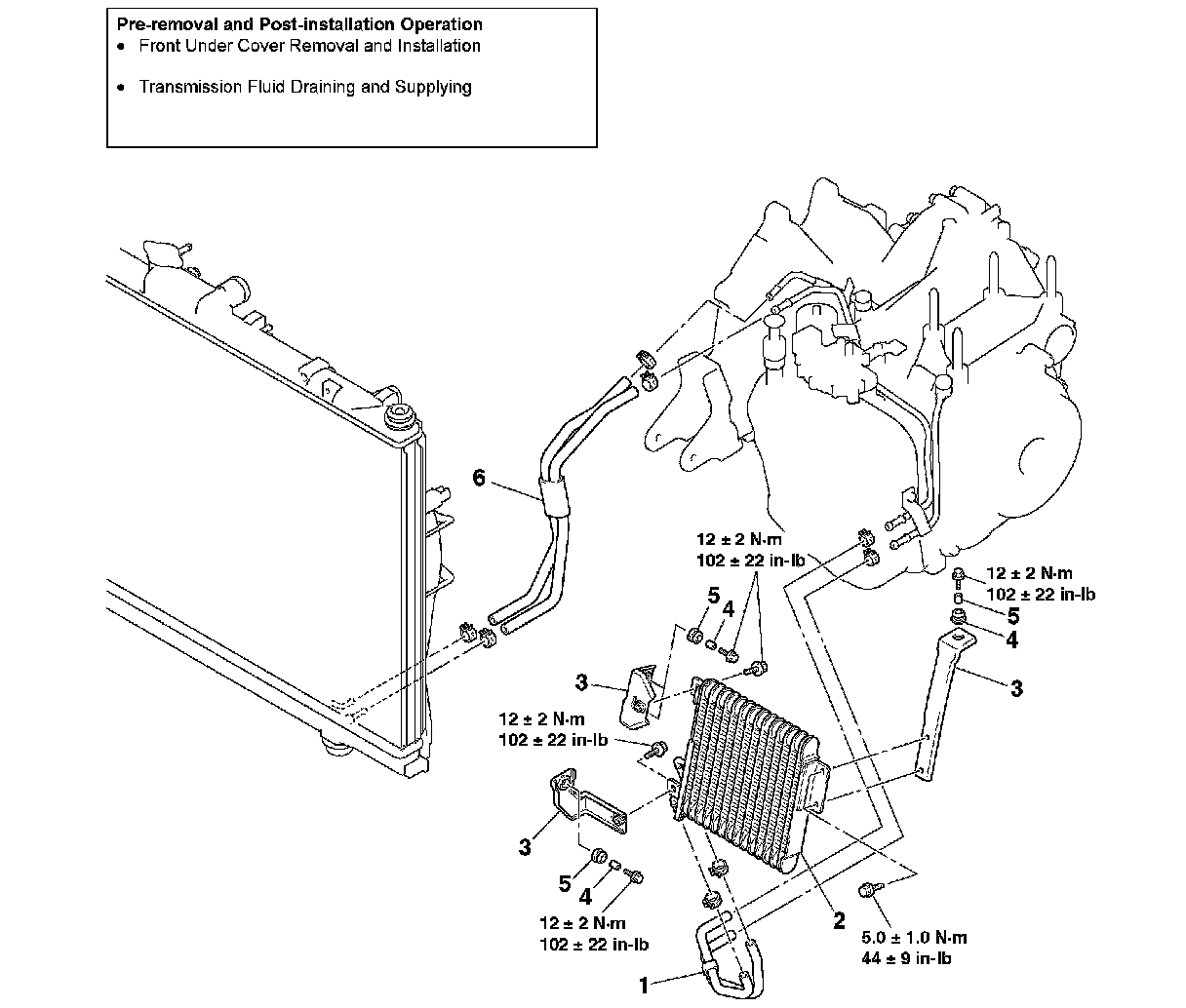

TRANSMISSION FLUID COOLER, HOSE AND PIPE
REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
<> SPLASH SHIELD CLIP AND BOLT REMOVAL RH SIDED

Remove the clips and bolts shown in the illustration.

<> HOSE ASSEMBLY TRANSMISSION FLUID COOLER SIDE>/HOSE ASSEMBLY RADIATOR SIDE>/TRANSMISSION FLUID COOLER REMOVAL
Drain the transmission fluid, which still remained in the hose assembly and the transmission fluid cooler.
