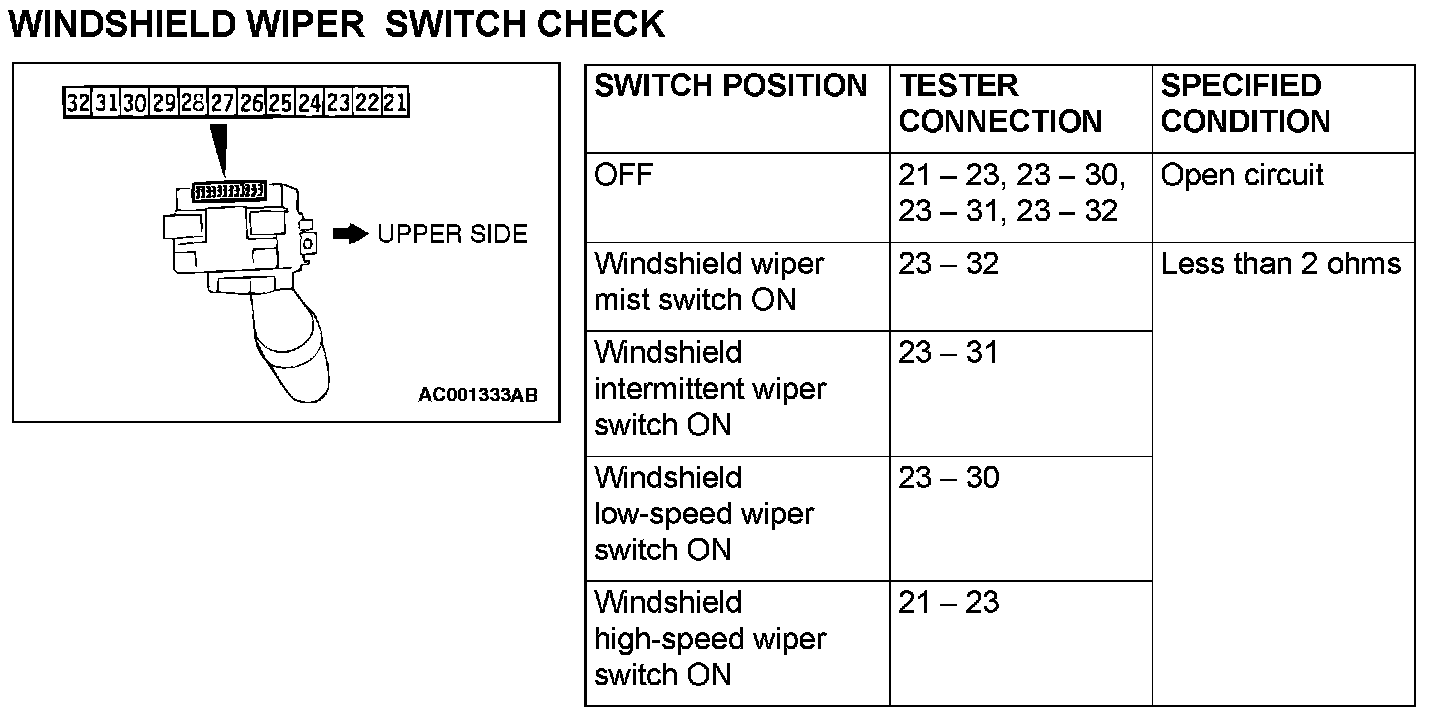

Windshield Wiper Switch Check
WINDSHIELD WIPER SWITCH CHECKWindshield Wiper Switch Check:
Measure the resistance value at terminal numbers 27 and 28. The resistance value should rise smoothly from approximately
0 Ohms ("FAST" position) to approximately
1 k Ohms ("SLOW' position).
