Heater Core Case: Service and Repair

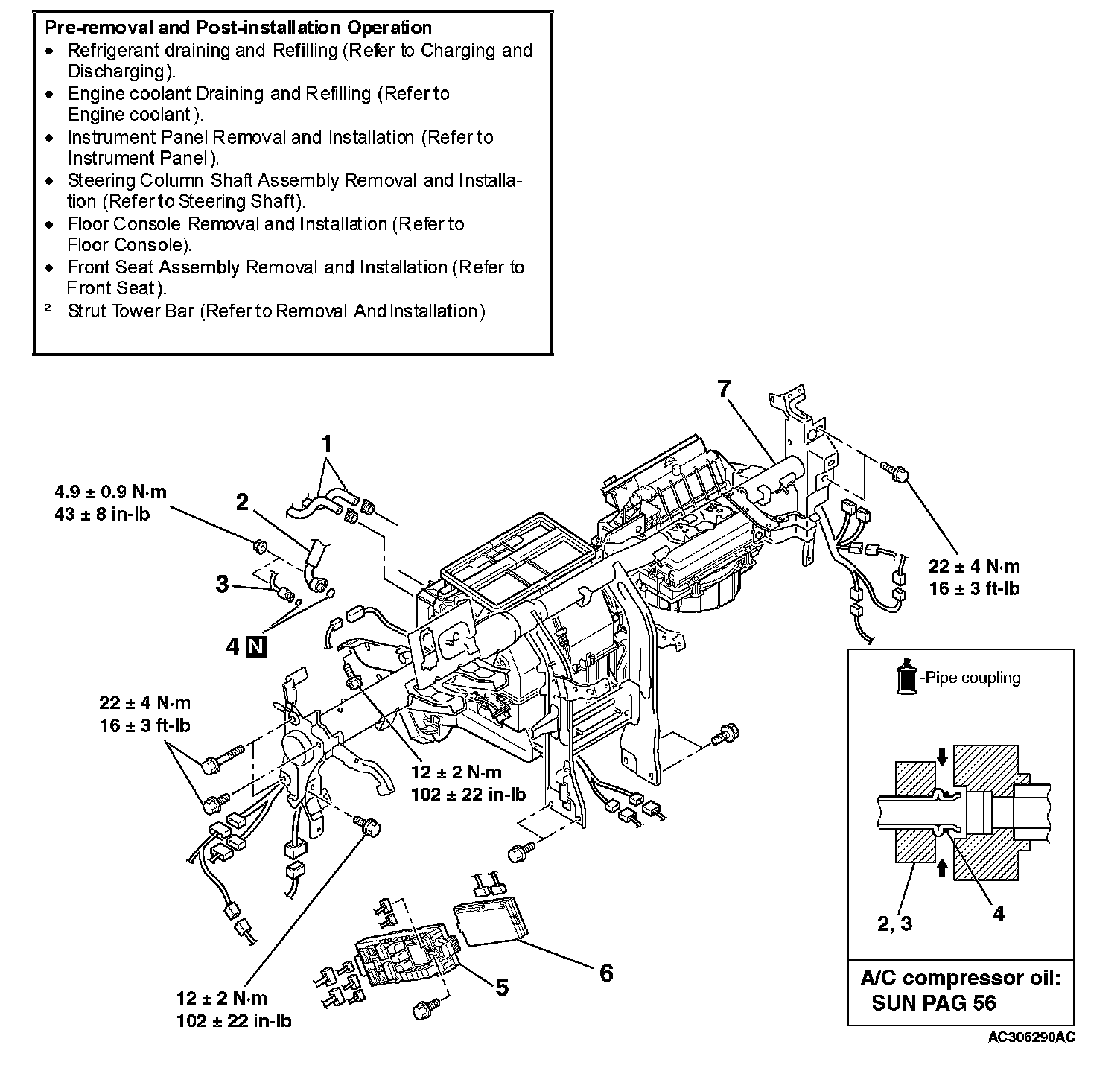

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT

REMOVAL AND INSTALLATION

WARNING:
- Before removing the front seat assembly, refer to Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to On-Vehicle Service)

REMOVAL SERVICE POINTS

<> SUCTION PIPE AND LIQUID PIPE DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.

<> HEATER UNIT AND DECK CROSSMEMBER ASSEMBLY REMOVAL

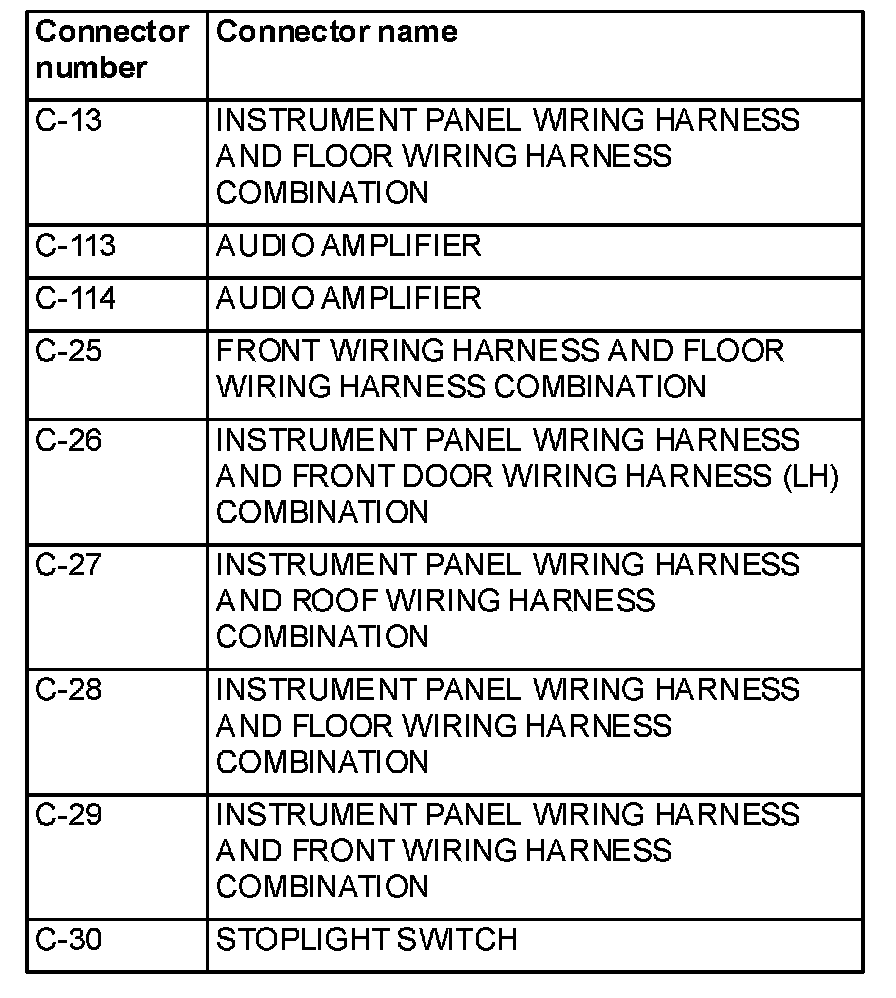

Disconnect the following connectors to gain access to the front deck crossmember.
