Instruments - Center Display DTC Addition

No: TSB-09-54-003

Date: February, 2009

Model: 2004-09 Galant

SUBJECT:
DIAGNOSTIC TROUBLE CODES FOR CENTER DISPLAY ADDED - SERVICE MANUAL REVISION

PURPOSE

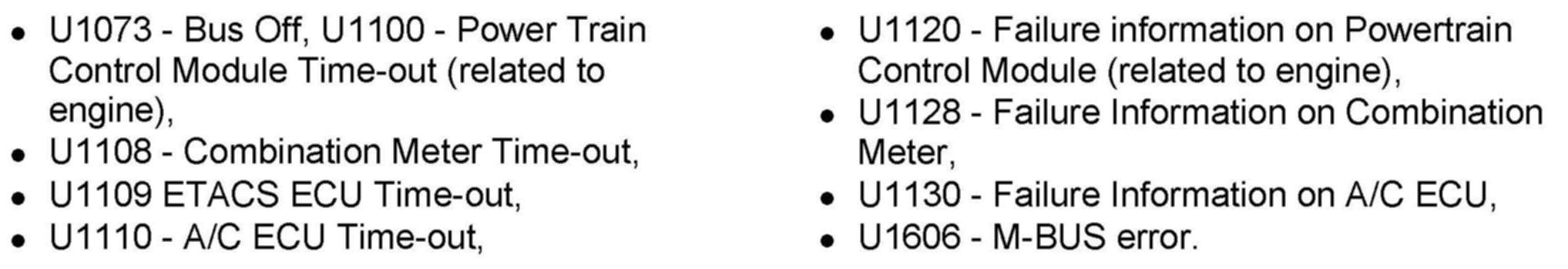

To add diagnostic procedures for the listed multi-center display Diagnostic Trouble Codes shown above.

AFFECTED VEHICLE(S)
2004-2009 Galant

APPLICABLE MANUAL(S)

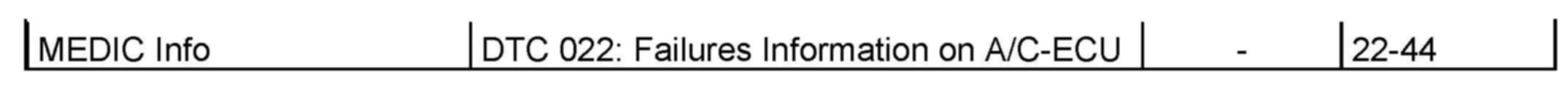

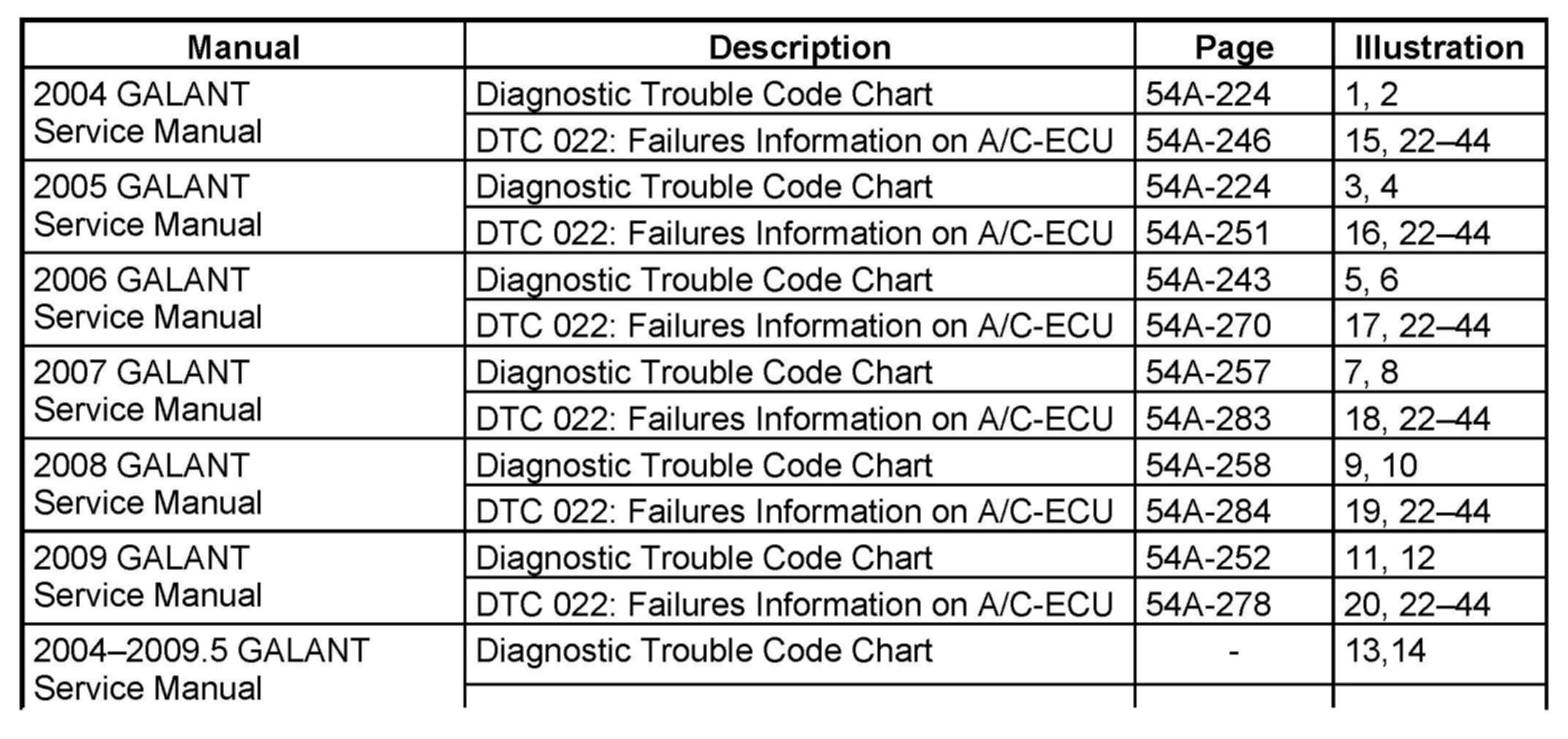

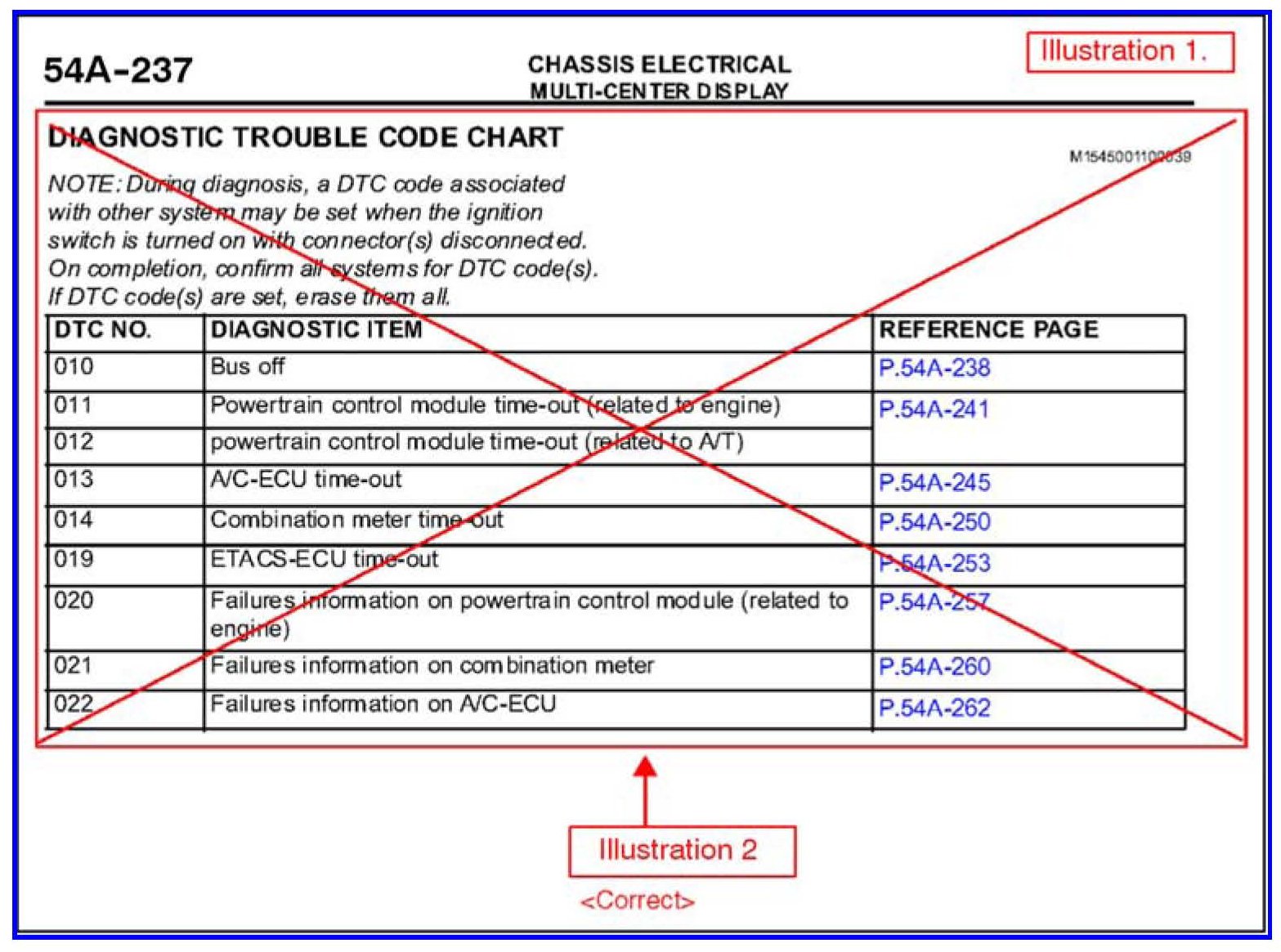

Illustration 1 - Pages 54A-237

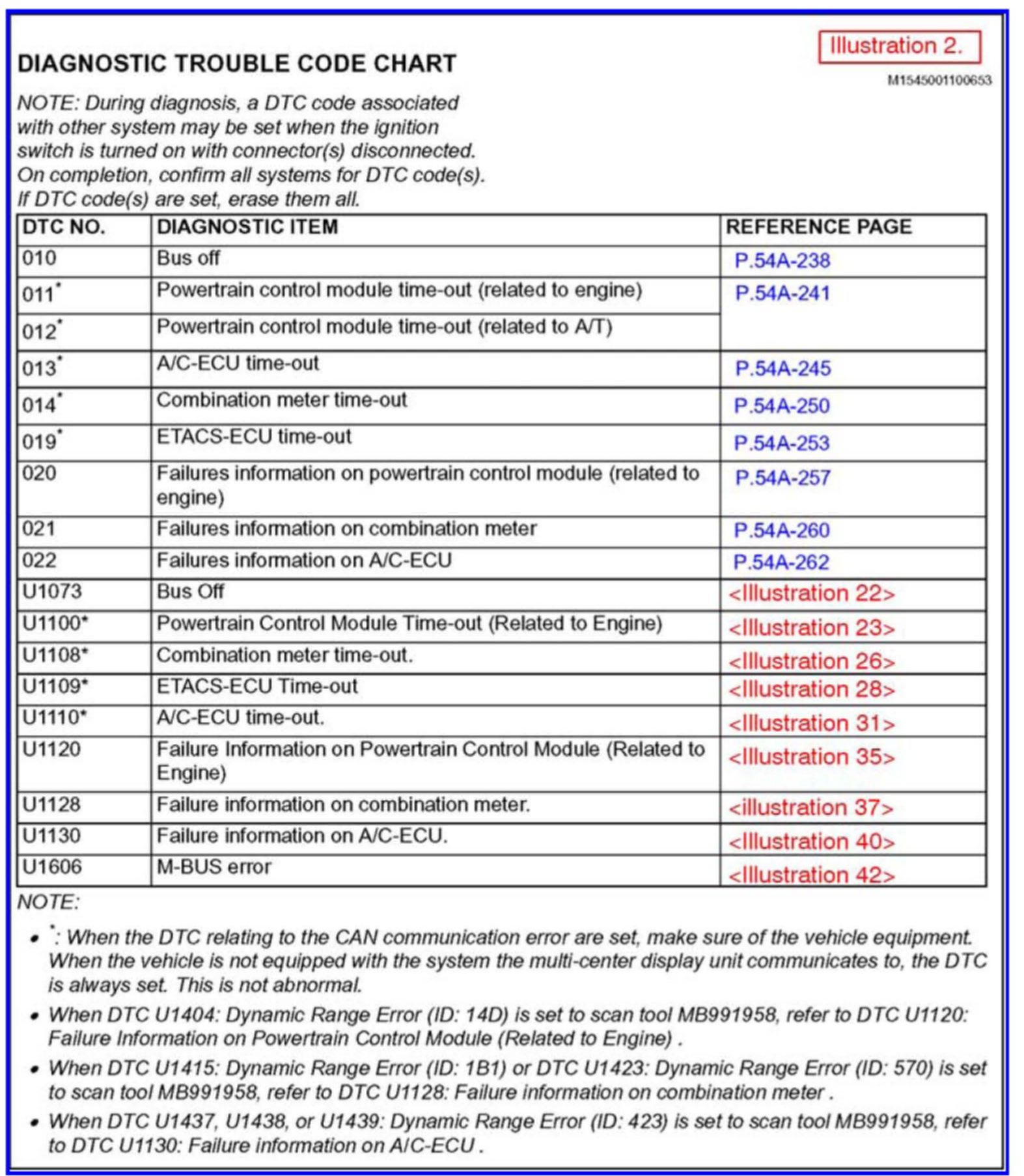

Illustration 2 - Diagnostic Trouble Code Chart

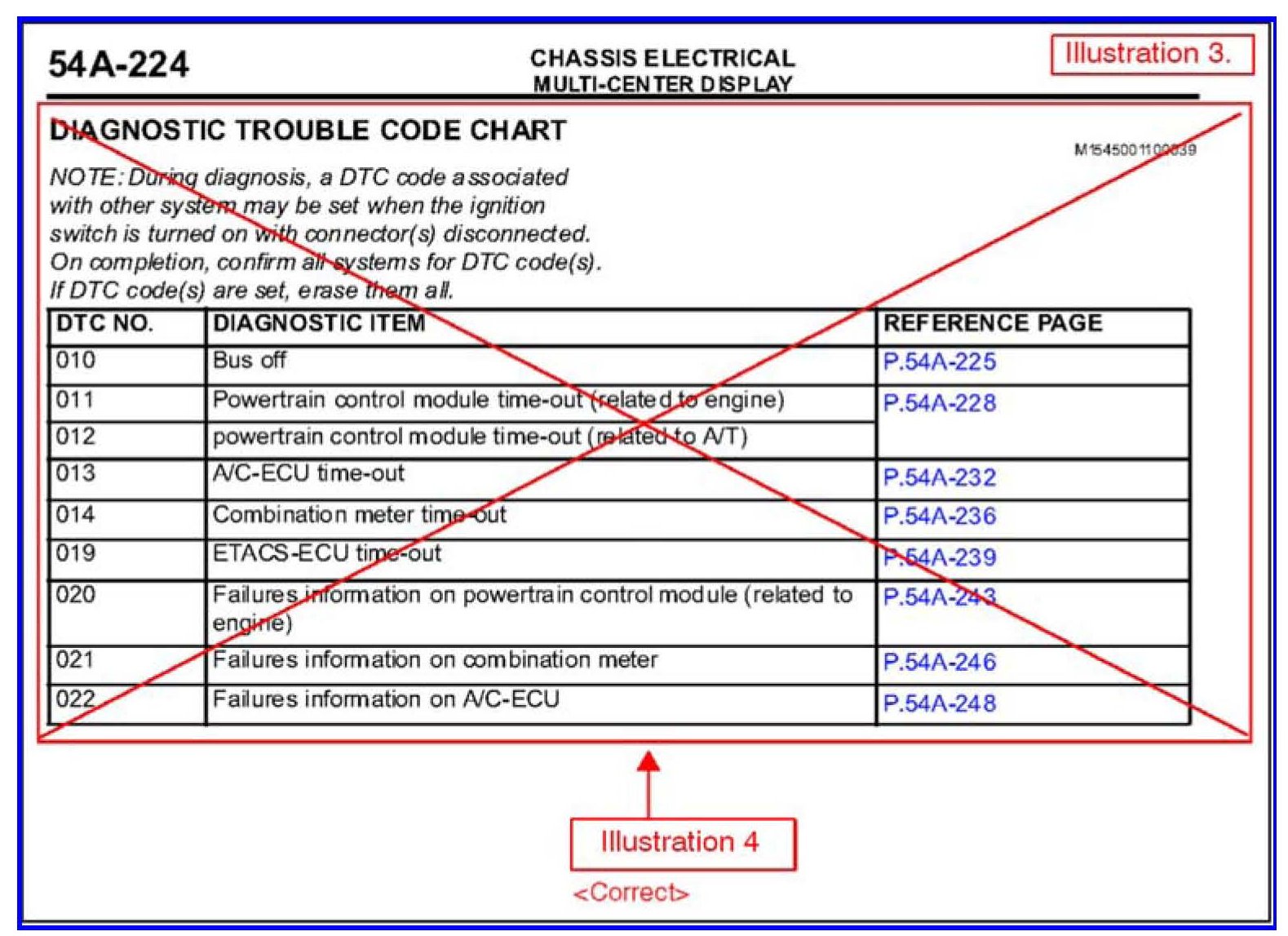

Illustration 3 - Pages 54A-224

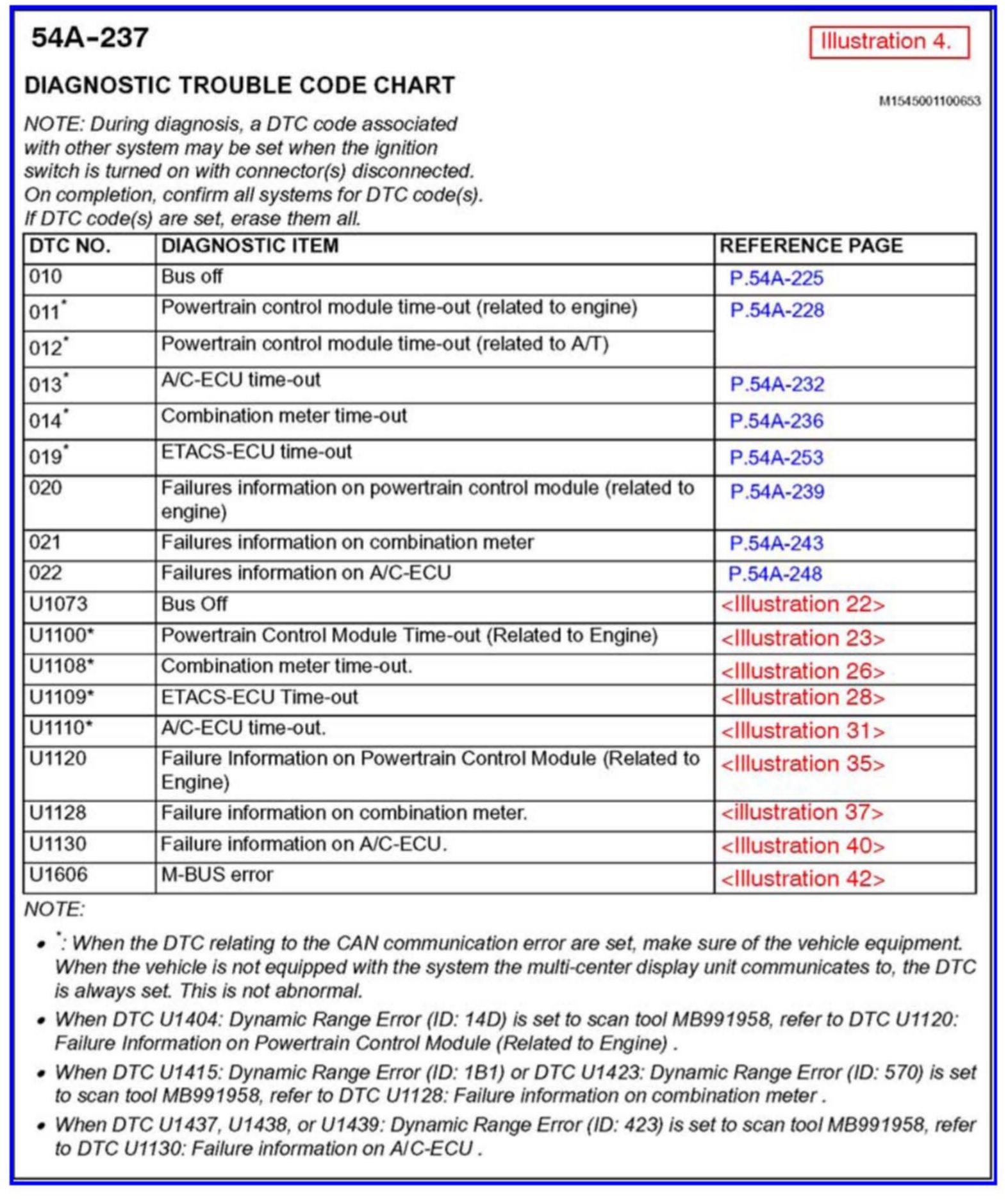

Illustration 4 - Pages 54A-237

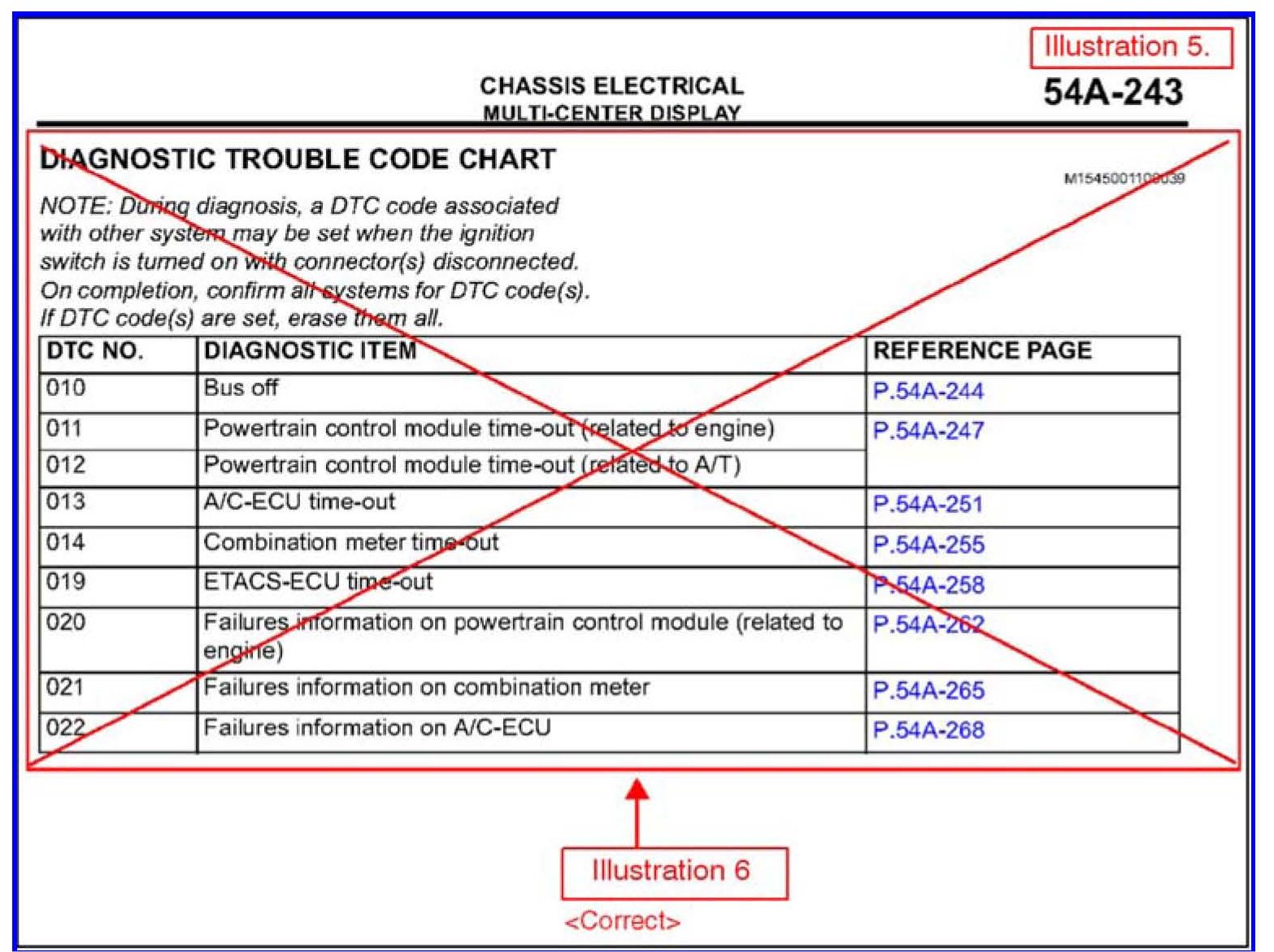

Illustration 5 - Pages 54A-243

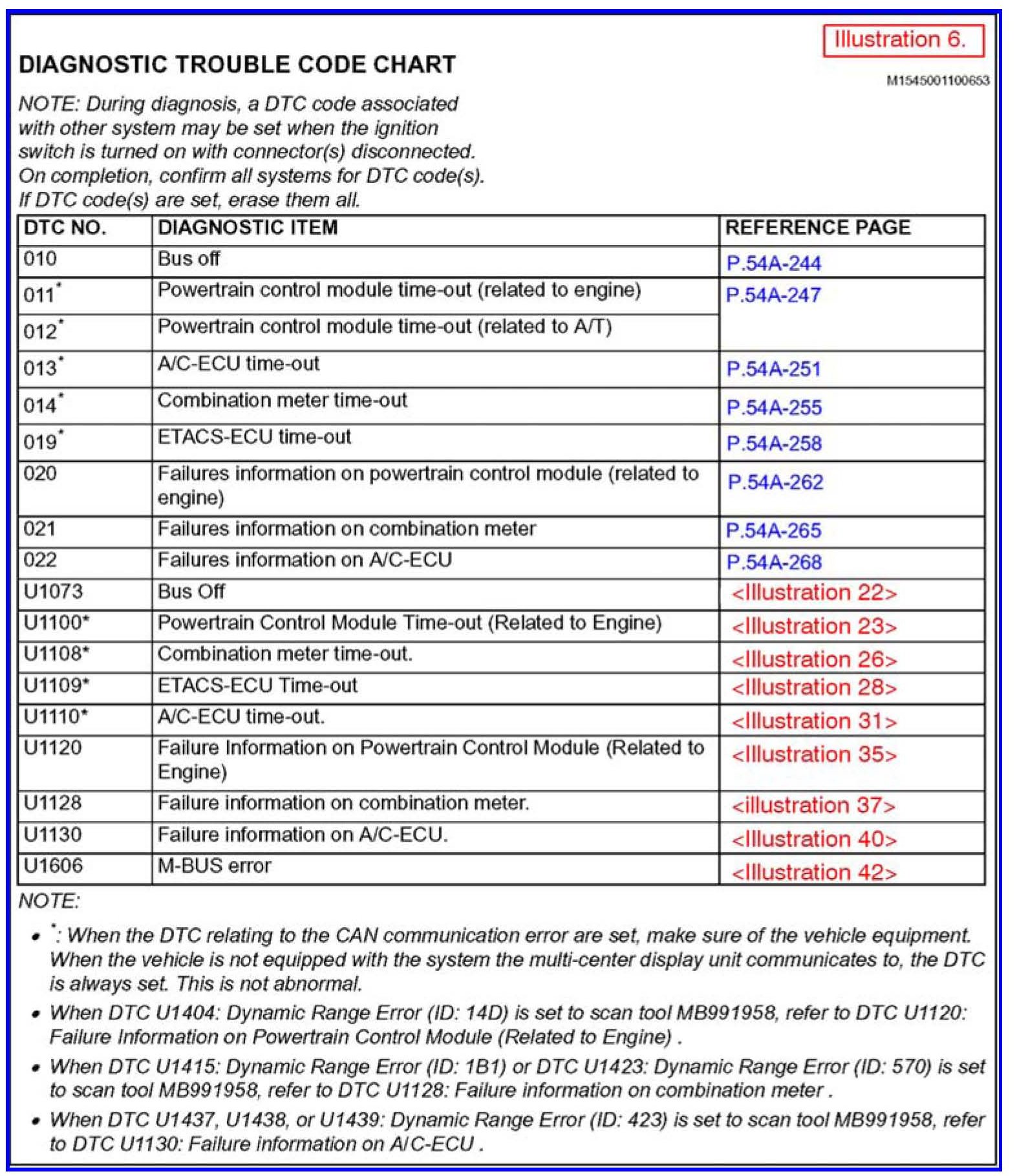

Illustration 6 - Diagnostic Trouble Code Chart

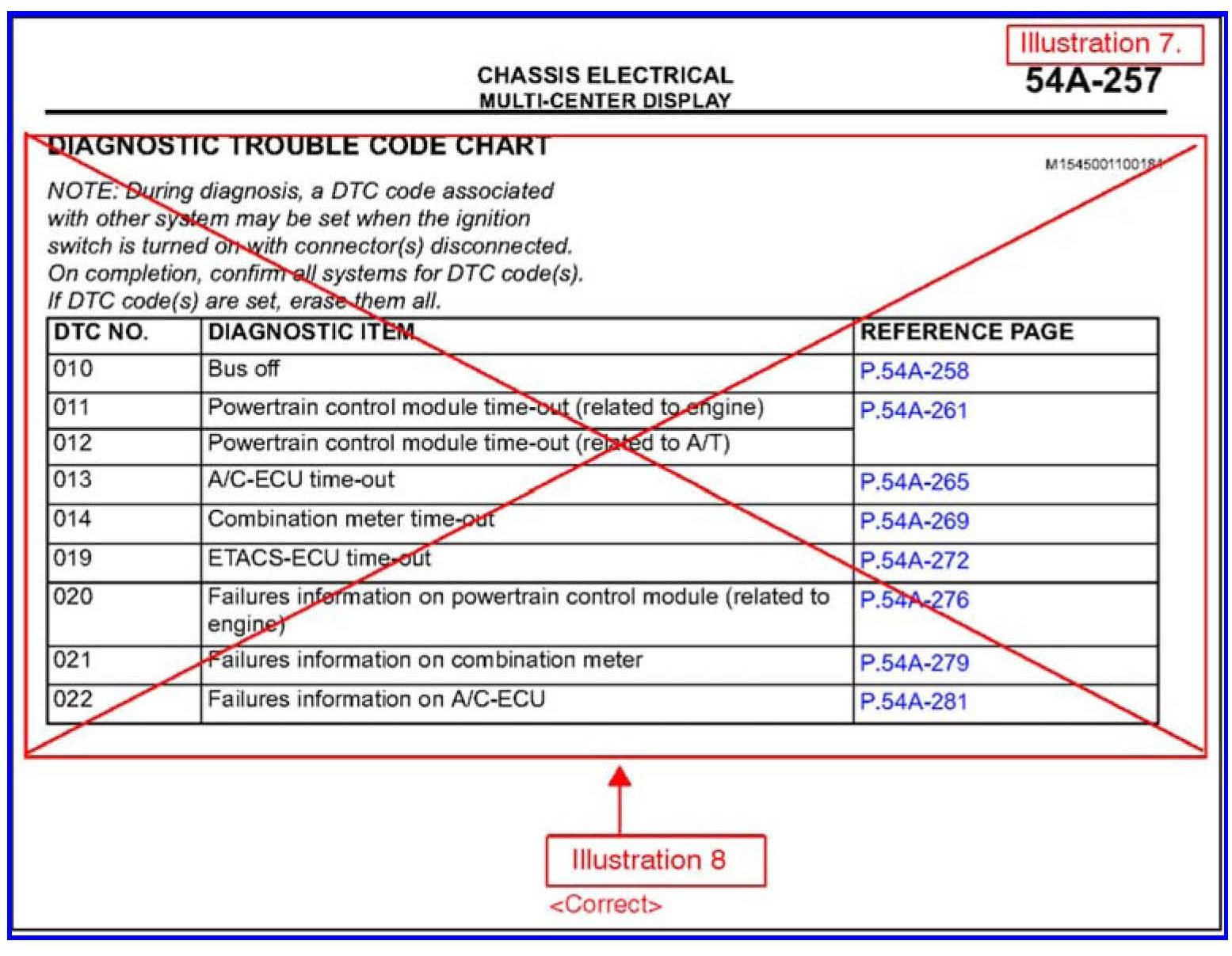

Illustration 7 - Pages 54A-257

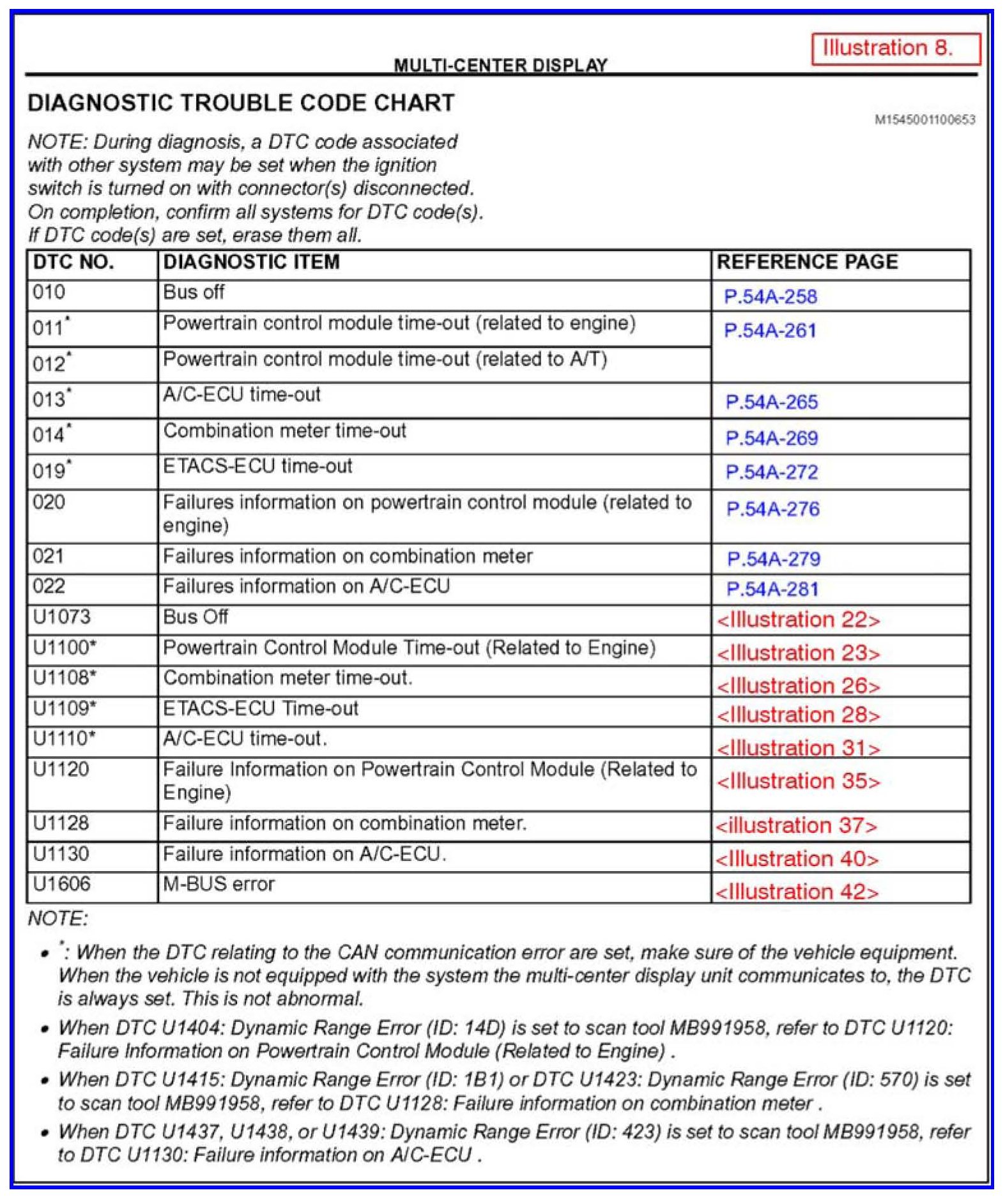

Illustration 8 - Diagnostic Trouble Code Chart

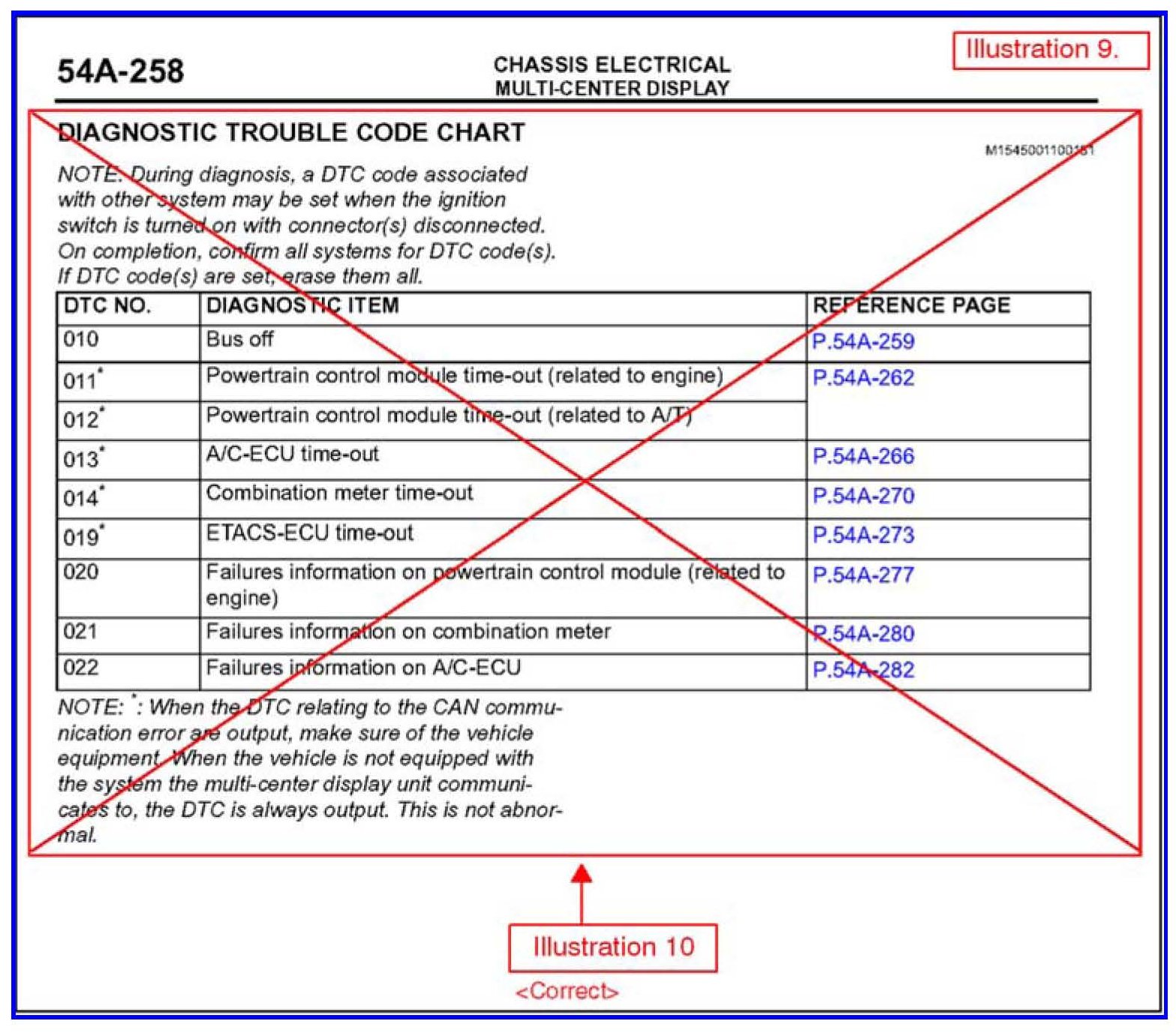

Illustration 9 - Pages 54A-258

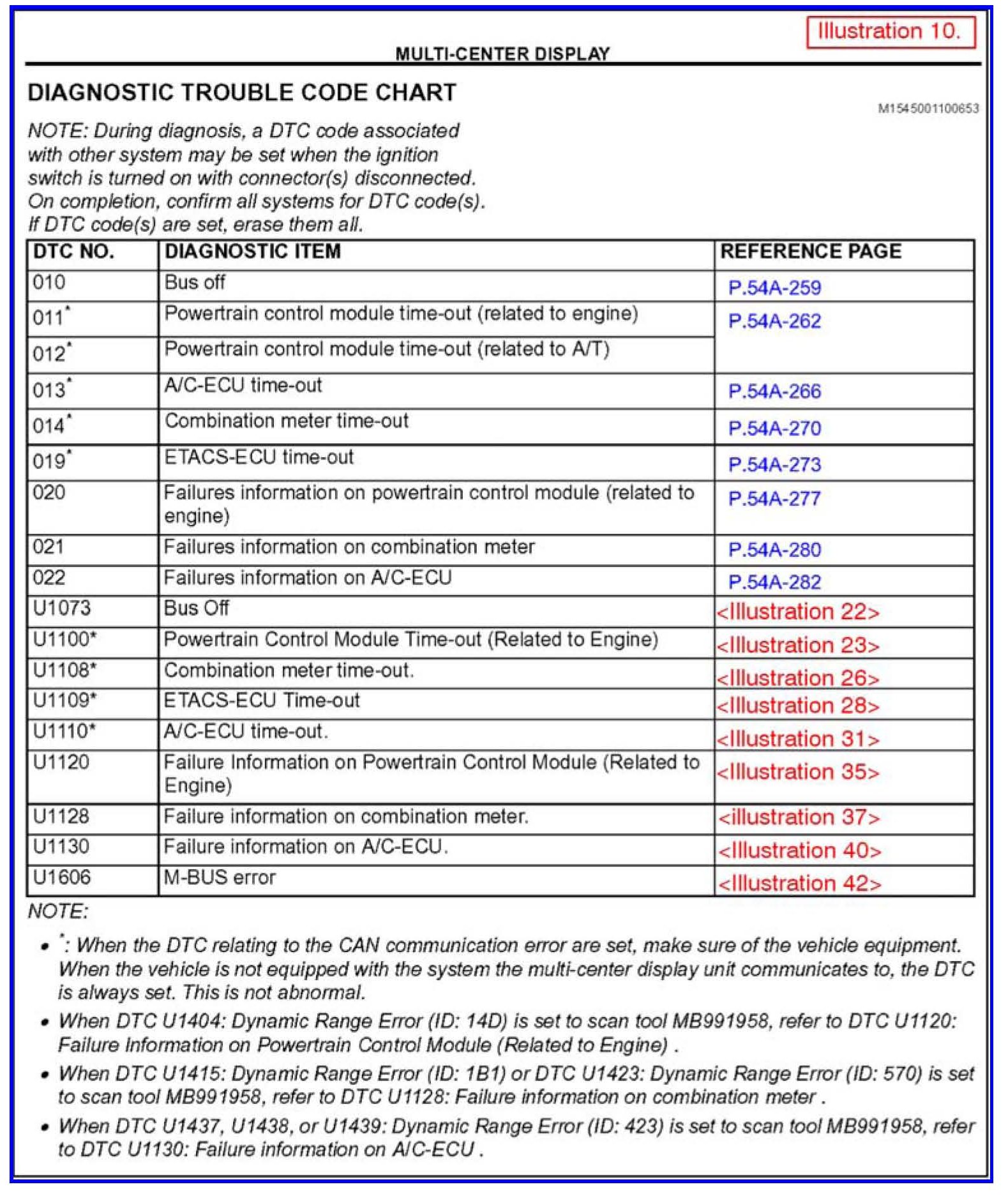

Illustration 10 - Diagnostic Trouble Code Chart

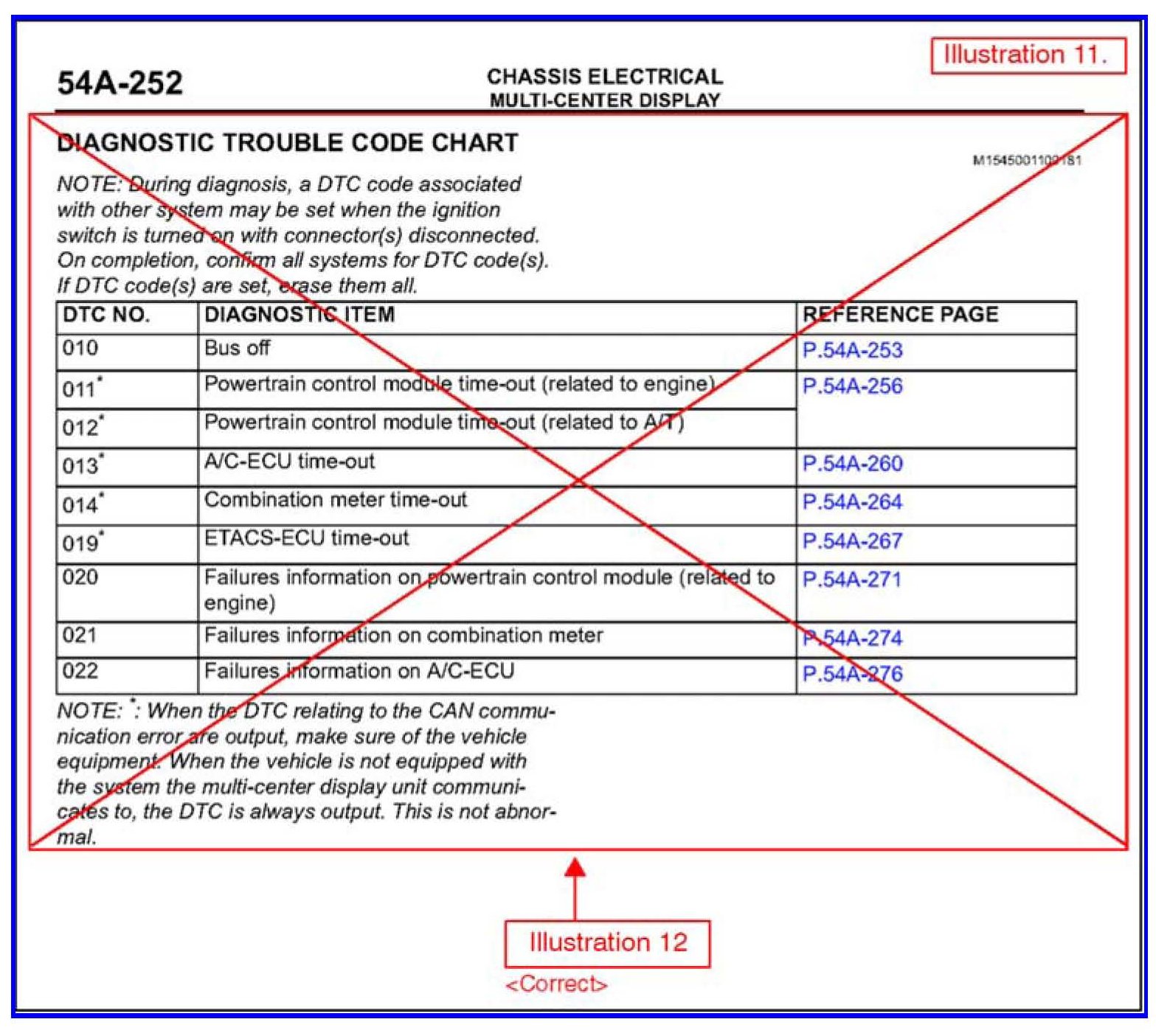

Illustration 11 - Pages 54A-252

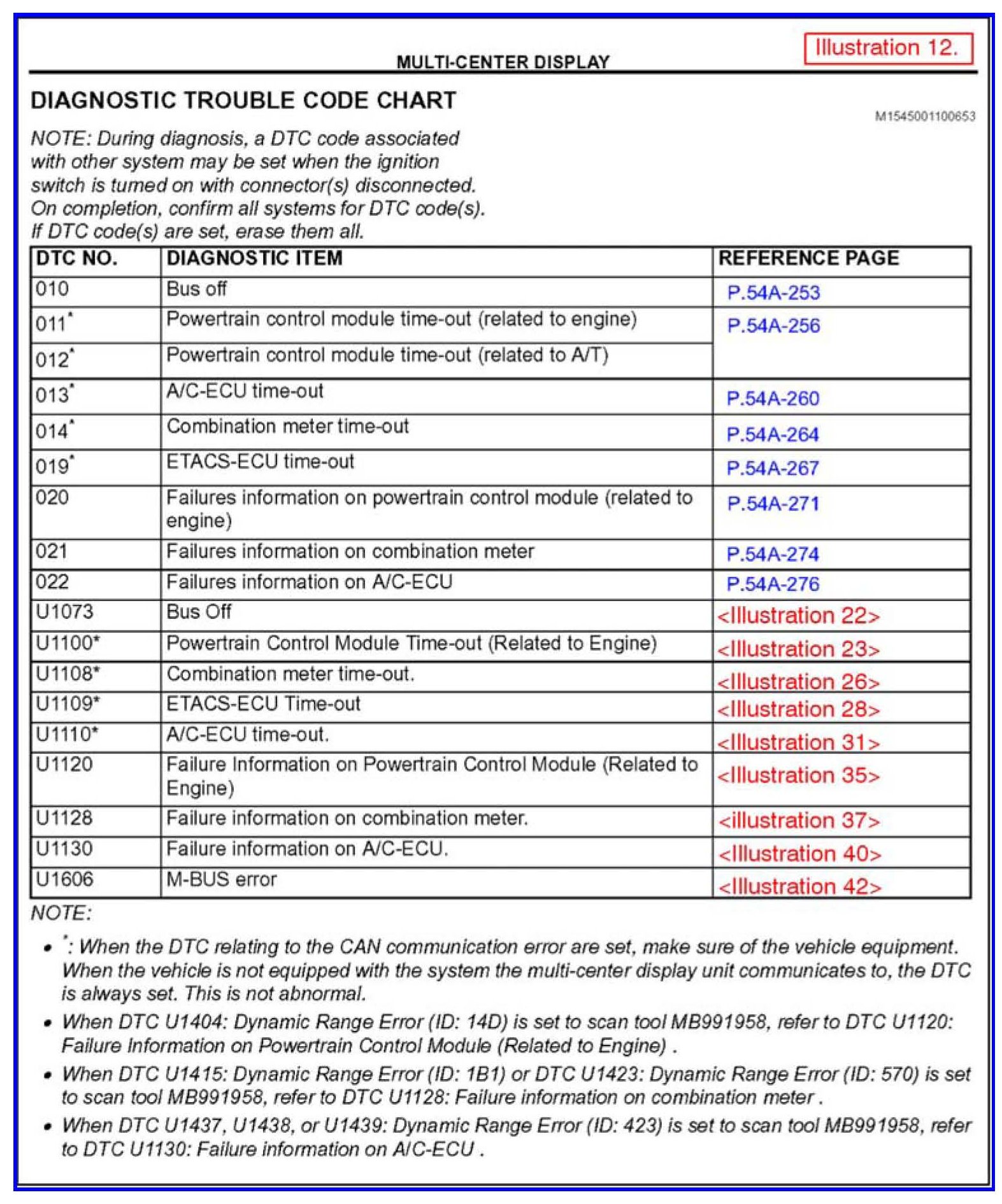

Illustration 12 - Diagnostic Trouble Code Chart

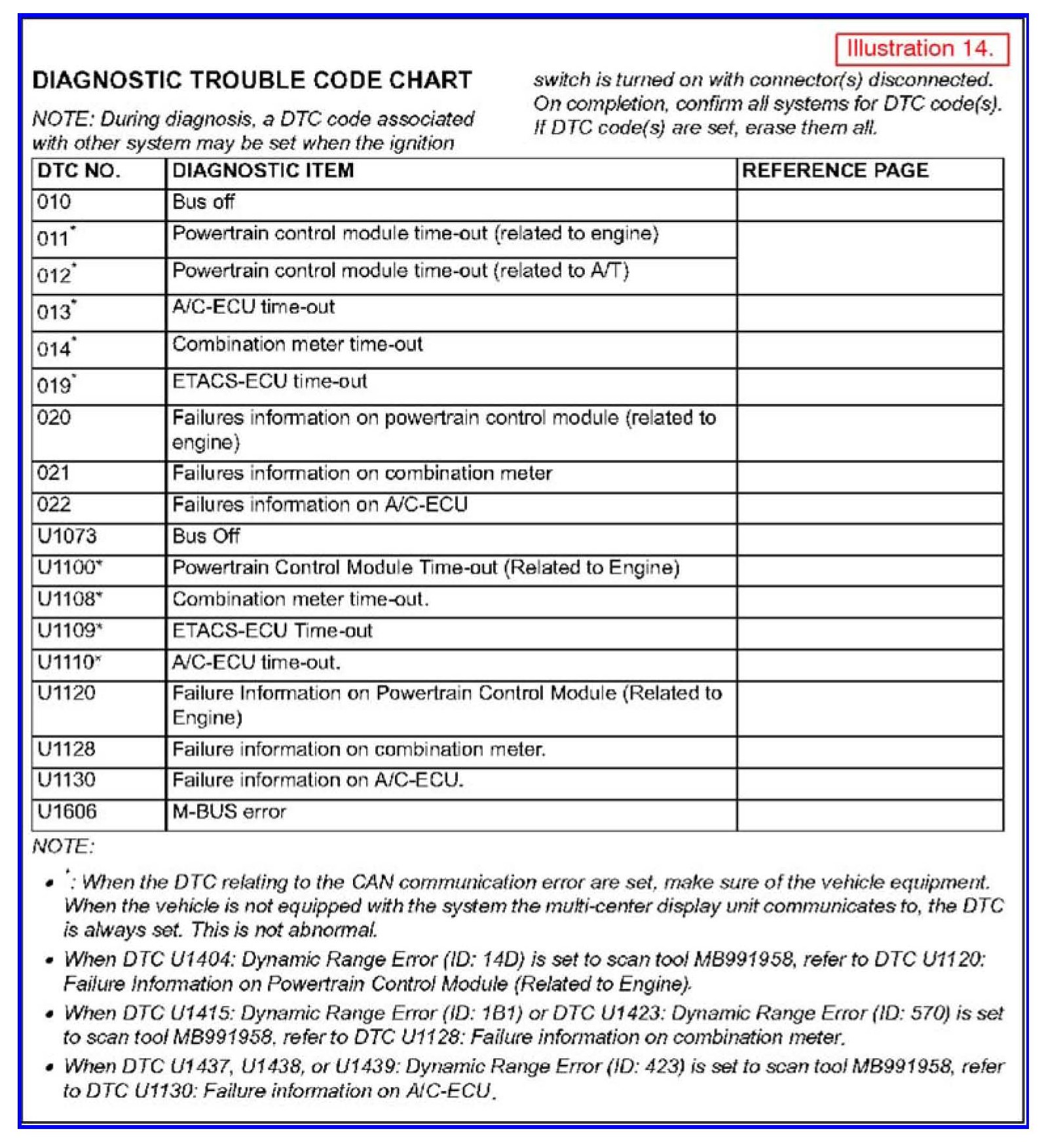

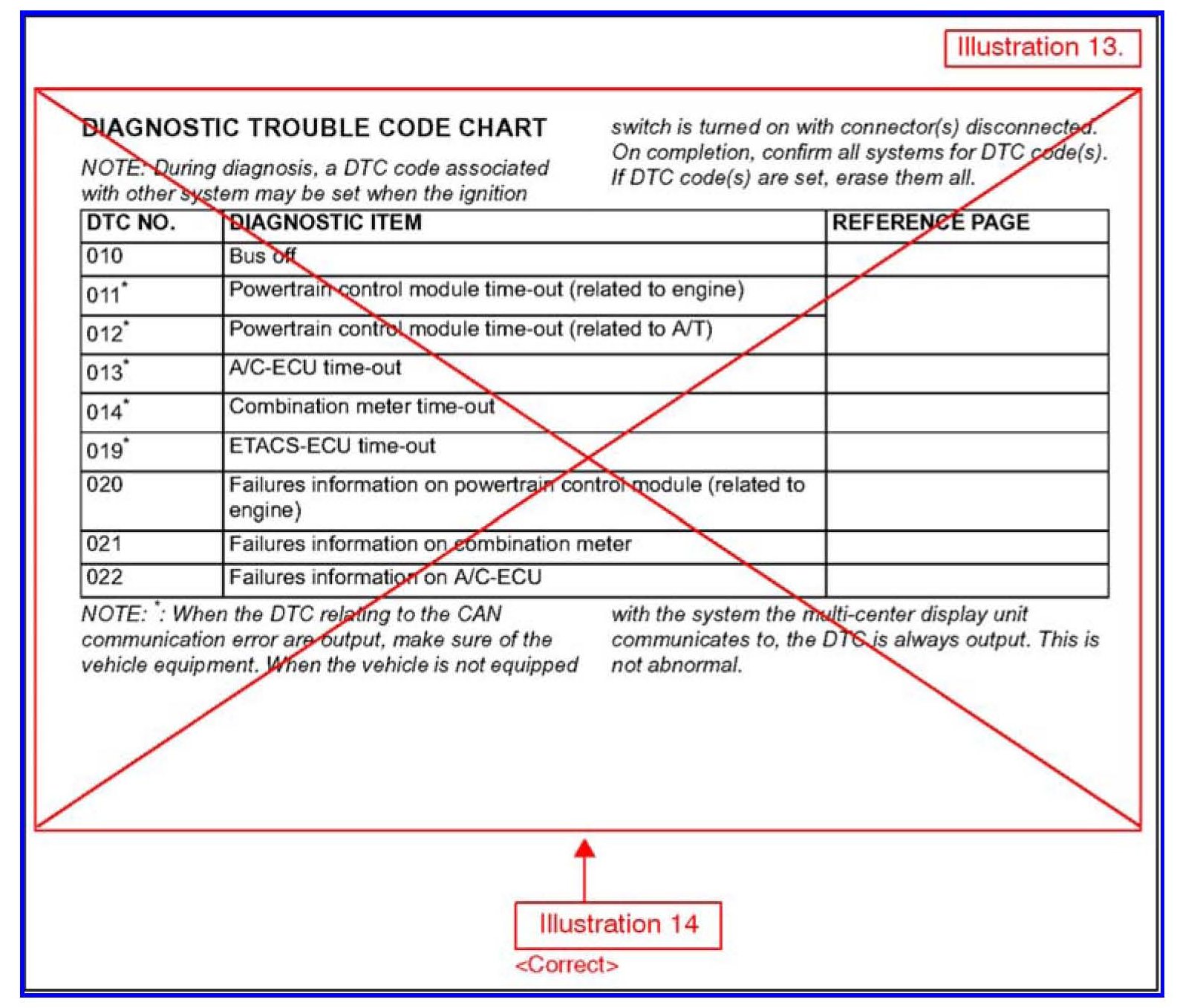

Illustration 13 - Diagnostic Trouble Code Chart

Illustration 14 - Diagnostic Trouble Code Chart

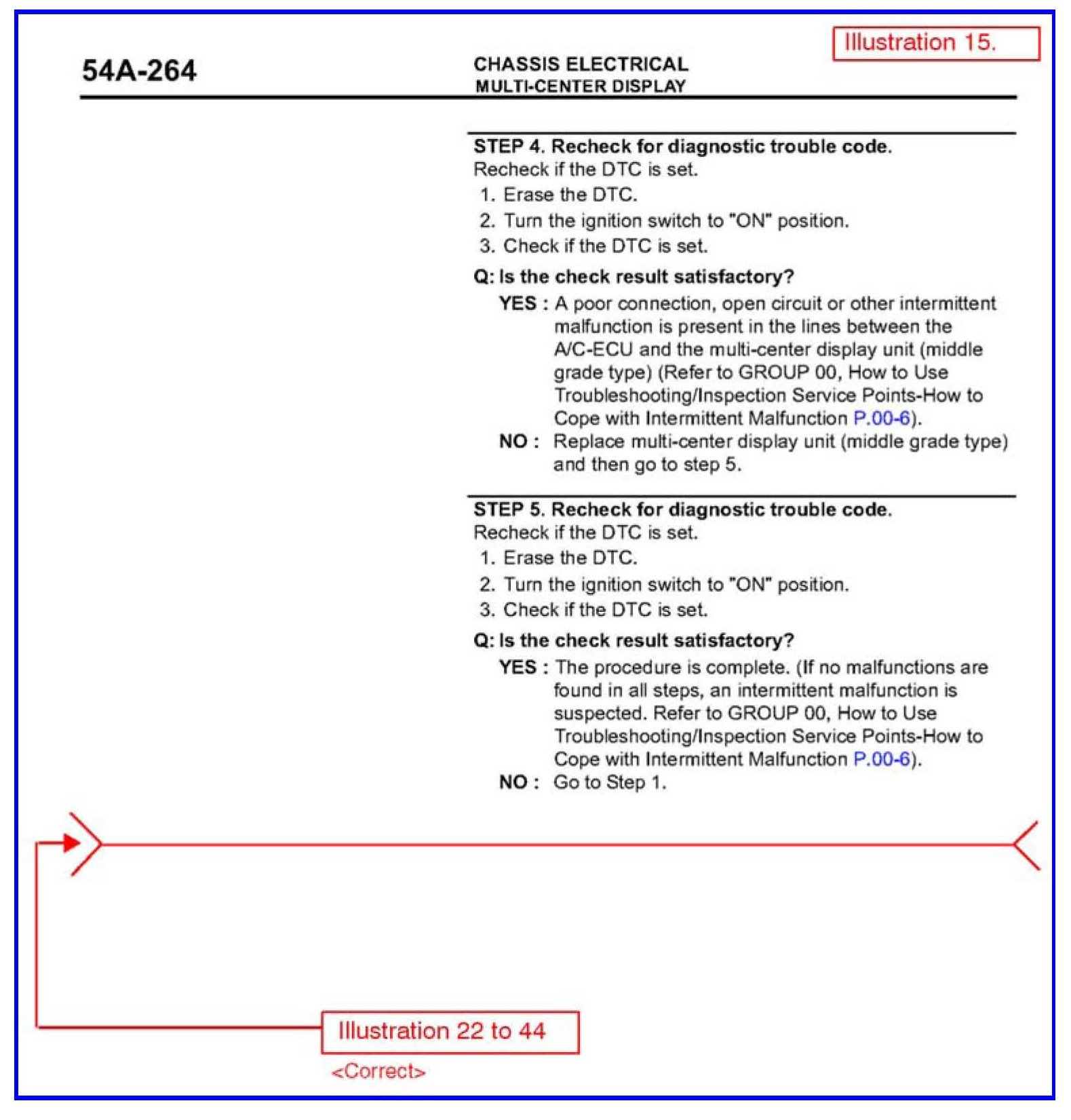

Illustration 15 - Pages 54A-264

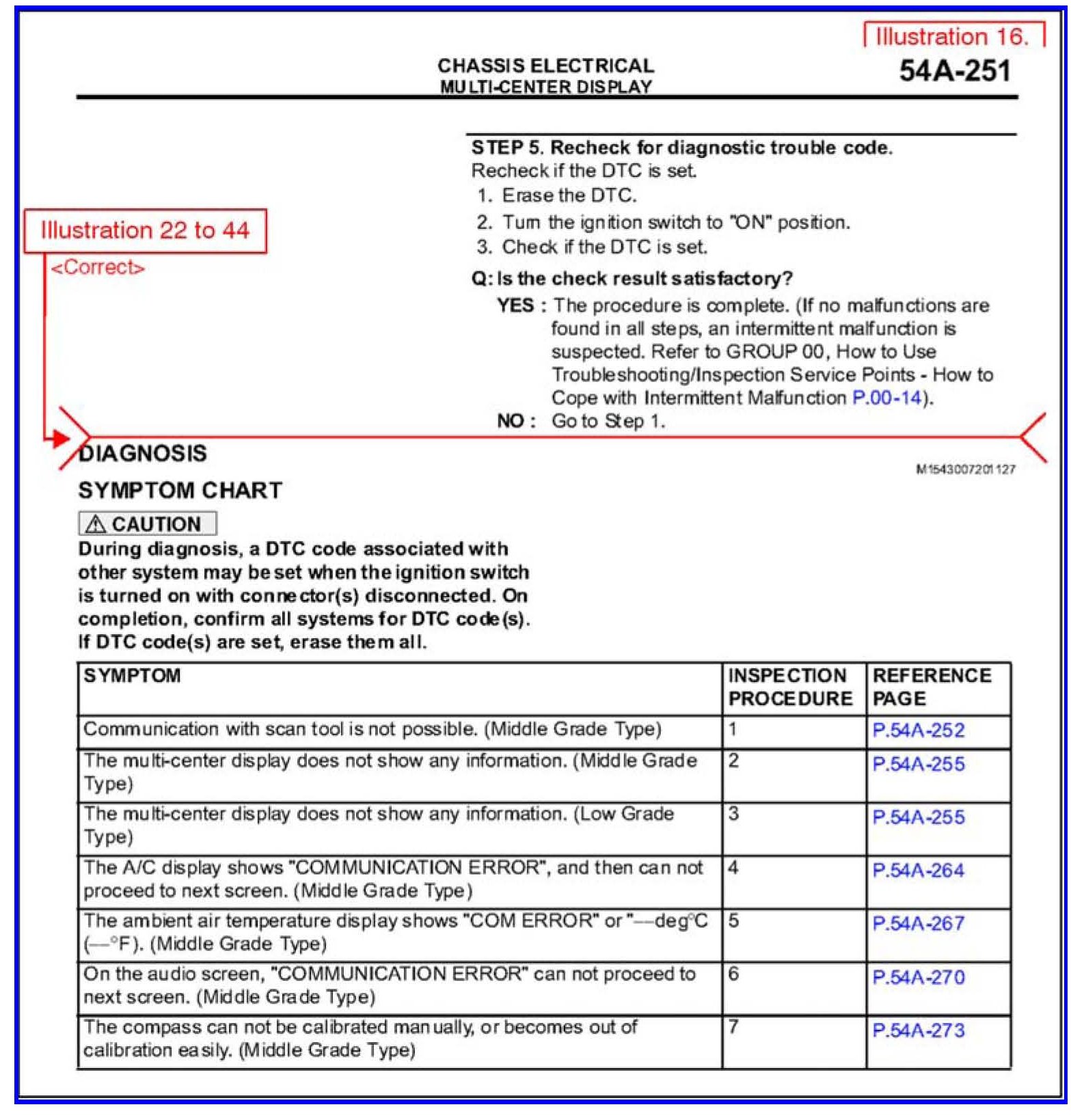

Illustration 16 - Pages 54A-251

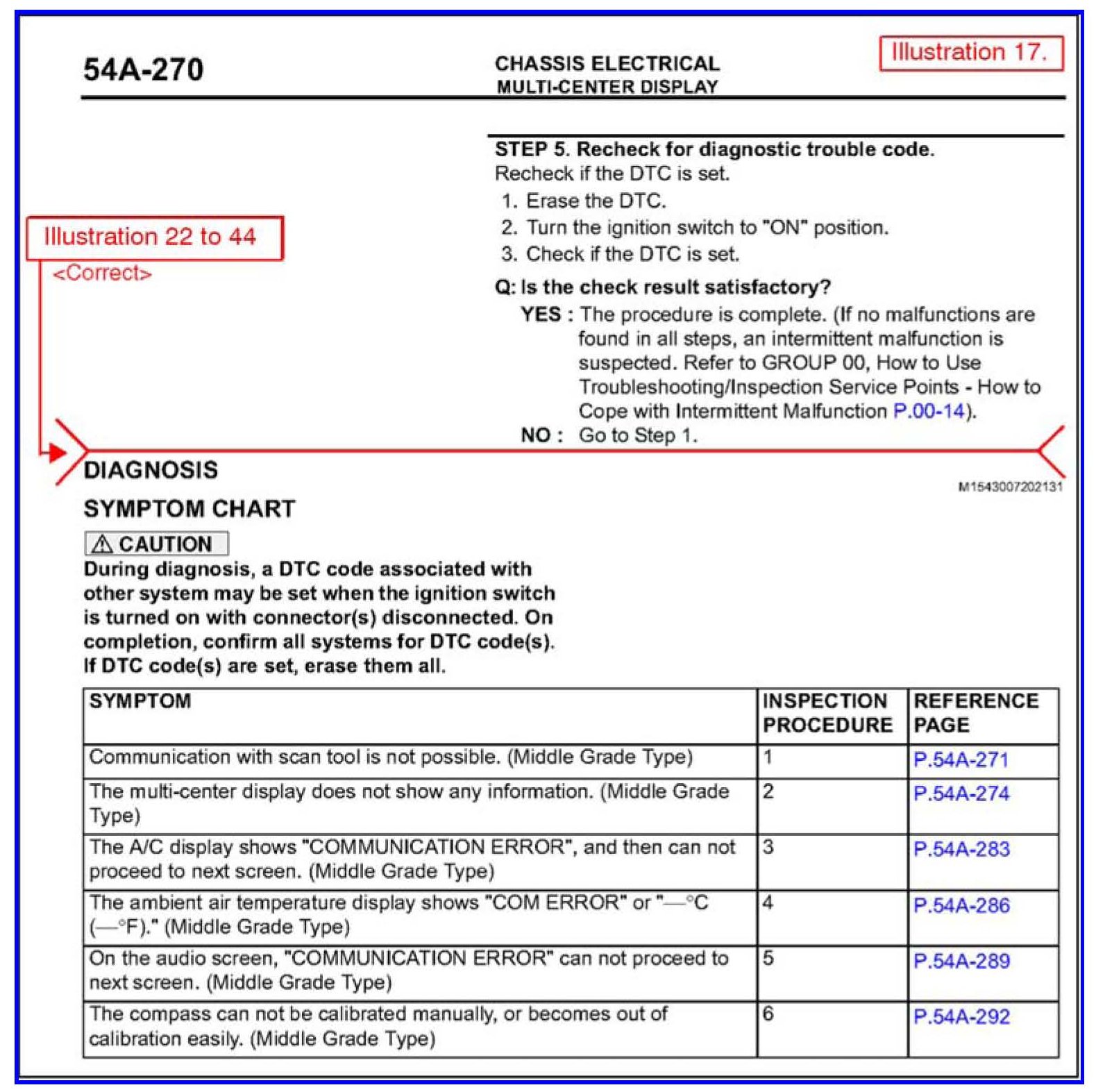

Illustration 17 - Pages 54A-270

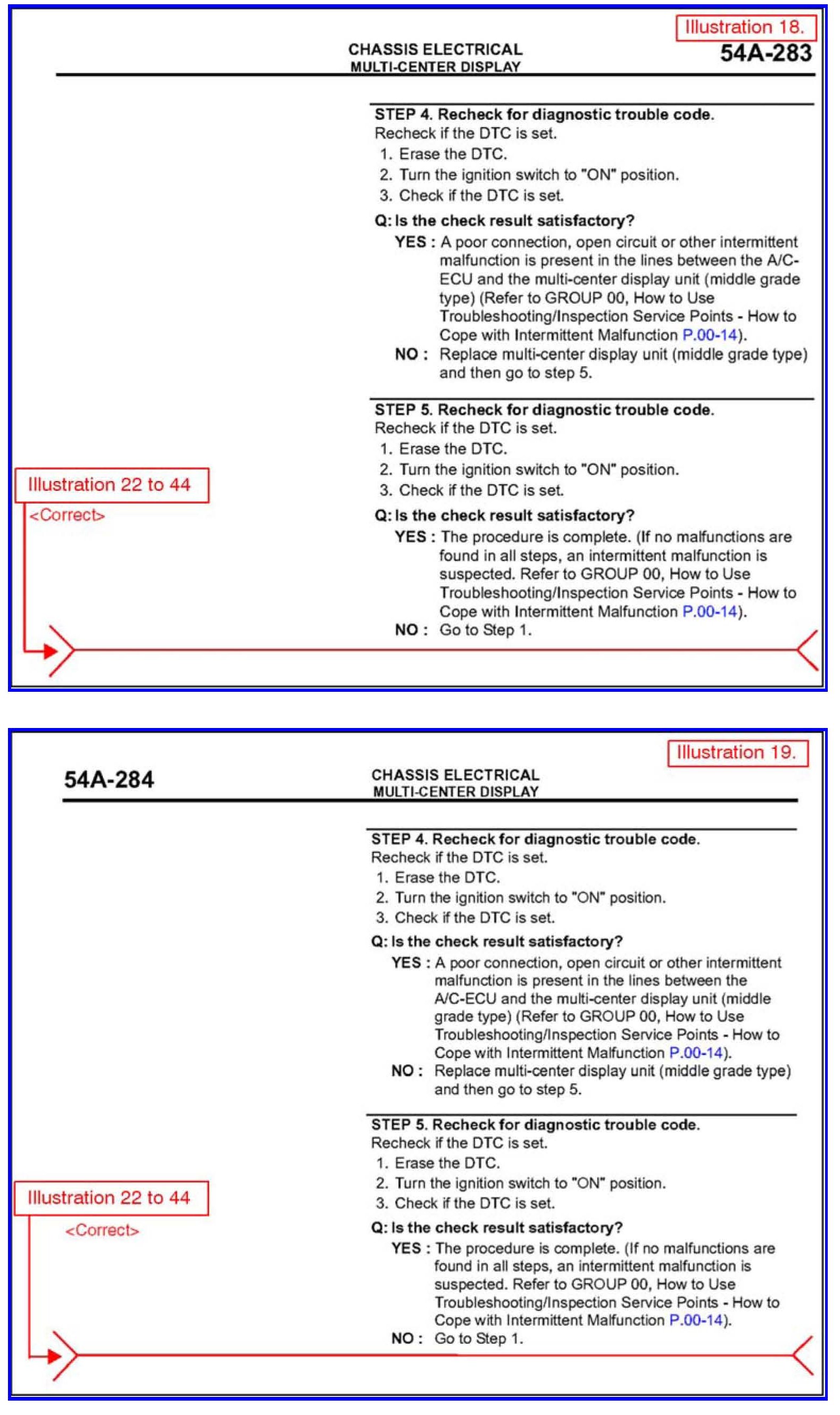

Illustration 18 Pages 54A-283 and Illustration 19 - Pages 54A-284

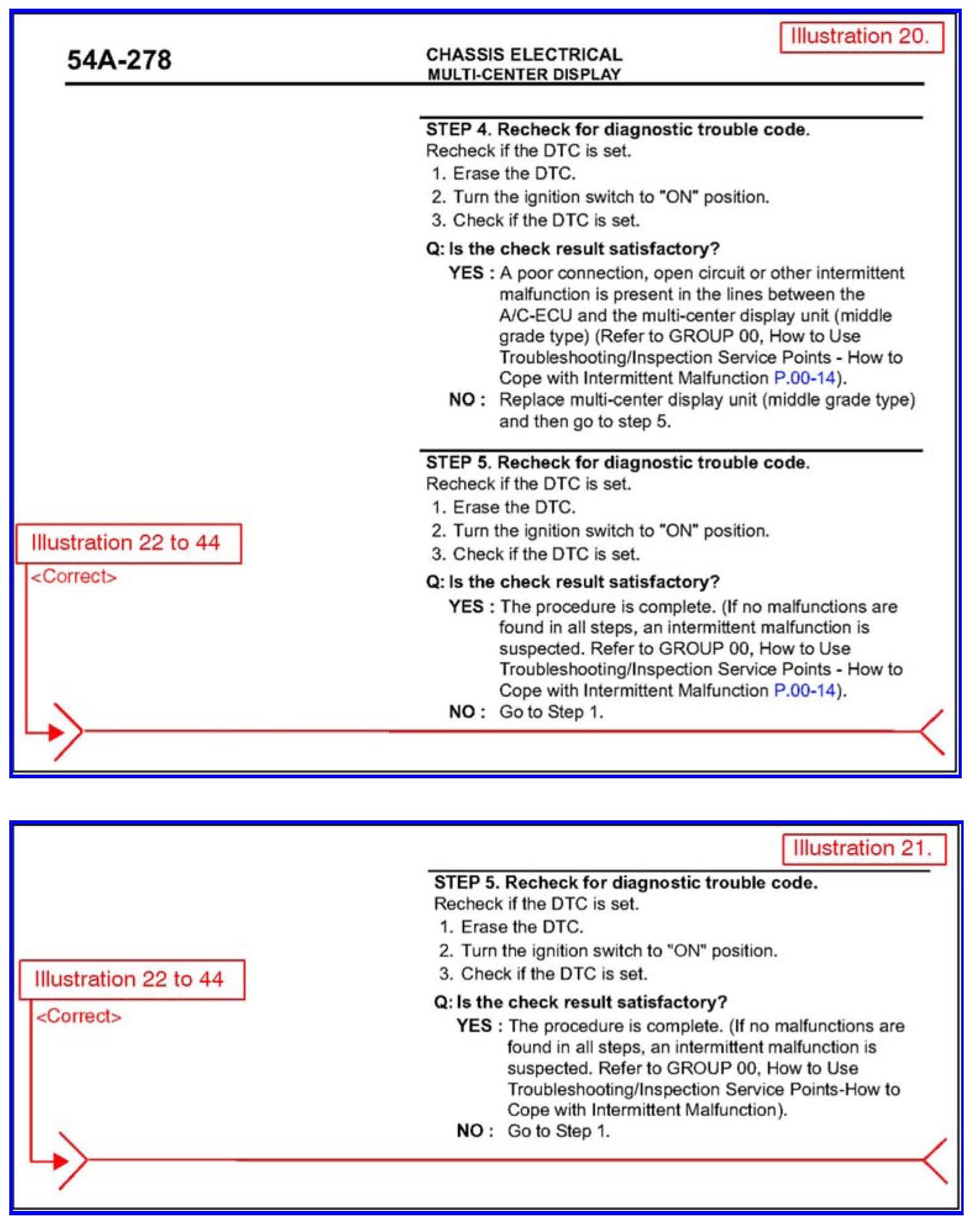

Illustration 20 - Pages 54A-278 and Illustration 21

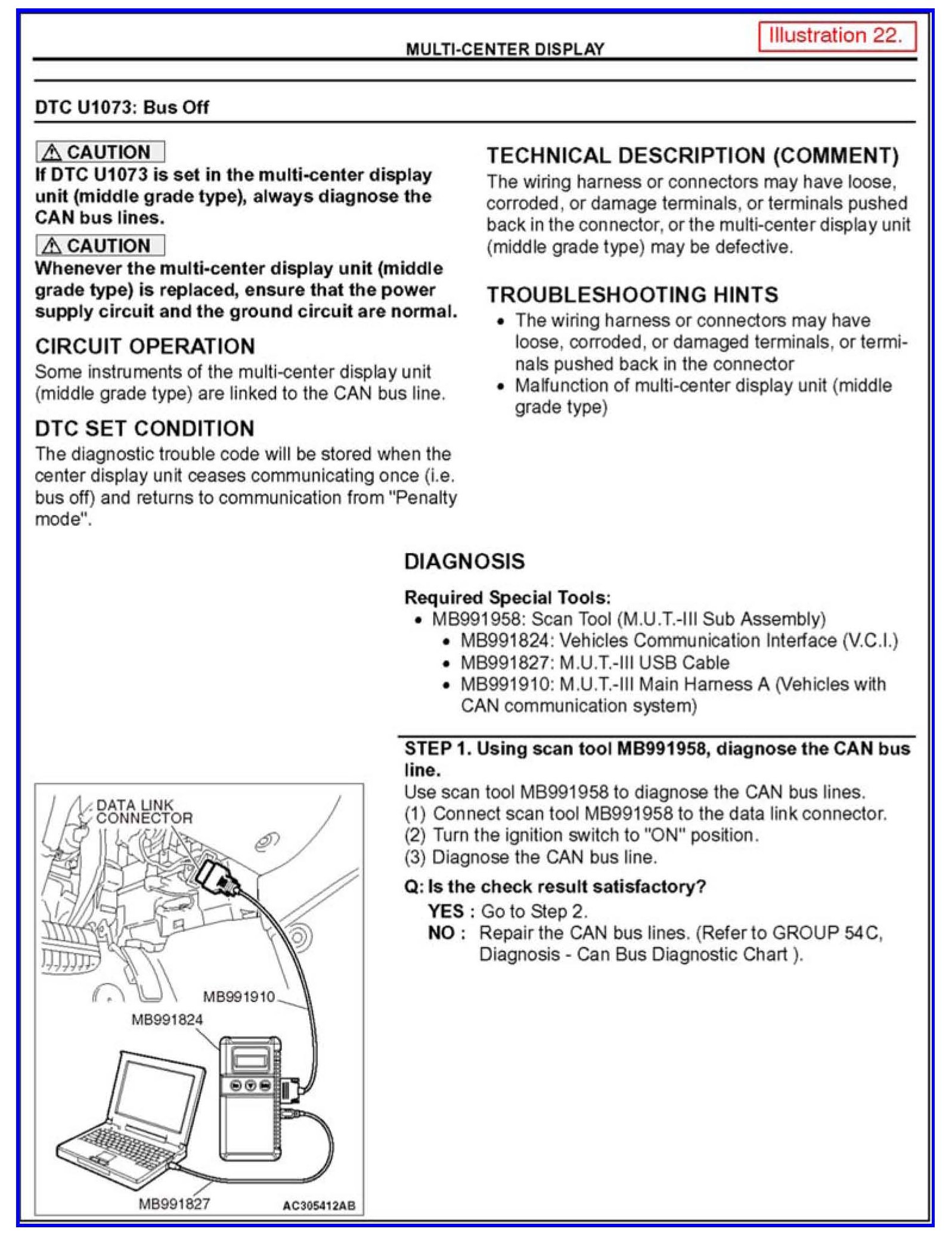

Illustration 22 - DTC U1073 Bus Off
