Ignition Switch: Service and Repair

IGNITION SWITCH

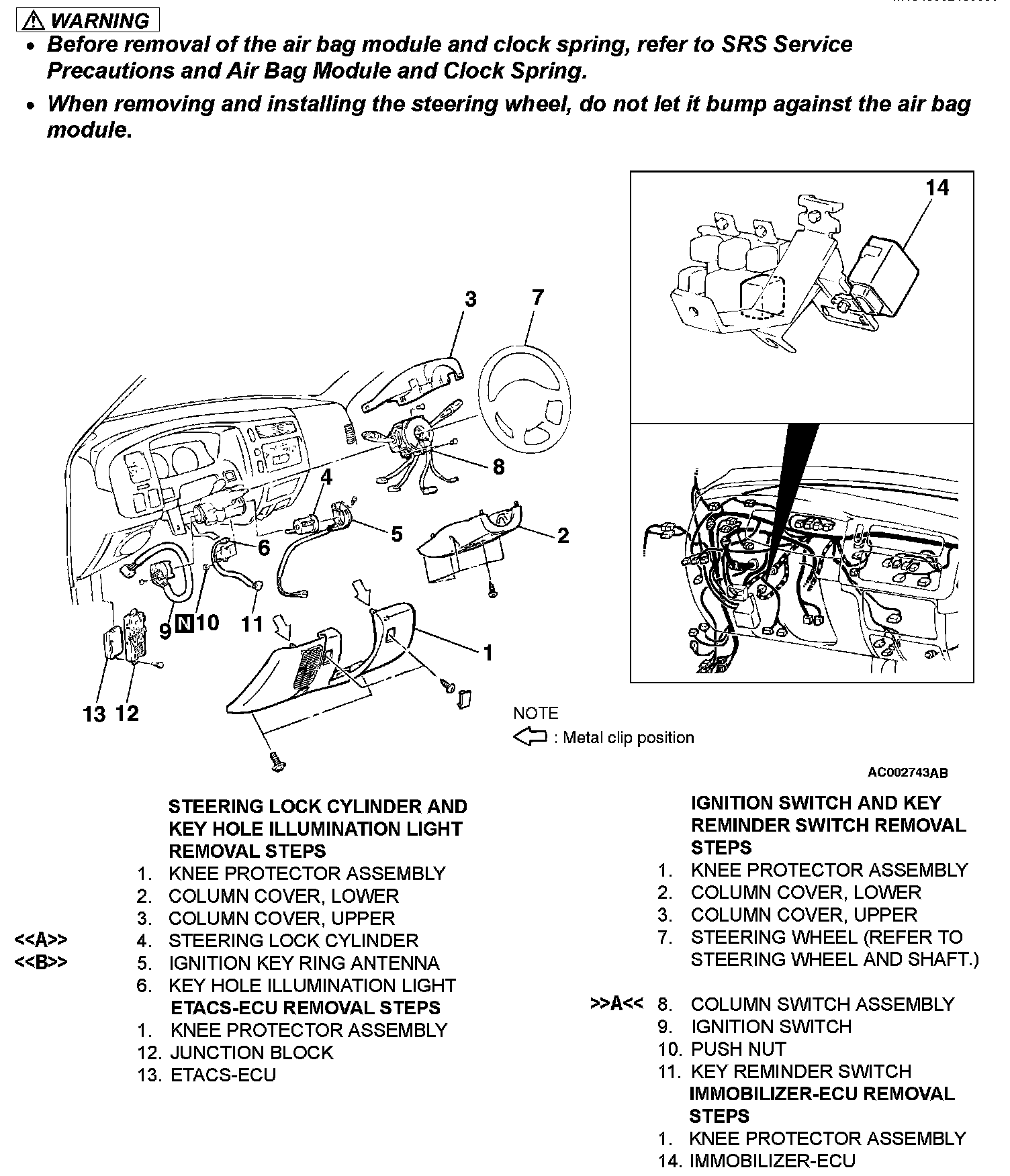

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

<> STEERING LOCK CYLINDER REMOVAL

1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.

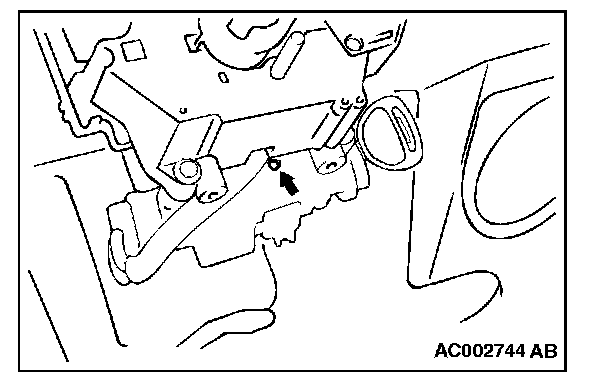

2. Using a Phillips-head screwdriver (small) or similar tool, push the lock pin of the steering lock cylinder inward and then pull the steering lock cylinder toward you.

<> IGNITION KEY RING ANTENNA REMOVAL

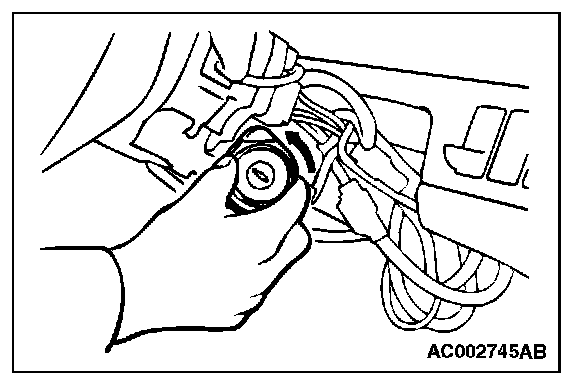

Turn the ignition key ring antenna to the left and remove it.

INSTALLATION SERVICE POINT

>>A<< COLUMN SWITCH ASSEMBLY INSTALLATION

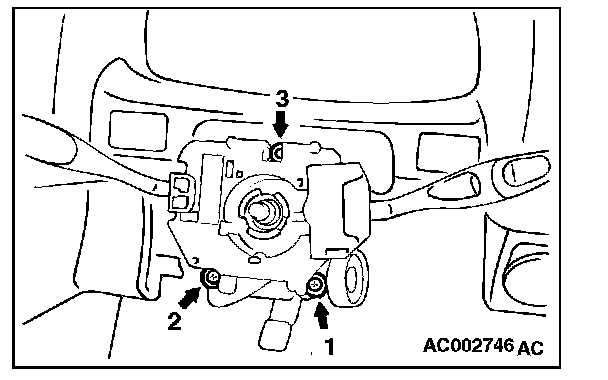

Tighten the column switch assembly mounting screws to the specified torque in the order of 1, 2 and 3.
