Steering/Suspension - Revised Caster Angle Specification
No.: TSB-08-33-002
DATE: November, 2008
MODEL: 2001-06 Montero
SUBJECT:
CORRECTED CASTER ANGLE SPECIFICATION - SERVICE MANUAL REVISION
PURPOSE
This Technical Service Bulletin corrects the standard caster angle specification on affected vehicles.
AFFECTED VEHICLE(S)
2001-06 Montero

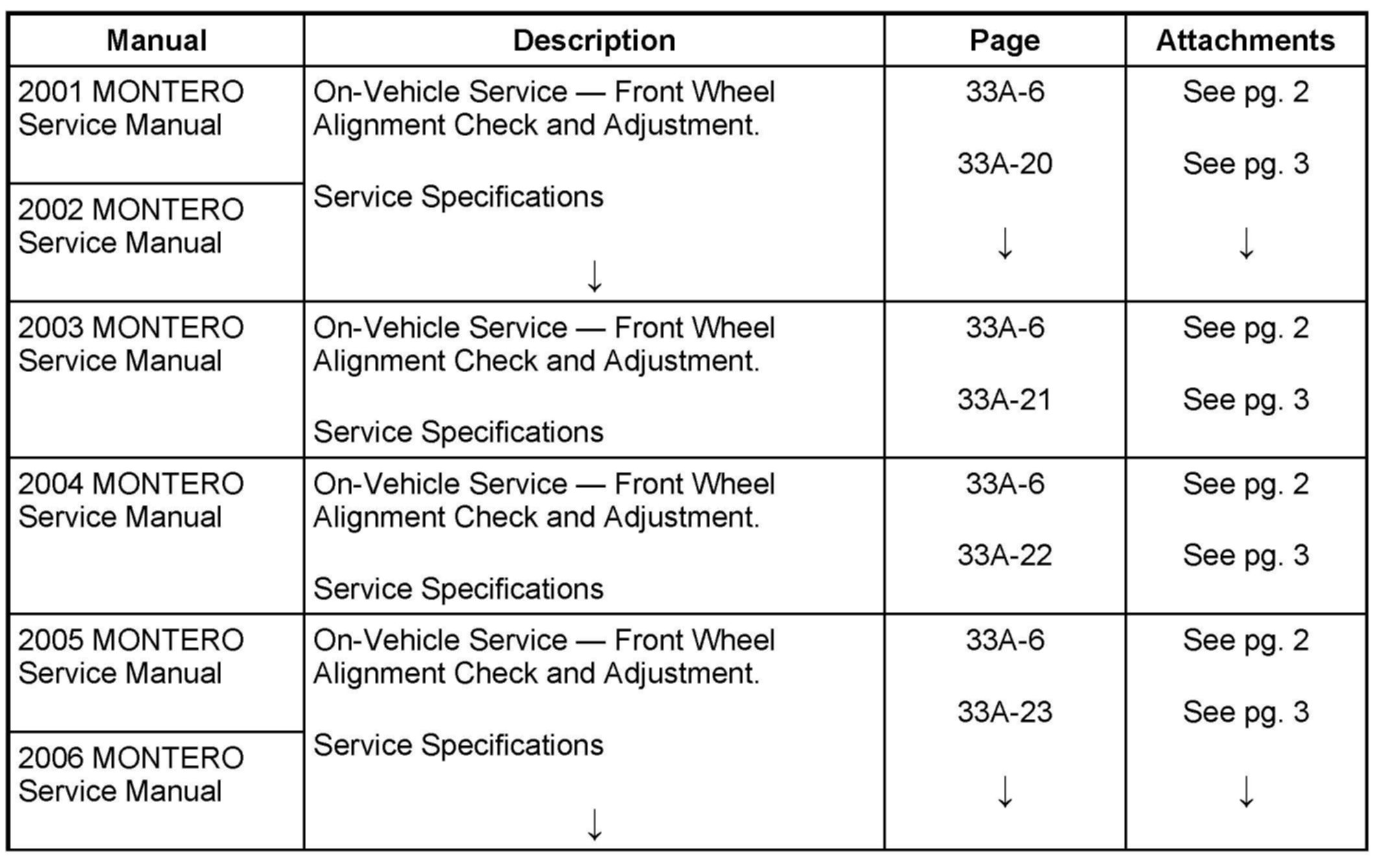

APPLICABLE MANUAL(S)

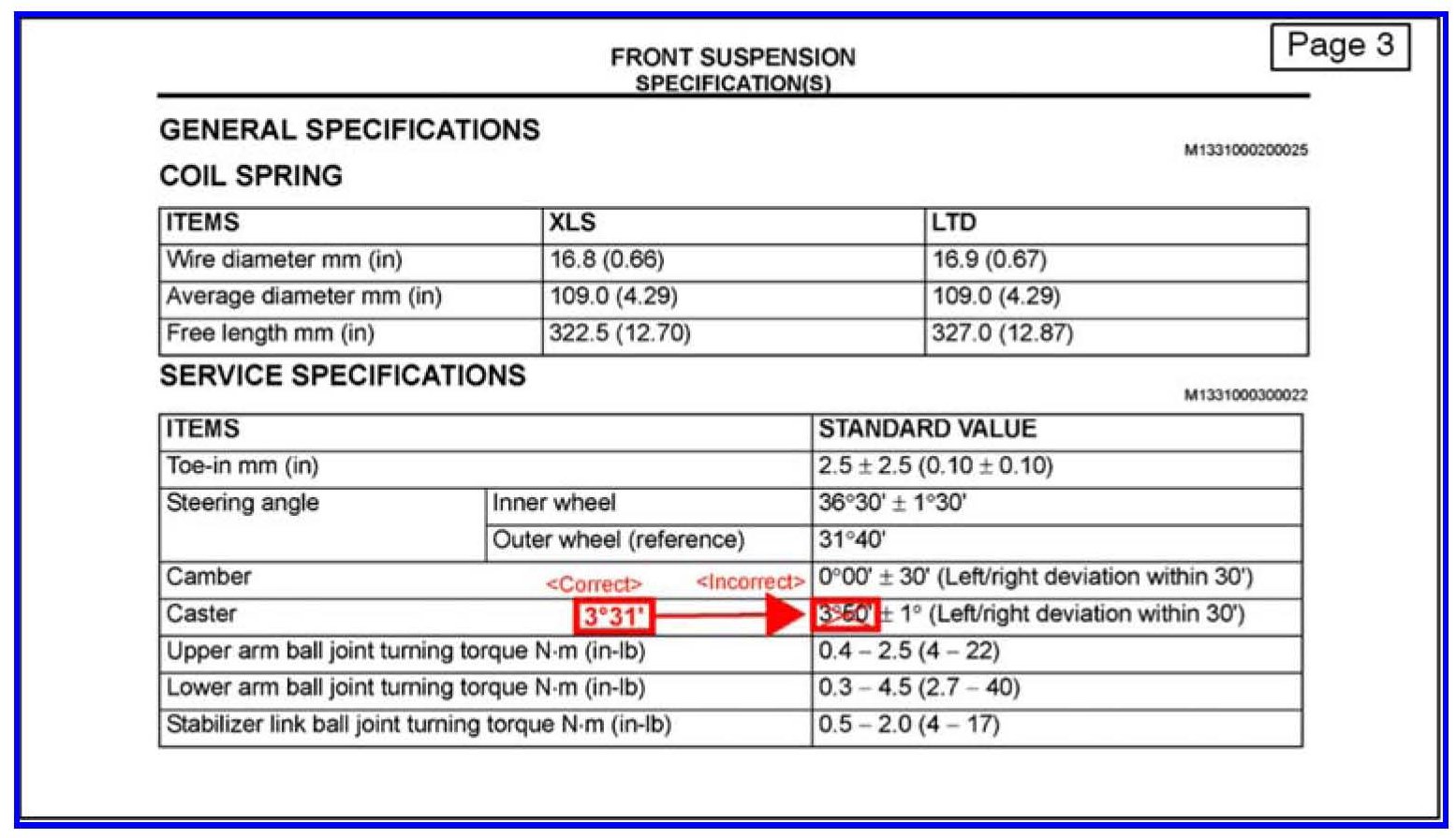

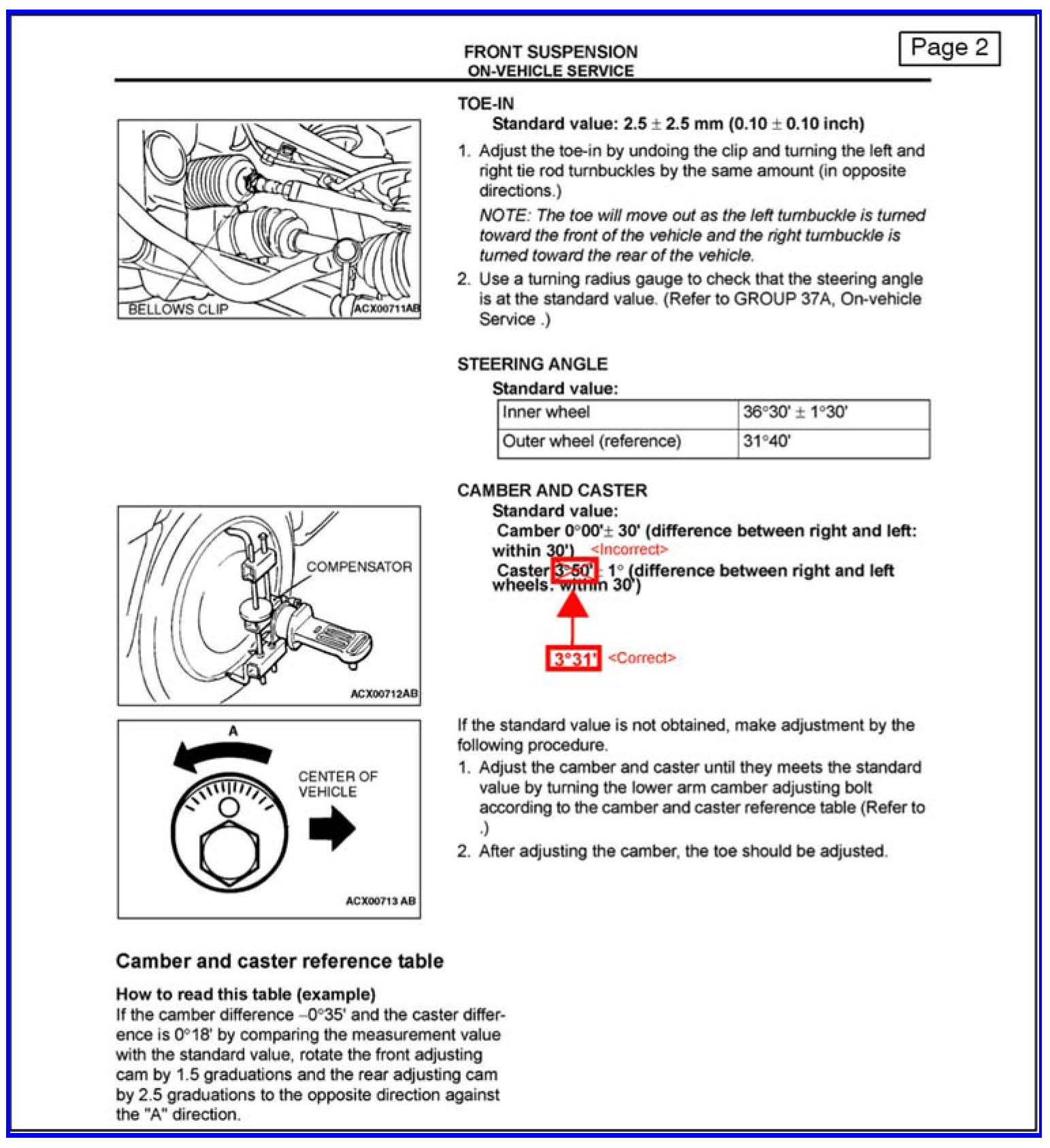

Service Manual Update - Attachment Pages 2 and 3
