Fuel Level Sensor Float Height
FUEL LEVEL SENSOR FLOAT HEIGHT 1.

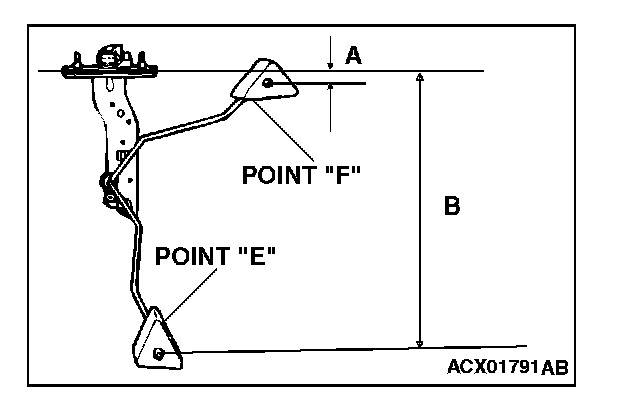

Move the float and measure height A at point "F" (highest) and B at point "E" (lowest).
Standard value:
- A: 11.9 mm (0.47 inch)
- B: 195.2 mm (7.69 inches) 2.
Adjust the float arm to the standard value, then go to the thermistor check.
