Shift Interlock: Service and Repair

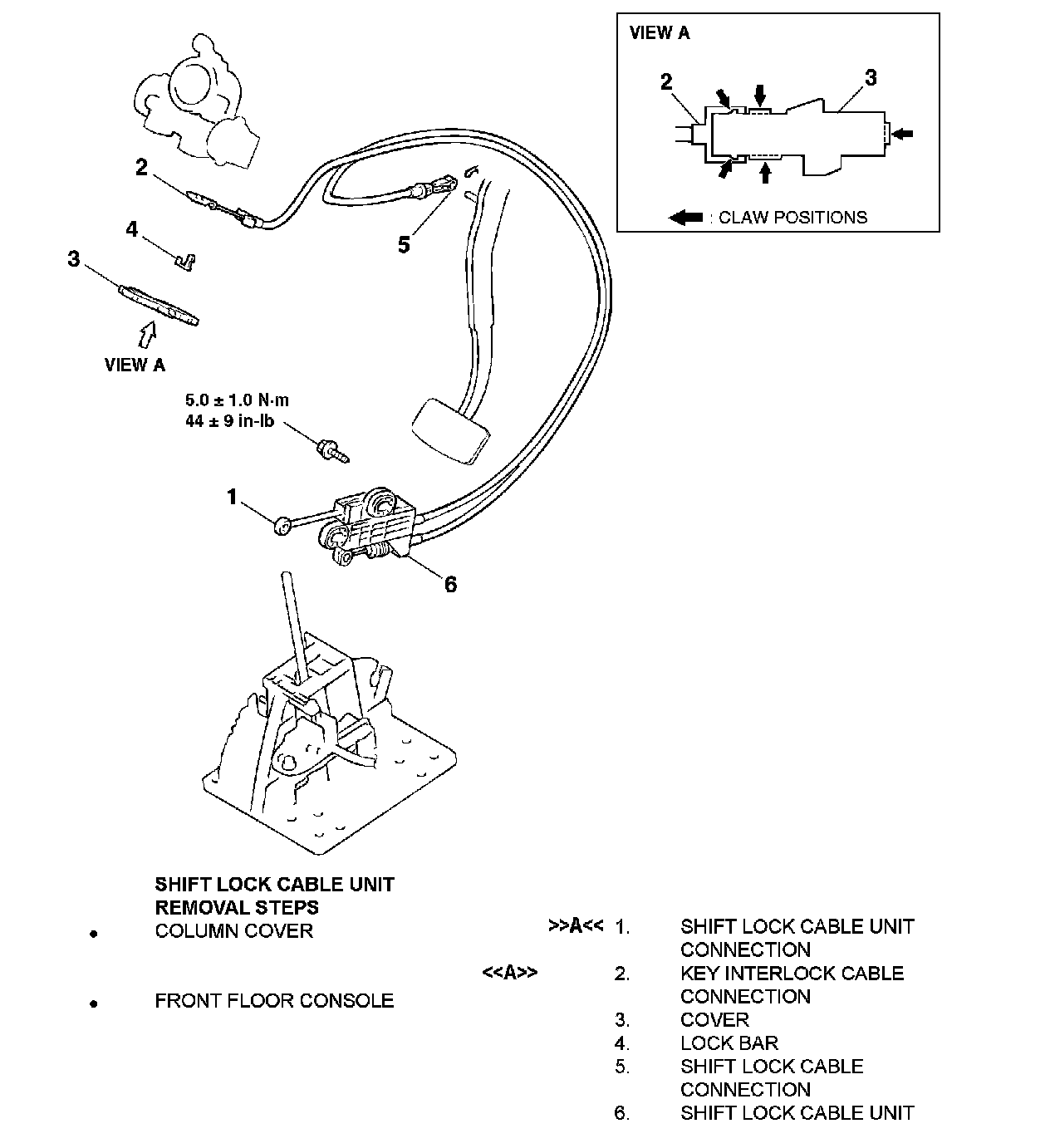

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS
REMOVAL AND INSTALLATION

WARNING: When removing and installing the skim lock cable unit, be careful not to hit the SRS-ECU.

REMOVAL SERVICE POINT
<> KEY INTERLOCK CABLE REMOVAL
Turn the ignition switch to the "ACC" position, and then pull the key interlock cable out from the ignition key cylinder.

INSTALLATION SERVICE POINT
>>A<< SHIFT LOCK CABLE UNIT INSTALLATION
1. Temporarily install the selector lever knob, and then move the selector lever to the "P" position and turn the ignition switch to the "LOCK" (OFF) position.

2. After installing the rod of the shift lock cable unit to the lock cam of the selector lever assembly, install the bolts of the shift lock cable unit.
Tightening torque: 5.0 ± 1.0 Nm (44 ± 9 inch lbs.)
3. Check the operation of the selector lever assembly.
