Quarter Window Glass: Service and Repair

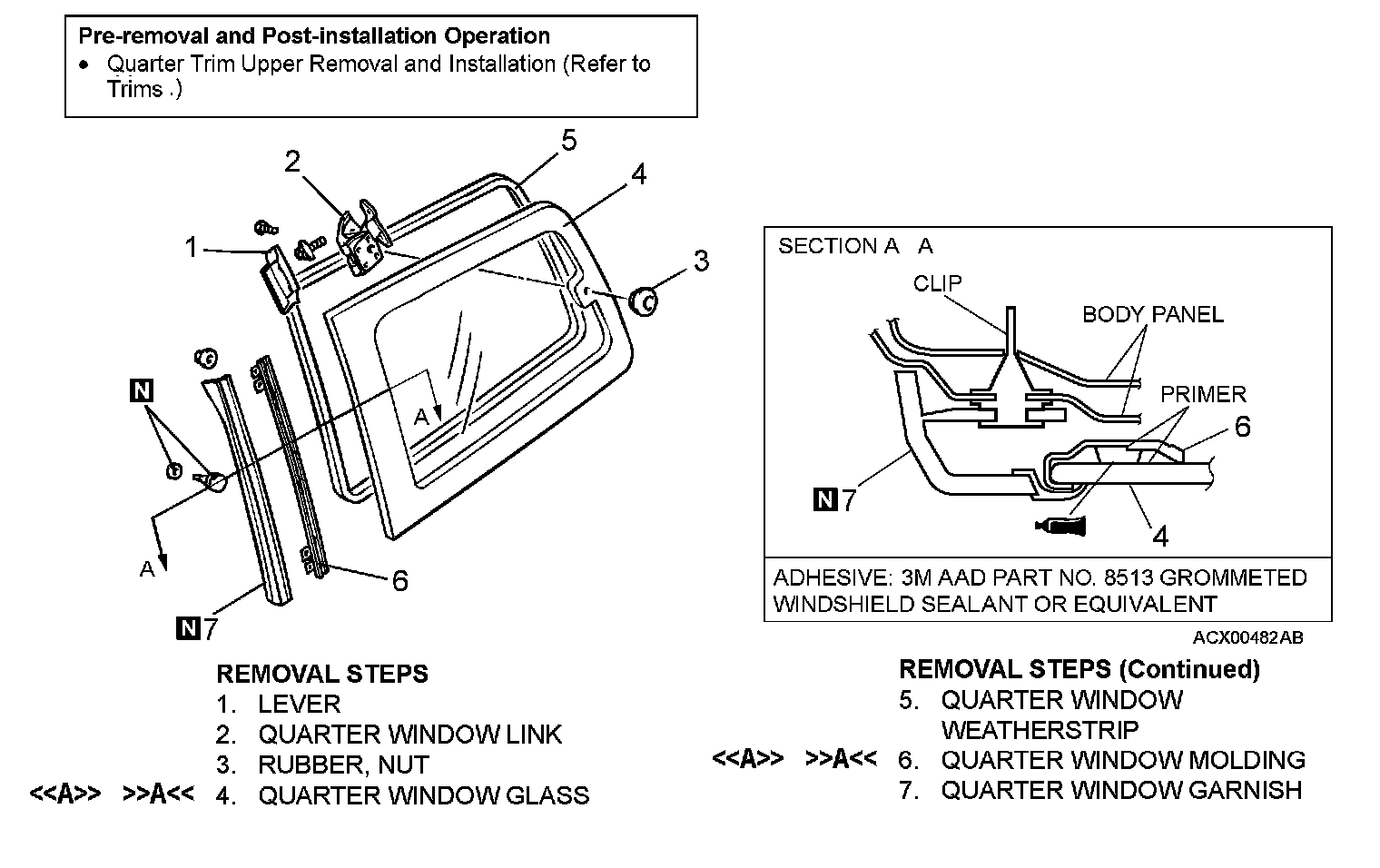

Quarter Window Glass:





REMOVAL SERVICE POINT

[[A]] QUARTER WINDOW GLASS/QUARTER WINDOW MOLDING REMOVAL
Remove the quarter window glass using the same procedure as for windshield removal.

INSTALLATION SERVICE POINT




]]A[[ QUARTER WINDOW MOLDING/QUARTER WINDOW GLASS INSTALLATION

1. Remove old adhesive remaining at the groove of the quarter window molding and quarter window glass

CAUTION: Allow the degreased portion to dry for at least three minutes before proceeding to the next procedure. Do not touch any surface that has been cleaned.

2. Apply the primer sufficiently on the portion of the quarter window glass to adhere evenly and without blur.
3. After applying the specified sealant on the specified area of the quarter window glass, mount the quarter window molding on the quarter window glass.
