Window Seal: Service and Repair

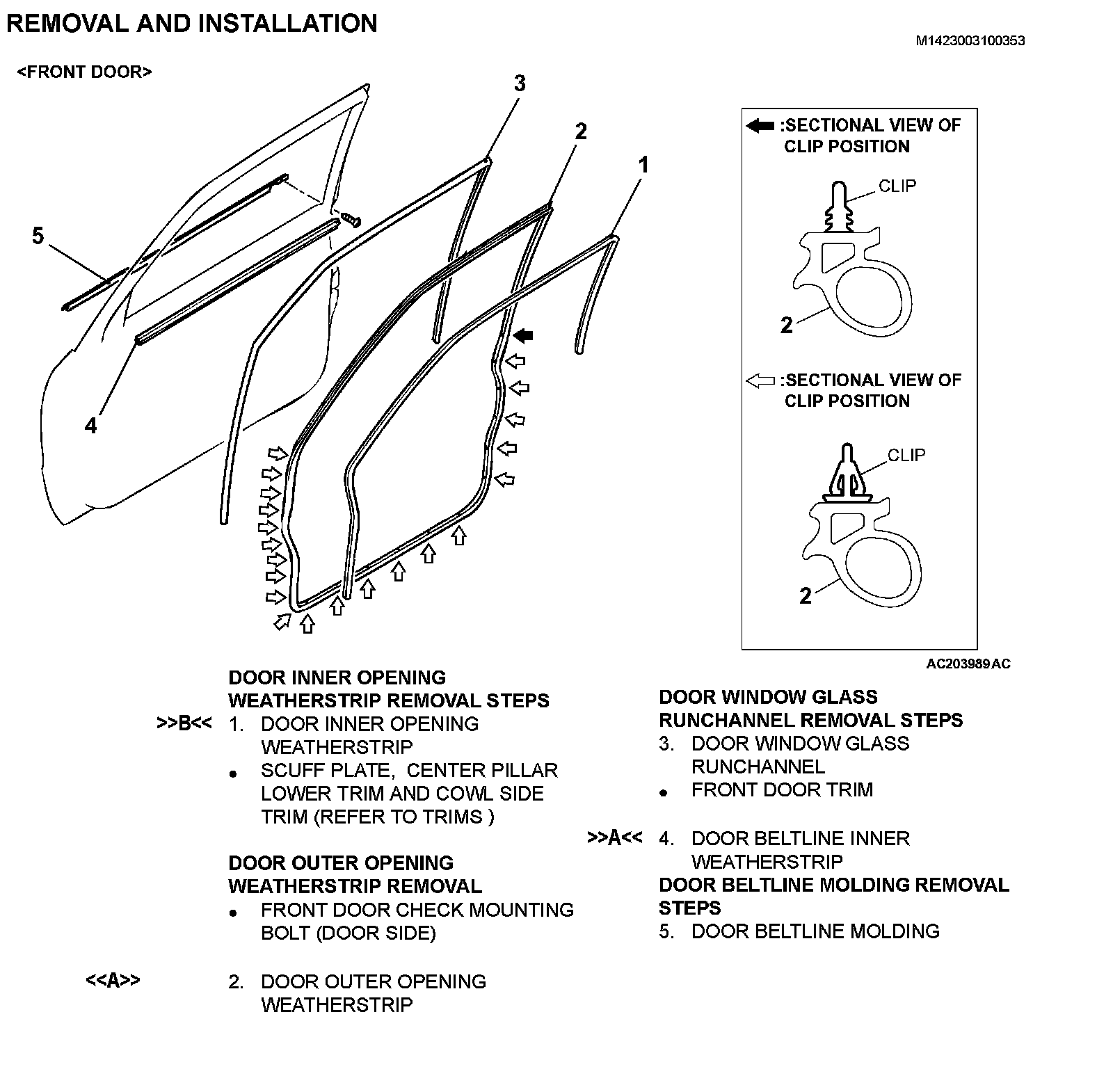

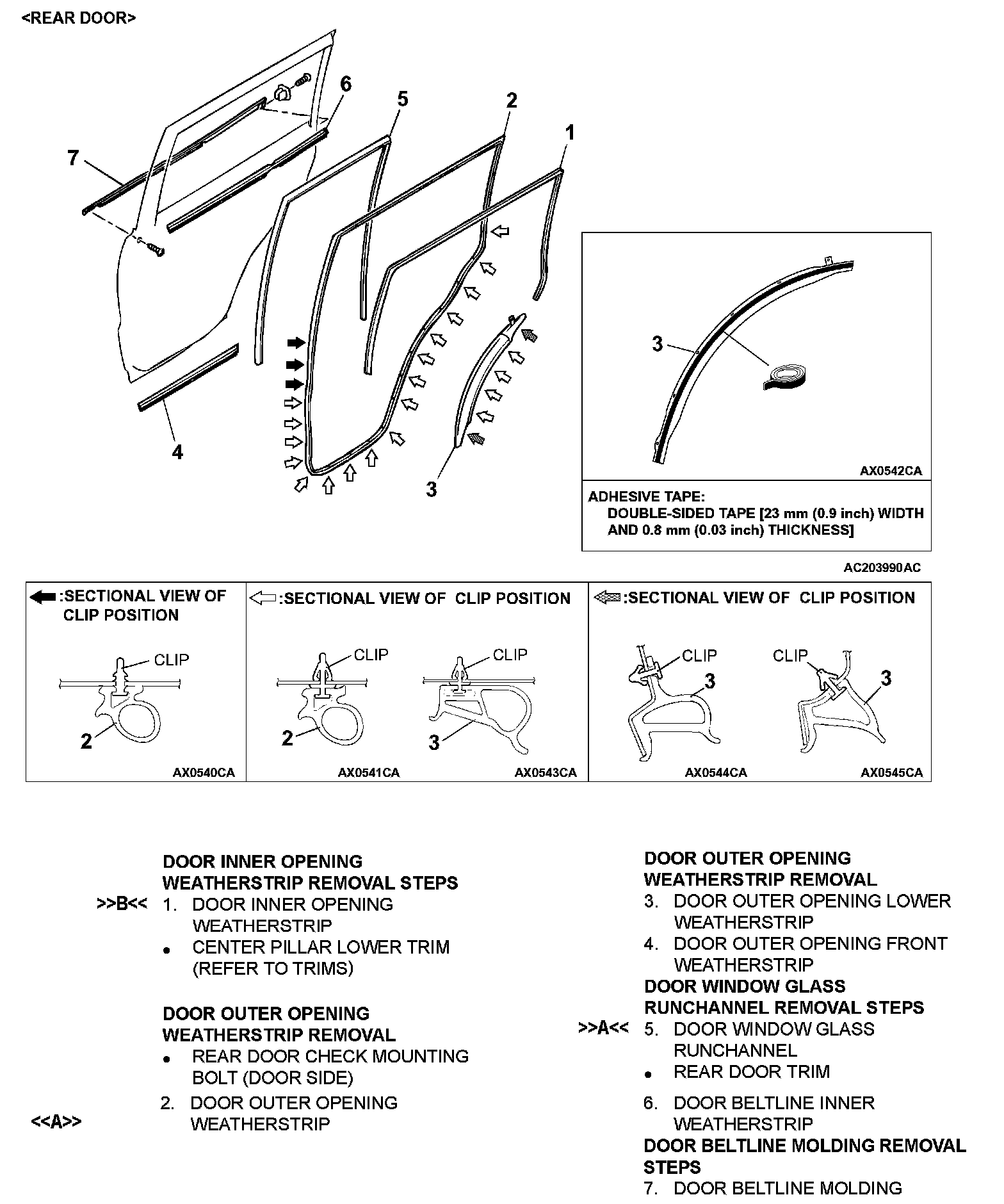

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP







REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

[[A]] DOOR OUTER OPENING WEATHERSTRIP REMOVAL




Make a tool as shown and remove the door opening weatherstrip.

INSTALLATION SERVICE POINT

]]A[[ MOUNTING OF DOOR WINDOW GLASS CHANNEL

Remove the waterproof film when mounting the door window glass channel.

]]B[[ MOUNTING OF DOOR INNER OPENING WEATHER STRIP







Mount the door inner opening weather strip to the locations specified.
