Headlamp: Service and Repair

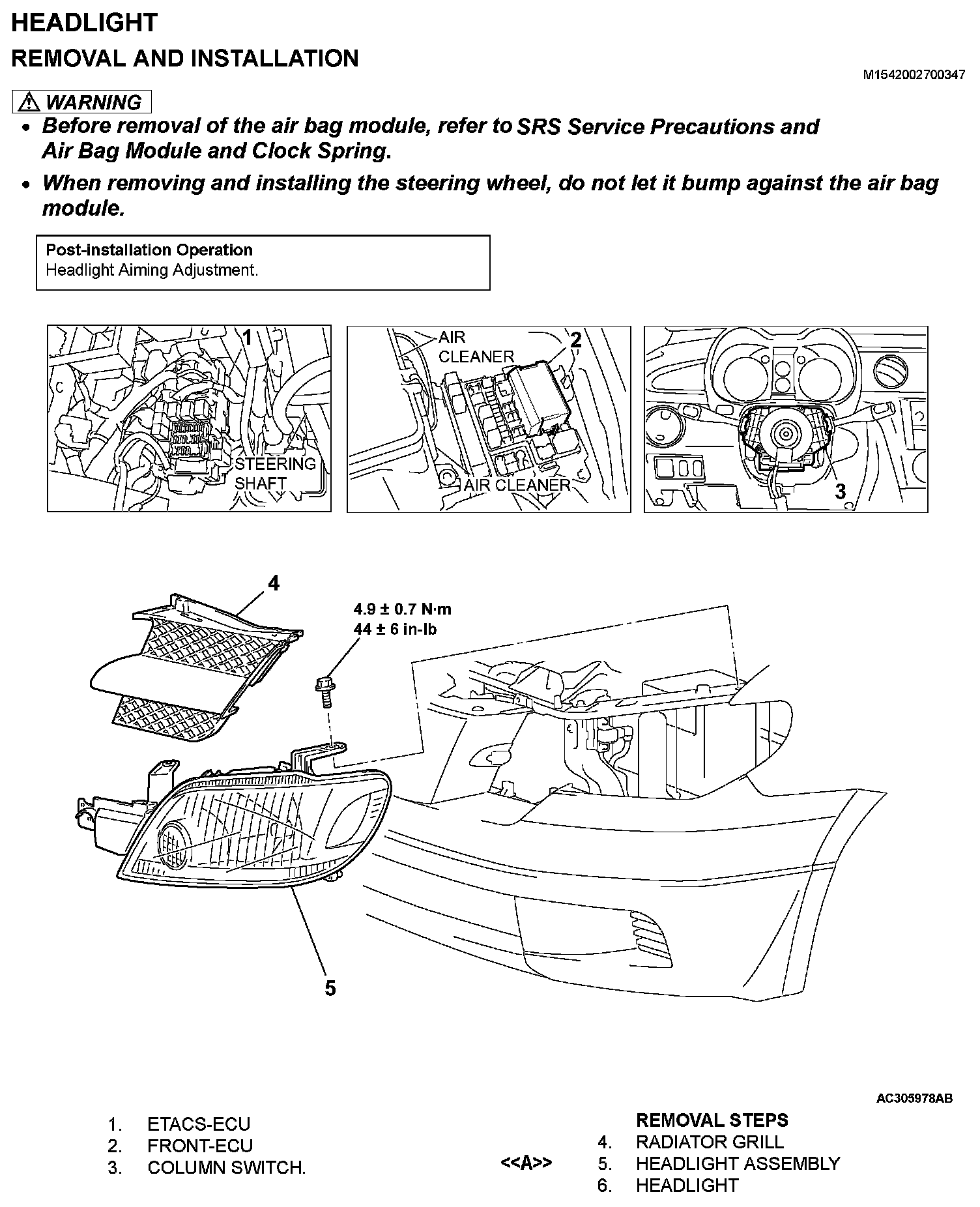

HEADLIGHT
REMOVAL AND INSTALLATIONREMOVAL SERVICE POINT
<> HEADLIGHT ASSEMBLY REMOVAL 1.
Remove half of the front bumper assembling clips and bolts
NOTE: The Figure illustrates the procedures to remove the headlight assembly (LH).
2.
Slide the front bumper down to remove the headlight assembly.
