Removal and Replacement

TRANSFER ASSEMBLY

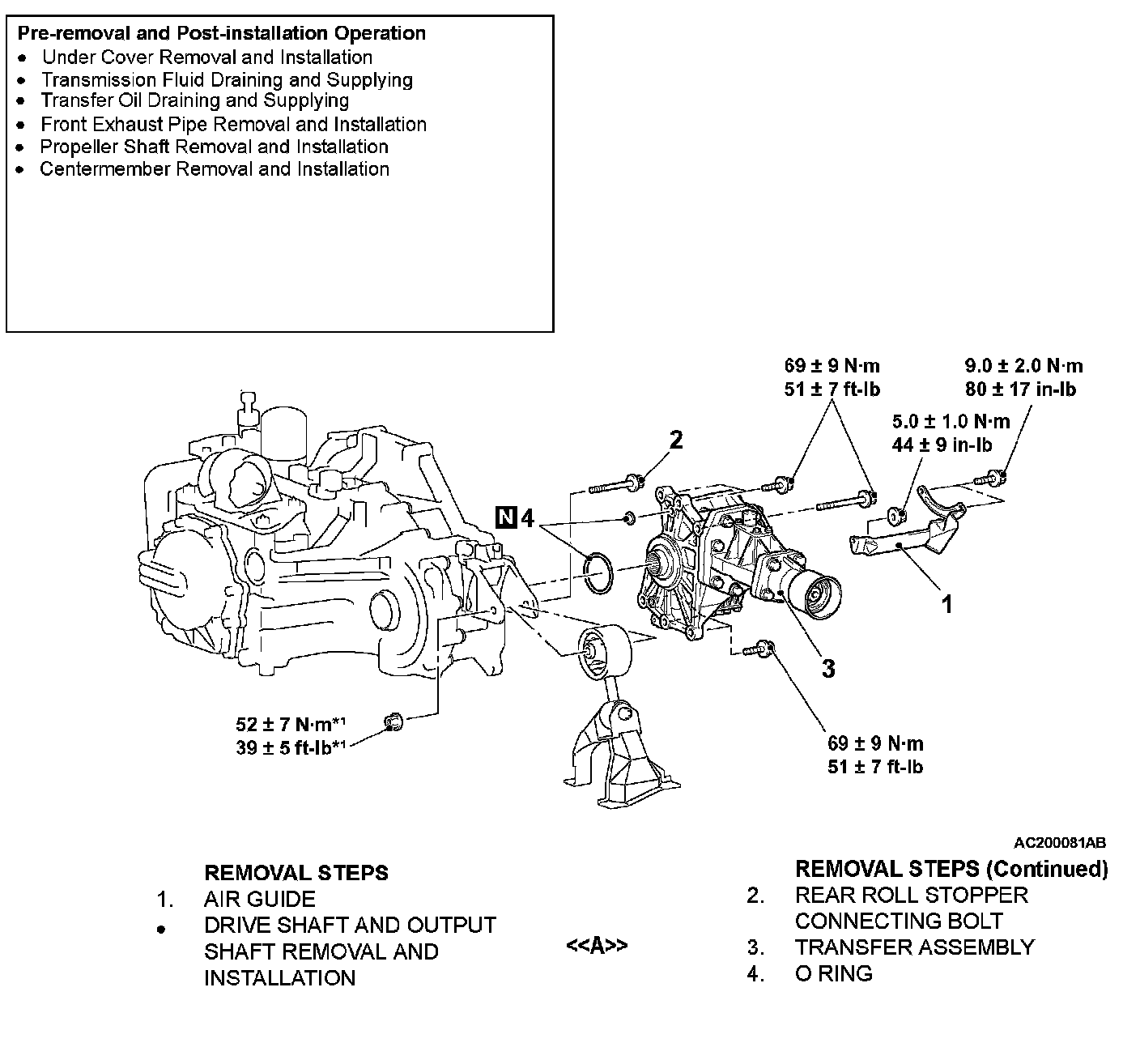

REMOVAL AND INSTALLATION

CAUTION: *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

REMOVAL SERVICE POINT
<> TRANSFER ASSEMBLY REMOVAL

CAUTION: After pulling out the transfer assembly, upon returning the transaxle assembly to the original position be careful not to damage the bush parts of the roll stopper.

Use a tire lever, etc. to slide the transaxle assembly to the front of the vehicle, create a clearance between the transaxle assembly and cross member, and then pull out the transfer assembly from that clearance.
