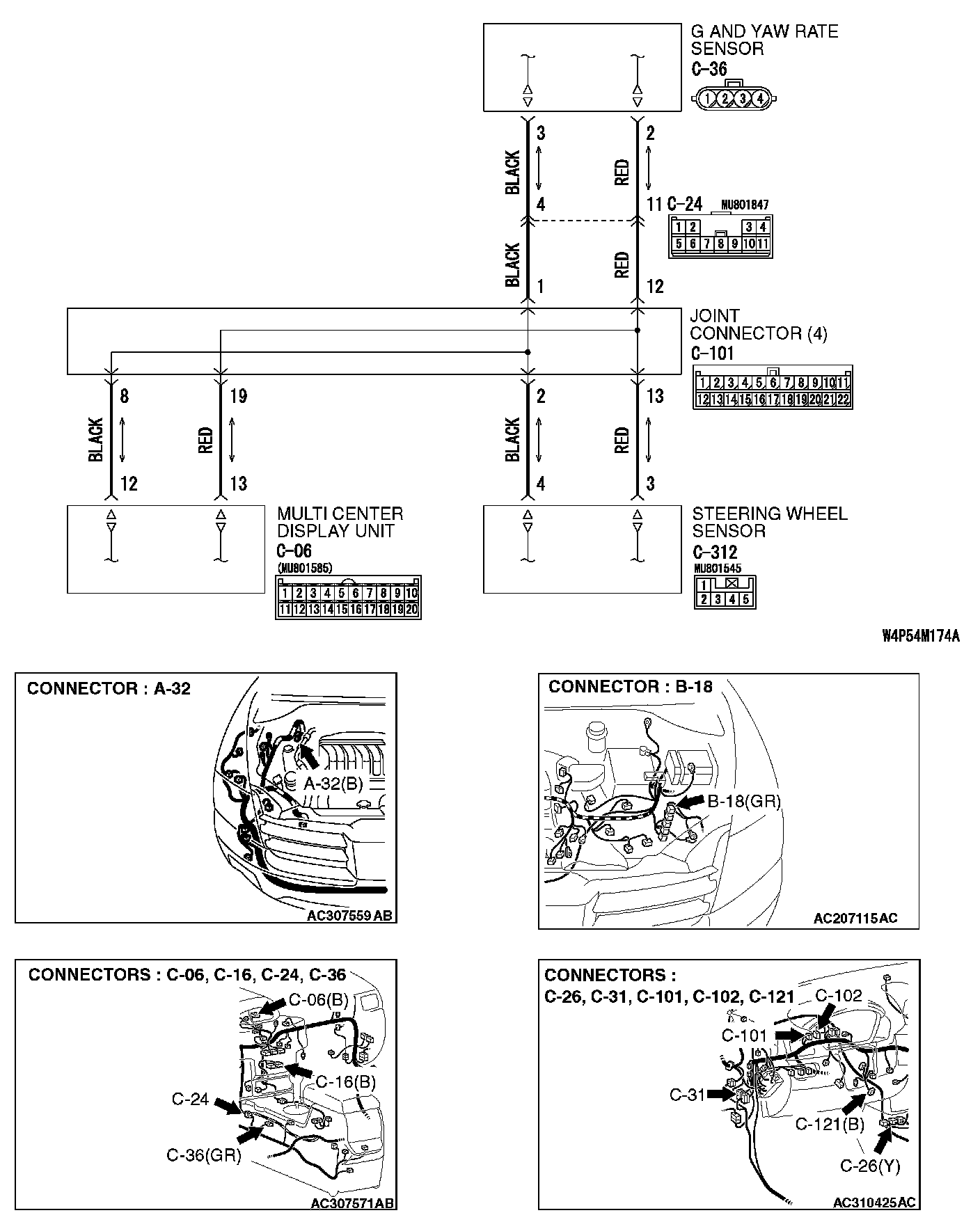

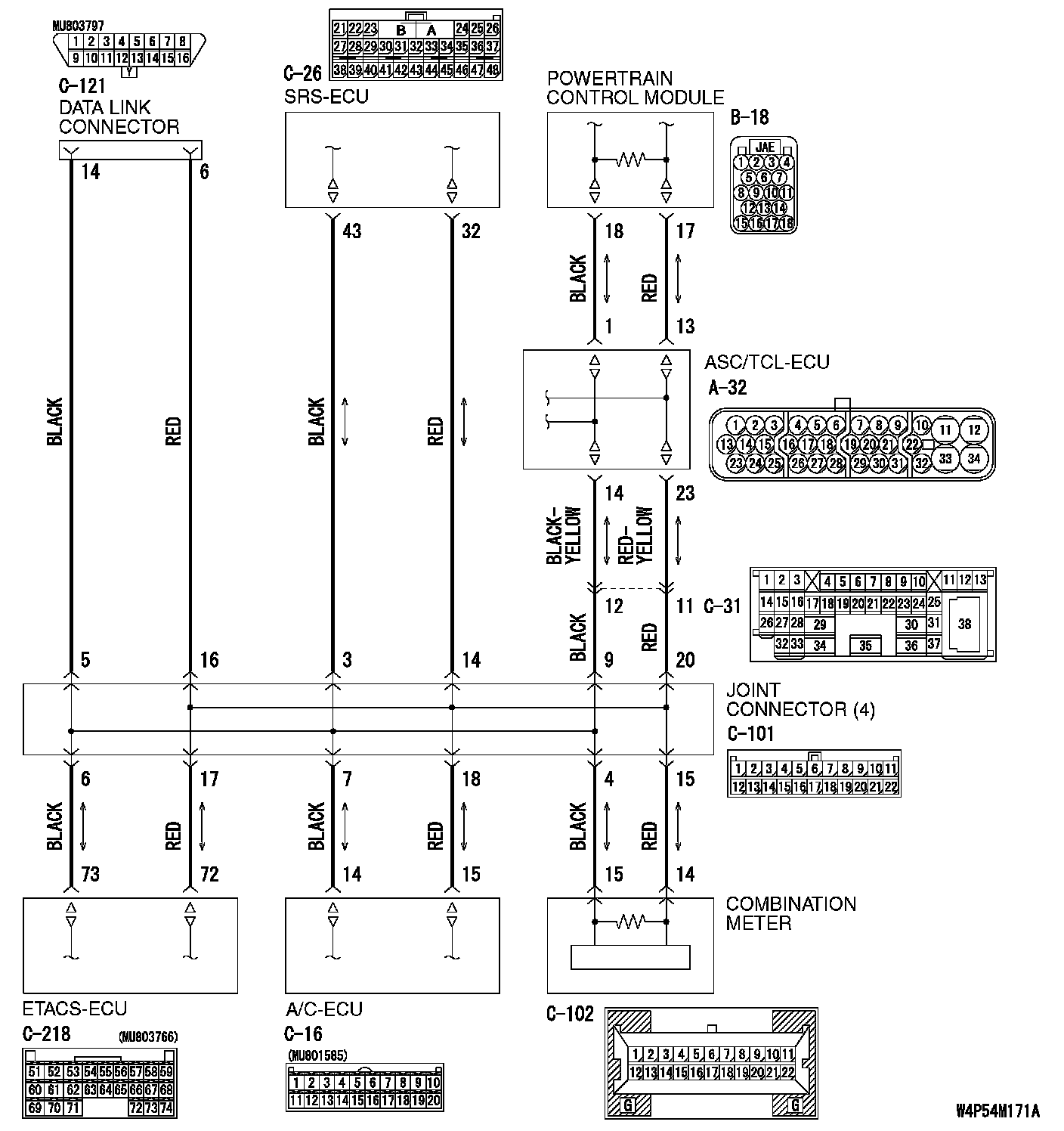

DIAGNOSTIC ITEM 12: Diagnose shorts in the ground to CAN bus linePart 1:
Part 2:
Part 3:
CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.
TROUBLE JUDGMENT
Short to ground may be present when the voltage between the CAN bus line (CAN_L or CAN_H) and body ground is less than 1.0 V. In this condition, an abnormal voltage may be measured at CAN_L and CAN_H lines.
COMMENTS ON TROUBLE SYMPTOM
The wiring harness wire or connectors may have loose, corroded, or damage terminals, or terminals pushed back in the connector, or an ECU may be defective.
TROUBLESHOOTING HINTS
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector
- The ETACS-ECU may be defective
- The SRS-ECU may be defective
- The combination meter may be defective
- The A/C-ECU may be defective
- The multi-center display unit (middle-grade type) may be defective
- The g and yaw rate sensor may be defective
- The steering wheel sensor may be defective
- The ASC/TCL-ECU may be defective
- The powertrain control module may be defective
DIAGNOSIS
Required Special Tools:
- MB991223: Harness Set
- MB991952:ABS Check Harness
STEP 1. Check powertrain control module connector B-18, combination meter connector C-102 and data link connector C-121 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.
Q: Are powertrain control module connector B-18, combination meter connector C-102 and data link connector C-121 in good condition?
YES: Go to Step 2.
NO: Repair the damaged parts.
STEP 2. Check the CAN_H-side bus line (communication line including ECUs) for short to ground. Measure the resistance at data link connector C-121.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect powertrain control module connector B-18 and combination meter connector C-102, and measure the resistance at the harness side of data link connector C-121.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between data link connector terminal 6 and body ground.
OK: 1 kOhms or more
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 3. Check the CAN_L-side bus line (communication line including ECUs) for short to ground. Measure the resistance at data link connector C-121.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect powertrain control module connector B-18 and combination meter connector C-102, and measure the resistance at the harness side of data link connector C-121.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between data link connector terminal 14 and body ground.
OK: 1 kOhms or more
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 4. Check intermediate connector C-31 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.
Q: Is intermediate connector C-31 in good condition?
YES: Go to Step 5.
NO: Repair the damaged parts.
STEP 5. Check the CAN_H-side bus line (communication line including ECUs) of the front wiring harness for short to ground. Measure the resistance at intermediate connector C-31.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect intermediate connector C-31, and measure the resistance at the male side (at front wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between intermediate connector C-31 terminal 11 and body ground.
OK: 1 kOhms or more
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 6. Check joint connector (4) C-101 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
NOTE: For the removal of the joint connector. refer to HOW TO DISCONNECT JOINT CONNECTOR.
CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.
Check the joint connector at the wiring harness side for loose, corroded or damaged terminals, or terminals pushed back in the connector, and also check the short pin behind the connector for corrosion, deformation and delamination.
Q: Is joint connector (4) C-101 in good condition?
YES: Go to Step 7.
NO: Repair the damaged parts. Replace the joint connector as necessary.
STEP 7. Check the CAN_H line (communication line including the combination meter) between joint connector (4) and the combination meter for short to ground. Measure the resistance at joint connector (4) C-101.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (4) terminal 15 and body ground.
OK: 1 kOhms or more
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 8. Check the CAN_H line (communication line only) between joint connector (4) and the combination meter connector for short to ground. Measure the resistance at joint connector (4) C-101.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (4) C-101 and combination meter connector C-102, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (4) terminal 15 and body ground.
OK: 1 kOhms or more
CAUTION: Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair The CAN Bus Lines.
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 9. Check the CAN_H line (communication line including the ETACS-ECU) between joint connector (4) and the ETACS-ECU connector for short to ground. Measure the resistance at joint connector (4) C-101.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (4) terminal 17 and body ground.
OK: 1 kOhms or more
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 10. Check ETACS-ECU connector C-218 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.
Q: Is ETACS-ECU connector C-218 in good condition?
YES: Go to Step 11.
NO: Repair the damaged parts.
STEP 11. Check the CAN_H line (communication line only) between joint connector (4) and ETACS-ECU connector for short to ground. Measure the resistance at joint connector (4) C-101.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (4) C-101 and ETACS-ECU connector C-218, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (4) terminal 17 and body ground.
OK: 1 kOhms or more
CAUTION: Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair The CAN Bus Lines.
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 12. Check the CAN_H line (communication line including the A/C-ECU) between joint connector (4) and the A/C-ECU connector for short to ground. Measure the resistance at joint connector (4) C-101.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (4) terminal 18 and body ground.
OK: 1 kOhms or more
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 13. Check A/C-ECU connector C-16 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.
Q: Is A/C-ECU connector C-16 in good condition?
YES: Go to Step 14.
NO: Repair the damaged parts.
STEP 14. Check the CAN_H line (communication line only) between joint connector (4) and A/C-ECU connector for short to ground. Measure the resistance at joint connector (4) C-101.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (4) C-101 and A/C-ECU connector C-16, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (4) terminal 18 and body ground.
OK: 1 kOhms or more
CAUTION: Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair The CAN Bus Lines.
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 15. Check the CAN_H line (communication line including the SRS-ECU) between joint connector (4) and the SRS-ECU connector for short to ground. Measure the resistance at joint connector (4) C-101.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (4) terminal 14 and body ground.
OK: 1 kOhms or more
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 16. Check SRS-ECU connector C-26 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.
Q: Is SRS-ECU connector C-26 in good condition?
YES: Go to Step 17.
NO: Repair the damaged parts.
STEP 17. Check the CAN_H line (communication line only) between joint connector (4) and SRS-ECU connector for short to ground. Measure the resistance at joint connector (4) C-101.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (4) C-101 and SRS-ECU connector C-26, and measure the resistance at the wiring harness side of joint connector (40 C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (4) terminal 14 and body ground.
OK: 1 kOhms or more
CAUTION: Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair The CAN Bus Lines.
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 18. Check the CAN_H line (communication line including the g and yaw rate sensor) between joint connector (4) and g and yaw rate sensor connector for short to ground. Measure the resistance at joint connector (4) C-101.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (4) terminal 12 and body ground.
OK: 1 kOhms or more
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 19. Check g and yaw rate sensor connector C-36 and intermediate connector C-24 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.
Q: Are g and yaw rate sensor connector C-36 and intermediate connector C-24 in good condition?
YES: Go to Step 20.
NO: Repair the damaged parts.
STEP 20. Check the CAN_H line (communication line only) between intermediate connector and g and yaw rate sensor connector for short to ground. Measure the resistance at intermediate connector C-24.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect intermediate connector C-24 and g and yaw rate sensor connector C-36, and measure the resistance at the wiring harness side of intermediate connector male side (at front wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between intermediate connector terminal 11 and body ground.
OK: 1 kOhms or more
CAUTION: Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair The CAN Bus Lines.
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
STEP 21. Check the CAN_H line (communication line only) between intermediate connector C-24 and joint connector (4) for short to ground. Measure the resistance at joint connector (4) C-101.
CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.
1. Disconnect intermediate connector C-24 and joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (4) terminal 12 and body ground.
OK: 1 kOhms or more
CAUTION: Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair The CAN Bus Lines.
Q: Does the resistance measure 1 kOhms or more?
YES:
NO:
