DIAGNOSTIC ITEM 15: Diagnose shorts between CAN_L and H lines

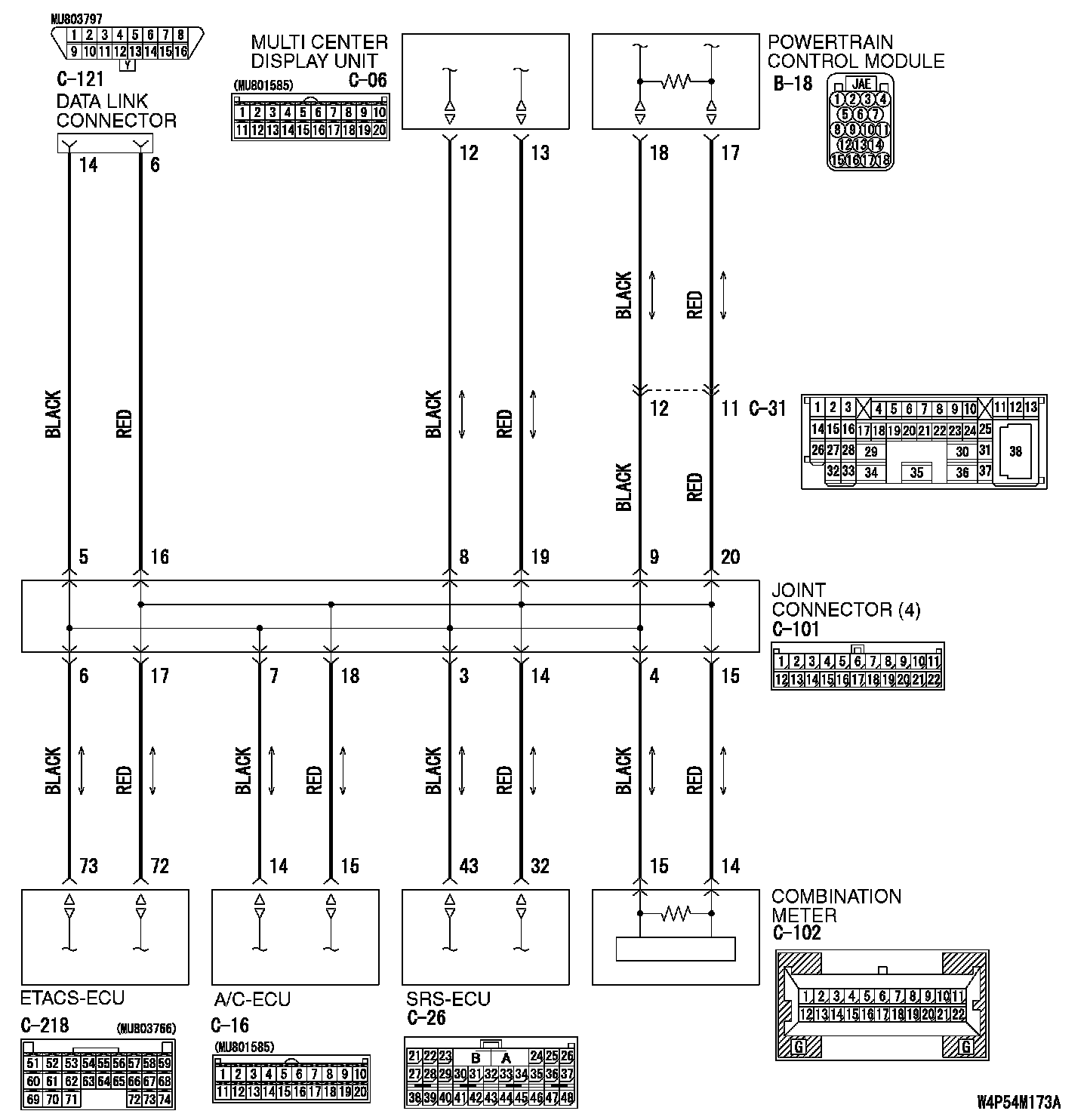

Part 1:

Part 2:

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

TROUBLE JUDGMENT
Short circuit may be present between the CAN_L and H lines when the resistance between the CAN bus lines (CAN_L and H lines) is less than 2 Ohms.

COMMENTS ON TROUBLE SYMPTOM
The wiring harness wire or connectors may have loose, corroded, or damage terminals, or terminals pushed back in the connector, or an ECU may be defective.

TROUBLESHOOTING HINTS
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector
- The ETACS-ECU may be defective
- The SRS-ECU may be defective
- The combination meter may be defective
- The A/C-ECU may be defective
- The multi-center display unit (middle-grade type) may be defective
- The powertrain control module may be defective

DIAGNOSIS

Required Special Tool:
- MB991223: Harness Set




STEP 1. Check intermediate connector C-31 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.

Q: Is intermediate connector C-31 in good condition?

YES: Go to Step 2.

NO: Repair the damaged parts.

STEP 2. Check the lines between the CAN_L and H lines (communication line including ECUs) of the front wiring harness for short circuit. Measure the resistance at intermediate connector C-31.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.




1. Disconnect intermediate connector C-31, and measure the resistance at the male side (at front wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.

3. Disconnect the negative battery terminal.




4. Measure the resistance between intermediate connector C-31 terminals 11 and 12.

OK: 120 ± 200 ohm

Q: Does the resistance measure 120 ± 20 Ohms?

YES: 120 ± 20 Ohms> Go to Step 3.

NO: 120 ± 20 Ohms> Go to Step 27.

STEP 3. Check joint connector (4) C-101 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

NOTE: For the removal of the joint connector. refer to HOW TO DISCONNECT JOINT CONNECTOR.

CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.

Check the joint connector at the wiring harness side for loose, corroded or damaged terminals, or terminals pushed back in the connector, and also check the short pin behind the connector for corrosion, deformation and delamination.

Q: Is joint connector (4) C-101 in good condition?

YES: Go to Step 4.

NO: Repair the damaged parts. Replace the joint connector as necessary.

STEP 4. Check the CAN_L and H lines (communication lines including the combination meter) between joint connector (4) and the combination meter for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.

3. Disconnect the negative battery terminal.

4. Measure the resistance between joint connector (4) terminals 4 and 15.

OK: 120 ± 200 Ohms

Q: Does the resistance measure 120 ± 20 Ohms?

YES: 120 ± 20 Ohms> Go to Step 8.

NO: 120 ± 20 Ohms> Go to Step 5.

STEP 5. Check combination meter connector C-102 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.

Q: Is combination meter connector C-102 in good condition?

YES: Go to Step 6.

NO: Repair the damaged parts.

STEP 6. Check the CAN_L and H lines (communication lines only) between joint connector (4) and the combination meter for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect joint connector (4) C-101 and combination meter connector C-102, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.

3. Disconnect the negative battery terminal.

4. Measure the resistance between joint connector (4) terminals 4 and 15.

OK: 1 kOhms or more

CAUTION: Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair The CAN Bus Lines.

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Go to Step 7.

NO: 1 kOhms> Repair the wiring harness between joint connector (4) and the combination meter connector.

STEP 7. Check the combination meter for short circuit. Measure the resistance at combination meter connector C-102.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect combination meter C-102, and measure the resistance at the equipment side of combination meter connector C-102.

2. Measure the resistance between combination meter connector terminals 14 and 15.

OK: 120 ± 200 Ohms

Q: Does the resistance measure 120 ± 20 Ohms?

YES: 120 ± 20 Ohms> Diagnose CAN bus lines thoroughly by referring to DIAGNOSTIC ITEM 27.

NO: 120 ± 20 Ohms> Replace the combination meter.

STEP 8. Check the CAN_L and H lines (communication lines including the ETACS-ECU) between joint connector (4) and the ETACS-ECU for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.

3. Disconnect the negative battery terminal.

4. Measure the resistance between joint connector (4) terminals 6 and 17.

OK: 1 kOhms or more

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Go to Step 12.

NO: 1 kOhms> Go to Step 9.

STEP 9. Check ETACS-ECU connector C-218 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.

Q: Is ETACS-ECU connector C-218 in good condition?

YES: Go to Step 10.

NO: Repair the damaged parts.

STEP 10. Check the CAN_L and H lines (communication lines only) between joint connector (4) and the ETACS-ECU for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect joint connector (4) C-101 and ETACS-ECU connector C-218, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.

3. Disconnect the negative battery terminal.

4. Measure the resistance between joint connector (4) terminals 6 and 17.

OK: 1 kOhms or more

CAUTION: Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair The CAN Bus Lines.

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Go to Step 11.

NO: 1 kOhms> Repair the wiring harness between joint connector (4) and the ETACS-ECU connector.

STEP 11. Check the ETACS-ECU for short circuit. Measure the resistance at ETACS-ECU connector C-218.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect ETACS-ECU connector C-218, and measure the resistance at the equipment side of ETACS-ECU connector C-218.

2. Measure the resistance between ETACS-ECU connector terminals 72 and 73.

OK: 1 kOhms or more

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Diagnose CAN bus lines thoroughly by referring to DIAGNOSTIC ITEM 27.

NO: 1 kOhms> Replace the ETACS-ECU.

STEP 12. Check the CAN_L and H lines (communication lines including the A/C-ECU) between joint connector (4) and the A/C-ECU for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.

3. Disconnect the negative battery terminal.

4. Measure the resistance between joint connector (4) terminals 7 and 18.

OK: 1 kOhms or more

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Go to Step 16.

NO: 1 kOhms> Go to Step 13.

STEP 13. Check A/C-ECU connector C-16 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.

Q: Is A/C-ECU connector C-16 in good condition?

YES: Go to Step 14.

NO: Repair the damaged parts.

STEP 14. Check the CAN_L and H lines (communication lines only) between joint connector (4) and the A/C-ECU for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect joint connector (4) C-101 and A/C-ECU connector C-16, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.

3. Disconnect the negative battery terminal.

4. Measure the resistance between joint connector (4) terminals 7 and 18.

OK: 1 kOhms or more

CAUTION: Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair The CAN Bus Lines.

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Go to Step 15.

NO: 1 kOhms> Repair the wiring harness between joint connector (4) and the A/C-ECU connector.

STEP 15. Check the A/C-ECU for short circuit. Measure the resistance at A/C-ECU connector C-16.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect A/C-ECU connector C-16, and measure the resistance at the equipment side of A/C-ECU connector C-16.

2. Measure the resistance between A/C-ECU connector terminals 14 and 15.

OK: 1 kOhms or more

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Diagnose CAN bus lines thoroughly by referring to DIAGNOSTIC ITEM 27.

NO: 1 kOhms> Replace the A/C-ECU.

STEP 16. Check the CAN_L and H lines (communication lines including the SRS-ECU) between joint connector (4) and the SRS-ECU for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.

3. Disconnect the negative battery terminal.

4. Measure the resistance between joint connector (4) terminals 3 and 14.

OK: 1 kOhms or more

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Go to Step 20.

NO: 1 kOhms> Go to Step 17.

STEP 17. Check SRS-ECU connector C-26 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.

Q: Is SRS-ECU connector C-26 in good condition?

YES: Go to Step 18.

NO: Repair the damaged parts.

STEP 18. Check the CAN_L and H lines (communication lines only) between joint connector (4) and the SRS-ECU for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect joint connector (4) C-101 and SRS-ECU connector C-26, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.

3. Disconnect the negative battery terminal.

4. Measure the resistance between joint connector (4) terminals 3 and 14.

OK: 1 kOhms or more

CAUTION: Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair The CAN Bus Lines.

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Go to Step 19.

NO: 1 kOhms> Repair the wiring harness between joint connector (4) and the SRS-ECU connector.

STEP 19. Check the SRS-ECU for short circuit. Measure the resistance at SRS-ECU connector C-26.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect SRS-ECU connector C-26, and measure the resistance at the equipment side of SRS-ECU connector C-26.

2. Measure the resistance between SRS-ECU connector terminals 32 and 43.

OK: 1 kOhms or more

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Diagnose CAN bus lines thoroughly by referring to DIAGNOSTIC ITEM 27.

NO: 1 kOhms> Replace the SRS-ECU.

STEP 20. Check the CAN_L and H lines (communication lines including the middle-grade multi-center display) between joint connector (4) and the middle-grade multi-center display for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION: A digital multimeter should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

CAUTION: The test wiring harness should be used. For details refer to Service Precautions/Vehicle Damage Warnings.

1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal. For details refer to Service Precautions/Vehicle Damage Warnings.

3. Disconnect the negative battery terminal.

4. Measure the resistance between joint connector (4) terminals 8 and 19.

OK: 1 kOhms or more

Q: Does the resistance measure 1 kOhms or more?

YES: 1 kOhms or more> Go to Step 24.

NO: 1 kOhms> Go to Step 21.

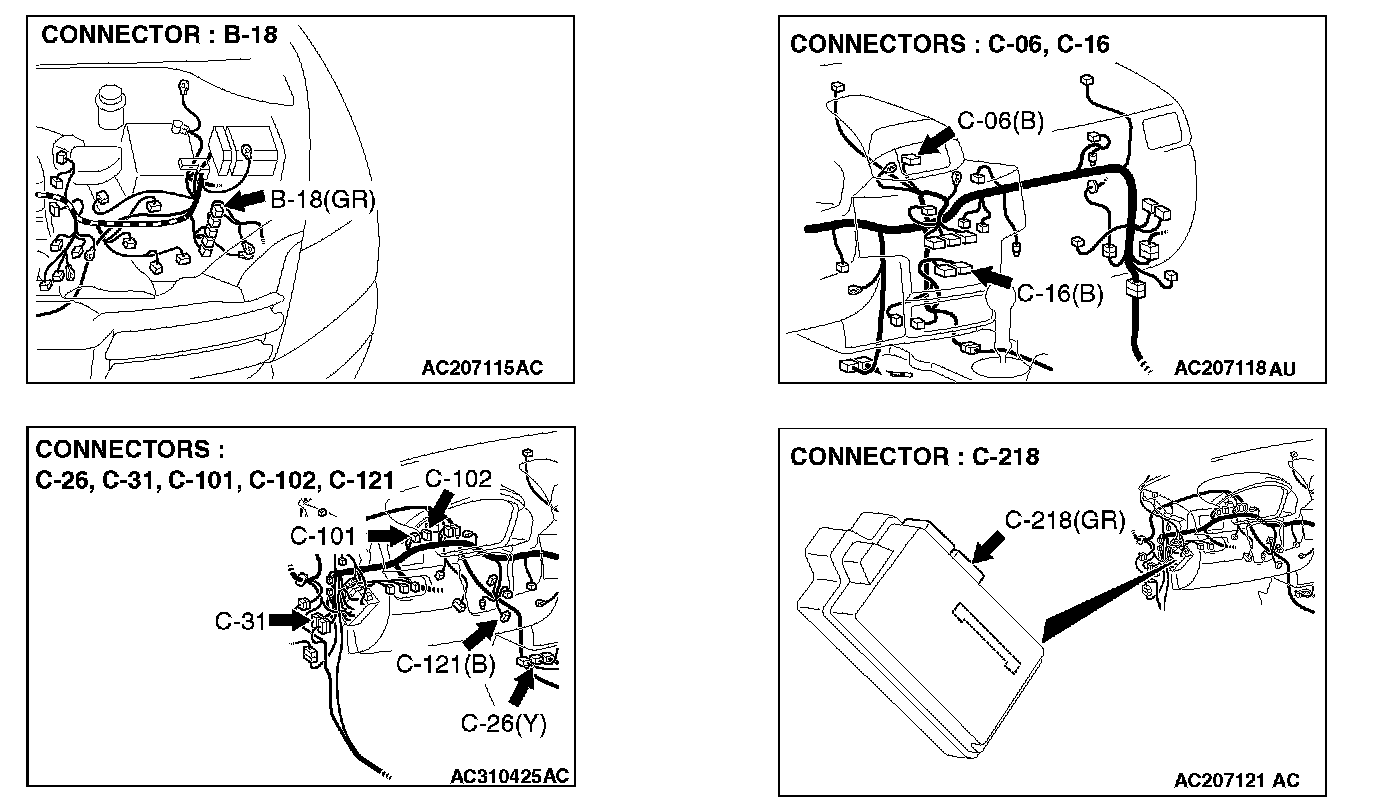

STEP 21. Check multi-center display unit (middle-grade type) connector C-06 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector. For details refer to Service Precautions/Vehicle Damage Warnings.

Q: Is multi-center display unit (middle-grade type) connector C-06 in good condition?

YES: Go to Step 22.

NO: Repair the damaged parts.
