OBD-II Drive Cycle Pattern Lists

OBD- II DRIVE CYCLE
All kinds of diagnostic trouble codes (DTCs) can be monitored by carrying out a short drive according to the following six drive cycle pattern. In other words, doing such a drive regenerates any kind of trouble which involves illuminating the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) and verifies the repair procedure has eliminated [the trouble the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) is no longer illuminated].

CAUTION: Two technicians should always be in the vehicle when carrying out a test.

NOTE: Check that the diagnosis trouble code (DTC) is not output before driving the OBD-II drive cycle. Erase the DTC if it has been output.

Drive Cycle Pattern List:

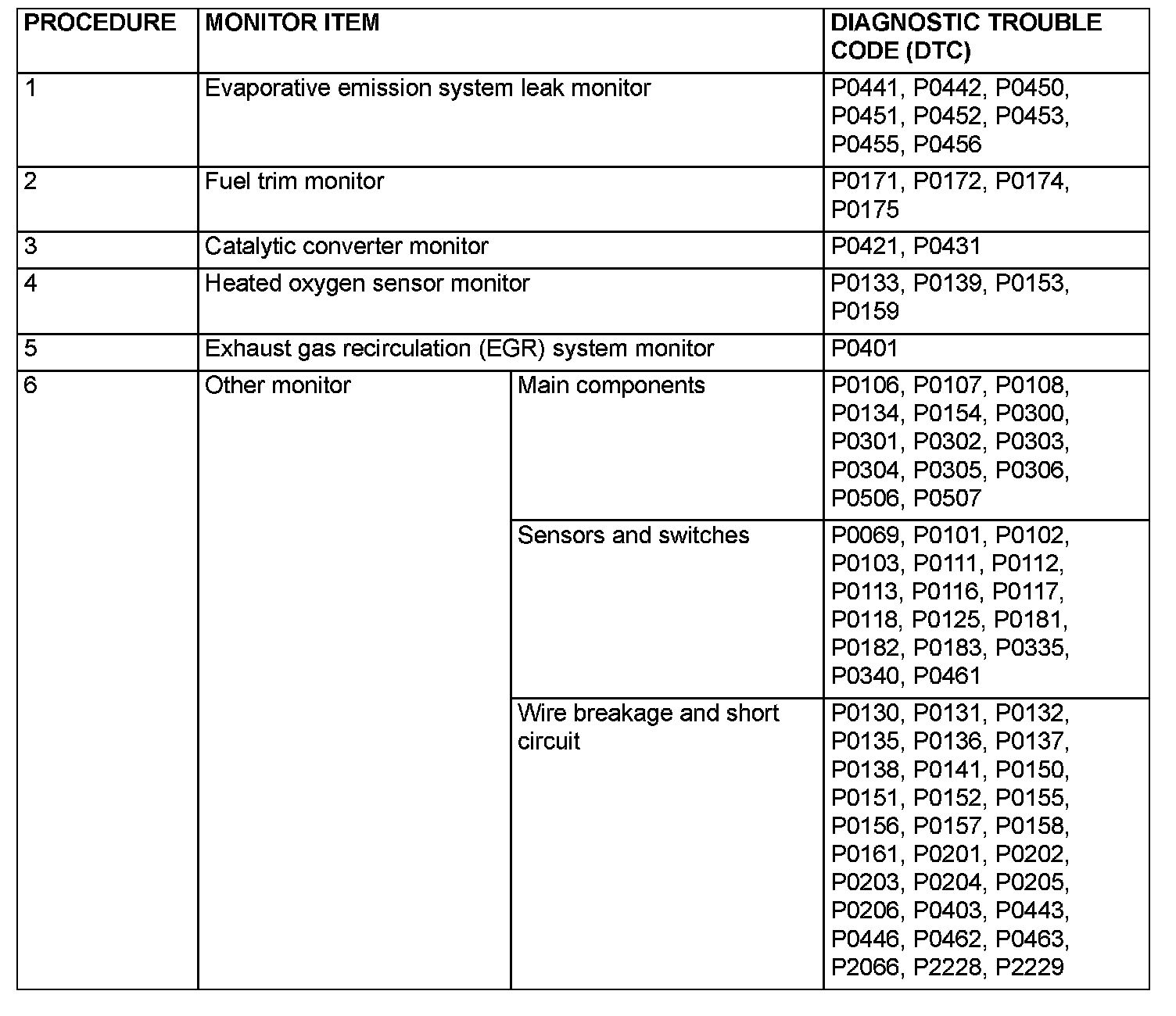

DRIVE CYCLE PATTERN LIST

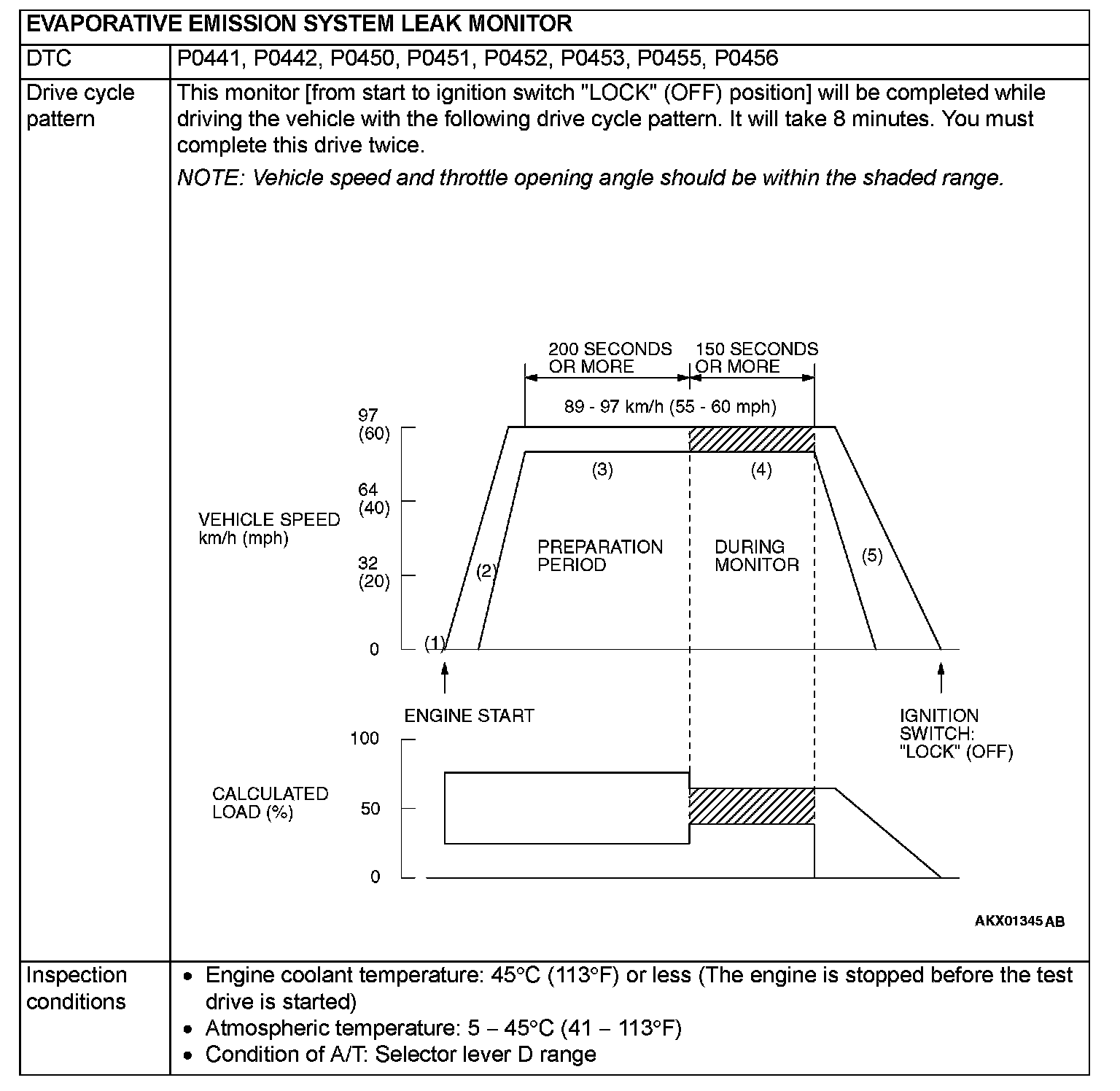

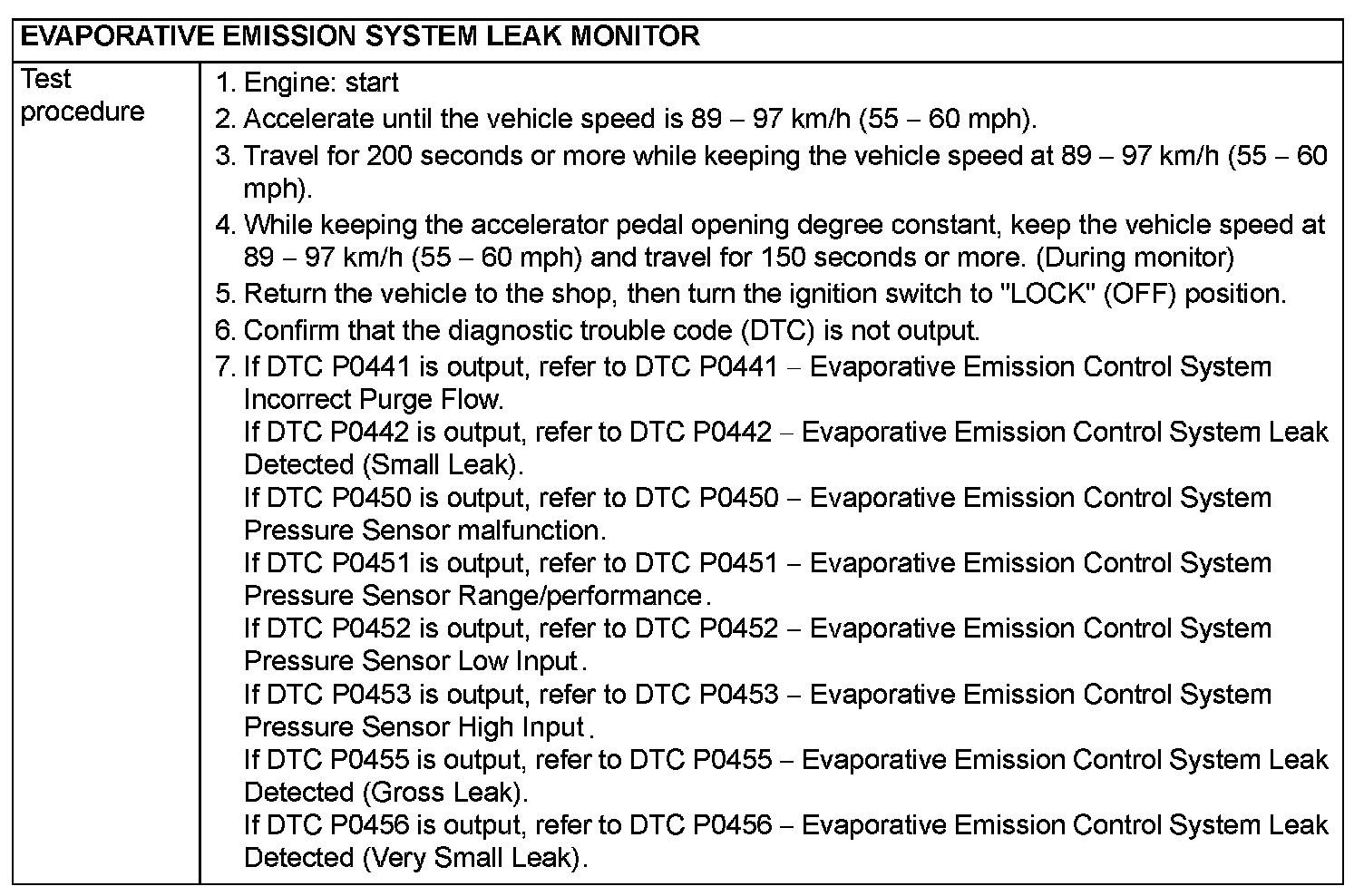

Evaporative Emission System Leak Monitor Part 1:

Evaporative Emission System Leak Monitor Part 2:

PROCEDURE 1

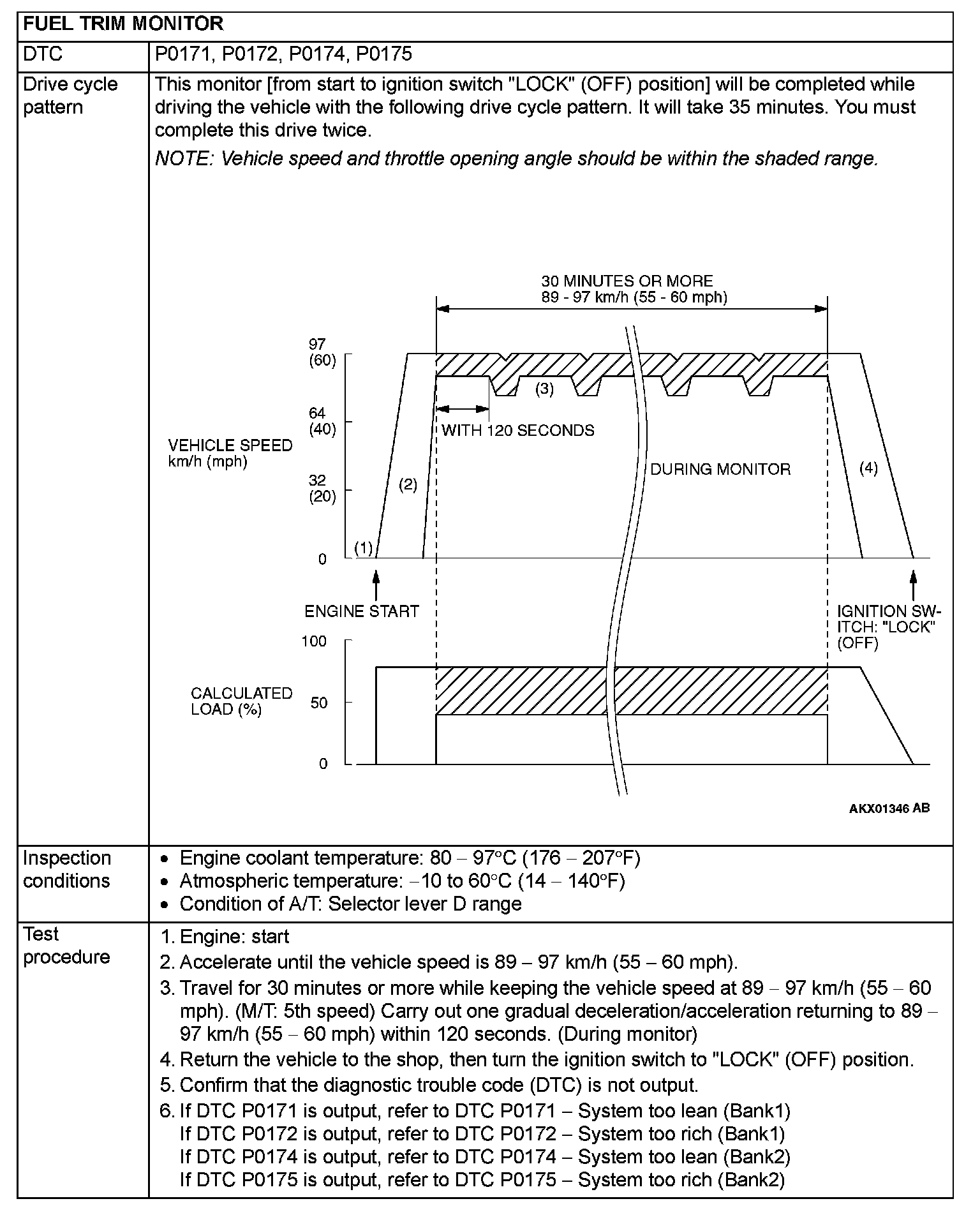

Fuel Trim Monitor:

PROCEDURE 2

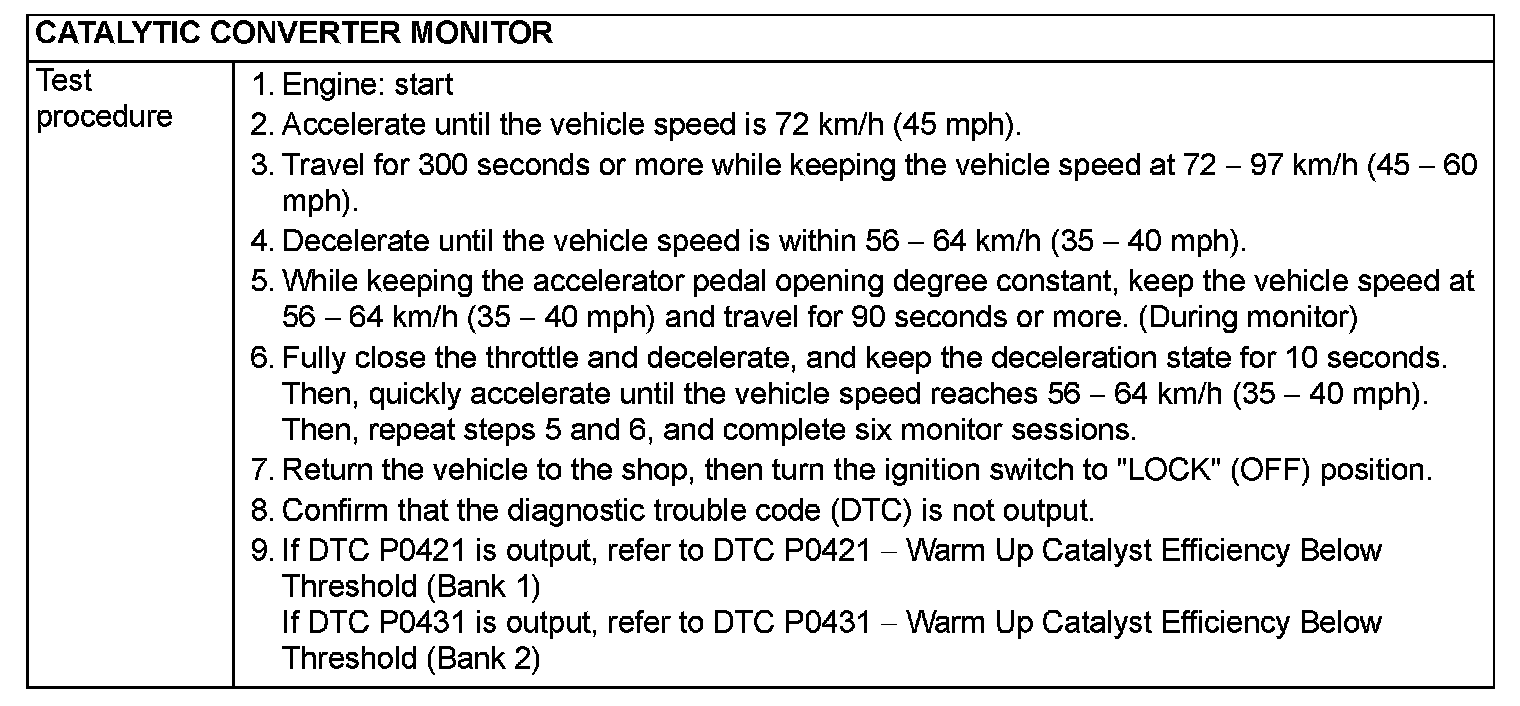

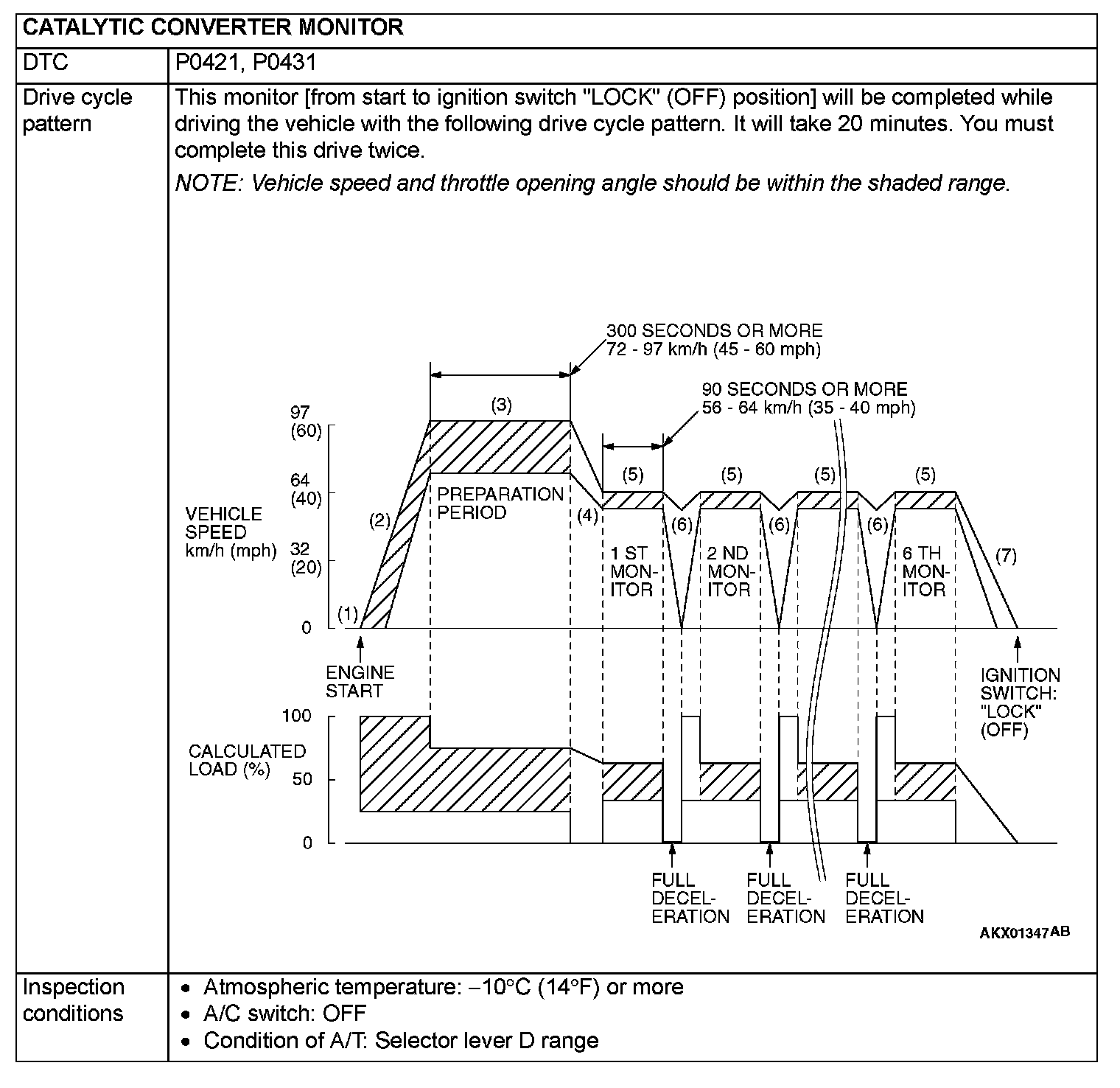

Catalytic Converter Monitor Part 1:

Catalytic Converter Monitor Part 2:

PROCEDURE 3

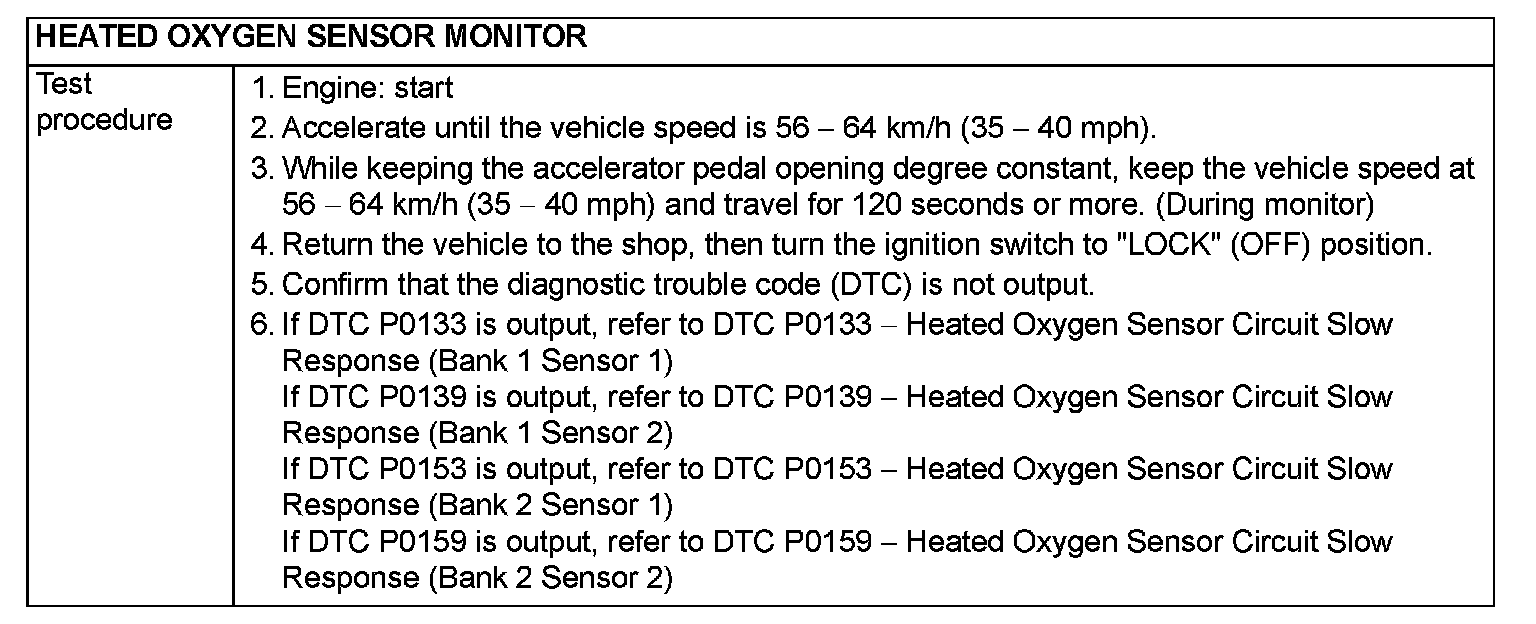

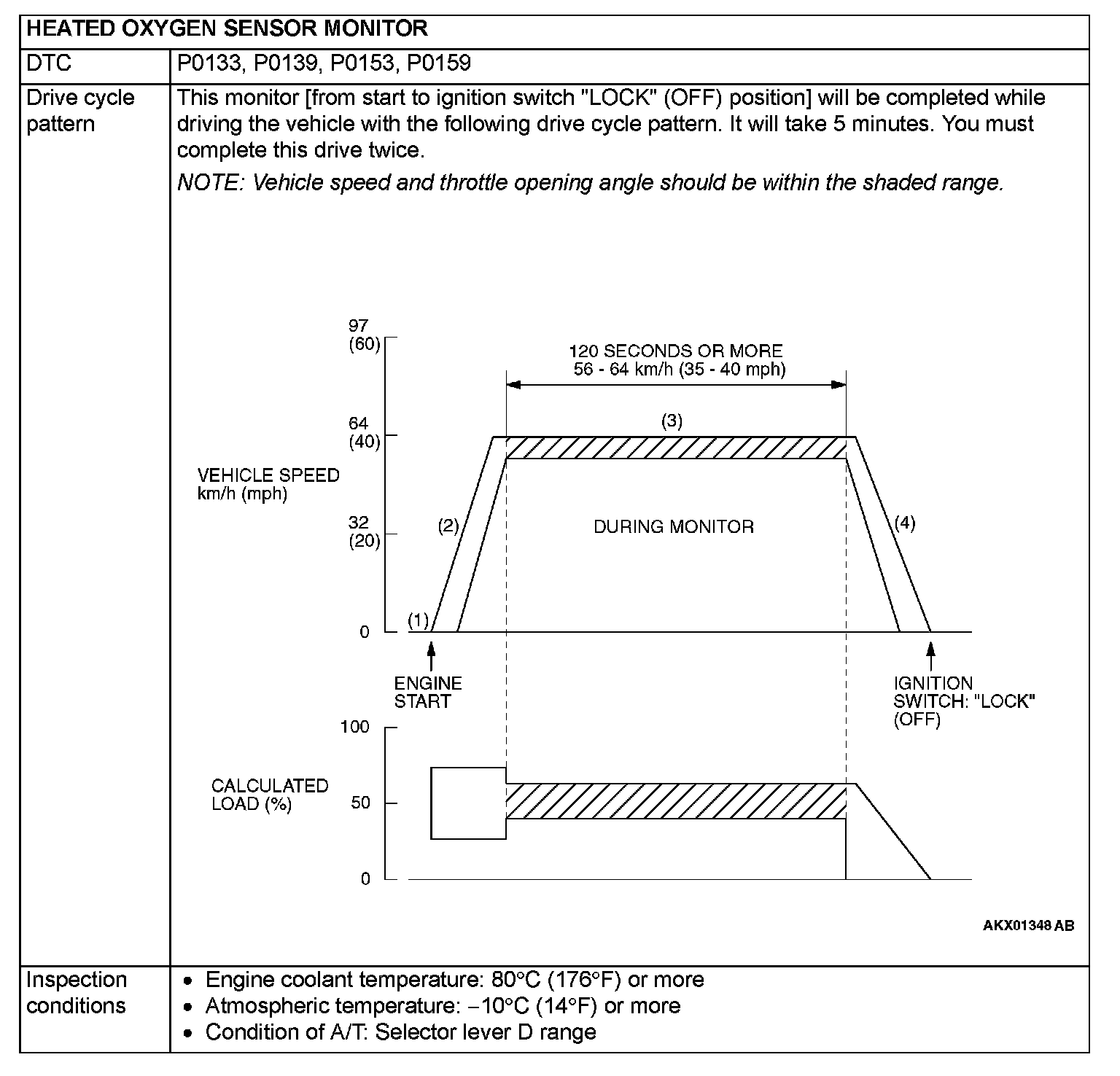

Heated Oxygen Sensor Monitor Part 1:

Heated Oxygen Sensor Monitor Part 2:

PROCEDURE 4

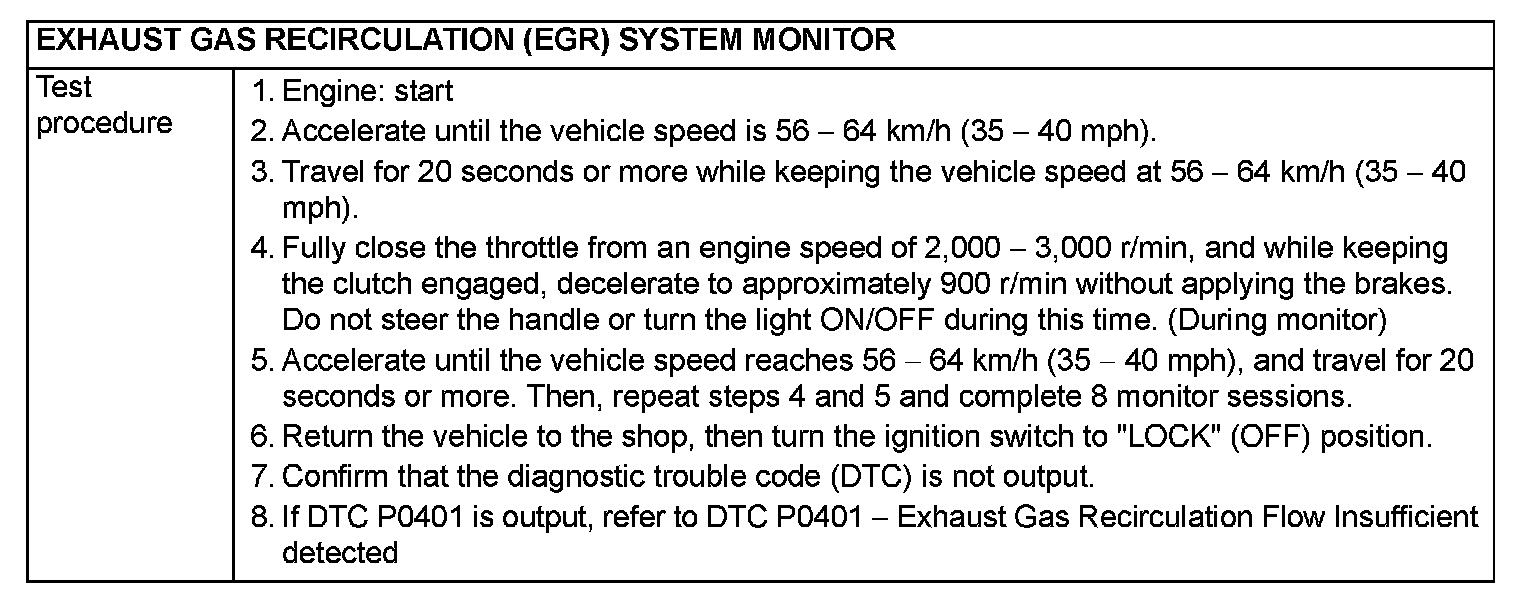

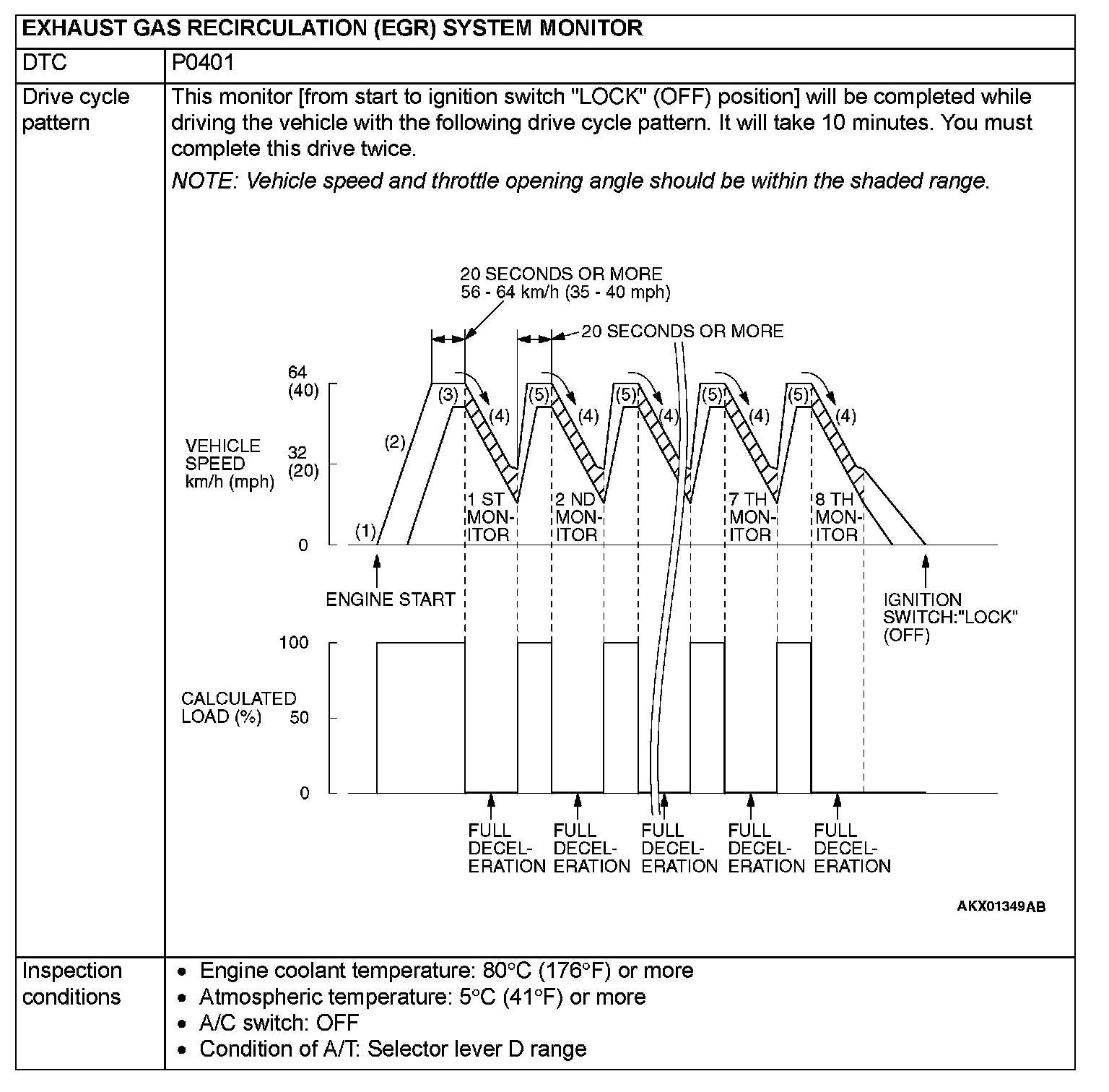

Exhaust Gas Recirculation (EGR) System Monitor Part 1:

Exhaust Gas Recirculation (EGR) System Monitor Part 2:

PROCEDURE 5

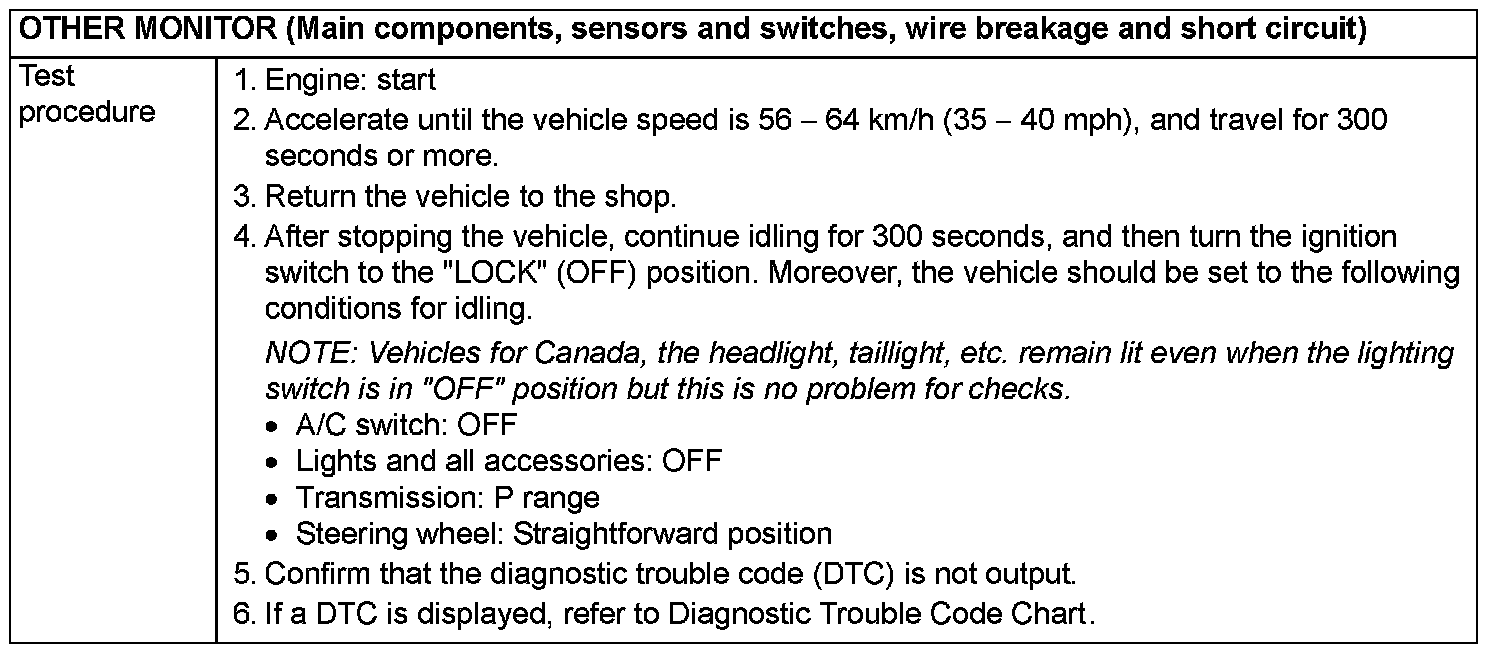

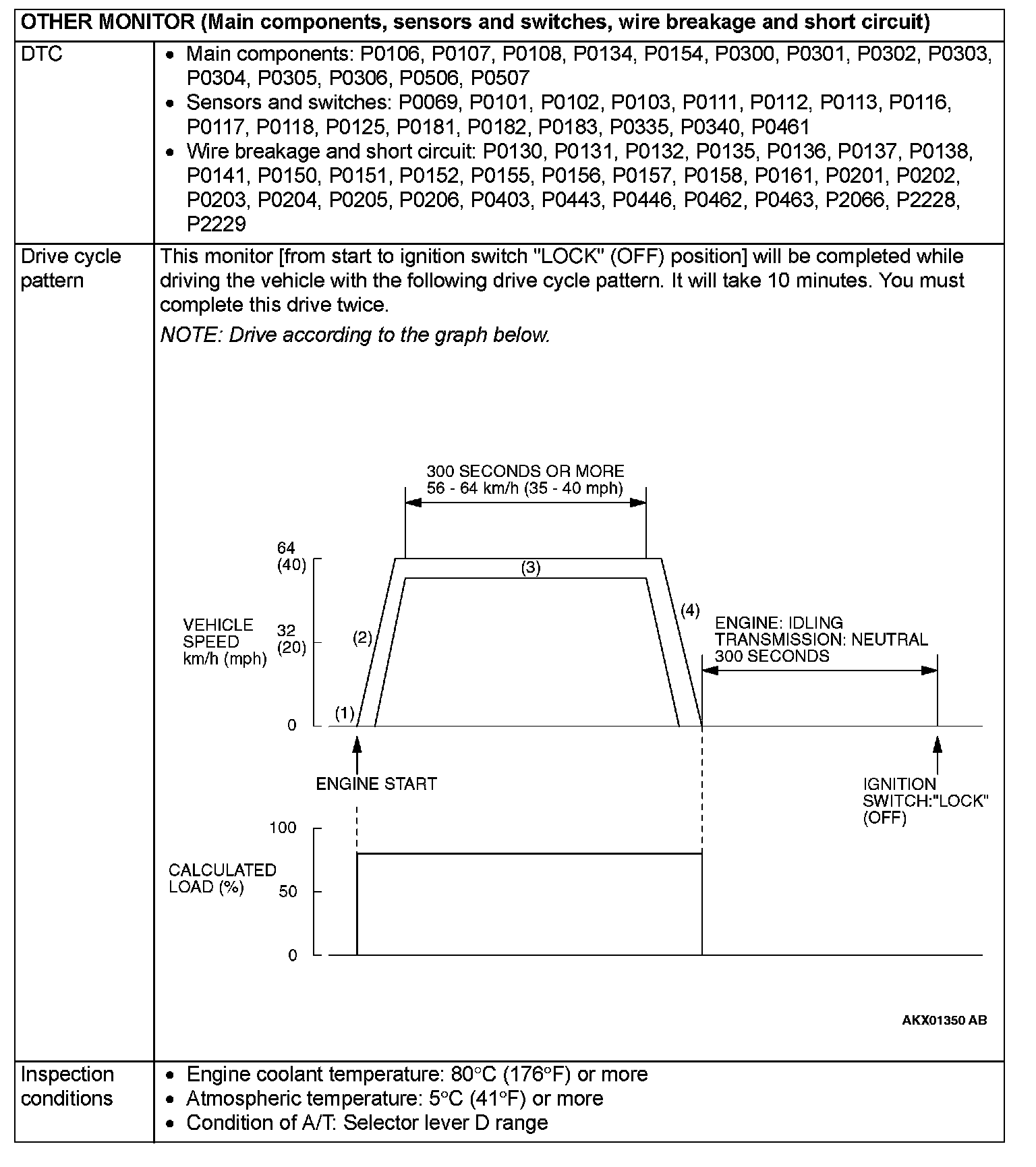

Other Monitor (Main Components, Sensors And Switches, Wire Breakage And Short Circuit) Part 1:

Other Monitor (Main Components, Sensors And Switches, Wire Breakage And Short Circuit) Part 2:

PROCEDURE 6
