Pinout Values and Diagnostic Parameters

CHECK AT ECU TERMINAL

Check At ECU Terminal - ETACS-ECU Part 1:

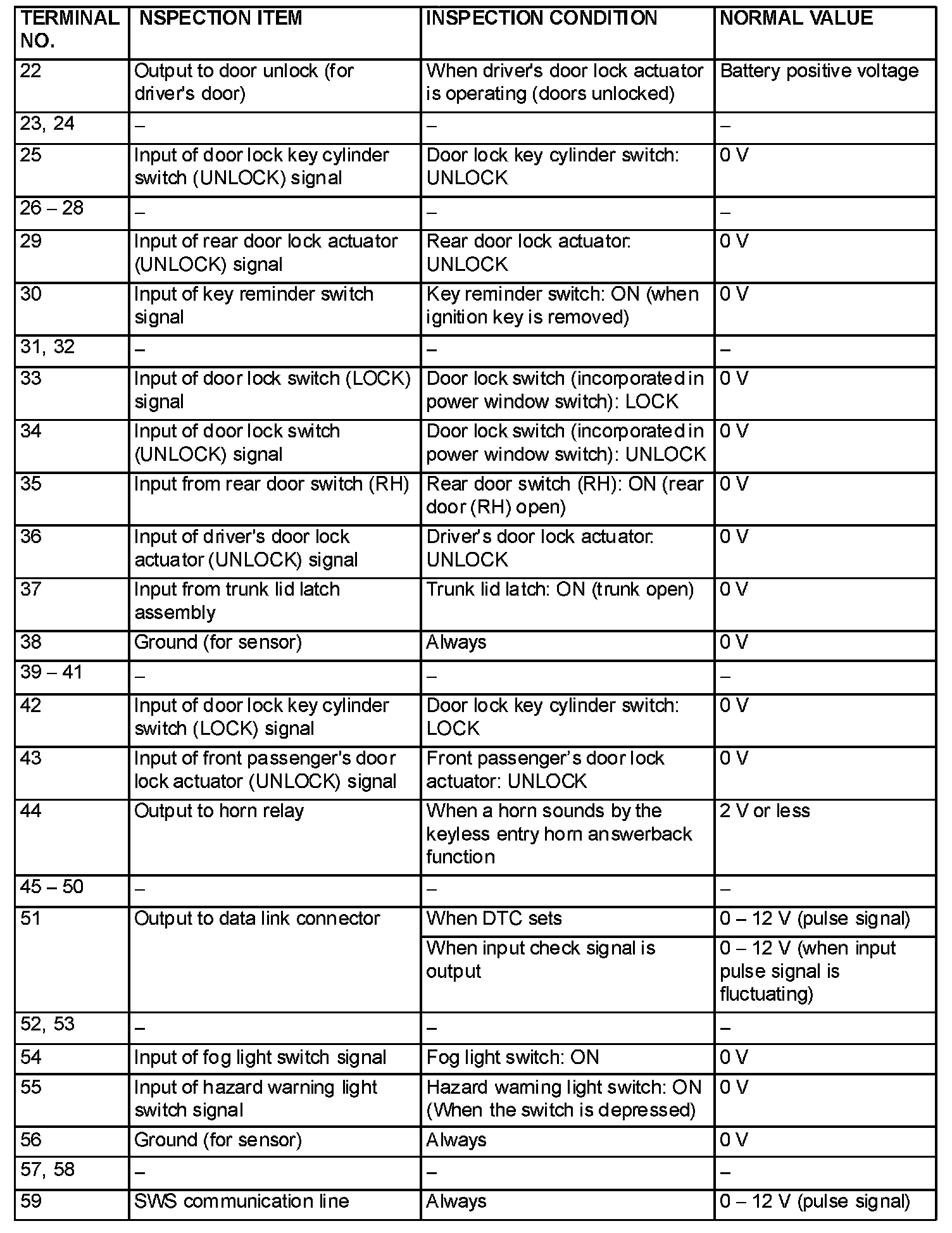

Check At ECU Terminal - ETACS-ECU Part 2:

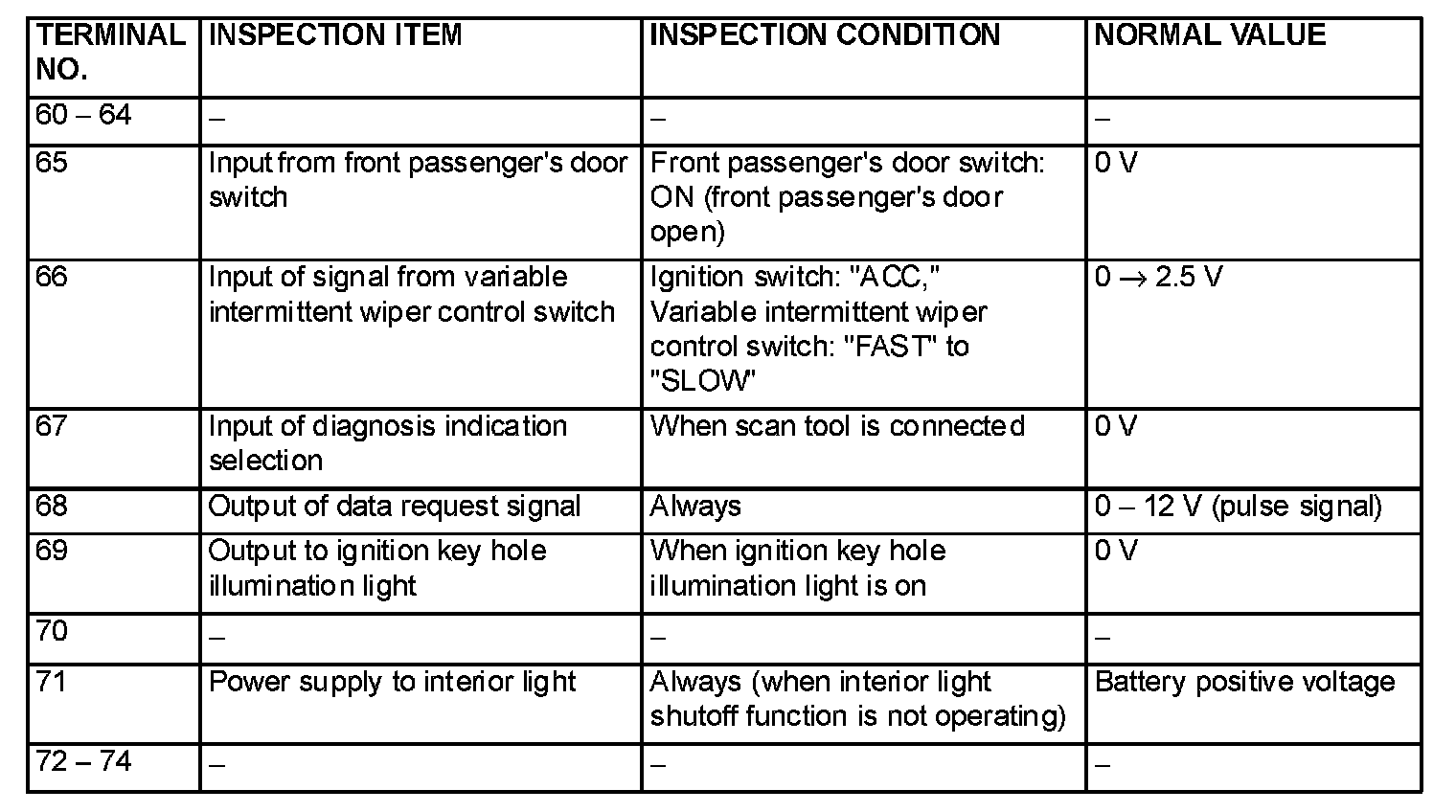

Check At ECU Terminal - ETACS-ECU Part 3:

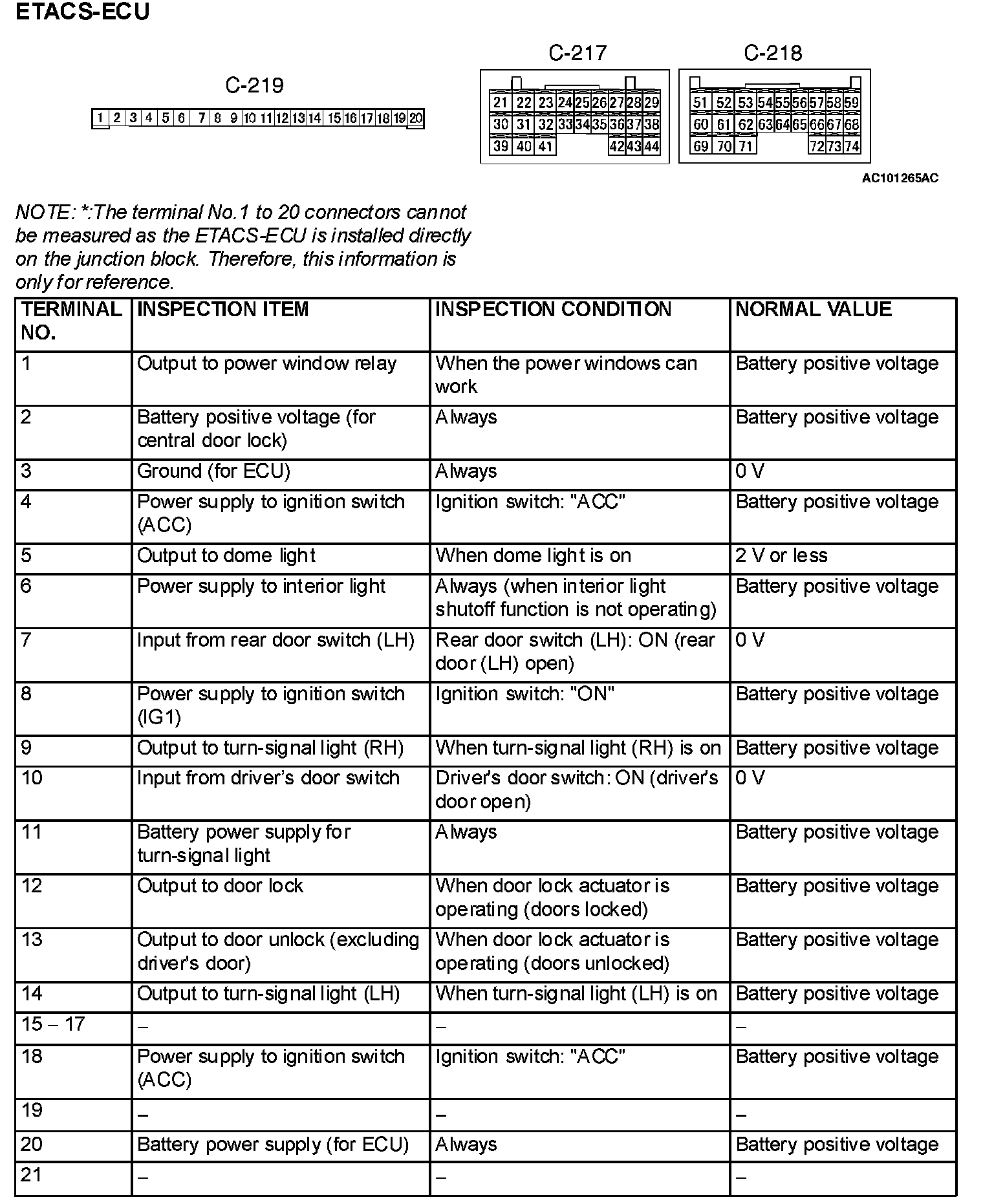

ETACS-ECU

Check At ECU Terminal - Column Switch:

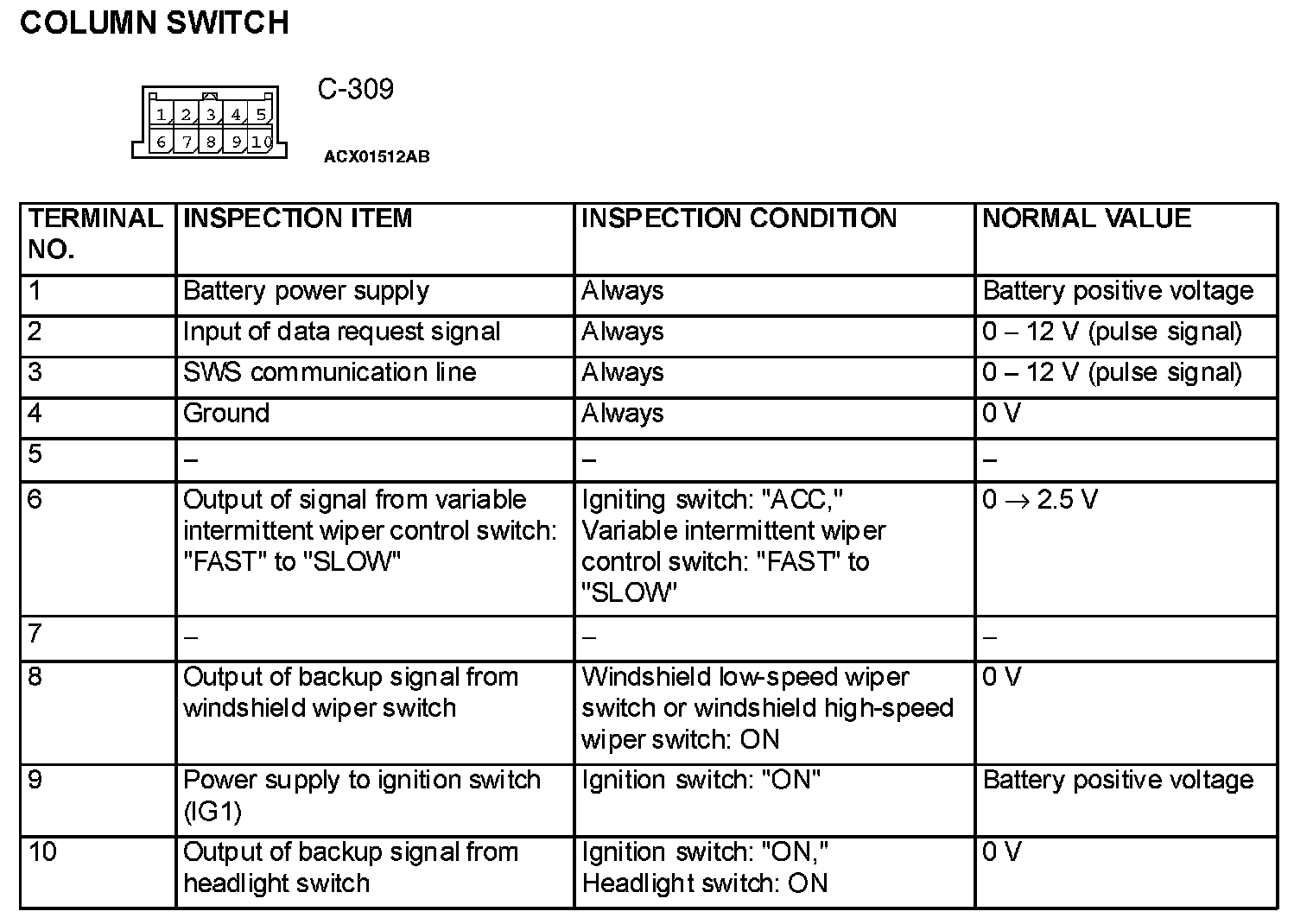

COLUMN SWITCH

Check At ECU Terminal - Front-ECU:

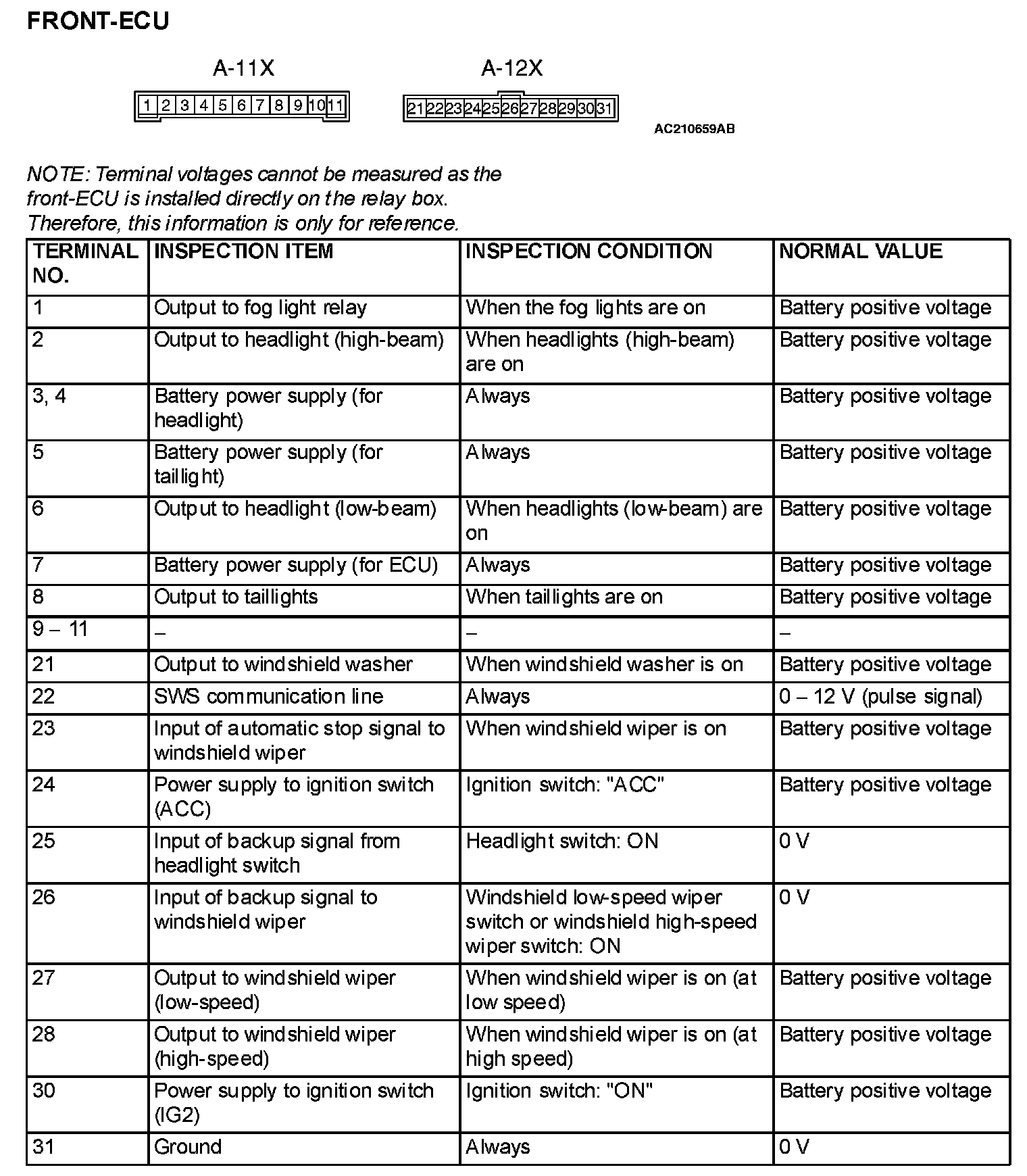

FRONT-ECU

Check At ECU Terminal - Sunroof-ECU:

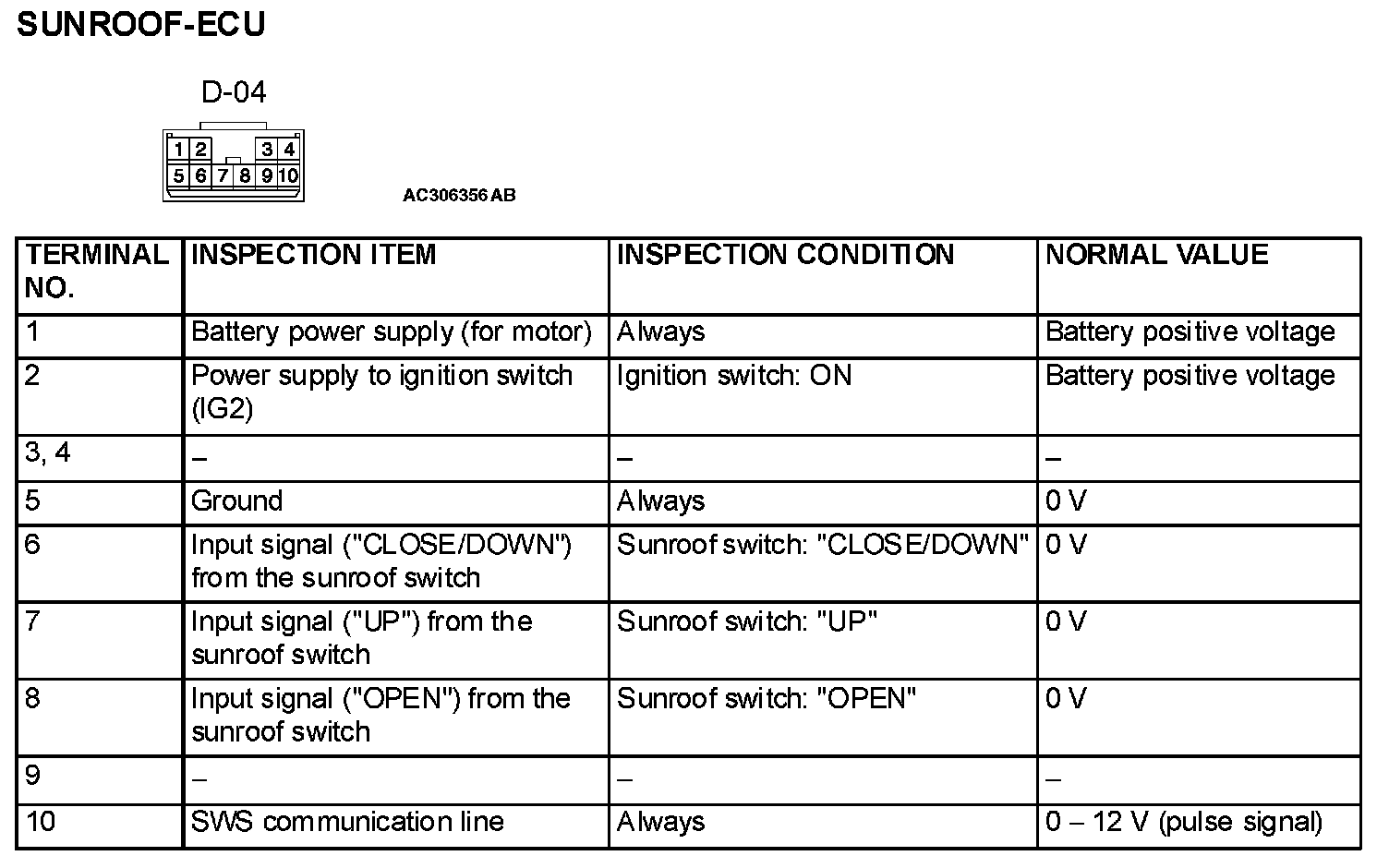

SUNROOF-ECU
