Fluid Pump: Service and Repair
REMOVAL AND INSTALLATION
HYDRAULIC UNIT DISPOSAL
CAUTION:
^ The hydraulic unit has its accumulator filled with a high-pressure gas. Never throw it into a fire. Also, never attempt to disassemble, press, weld or melt it.
^ When drilling a hole in the accumulator, be sure to wear safety goggles since drill chips may blow out together with the gas.

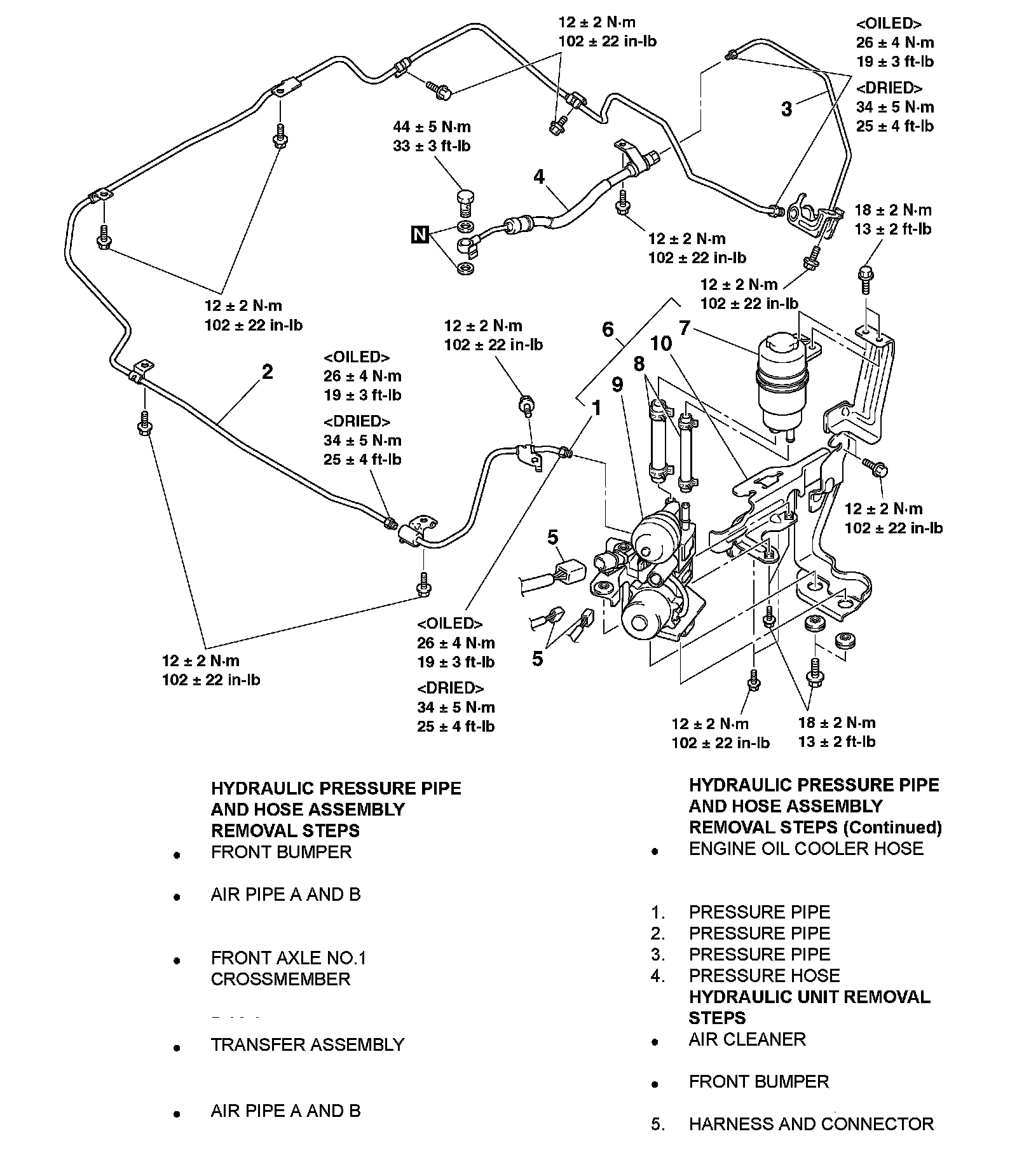

When discarding the hydraulic unit, drill a hole in the accumulator at the illustrated position beforehand in order to release the inside gas.
